RS-150-24 Stabilisiertes Schaltnetzteil

€44,95

Zum Warenkorb hinzufügen

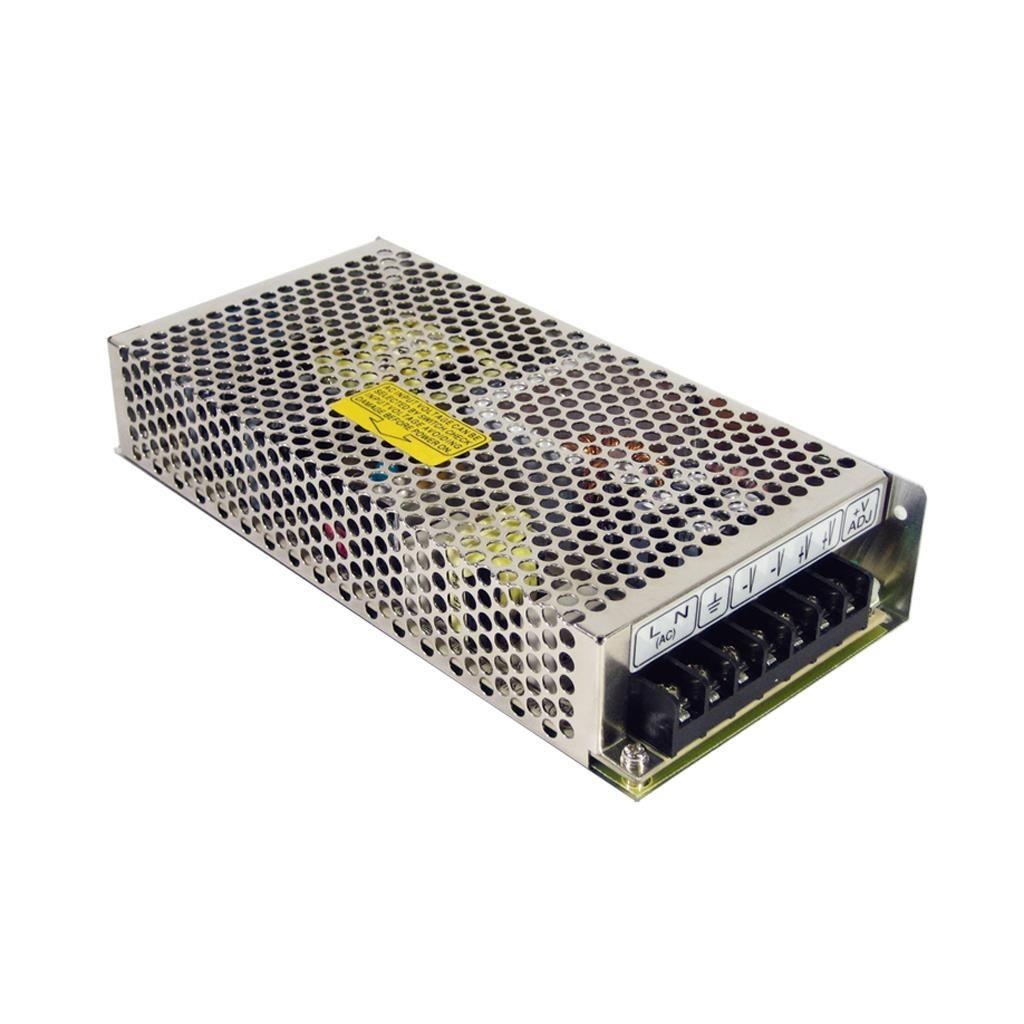

Mean Well RS-150-24 Stabilisiertes Schaltnetzteil

Name: Mean Well RS-150-24 Stabilisiertes Schaltnetzteil
Brand: Mean Well
SKU: RS-150-24
Price: 44.95 EUR
Availability: InStock

0 reviews

Marke: Mean Well

Zeige alle Schaltnetzteile

24V | 150W

37,15 €44,95 € 8 Auf Lager

Wir versenden nach
Jetzt bestellt, morgen versandt
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

The Mean Well RS-150-24 is a versatile and reliable SMPS that is suitable for a variety of applications. It is a good choice for applications where size, weight, and power efficiency are important considerations.

Highlights

150W output power
24V output voltage
6.5A output current
Fixed switching frequency of 90kHz
Small, enclosed package
Variety of safety features

Product details

Mean Well RS-150-24 Switched Mode Power Supply

The RS-150-24 is a small, enclosed power supply that measures just 100 x 60 x 30mm and weighs 0.4kg. It has a fixed switching frequency of 90kHz, which helps to reduce EMI emissions. It also has a number of safety features, including short circuit protection, overvoltage protection, and overload protection.

The RS-150-24 has an output power of 150W and an output voltage of 24V. It can provide an output current of up to 6.5A. The input voltage range is 85-264VAC. The output voltage regulation is +/-2% and the output current regulation is +/-5%. The efficiency is up to 89%. The operating temperature range is -40 to +70 degrees Celsius.

Eigenschaften

Artikelnummer:: RS-150-24
Max Output Power: 156W
Output Voltage (V): 22.8 ~ 26.4V
Output Current (A): 0 ~ 6.5A
Max Output current (A): 6.5A
Efficiency: 0.86
Ripple & noise (max.): 120mVp-p
Mains voltage input: 88 ~ 132VAC / 176 ~ 264VAC (selected by switch) - 248 ~ 373VDC
Protection: Overload / Over Voltage
Tye of cooling: Free air convection
Connector type: Screw terminals
Dimensions (D x W x H): 199*98*38mm
