RS-150-15 Stabilisiertes Schaltnetzteil

€44,95

Zum Warenkorb hinzufügen

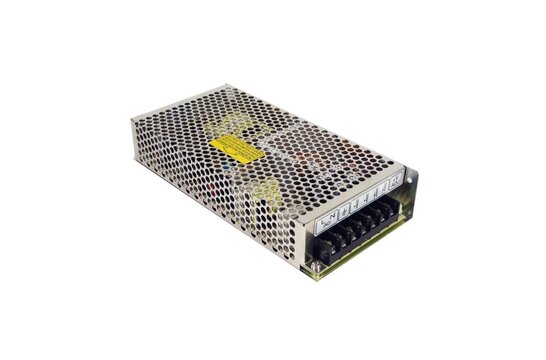

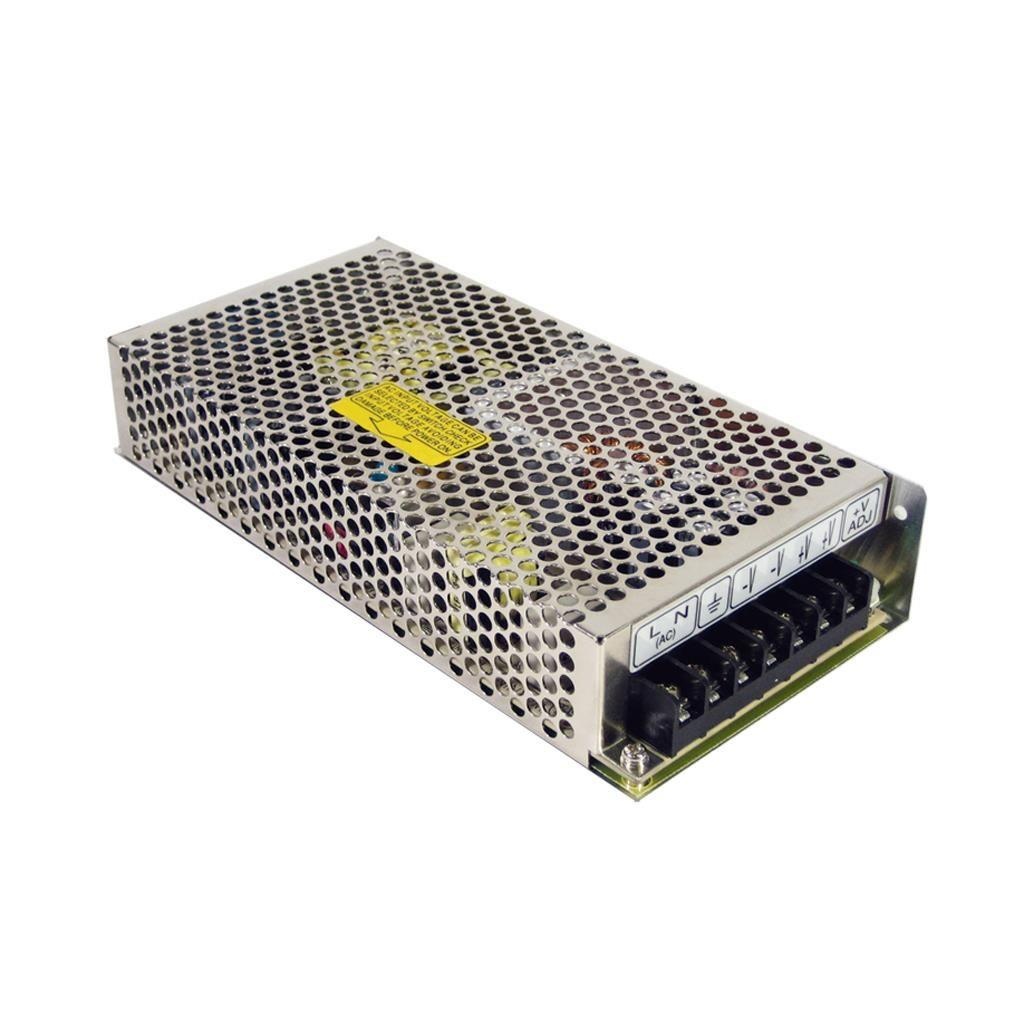

Mean Well RS-150-15 Stabilisiertes Schaltnetzteil

Name: Mean Well RS-150-15 Stabilisiertes Schaltnetzteil
Brand: Mean Well
SKU: RS-150-15
Price: 44.95 EUR
Availability: InStock

0 reviews

Marke: Mean Well

Zeige alle Schaltnetzteile

15V | 150W

37,15 €44,95 € 10 Auf Lager

Wir versenden nach
Jetzt bestellt, am Montag versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

The Mean Well RS-150-15 is a 150W switched-mode power supply (SMPS) that provides a regulated 15V output. It is a compact and lightweight unit that is ideal for a variety of applications, including industrial, commercial, and consumer electronics.

Highlights

150W output power
Regulated 15V output
High efficiency of up to 90%
Wide input voltage range of 90-264VAC
Overvoltage protection
Undervoltage protection
Short circuit protection
Thermal shutdown function
Compact and lightweight design
Easy to use and install

Product details

Mean Well RS-150-15 Switched Mode Power Supply

The RS-150-15 features a high efficiency of up to 90%, which helps to reduce power consumption and heat dissipation. It also has a wide input voltage range of 90-264VAC, making it compatible with a variety of power sources.

The RS-150-15 is equipped with a variety of safety features, including overvoltage protection, undervoltage protection, and short circuit protection. It also has a built-in thermal shutdown function that protects the unit from overheating.

Eigenschaften

Artikelnummer:: RS-150-15
Max Output Power: 150W
Output Voltage (V): 14.25 ~ 16.5V
Output Current (A): 0 ~ 10A
Max Output current (A): 10A
Efficiency: 0.84
Ripple & noise (max.): 120mVp-p
Mains voltage input: 88 ~ 132VAC / 176 ~ 264VAC (selected by switch) - 248 ~ 373VDC
Protection: Overload / Over Voltage
Tye of cooling: Free air convection
Connector type: Screw terminals
Dimensions (D x W x H): 199*98*38mm
