      RS-15-15 Stabilisiertes Schaltnetzteil

      RS-15-15 Stabilisiertes Schaltnetzteil

      €14,95

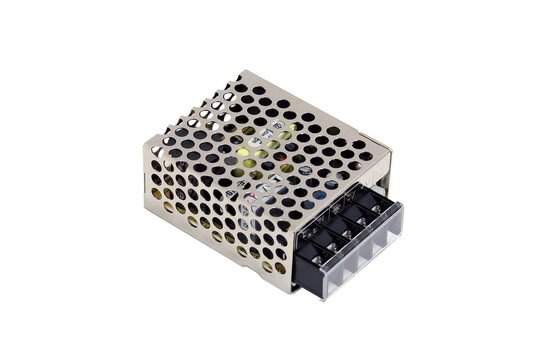

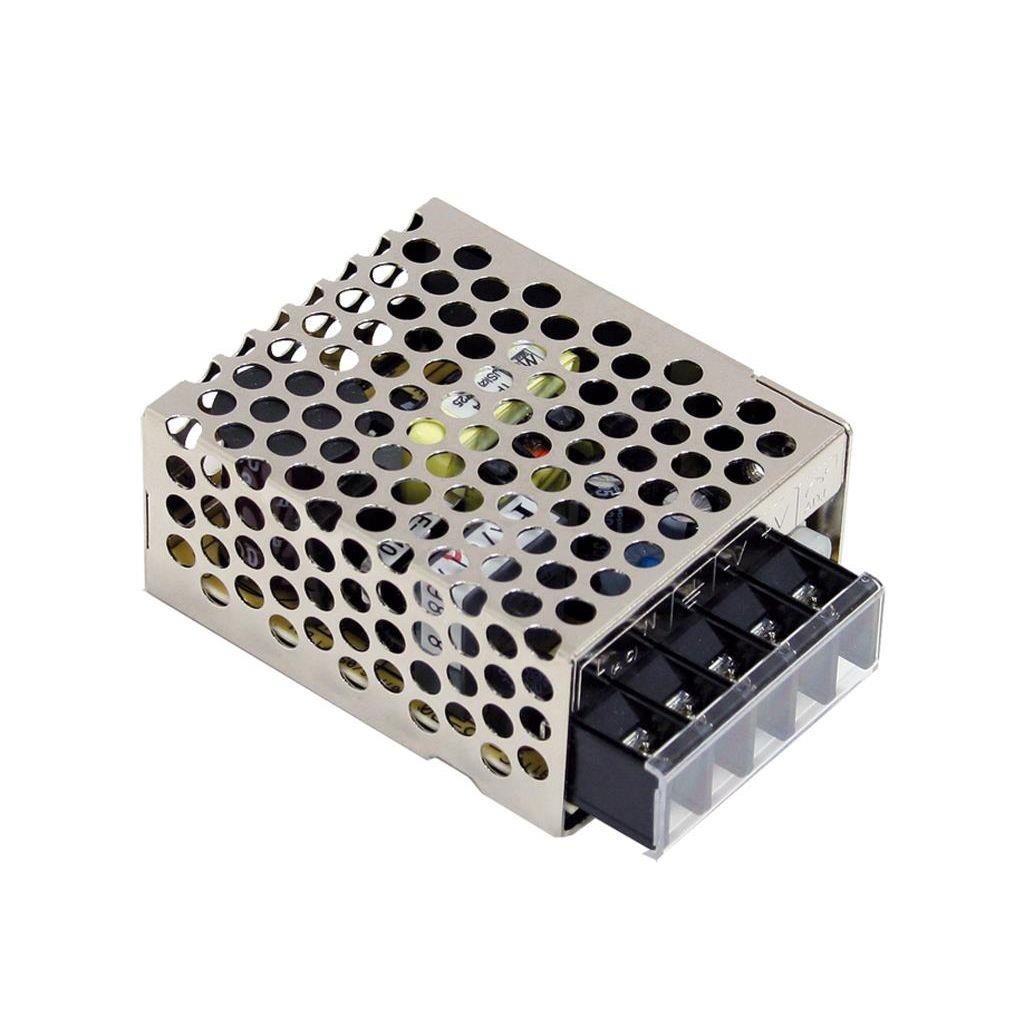

      Mean Well RS-15-15 Stabilisiertes Schaltnetzteil

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Mean Well
      12,36 €14,95 € 12 Auf Lager
      • -5% Bestelle 4 für nur 14,20 je Stück

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Produktbeschreibung

      The Mean Well RS-15-15 Switched Mode Power Supply is a compact and lightweight power supply that is easy to install and use. It is a switched-mode power supply (SMPS) that provides a regulated 15V output at up to 15A.



      Highlights

      • Regulated 15V output at up to 15A
      • Compact and lightweight design
      • Wide input voltage range (85-264VAC)
      • Multiple mounting options
      • Built-in safety protections
      • Thermal shutdown



      Product details

      Mean Well RS-15-15 Switched Mode Power Supply



      The RS-15-15 features a number of safety protections, including overvoltage protection, undervoltage protection, overcurrent protection, and short circuit protection. It also has a built-in thermal shutdown to prevent it from overheating.



      The RS-15-15 is available in a variety of mounting options, including DIN rail, panel mount, and through hole. It is also available with a variety of input voltages, making it compatible with a wide range of power sources.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      RS-15-15
      Max Output Power
      15W
      Output Voltage (V)
      13.5 ~ 16.5V
      Output Current (A)
      0 ~ 1A
      Max Output current (A)
      1A
      Efficiency
      0.81
      Ripple & noise (max.)
      120mVp-p
      Mains voltage input
      85 ~ 264VAC - 120 ~ 370VDC
      Protection
      Overload / Over Voltage / Over temperature
      Tye of cooling
      Free air convection
      Connector type
      Screw terminals
      Stand-by consumption
      < 0.5 W
      Dimensions (D x W x H)
      62.5*51*28mm
