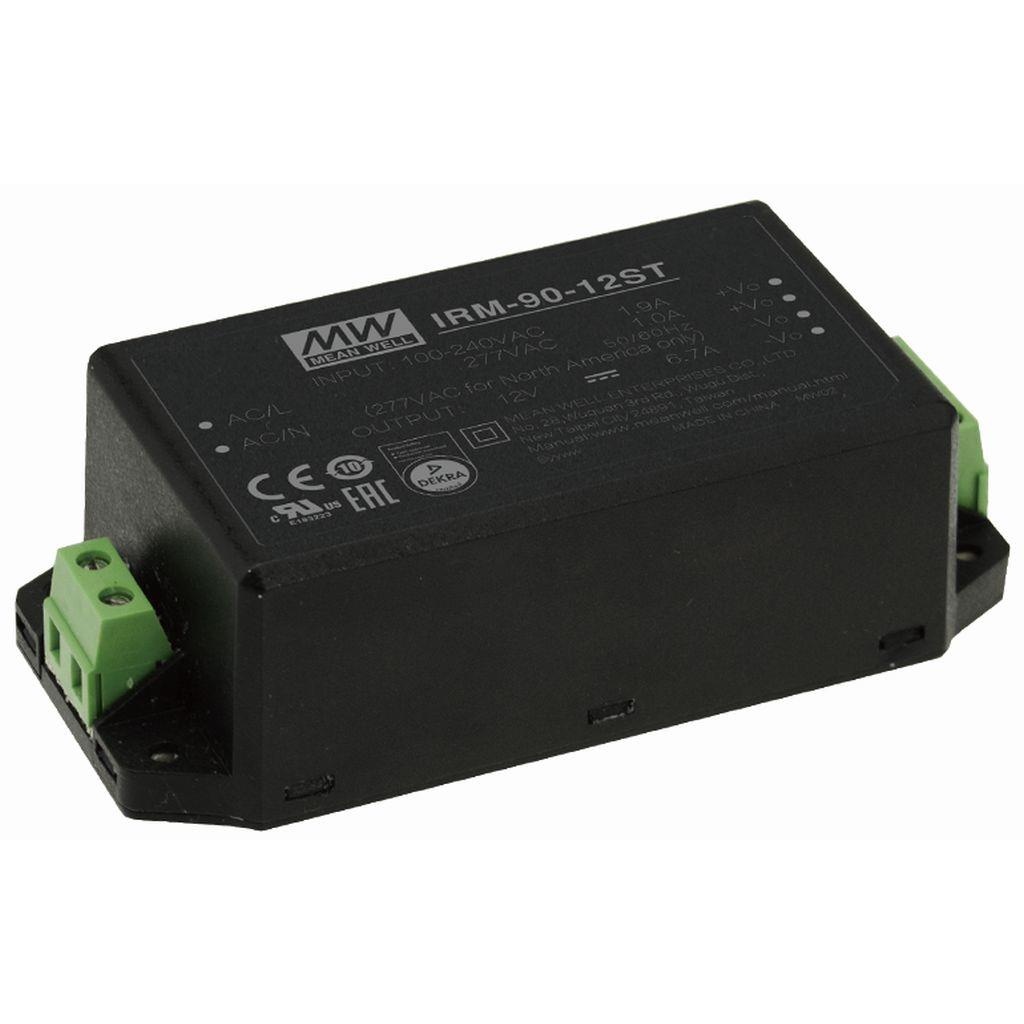

IRM-90-12ST Stabilisiertes Schaltnetzteil with Screw Terminal

€39,95

Zum Warenkorb hinzufügen

Mean Well IRM-90-12ST Stabilisiertes Schaltnetzteil with Screw Terminal

Name: Mean Well IRM-90-12ST Stabilisiertes Schaltnetzteil with Screw Terminal
Brand: Mean Well
SKU: IRM-90-12ST
Price: 39.95 EUR
Availability: InStock

0 reviews

Marke: Mean Well

Zeige alle Neue Produkte

12V | 90W

IRM-90-12ST Stabilisiertes Schaltnetzteil with Screw Terminal

33,02 €39,95 € 10 Auf Lager

Wir versenden nach
Jetzt bestellt, am Montag versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

The IRM-90-12ST is a 90W AC-DC power supply module from Mean Well. It has a single output of 12Vdc at 7.37A. The power supply is encased in a miniature, screw terminal style package. It is suitable for a variety of applications, including Internet of Things (IoT), handheld instruments, communication equipment, and household appliances.

Highlights

Output voltage: 12Vdc
Output current: 7.37A
Input voltage range: 85-264VAC
Efficiency: up to 90%
Operating temperature: -40 to 70°C
Protection features: overvoltage, overcurrent, undervoltage, short circuit, and thermal shutdown

Product details

Mean Well IRM-90-12ST Switched Mode Power Supply

The IRM-90-12ST is a 90W miniature AC/DC PCB-mount module type power supply that is designed to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. It has a universal input voltage range of 80Vac to 305Vac and a no-load power consumption of 0.21W. It is cooled by free air convection and has a 12V output and a maximum output current of 6.7A.

The IRM series features onboard modules that offer a compact size and low load power consumption at standby mode. Extremely low (<0.1W / <0.075W) no-load power consumption allows designers to easily conform to the requirements of the Energy-related Products (ErP) directive and EISA.
