      IRM-15-5 Stabilisiertes Schaltnetzteil

      IRM-15-5 Stabilisiertes Schaltnetzteil

      €14,95

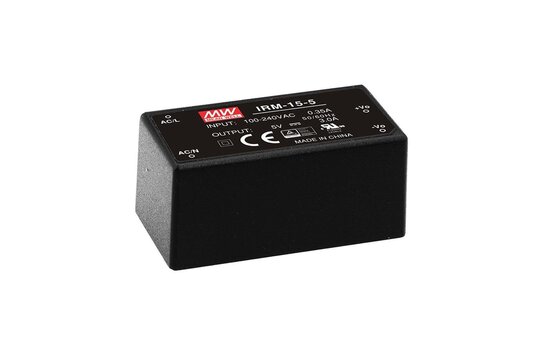

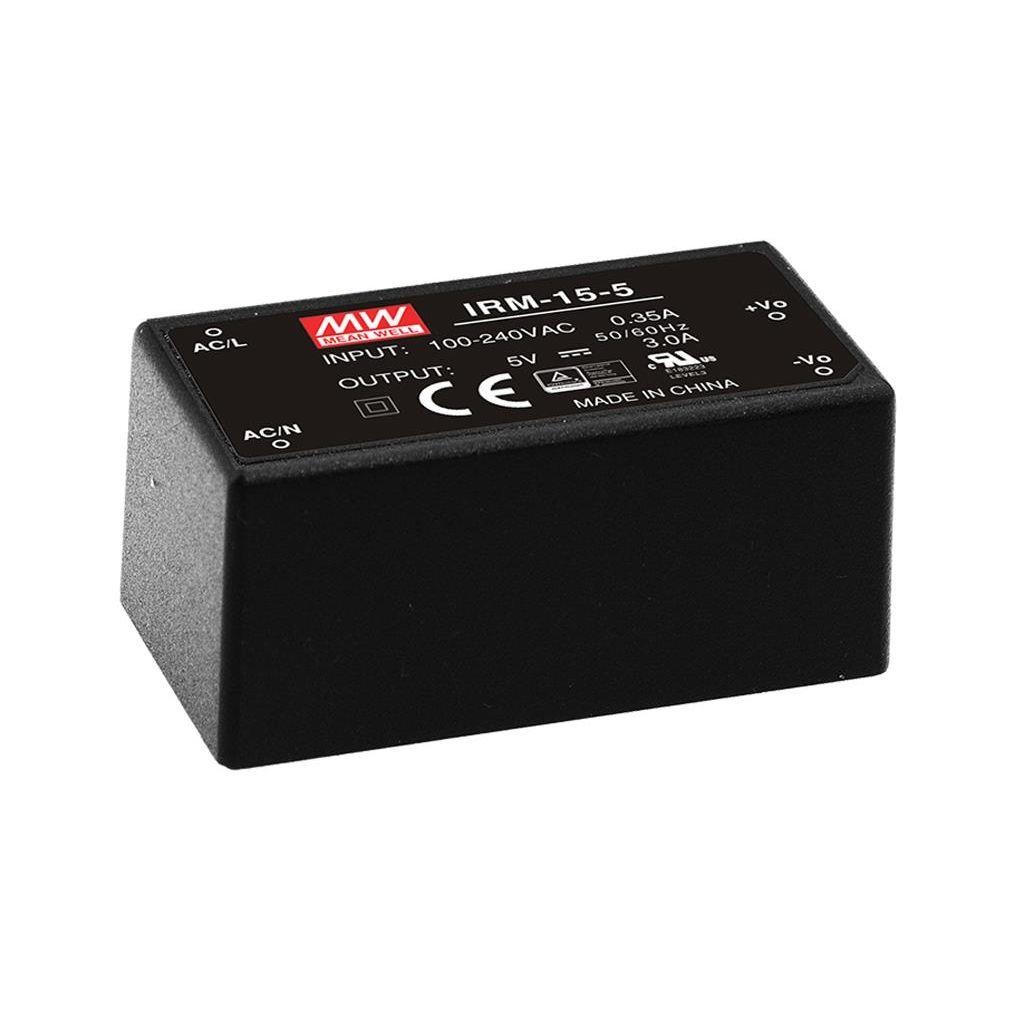

      Mean Well IRM-15-5 Stabilisiertes Schaltnetzteil

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Mean Well
      12,36 €14,95 € 9 Auf Lager
      • -5% Bestelle 4 für nur 14,20 je Stück

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Produktbeschreibung

      The Mean Well IRM-15-5 is a high-efficiency, reliable, and compact switched-mode power supply that is ideal for a wide range of applications. It features a fixed output voltage of 5.0V and a maximum output current of 15.0A, making it a versatile power supply that can be used to power a variety of devices.



      Highlights

      • Fixed output voltage of 5.0V
      • Maximum output current of 15.0A
      • Power efficiency of up to 90%
      • Typical MTBF of 100,000 hours
      • Compact and lightweight design
      • Wide input voltage range of 85 to 264VAC
      • Overvoltage protection, undervoltage protection, and short-circuit protection



      Product details

      Mean Well IRM-15-5 Switched Mode Power Supply



      The IRM-15-5 is also very efficient, with a power efficiency of up to 90%. This means that it wastes less energy. It is also very reliable, with a typical MTBF of 100,000 hours. This means that it is unlikely to fail, even with long-term use.



      The IRM-15-5 is also very compact and lightweight, measuring just 100 x 55 x 25mm (L x W x H). This makes it easy to install and use, even in tight spaces. It also has a wide input voltage range of 85 to 264VAC, making it suitable for use in a variety of power environments.



      In addition to the features mentioned above, the IRM-15-5 also has a number of safety features, including overvoltage protection, undervoltage protection, and short-circuit protection. These features help to ensure the safety of your devices and the power supply itself.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      IRM-15-5
      Max Output Power
      15W
      Output Voltage (V)
      5V
      Output Current (A)
      0 ~ 3A
      Max Output current (A)
      3A
      Efficiency
      0.78
      Ripple & noise (max.)
      200mVp-p
      Mains voltage input
      85 ~ 264VAC - 120 ~ 370VDC
      Protection
      Overload / Over Voltage
      Tye of cooling
      Free air convection
      Connector type
      PCB mounting style
      Stand-by consumption
      < 0.1 W
      Dimensions (D x W x H)
      52.4*27.2*24mm

      Mehr anzeigen
