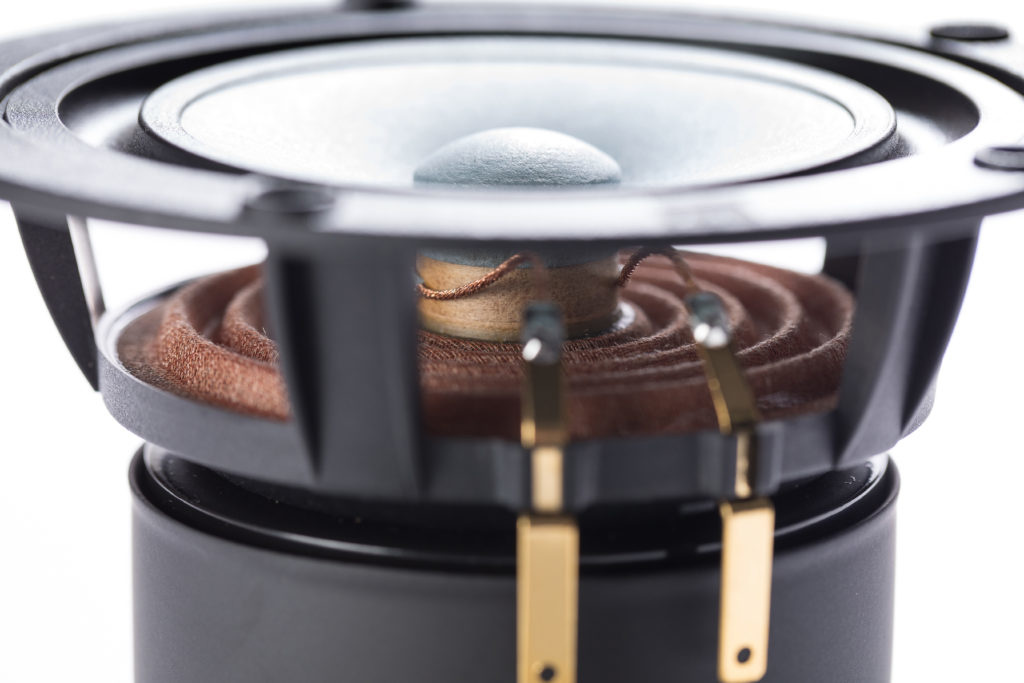

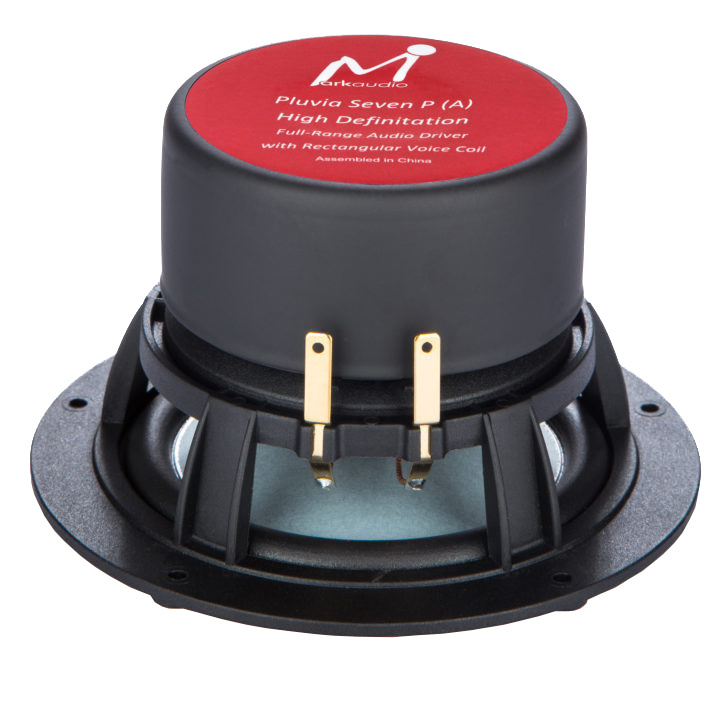

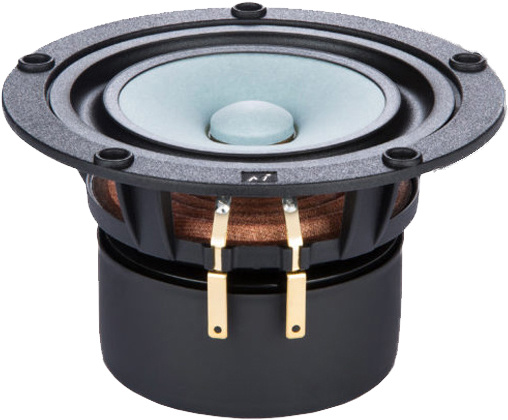

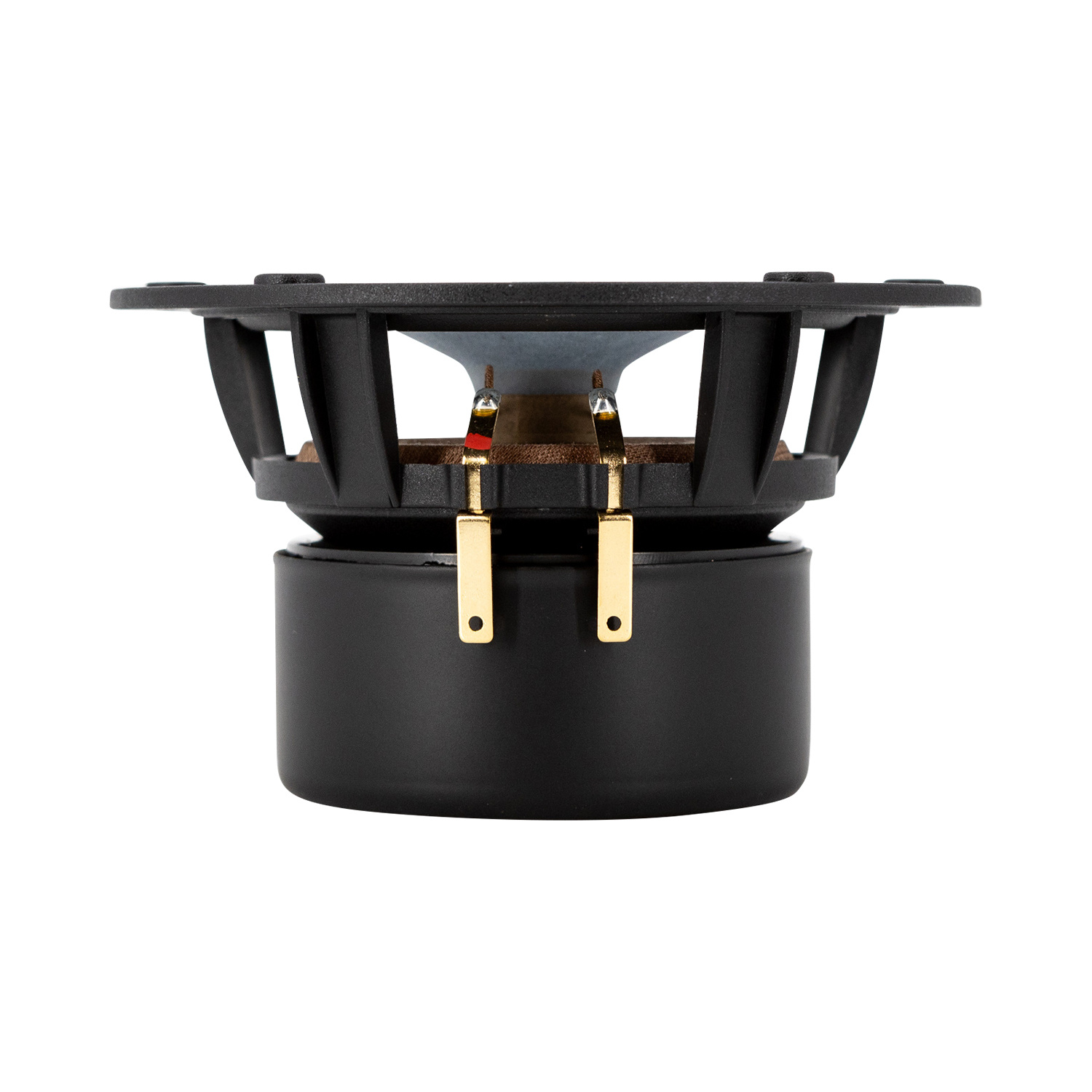

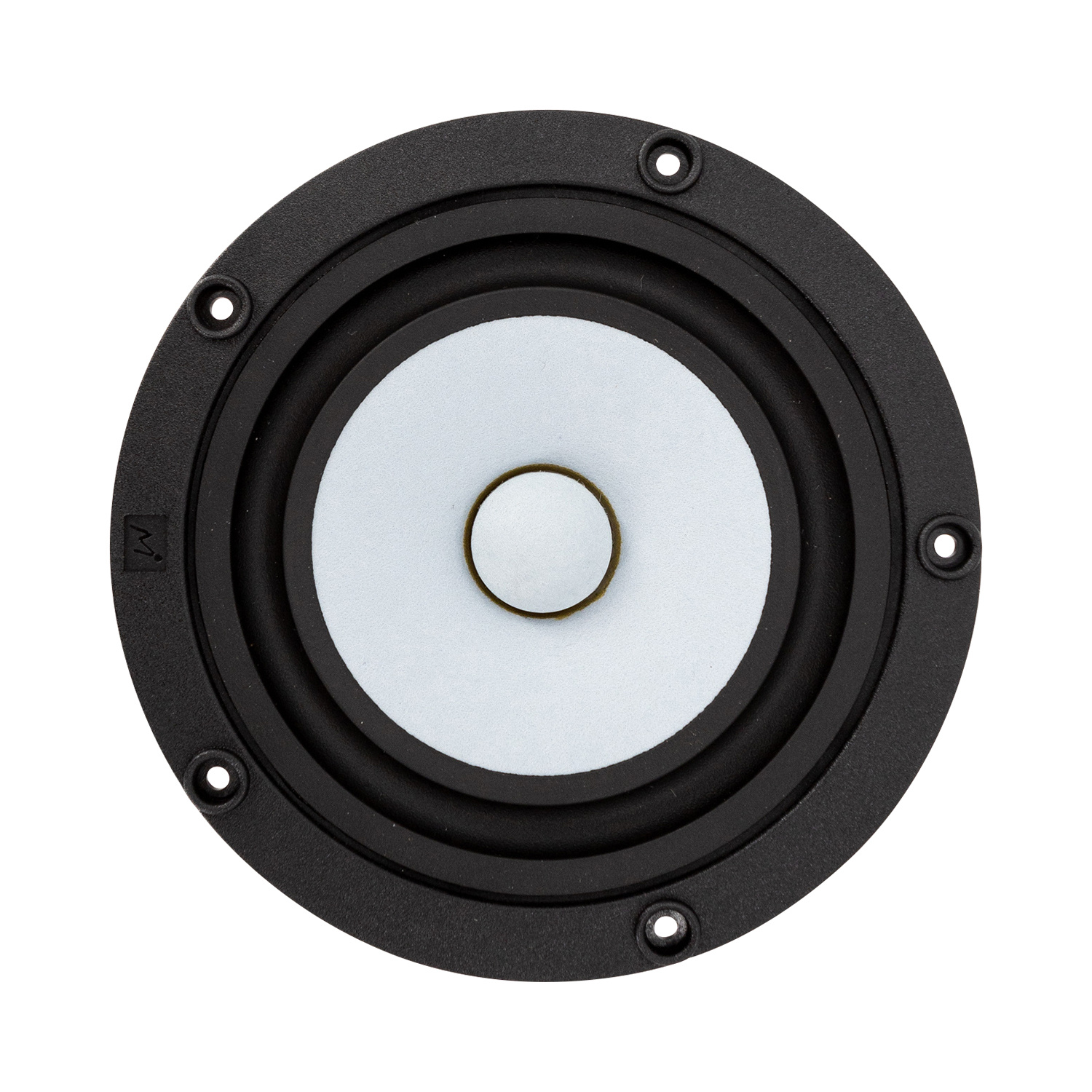

Markaudio PLUVIA-7PHD Full-range Woofer

€ 43,35€ 52,45 >10 Auf Lager: Lieferzeit: 1-2 Werktage
The new paper-cone Pluvia 7 PHD was developed with the attractive paper cone, unique suspension, and low-mass coil which is wound in high-purity rectangular section copper.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €49,83 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The new paper-cone Pluvia 7 PHD was developed with the attractive paper cone, unique suspension and low-mass coil which is wound in high-purity rectangular section copper. The Thiele / Small characteristics are engineered to allow surprising bass performance from a compact drive unit.



Highlights

  • Latest-model
  • Blue 4’’ natural uncoated paper cone
  • Wide operating range –rolled off high frequencies for vintage tone
  • Low cone profile –very broad directivity pattern
  • Advanced low-distortion motor design
  • Long-stroke suspension with excursion arrestor and progressive-rate spider
  • Low-profile surface-mount reinforced polymer basket



Product details

Markaudio Pluvia 7 PHD Full-range Woofer



The new paper-cone Pluvia seven PHD was developed due to requests from the DIY audio community for a return of paper cone drivers to the latest Markaudio drivers. Its response balance was carefully engineered to provide a shelved down treble and emphasized upper midrange output to address specific requests.



The attractive paper cone, suspension, and low-mass coil, wound in high-purity rectangular section copper are unique to this model, and the Thiele / Small characteristics engineered to allow surprising bass performance from a compact drive unit. The frame is the familiar, high-quality Pluvia design, which may be conveniently surface or flush-mounted, and has a very open design, allowing good air-flow to the rear of the cone.



The sound balance is warm, with emphasized upper midrange, and soft treble. Jazz followers in Asia played a role in the final tuning of this driver. Those enthusiasts into vintage and mono recordings using warm tube (valve) amplification may have a particular interest in this driver.

Eigenschaften

Artikelnummer:
PLUVIA-7PHD
Woofer Series
Pluvia series
Woofer Type
Full-Range Woofer
Nominal Diameter
4''
Power Handling (RMS)
15 Watts
Impedance
8 Ohms
Sensitivity
87 dB 1W/m
Frequency Response
60-30,000 Hz
DC Resistance (Re)
3.5 Ohms
Voice Coil Inductance (Le)
0.0274 mH
Resonant Frequency (Fs)
77.79 Hz
Mechanical Q (Qms)
2.7968
Electromagnetic Q (Qes)
0.6623
Total Q (Qts)
0.5355
Diaphragm Mass Inc. Airload (Mms)
3.2888 g
Mechanical Compliance of Suspension (Cms)
1.2728 mm/N
Surface Area of Cone (Sd)
50 cm²
BL Product (BL)
2.9146
Compliance Equivalent Volume (Vas)
4.4905
Maximum Linear Excursion (Xmax)
4 mm (mechanical)
Cone / Diaphragm Material
Uncoated paper
Surround Material
Rubber
Basket / Frame Material
Cast aluminum
Magnet Material
Ferrite
Overall Outside Diameter
122 mm
Baffle Cutout Diameter
100 mm
Bolt Circle Diameter
112 mm
# Mounting Holes
5
Mounting Hole Diameter
3.1 mm
