Markaudio PLUVIA-7HD Chrome Full-range Woofer Soft Chrome

€ 43,35€ 52,45 >10 Auf Lager: Lieferzeit: 1-2 Werktage
The second-generation Pluvia 7HD is designed to supersede our original Alpair 7 series drive units.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €49,83 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The second-generation Pluvia 7HD is designed to supersede our original Alpair 7 series drive units. It employs many of the same components, and has a very similar balance of frequency response and Thiele / Small values to the old Alpair model, packaged in the more efficient and convenient Pluvia frame.



Highlights

  • Vintage Gold 4’’ magnesium alloy cone
  • Operating range to 30KHz - very linear response
  • Very shallow multiform cone profile – very broad directivity pattern
  • Advanced low-distortion motor design
  • Long-stroke suspension with arrestor and progressive-rate spider
  • Low-profile surface-mount reinforced polymer basket



Product details

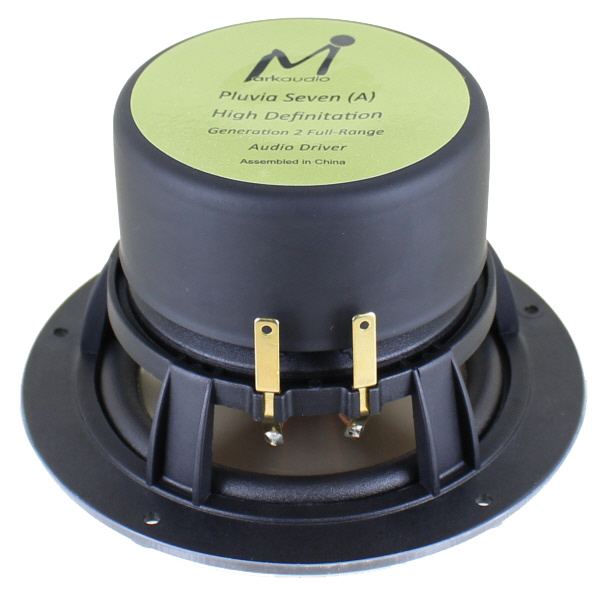

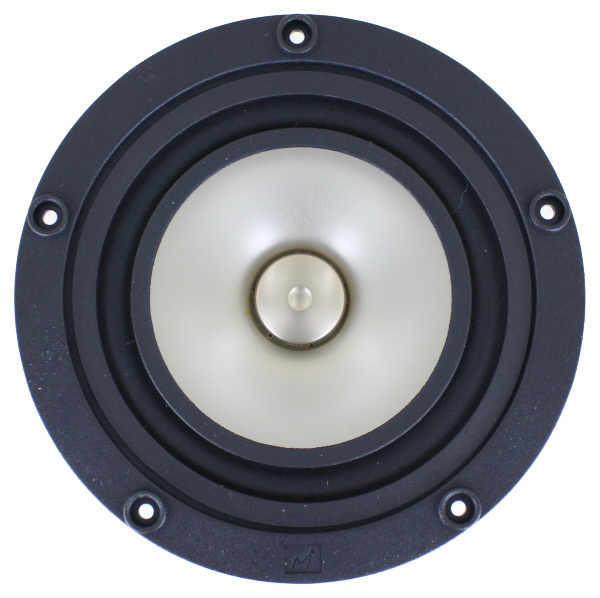

Markaudio Pluvia 7 HD Chrome Full-range Woofer



The second-generation Pluvia 7HD is designed to supersede our original Alpair 7 series drive units. It employs many of the same components and has a very similar balance of frequency response and Thiele / Small values to the old Alpair model, packaged in the more efficient and convenient Pluvia frame. With a mounting depth of less than 4mm, the Pluvia may be surface or flush-mounted, and the design of the mounting legs is very open, allowing good airflow to the rear.



The low-mass coil, suspension, and shallow-profile cone are highly efficient. Frequency response extends beyond 30KHz, and the generous 4mm (1-way) Xmax and conveniently balanced T/S parameters allow 40Hz bass output in suitable enclosure designs. The sound character is neutral and highly detailed, with excellent off-axis performance. It is an extremely flexible drive unit for music, small HT and commercial AV applications, and offers exceptional performance at an affordable price point.

Eigenschaften

Artikelnummer:
PLUVIA-7HD Chrome
Woofer Series
Pluvia series
Woofer Type
Full-Range Woofer
Nominal Diameter
4''
Power Handling (RMS)
20 Watts
Impedance
8 Ohms
Sensitivity
85.7419 dB 1W/m
Frequency Response
20 - 40,000 Hz
DC Resistance (Re)
5.4000 Ohms
Voice Coil Inductance (Le)
0.1652 mH
Resonant Frequency (Fs)
72.5494 Hz
Mechanical Q (Qms)
3.1446
Electromagnetic Q (Qes)
0.7173
Total Q (Qts)
0.584
Diaphragm Mass Inc. Airload (Mms)
3.8390 g
Moving Mass Of Diaphragm (Mmd)
3.6373 g
Mechanical Compliance of Suspension (Cms)
1.2536 mm/N
Surface Area of Cone (Sd)
0.0050 m2
BL Product (BL)
3.6297
Compliance Equivalent Volume (Vas)
4.4227 L
Maximum Linear Excursion (Xmax)
+/- 4 mm
Cone / Diaphragm Material
Magnesium alloy
Surround Material
Rubber
Basket / Frame Material
Polymer
Magnet Material
Ferrite
Overall Outside Diameter
122.3 mm
Overall Depth
71.5 mm
Baffle Cutout Diameter
100 mm
Bolt Circle Diameter
112 mm
# Mounting Holes
5
Mounting Hole Diameter
5 - 3.1 mm

Bewertungen

5 from 5Based on 2 reviews
Produkt bewerten
4 van 5
Gut.
Durch Alfredo A. on 4 Juli 2020
5 van 5
Wie alle Markaudio-Treiber sind auch diese Breitbänder excellent und fast auf gleichem Niveau wie die Alpairs, welche geringsfügig feiner/sauberer auflösen.
Die Unterschiede sind aber wirklich nur marginal...wer also etwas Geld sparen möchte, liegt hier genau richtig !
Durch Kai L. on 27 Januar 2020
