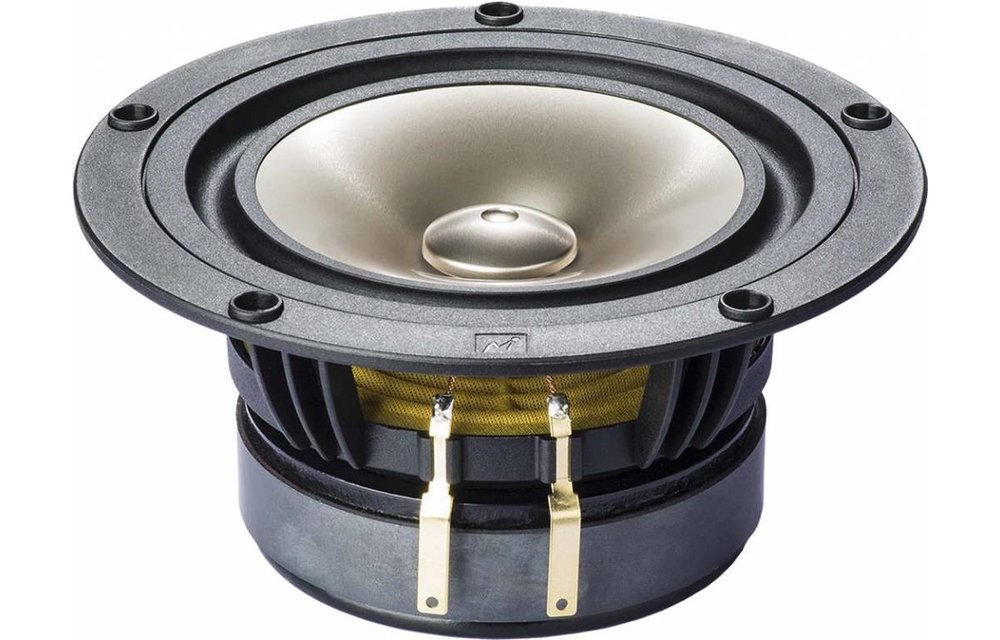

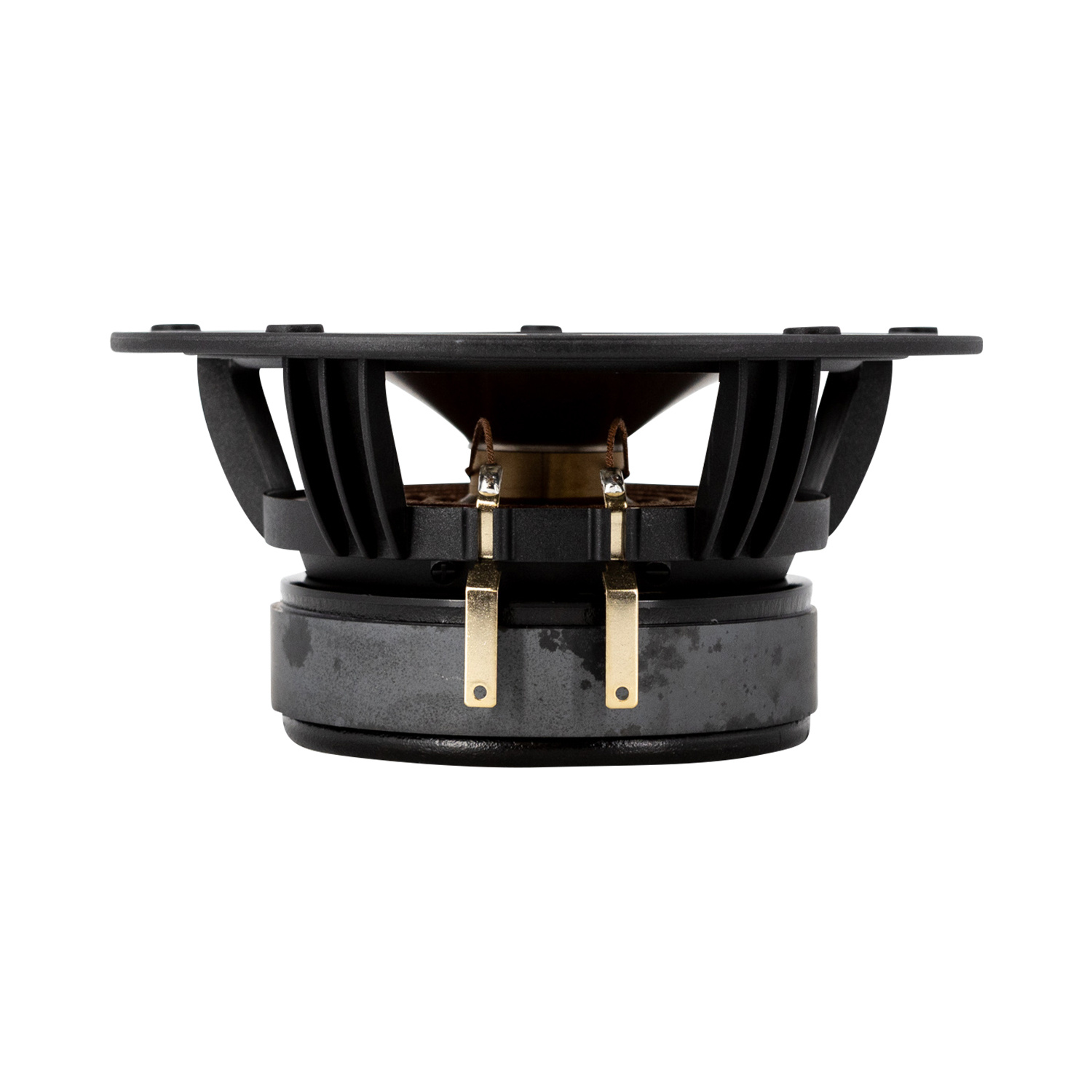

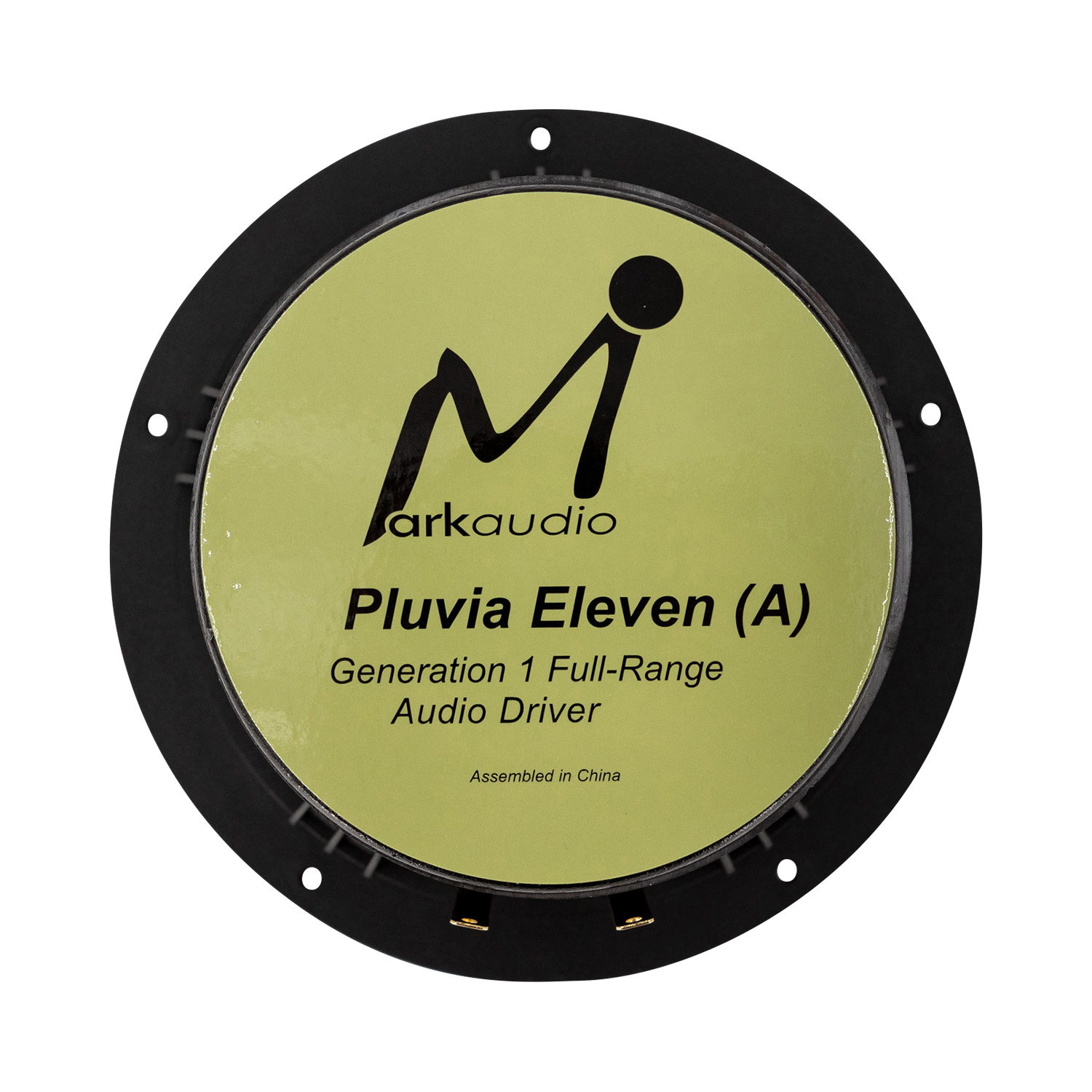

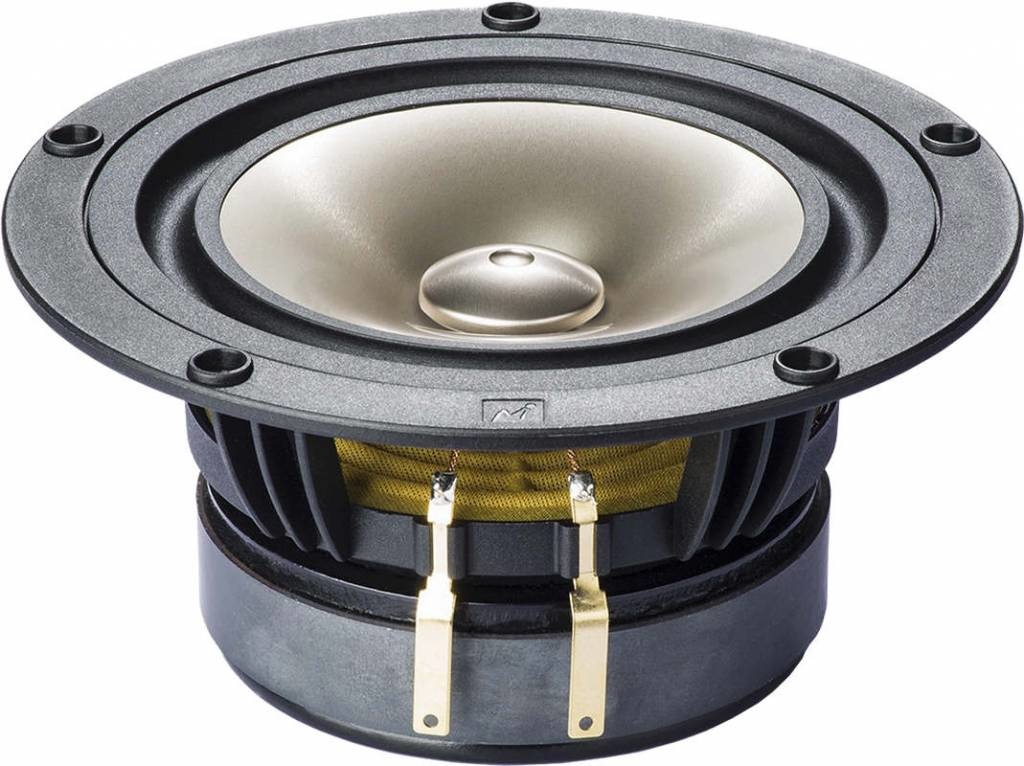

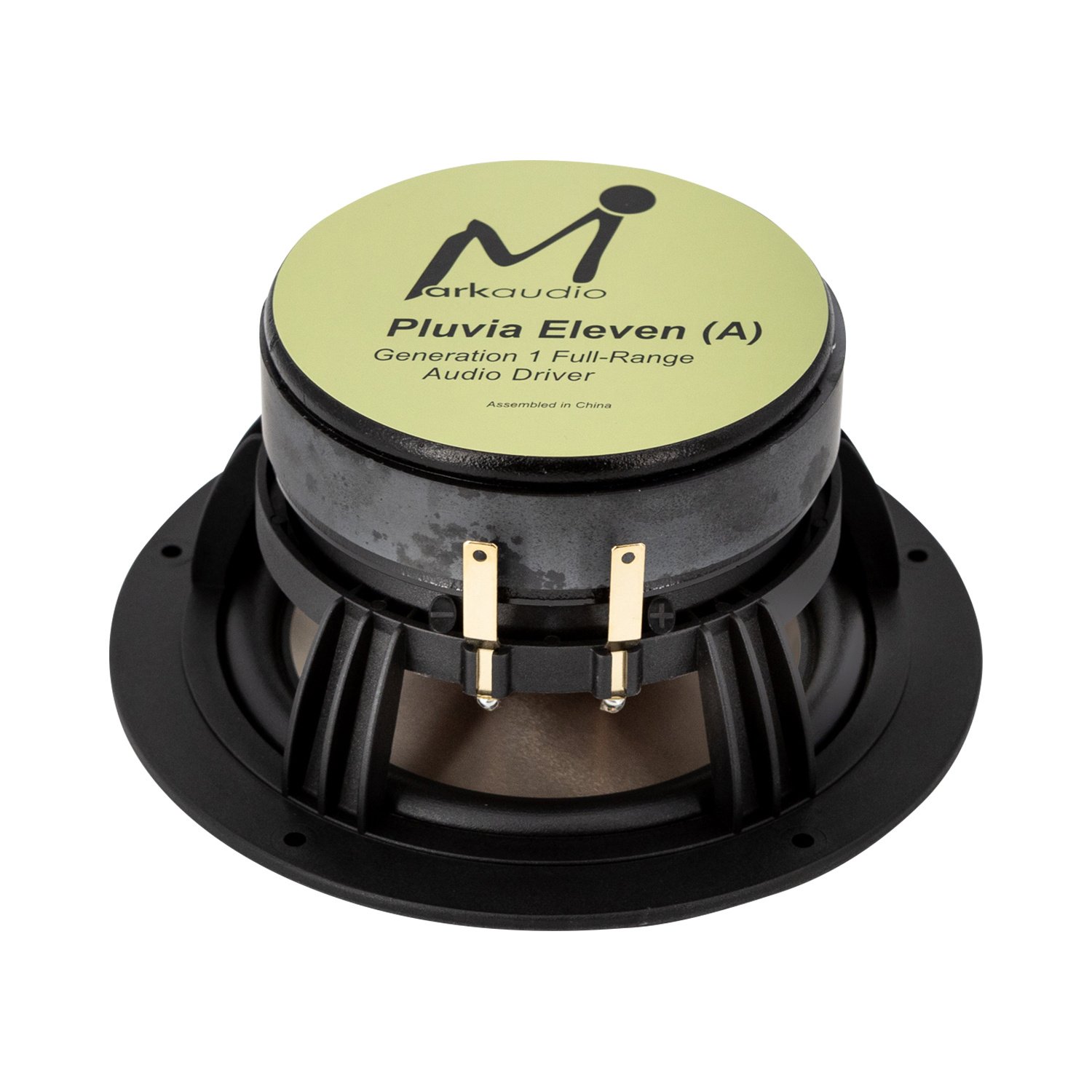

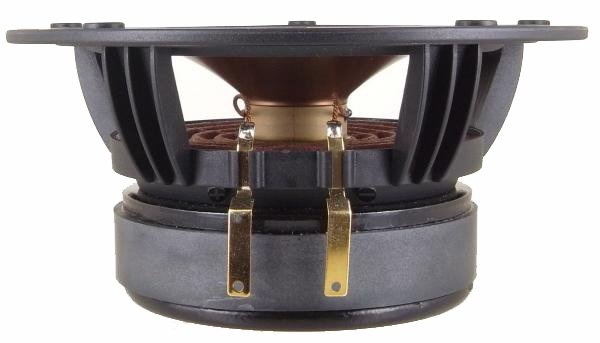

Markaudio PLUVIA-11 Grey 7" Full Range Aluminium Woofer

€ 99,95 >10 Auf Lager: Lieferzeit: 1-2 Werktage
The Pluvia 11 is a completely new driver design. It is the first “full range” driver that can handle bass loads typically delivered by 5.5 inch to 6.5 inch mid-bass units used in most 2 way systems.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €94,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Pluvia 11 is a completely new driver design. It is the first “full range” driver that can handle bass loads typically delivered by 5.5 inch to 6.5 inch mid-bass units used in most 2 way systems.



Highlights

  • Synthetic rubber surround
  • Super-strength alloy
  • Improved bass handeling
  • Improved dust cap



Product details

Markaudio Pluvia-11 Grey 7” full Range Aluminium woofer



The Pluvia 11 is a completely new driver design. It is the first “full range” driver that can handle bass loads typically delivered by 5.5 inch to 6.5 inch mid-bass units used in most 2 way systems.



The Pluvia 11 cone is an entirely new design from Mark Fenlon. It uses a new super-strength aerospace grade alloy designed to cope with high bending stress loads. The material thickness is increased by 50% over previous Markaudio designs, yet the profile remains shallow to increase dispersion. Two more processes have been added to the Multiform cone production sequence to increase Pluvia 11's operational low frequency load capacity.



The all-new front suspension has a variable thickness geometry, increasing oscillatory stability by 30% over previous designs. The rear suspension (spider) has an operational surface area 25% larger than the Alpair 10 to cope with load demands of typical mid-bass units. However, the Pluvia 11’s high range has not been sacrificed. It outperforms the smaller Alpair 10 by reaching slightly higher frequencies with an improved spread on the high-range lift above 10kHz. Other design advances include the new “easy install” frame. This new-technology one-piece moulding utilises a GF30 glass fibre and resin mix. Pluvia 11’s frame is more rigid than previous designs, with a mounting depth of only 4.5mm, making both recessed and surface-mounting simple. Two new cone colours add visual interest. Along with the Pluvia 7, this new family of drivers will serve custom builders well into the future.



For the first time in the history of traditional full-range driver design, users now have a genuine choice to go full-range without sacrificing bass handling, or use it as a wide-range mid-bass driver that allows simple filtering.



The new Pluvia 11 is an excellent high-end and multi-purpose driver. It's also suitable for many computer, Home Theatre, TV, and commercial A/V applications.

Eigenschaften

Artikelnummer:
PLUVIA-11 Grey
Woofer Series
Pluvia Series
Woofer Type
Full-range
Nominal Diameter
7"
Power Handling (RMS)
45 Watts
Power Handling (max)
90 Watts
Impedance
8 ohms
Sensitivity
88.1 dB 2.83V/1m
Frequency Response
100 to 20,000 Hz
Voice Coil Diameter
1"
DC Resistance (Re)
5.4 ohms
Voice Coil Inductance (Le)
0.68 mH
Resonant Frequency (Fs)
39.1 Hz
Mechanical Q (Qms)
1.80
Electromagnetic Q (Qes)
0.351
Total Q (Qts)
0.293
Diaphragm Mass Inc. Airload (Mms)
11.4 g
Surface Area of Cone (Sd)
109,359 cm²
BL Product (BL)
6.56 Tm
Compliance Equivalent Volume (Vas)
0.848 ft.³
Maximum Linear Excursion (Xmax)
7 mm
Cone / Diaphragm Material
Aluminum
Surround Material
Rubber
Basket / Frame Material
Glass-Fibre
Magnet Material
Ferrite
Overall Outside Diameter
6.77"
Overall Depth
3.15"
Baffle Cutout Diameter
5.65"
Bolt Circle Diameter
6.22"
# Mounting Holes
5
