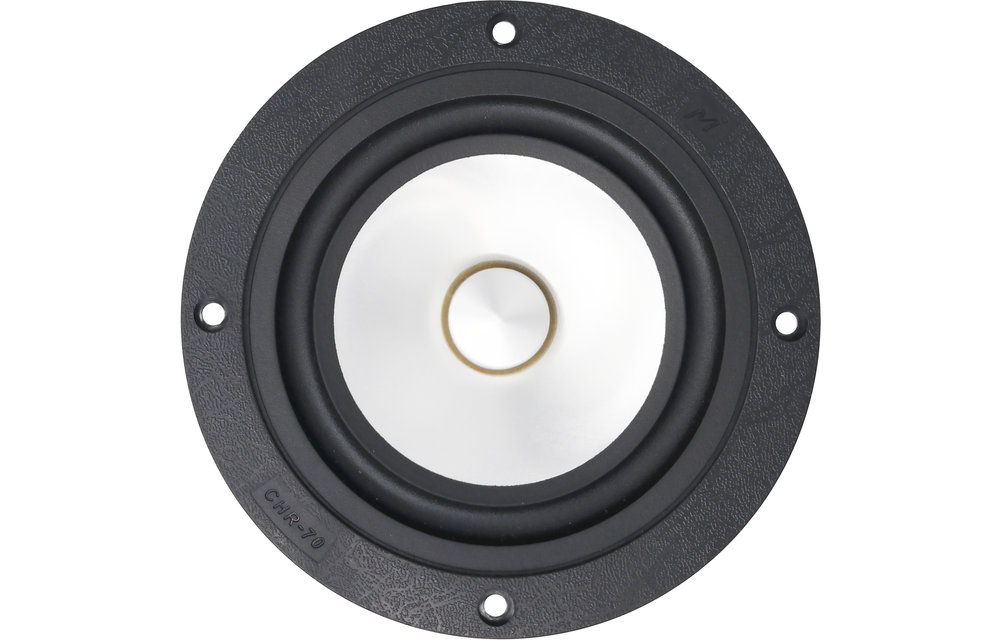

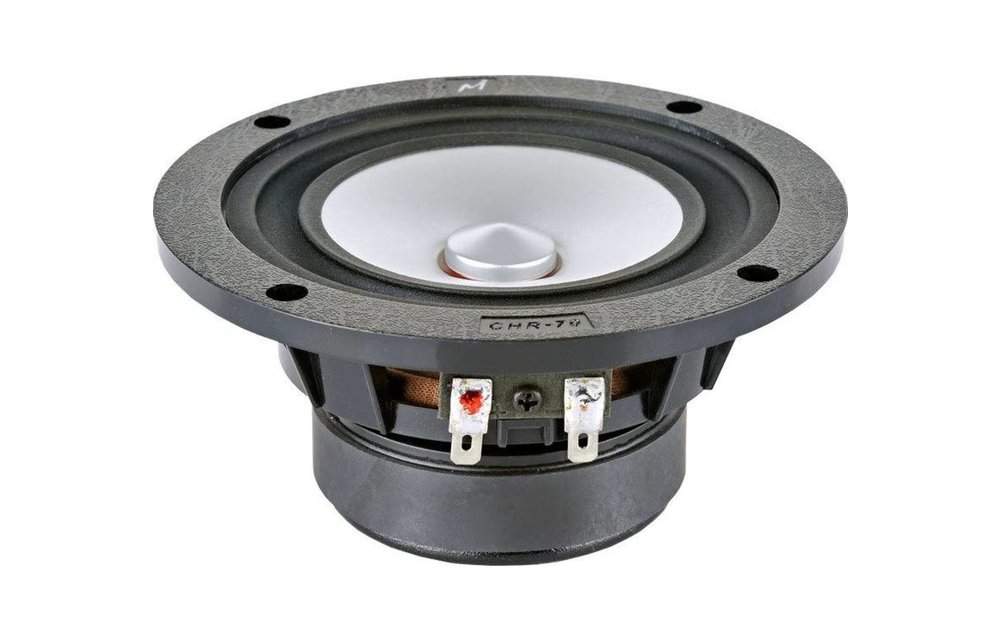

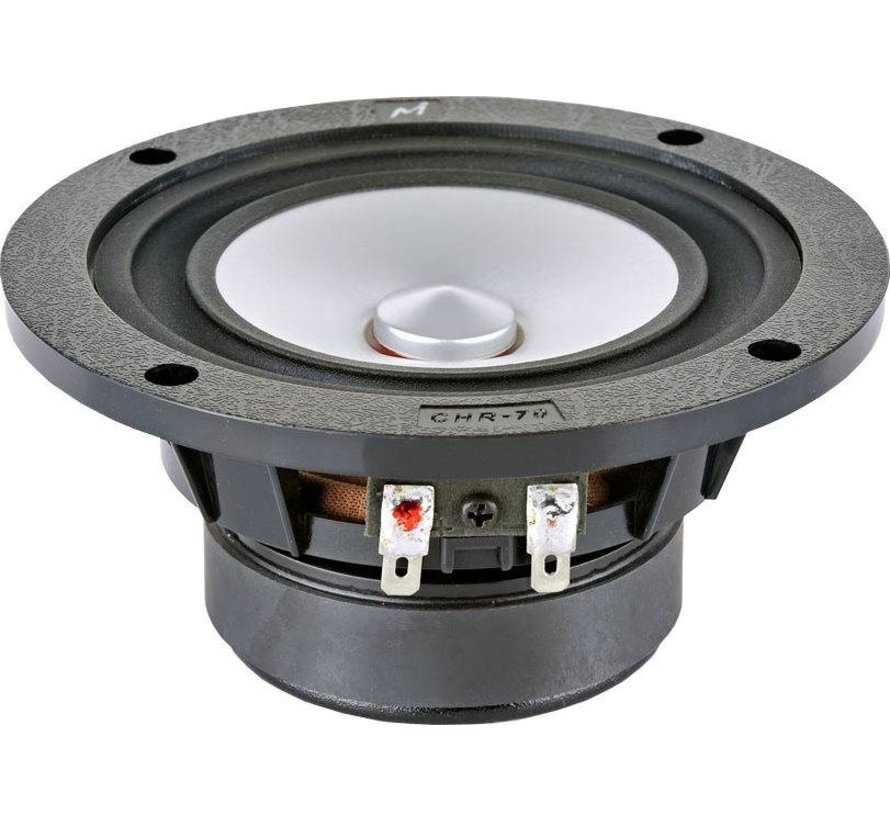

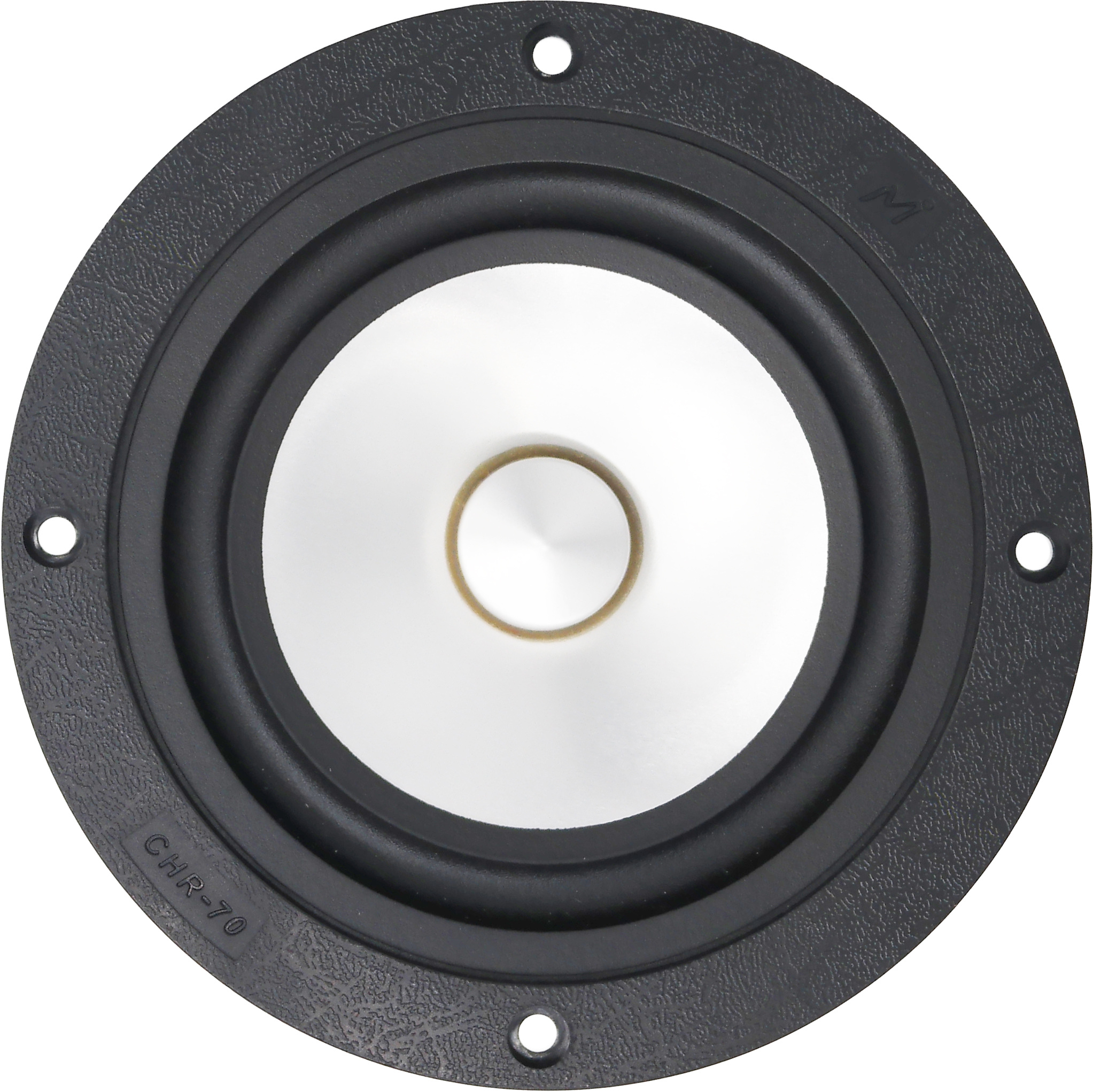

Markaudio CHR-70 Silver 4" Full Range Aluminium Woofer

Lieferzeit: 1-2 Werktage

  • Artikelnummer: CHR-70 Silver
  • Vorrat: >10 Auf Lager

The CHR-70 has a light easy sound, a little warm, not so "shaped" so it will suit the listening tastes of many people. Its cone gives much musical detail and makes a very clear sound.
Each two drivers sold, are a matched pair.

Price for one driver:

€ 44,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €42,70 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Markaudio CHR-70 Silver 4" Full Range Aluminium Woofer

The MarkAudio CHR-70 has a light easy sound, a little warm, not so "shaped" so it will suit the listening tastes of many people. Its cone gives much musical detail and makes a very clear sound.



Highlights

  • Every pair is matched
  • Latest model
  • Synthetic rubber surround
  • Nomex spider
  • Improved voice coil former



Product Details

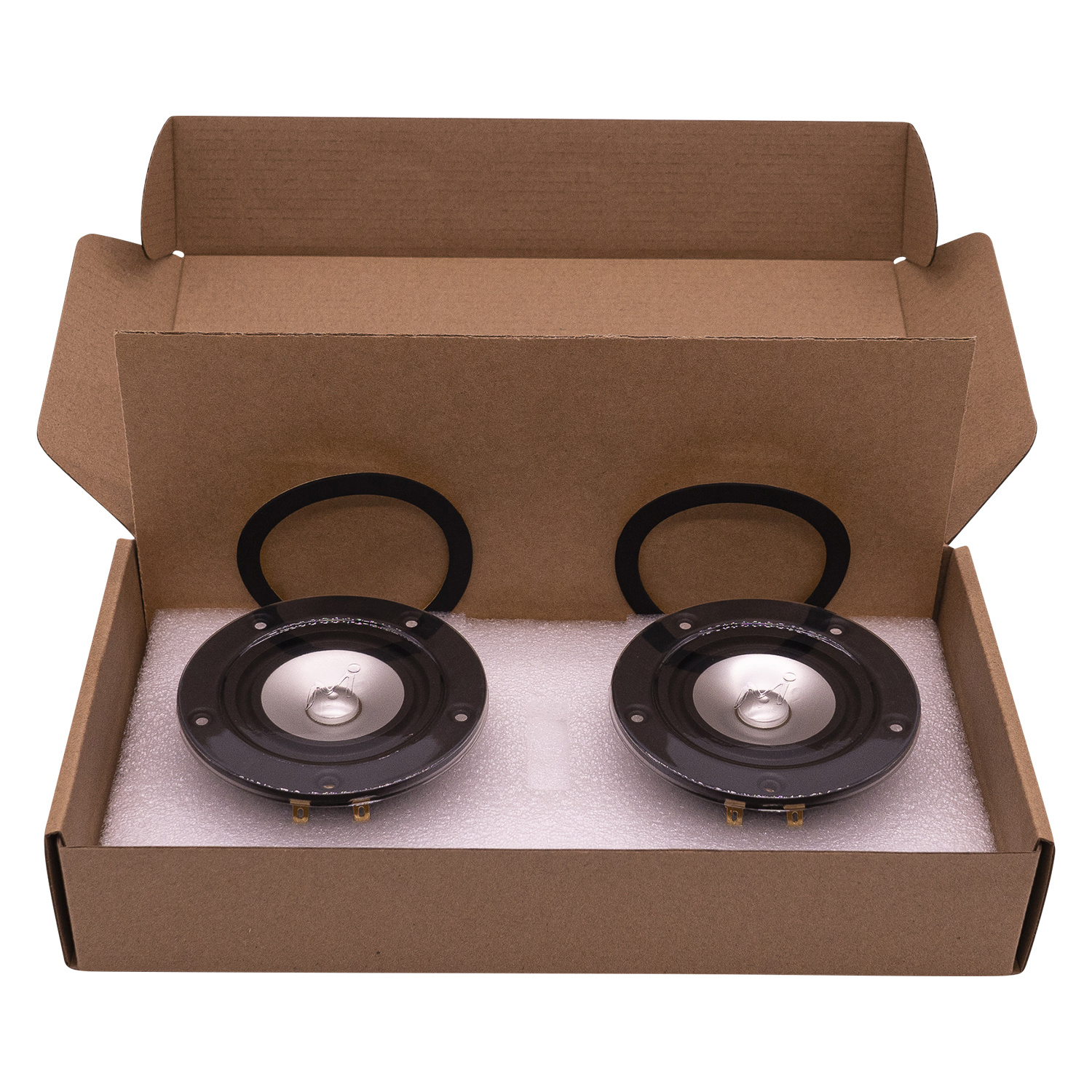

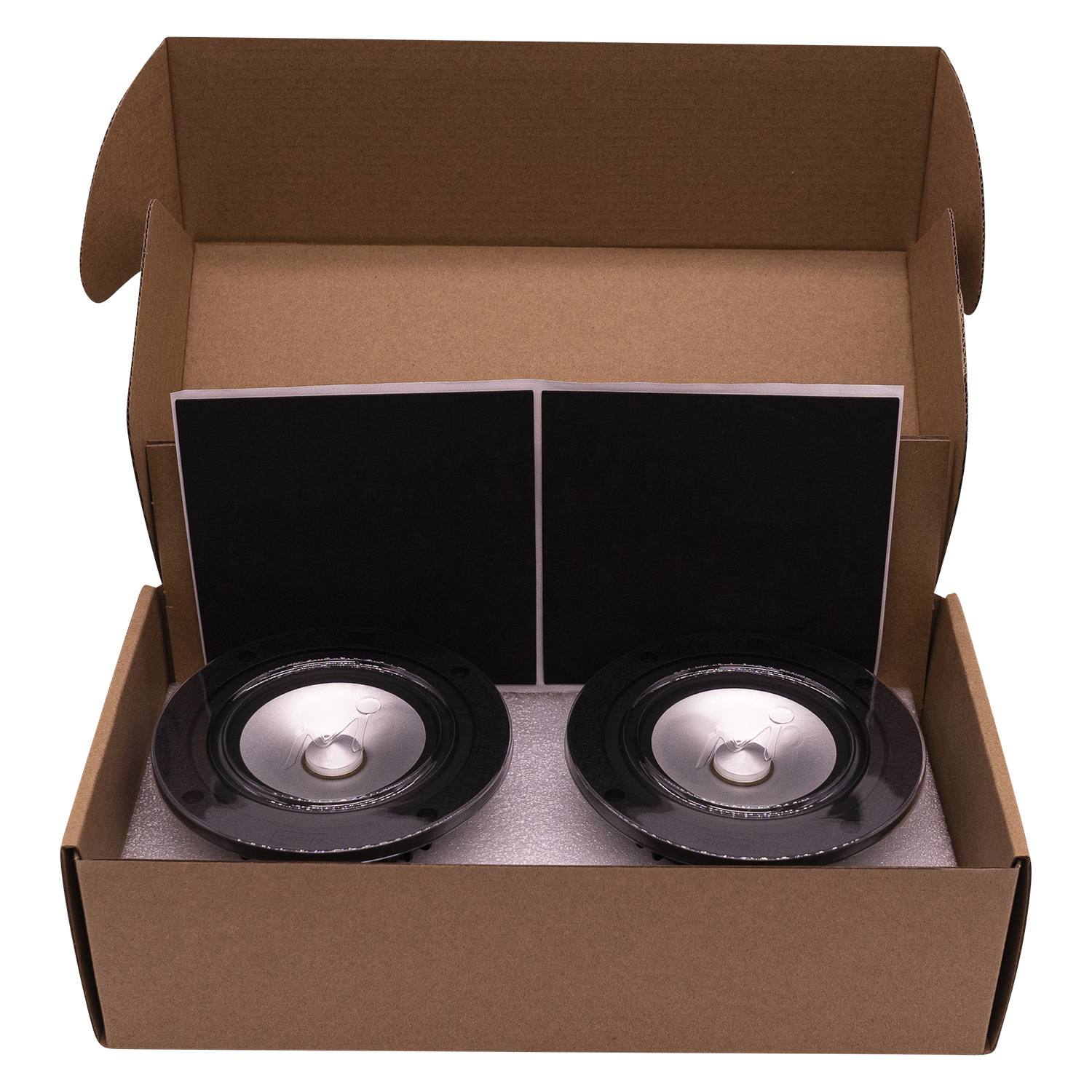

Markaudio CHR-70 Silver 4" Full Range Aluminium Woofer | Each two drivers are sold as a matched pair.


The uniqueness of Markaudio lays on their matching pairs of drivers. Each driver is tested and paired with another driver that shows the closest matching frequency response measurement. In order to respect this philosophy and added value to these great products, we at SoundImports, recomend you to purchase them as pairs.

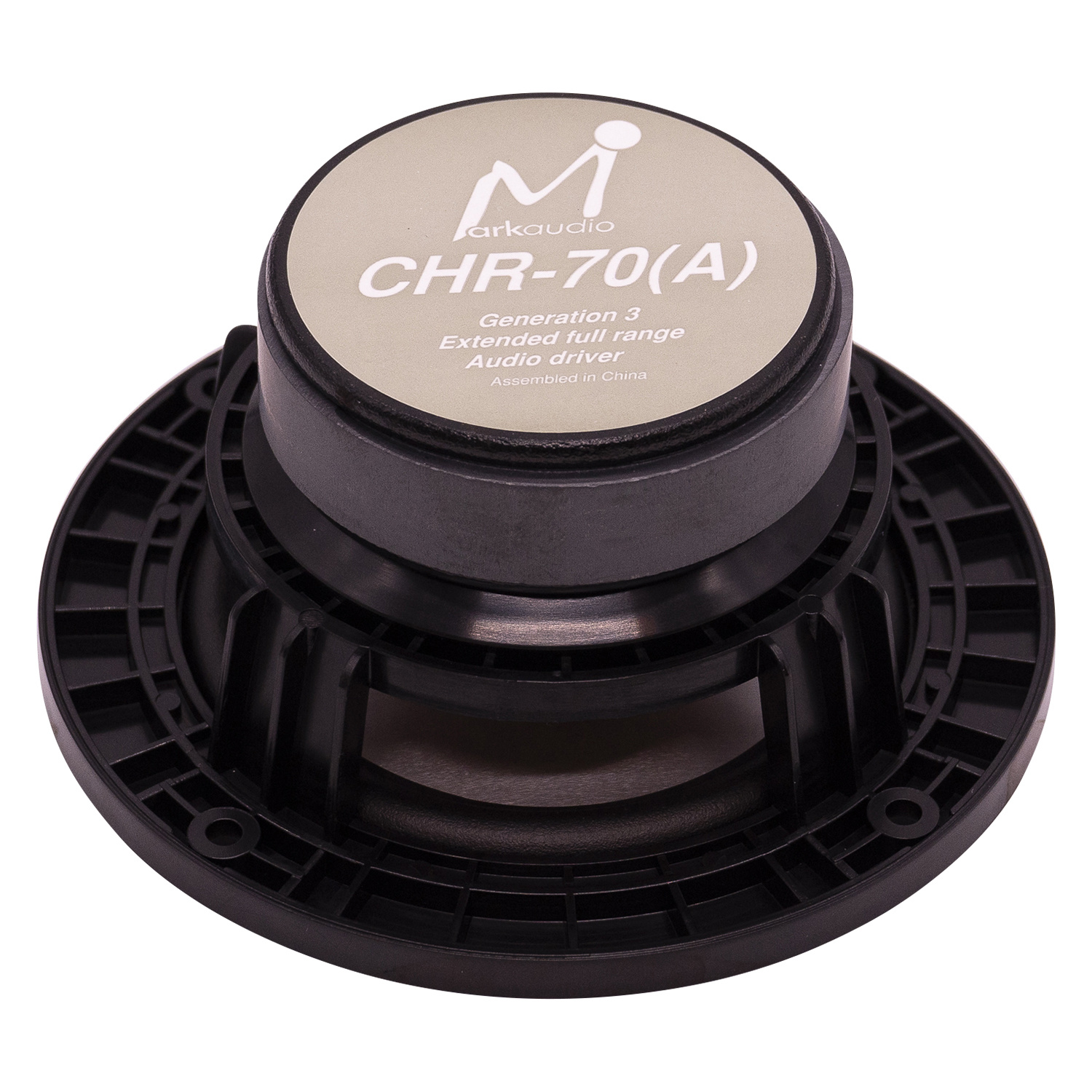

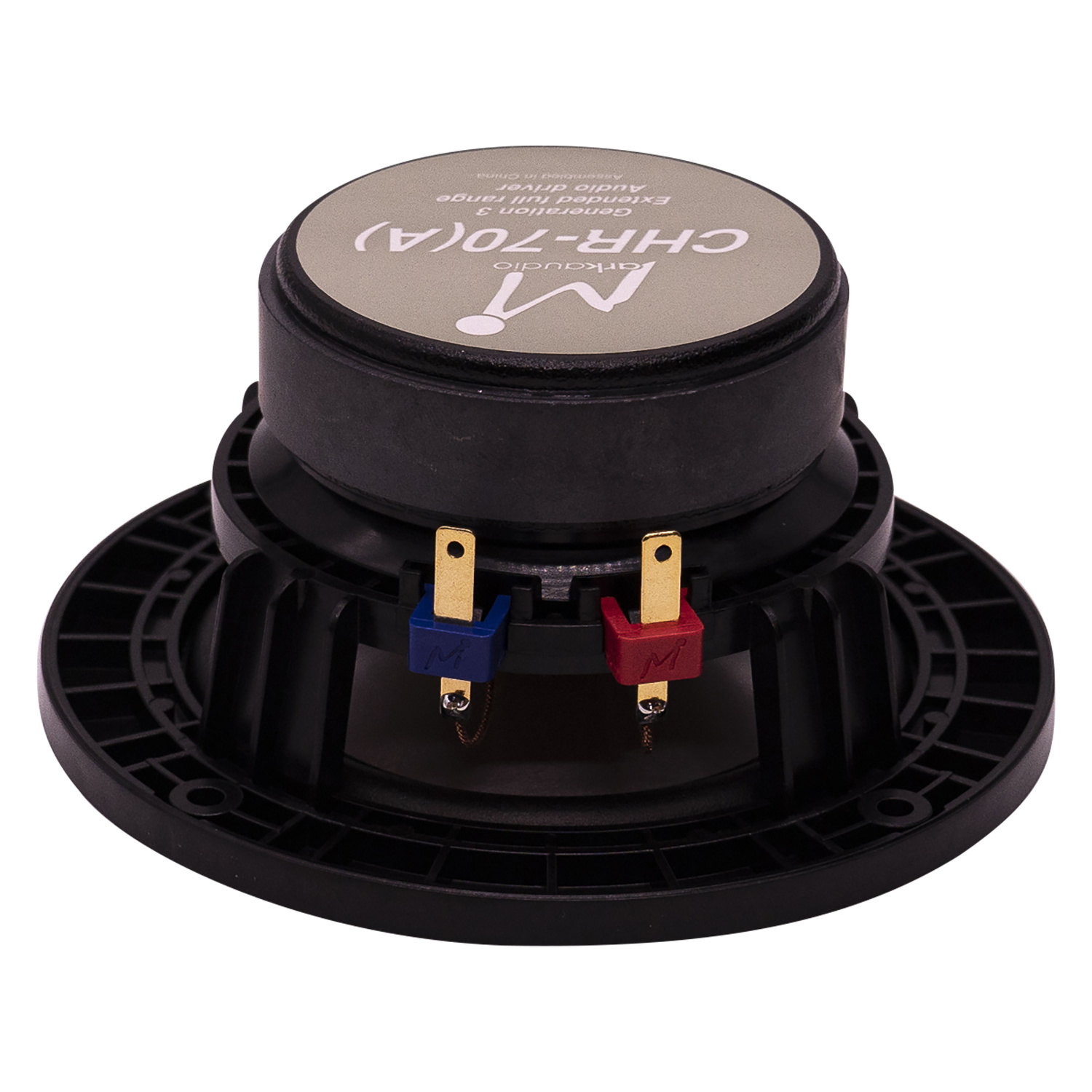

The CHR-70 (Gen. 3) is now up-dated 3 times since the first model was launched nearly 3 years back. This Gen. 3 driver has more high range performance. The frequency range now goes higher to 25-kHz. Bass response in the properly designed box can go low to just under 40Hz. It has a light easy sound, a little warm, not so "shaped" so it will suit the listening tastes of many people. Its cone gives much musical detail and makes a very clear sound. The driver has a medium efficiency of 85.5 dB at 8 Ohms making it easy to use on nearly all small to medium power amplifiers. The driver can easily fit into Bass-reflex and Vented box sizes from 4.4 liters to 10 liters internal volume. Many technical improvements has been made. Improved stiffer frame. New cap design with new improved fitting method. New Japanese designed coil. New spider for improved bass. The new CHR-70 Gen. 3 is an excellent high-end and multi-purpose driver. Its also suitable for many computer, Home Theatre, TV, and commercial A/V applications.

Eigenschaften

Spezifikationen für: CHR-70 Silver 4" Full Range Aluminium Woofer

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. CH Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Full-range
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 4"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 20 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt.
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 85.4 dB 2.83V/1m
  • Frequency Response 40 to 25.000 Hz
  • Voice Coil Diameter 0.78"
  • Magnet Weight
  • DC Resistance (Re) 7.2 ohms
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 65.4 Hz
  • Mechanical Q (Qms) 2.66
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Diaphragm Mass Inc. Airload (Mms)
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.44 mm/N
  • Surface Area of Cone (Sd) 50.2 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 4.2 Tm
  • Compliance Equivalent Volume (Vas) 0.18 ft.³
  • Maximum Linear Excursion (Xmax) 4 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminium
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter
  • Overall Depth
  • Baffle Cutout Diameter
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
