Markaudio CHR-120 6.5" Gold Full Range Magnesium Woofer

€ 82,60€ 99,95 Nicht auf Lager: Lieferzeit beträgt 4-6 Woche
The CHR-120 is a brand-new 6.5-inch high fidelity multi-purpose high-volume driver design from Markaudio.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €94,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Latest-model
  • Aerospace-grade magnesium-alloy
  • Wide dispersion multiform cone concept
  • Optimized for use in larger enclosures



Product details

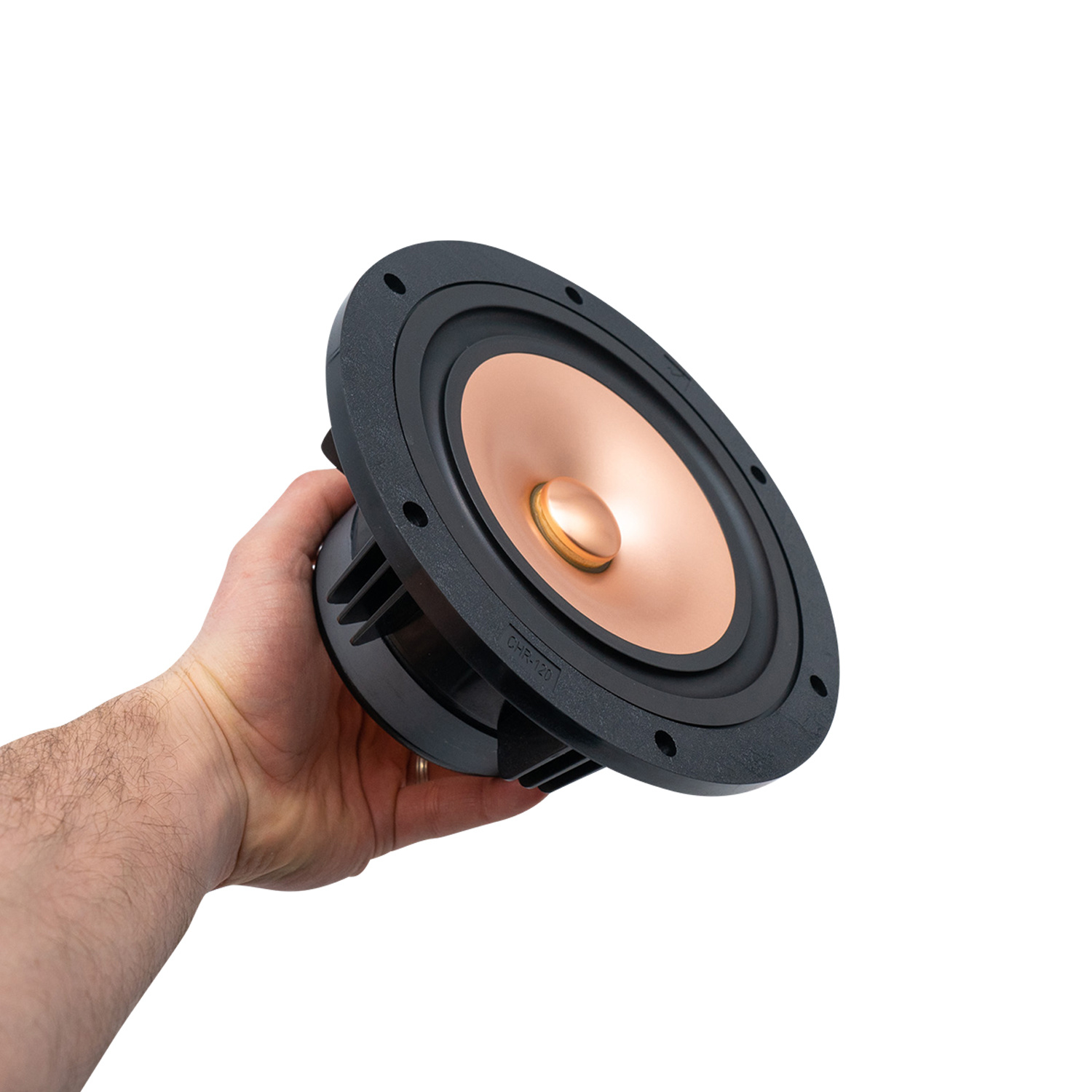

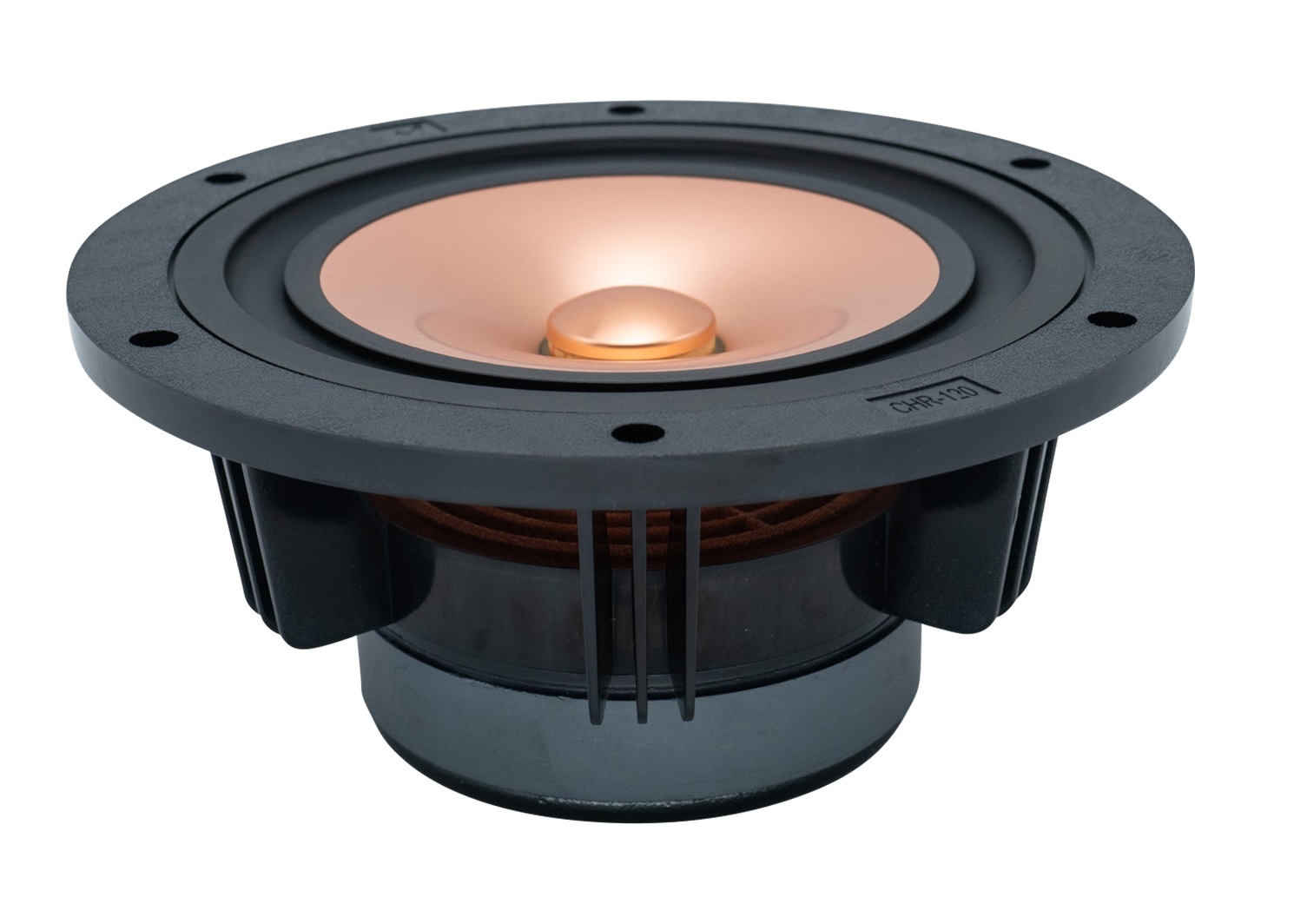

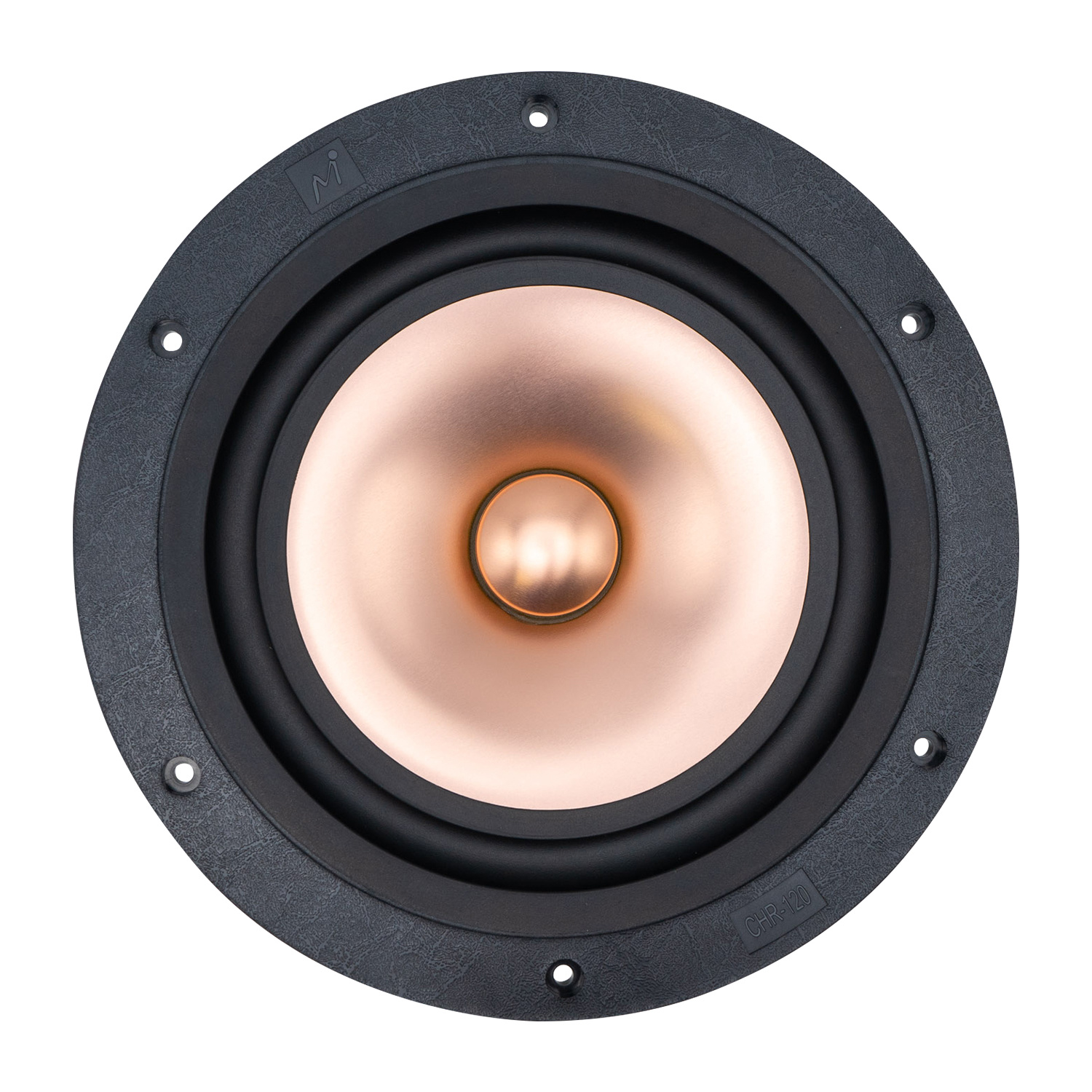

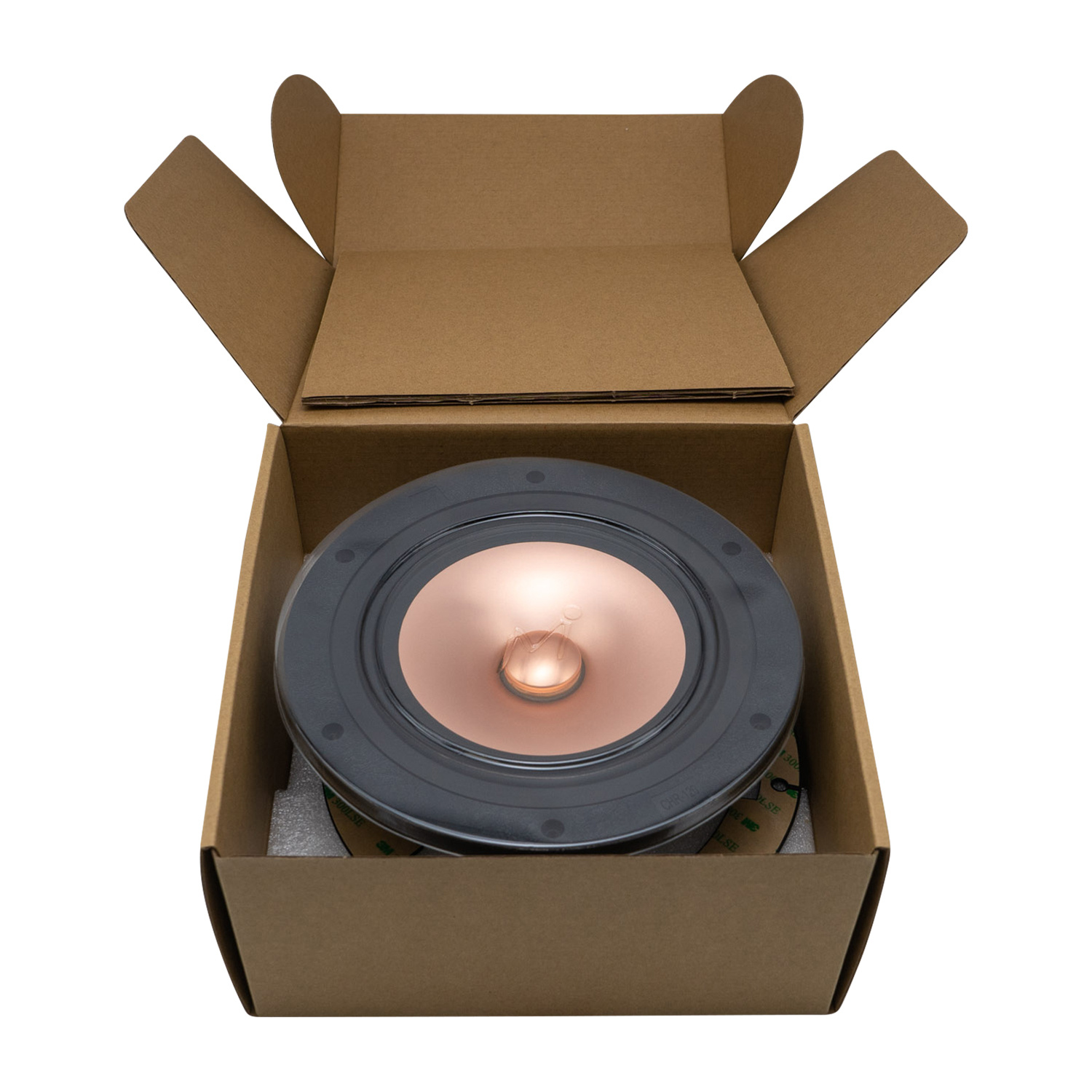

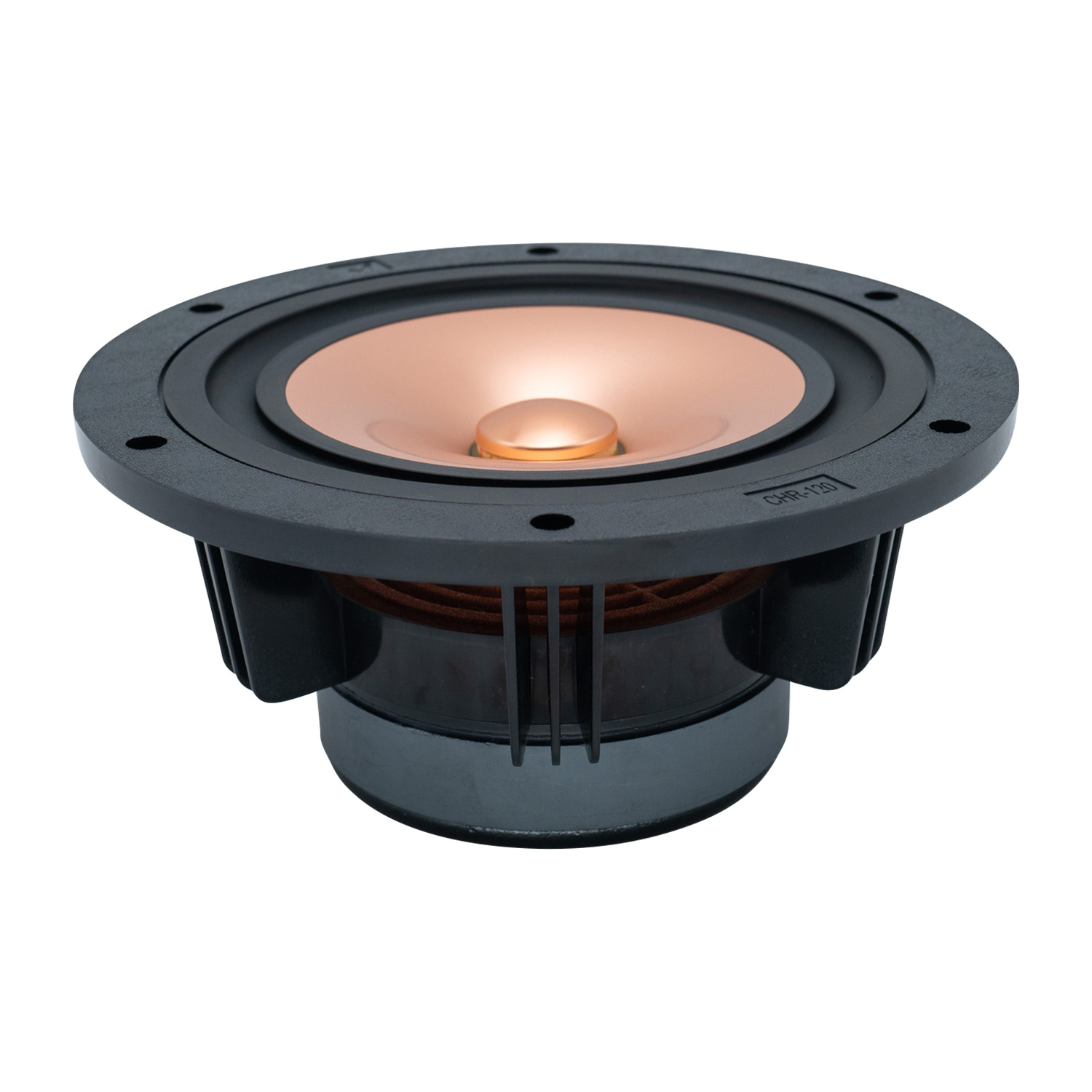

Markaudio CHR-120 6.5" Gold Full Range Magnesium Woofer


The CHR-120 is a brand-new 6.5-inch high fidelity multi-purpose high-volume driver design from Markaudio. This new driver has been purpose developed to provide significant bass extension beyond what many similar-sized midbass units can deliver, combined with full-range frequency output.



The CHR-120 cone is made from a high-strength, aerospace-grade magnesium-alloy designed to cope with high bending stress loads. Based upon our renowned shallow profile, wide dispersion multiform cone concept, the material thickness is carefully balanced to maximize low-frequency load capacity while retaining excellent performance at higher frequencies. The long-stroke suspension and low-distortion motor are designed to provide a low resonant frequency, medium Q, and an air volume compliance of around 59 liters. Optimized for use in larger enclosures, the CHR-120 can provide output to some 30Hz and smooth high-frequency range extending above 20KHz in a suitable design. Other key features include an “easy install” reinforced polymer frame for both surface and recessed mounting.



The CHR-120 provides custom builders with wide operational flexibility at a surprisingly affordable price and can be used as a high-performance full-range driver, or as a wide-range midbass. It is ideal for use in high-fidelity, home-theatre, commercial A/V applications, and by suiting a wide range of enclosure types, it continues Markaudio’s reputation for providing qualitative excellence and advanced mechanical engineering at an accessible level.

Eigenschaften

Artikelnummer:
CHR-120 Gold
Woofer Series
Markaudio CHR
Woofer Type
Full-range Woofer
Nominal Diameter
6.5"
Power Handling (RMS)
50 Watts (Nom)
DC Resistance (Re)
7.2000 Ω
Resonant Frequency (Fs)
34.2417 Hz
Mechanical Q (Qms)
2.3823
Electromagnetic Q (Qes)
0.4411
Total Q (Qts)
0.3722
Diaphragm Mass Inc. Airload (Mms)
11.1310 g
Moving Mass Of Diaphragm (Mmd)
10.1179 g
Mechanical Compliance of Suspension (Cms)
1.9409 mm/N
Surface Area of Cone (Sd)
0.0147 m2
Compliance Equivalent Volume (Vas)
58.8923 L
Maximum Linear Excursion (Xmax)
9mm (1 way)
Driver's Mechanical Losses (Rms)
1.0052 WM
