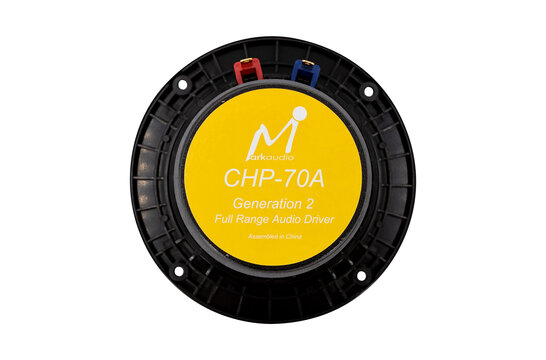

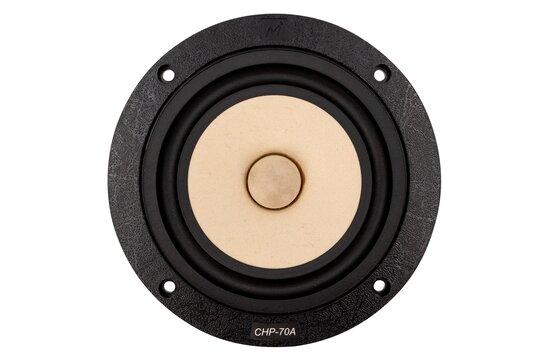

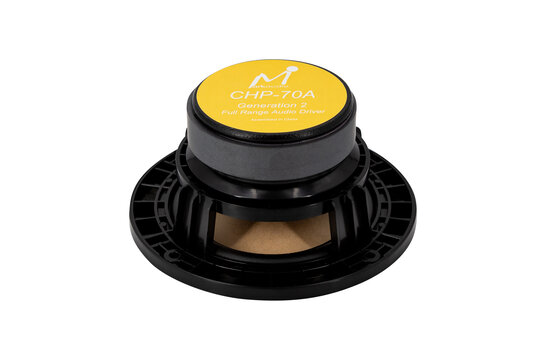

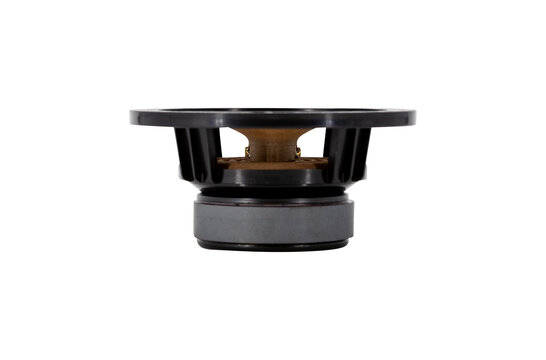

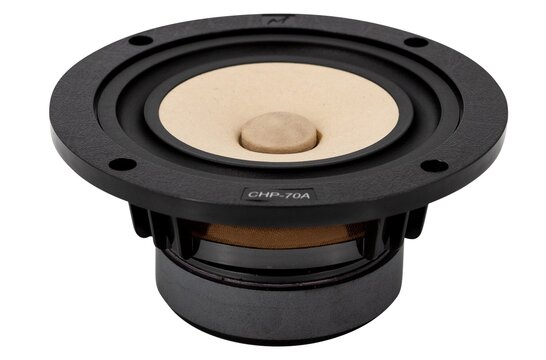

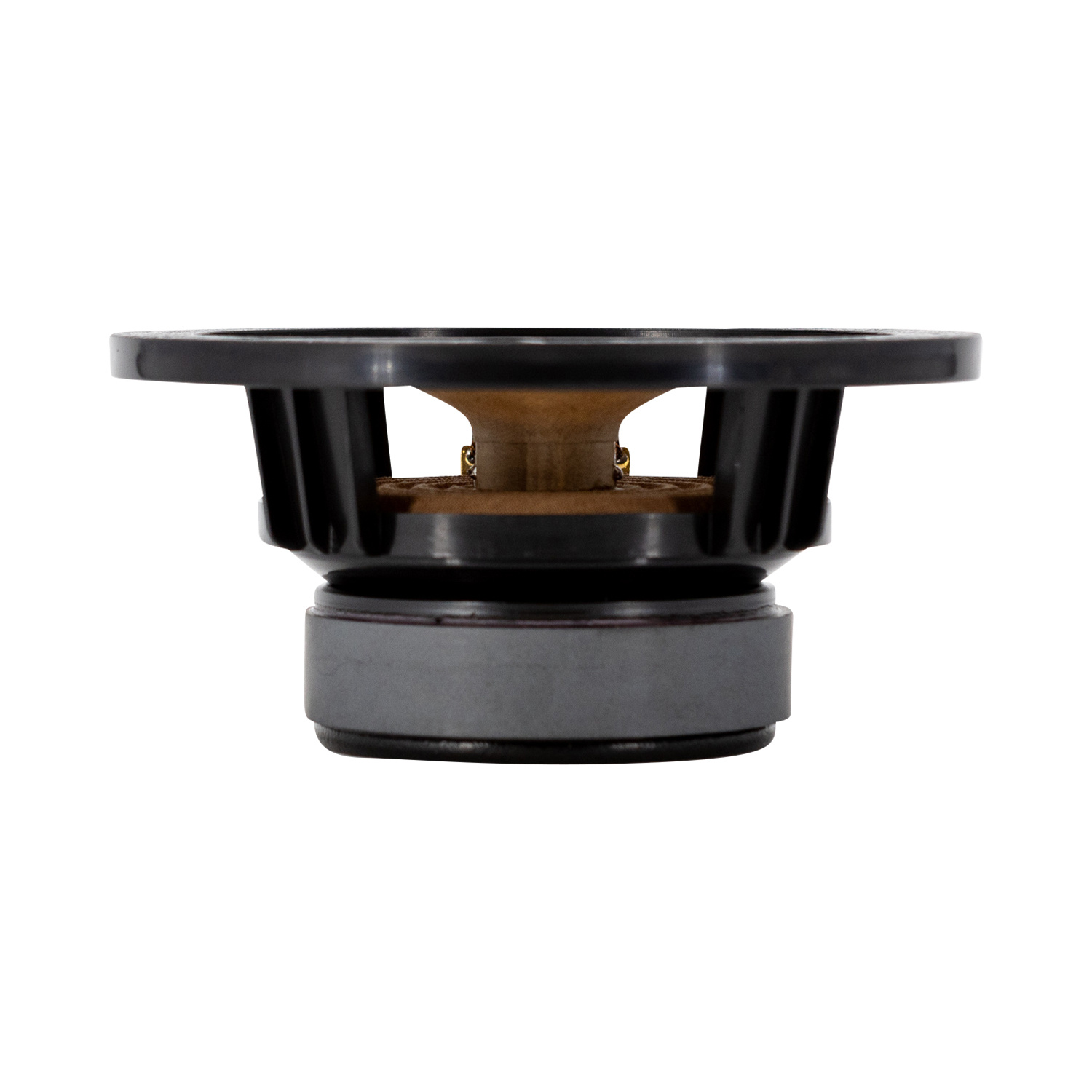

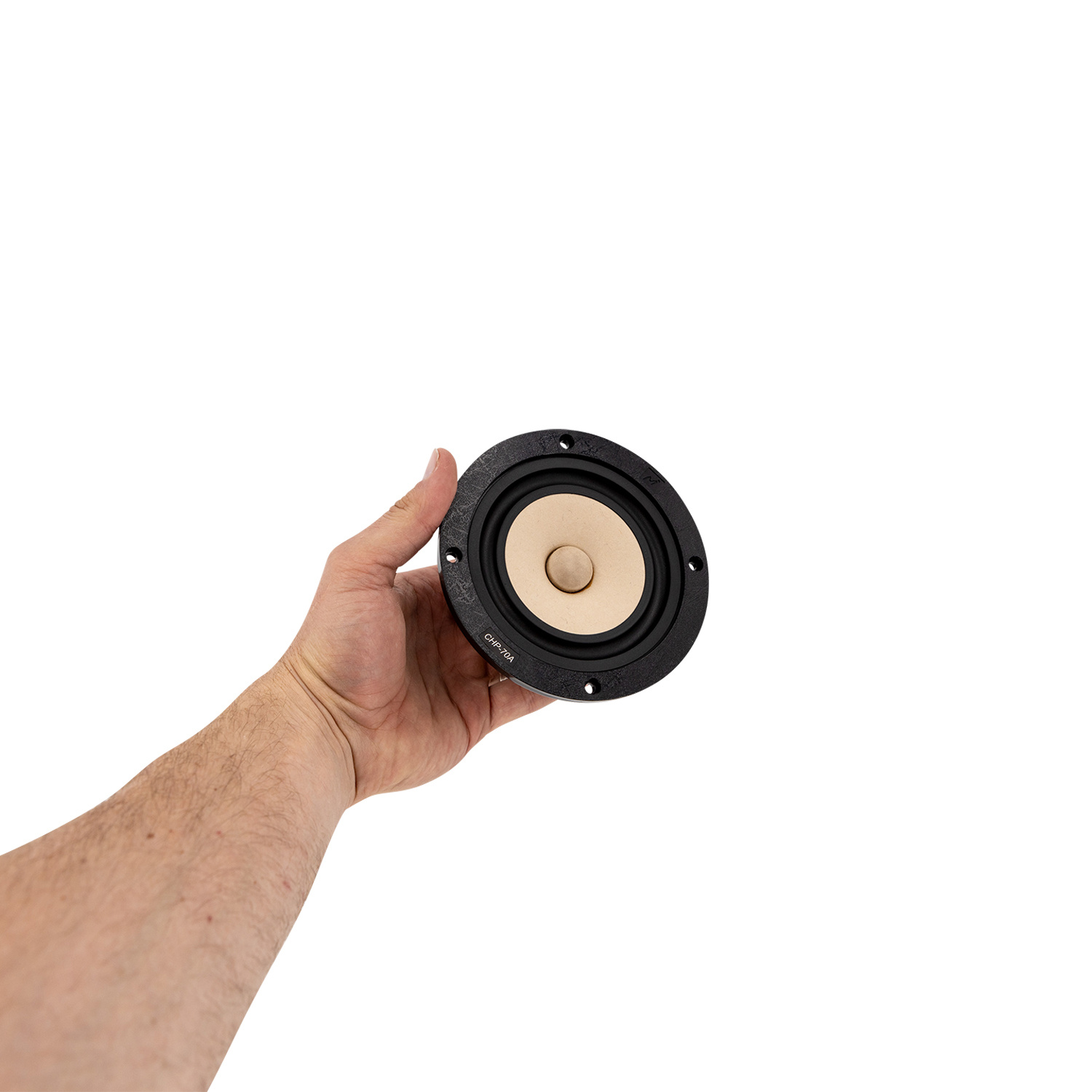

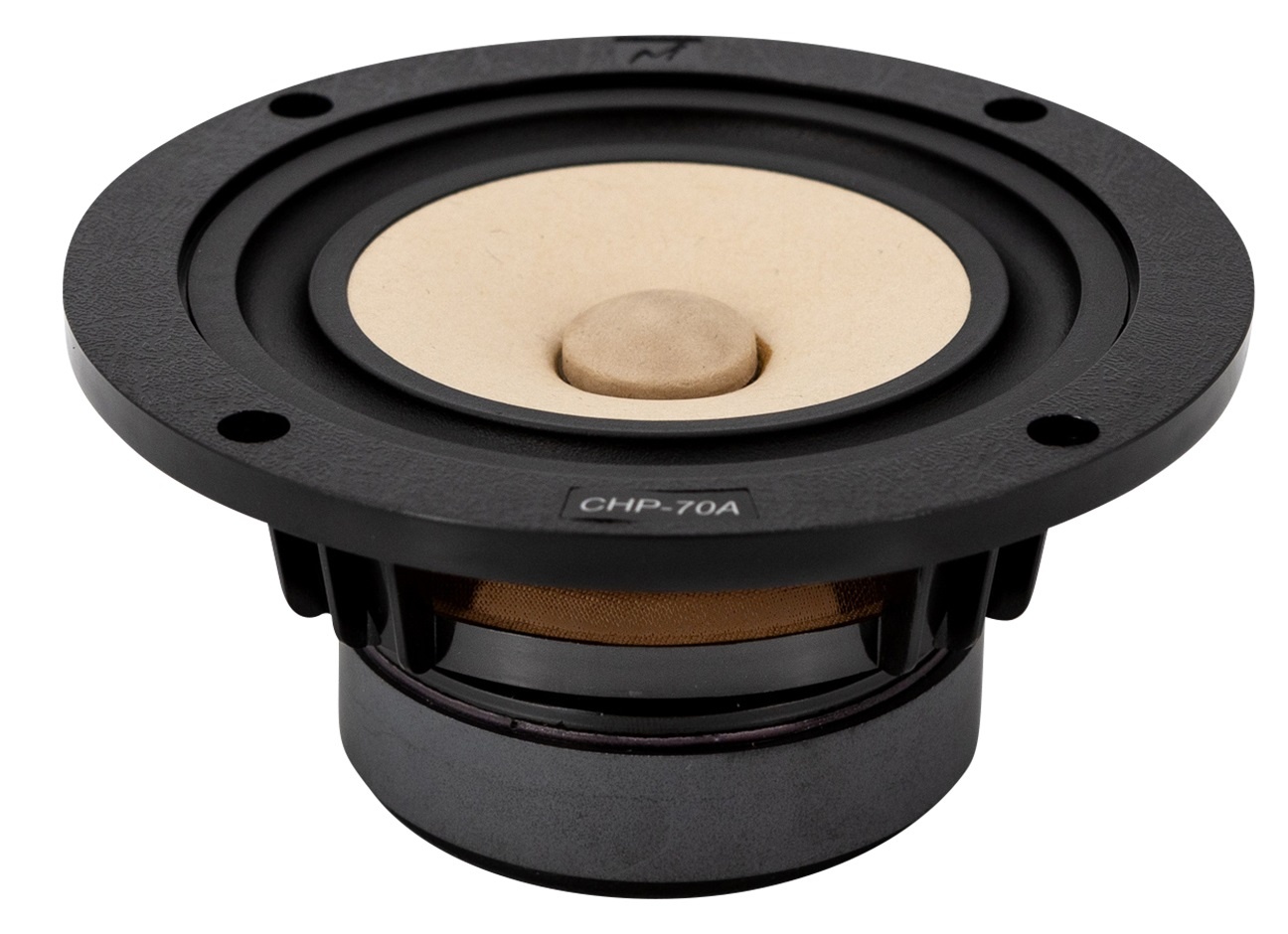

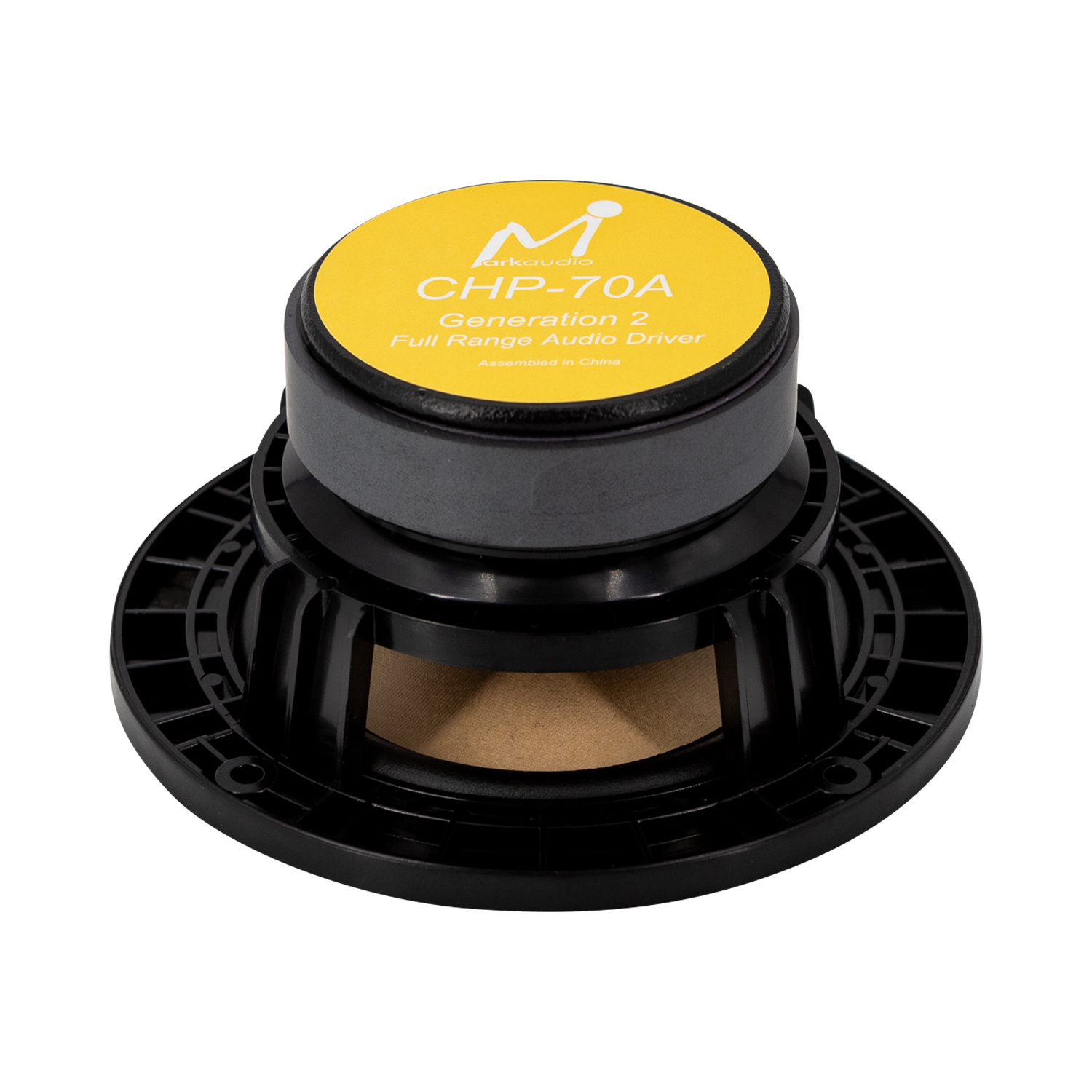

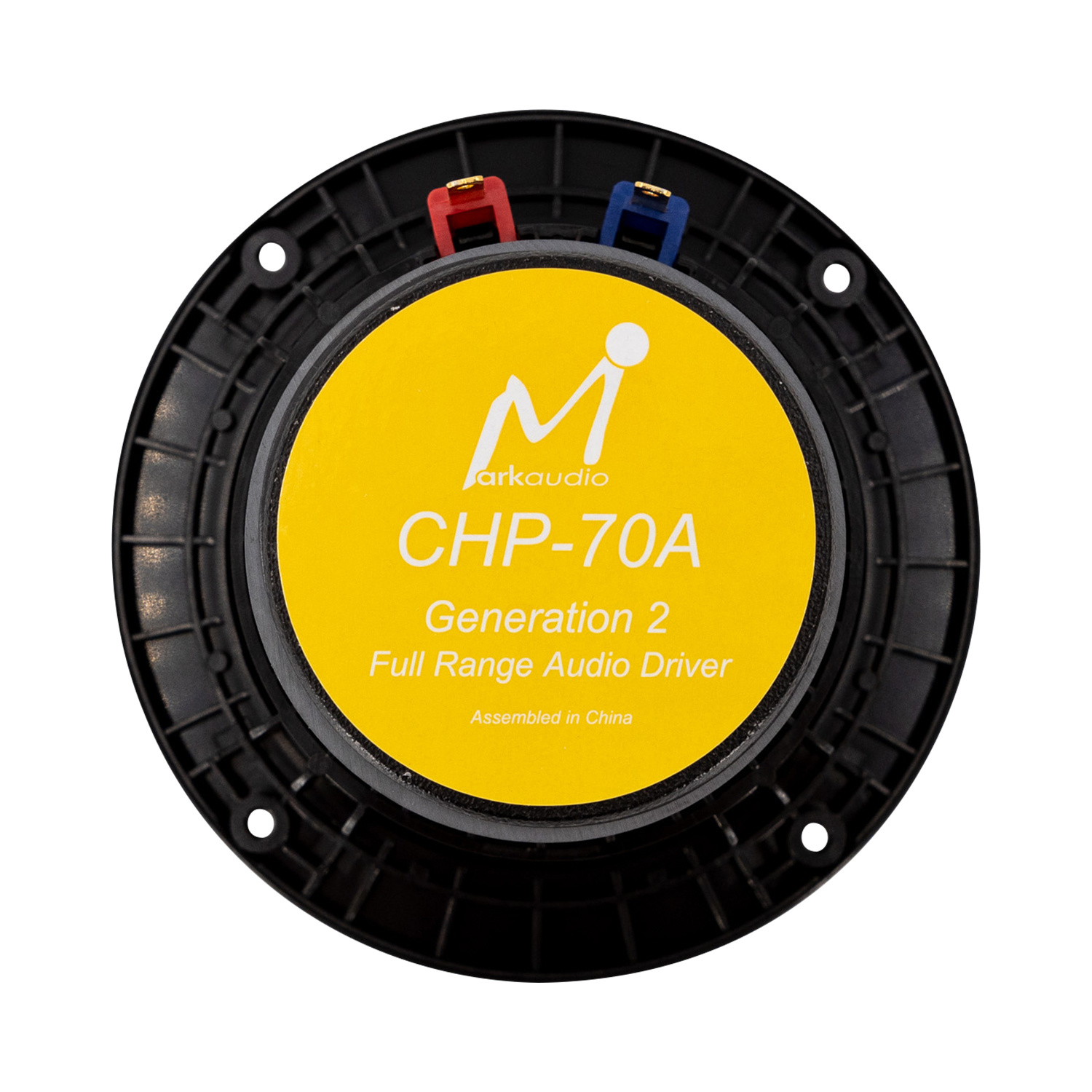

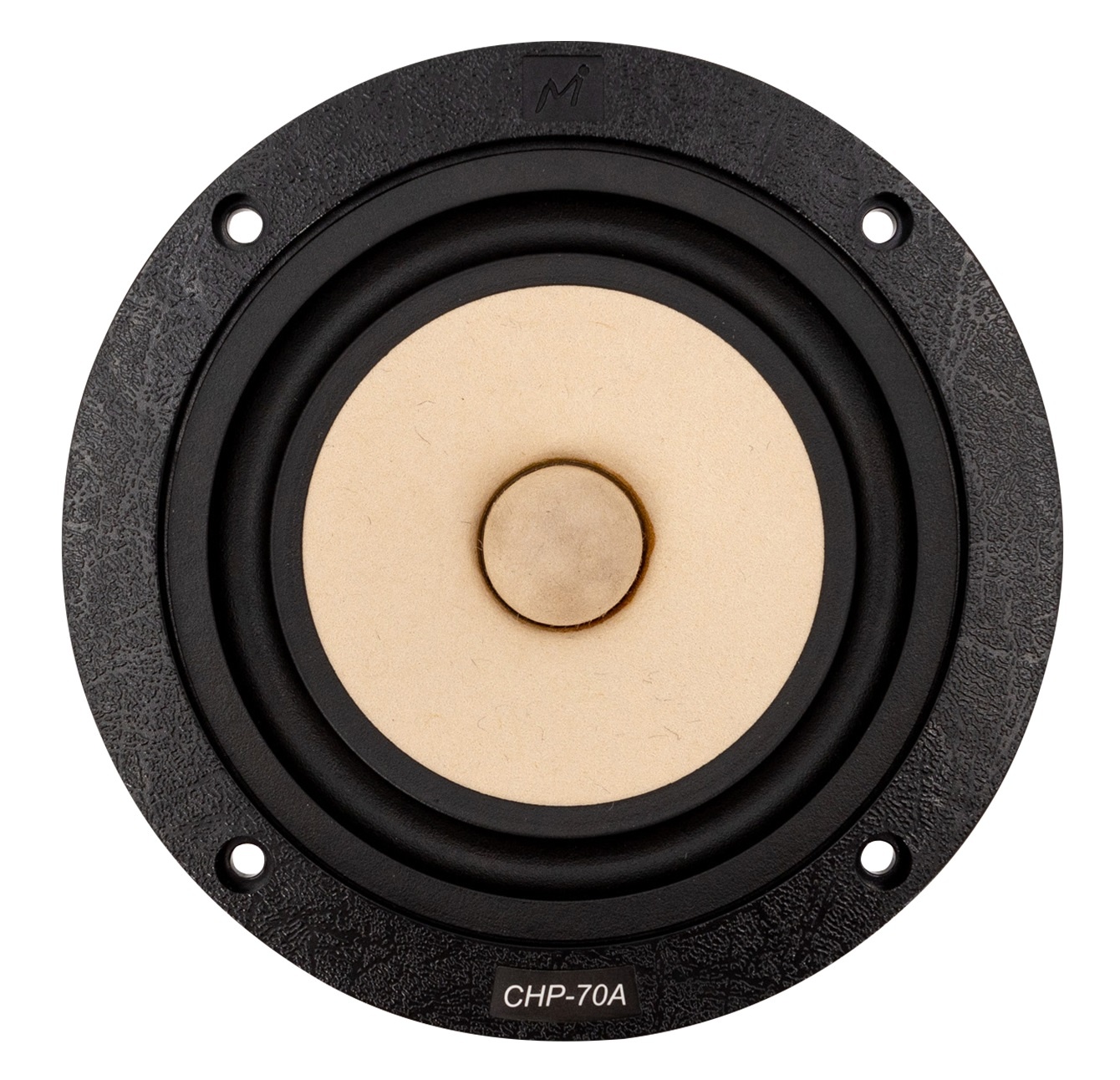

Markaudio CHP-70 Khaki 4" Full Range Paper Woofer Natural

€ 44,95 >10 Auf Lager: Lieferzeit: 1-2 Werktage
The MarkAudio CHP-70 driver is designed to make a semi-vintage classic sound similar to the smaller full-range driver designs from the 1950ʼs.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €42,70 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

The MarkAudio CHP-70 driver is designed to make a semi-vintage classic sound similar to the smaller full range driver designs from the 1950ʼs. Its middle-high range output has been made to "roll-off" from 7-kHz up.



Highlights

  • Synthetic rubber surround
  • Nomex spider
  • Improved voice coil former



Product details

Markaudio CHP-70 Khaki 4" Full Range Paper Woofer Natural



This updated (Gen. 2) CHP-70 driver is designed to make a semi-vintage classic sound similar to the smaller full-range driver designs from the 1950ʼs. Its middle-high range output has been made to "roll-off" from 7-kHz up. This helps to keep the high range sounding smooth and warm. This driver makes the singer's voice sound very natural, a little warm, pleasing for many hours of listening.



The CHP-70 Gen. 2 will assist in the control of sharp or hard sounding compressed music (digital). This CHP delivers a tone that appeals to classic music enthusiasts using smaller amplifiers. The off-axis and sound-spread of the CHP-70 are excellent. This driver can fill a room environment with an "easy listening" experience, especially for the human voice. The bass response from the CHP-70 Gen. 2 in a properly tuned box is excellent for this smaller sized driver. Typically, in a Bass-Reflex or Vented box, lower responses close to 40Hz can be obtained.



Several technical improvements have been done, such as 1 - Improved stiffer frame. 2 - New cap design with the new improved fitting method. 3 - New Japanese designed coil. 4 - New spider for improved bass. The CHP-70 Gen. 2 is an excellent "classic" and "natural" sound driver. The CHP-70 Excursion Arrestor will make a sound when exceeding the driver’s excursion limits.

Eigenschaften

Artikelnummer:
CHP-70 Khaki
Woofer Series
CH Series
Woofer Type
Full-range
Nominal Diameter
4"
Power Handling (RMS)
20 Watts
Impedance
8 ohms
Sensitivity
86.5 dB 2.83V/1m
Voice Coil Diameter
0.78"
DC Resistance (Re)
7.2 ohms
Resonant Frequency (Fs)
50.2 Hz
Mechanical Q (Qms)
2.3
Electromagnetic Q (Qes)
0.76
Total Q (Qts)
0.52
Diaphragm Mass Inc. Airload (Mms)
3.7g
Mechanical Compliance of Suspension (Cms)
1.31 mm/N
Surface Area of Cone (Sd)
50.2 cm²
BL Product (BL)
4.2 Tm
Compliance Equivalent Volume (Vas)
0.16 ft.³
Maximum Linear Excursion (Xmax)
4 mm
Cone / Diaphragm Material
Paper
Overall Outside Diameter
4.88"
Overall Depth
2.2"
Baffle Cutout Diameter
4.41"
# Mounting Holes
4
