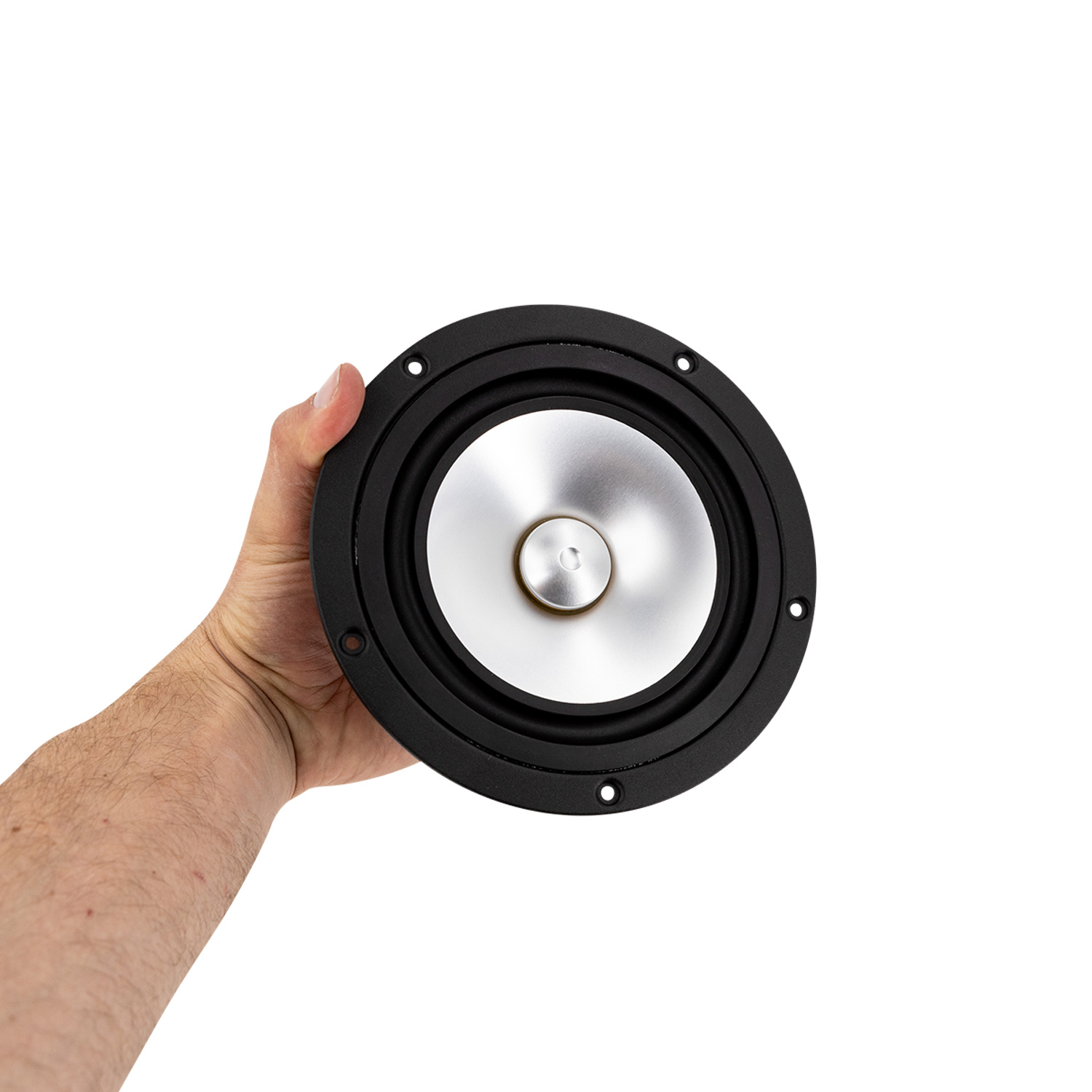

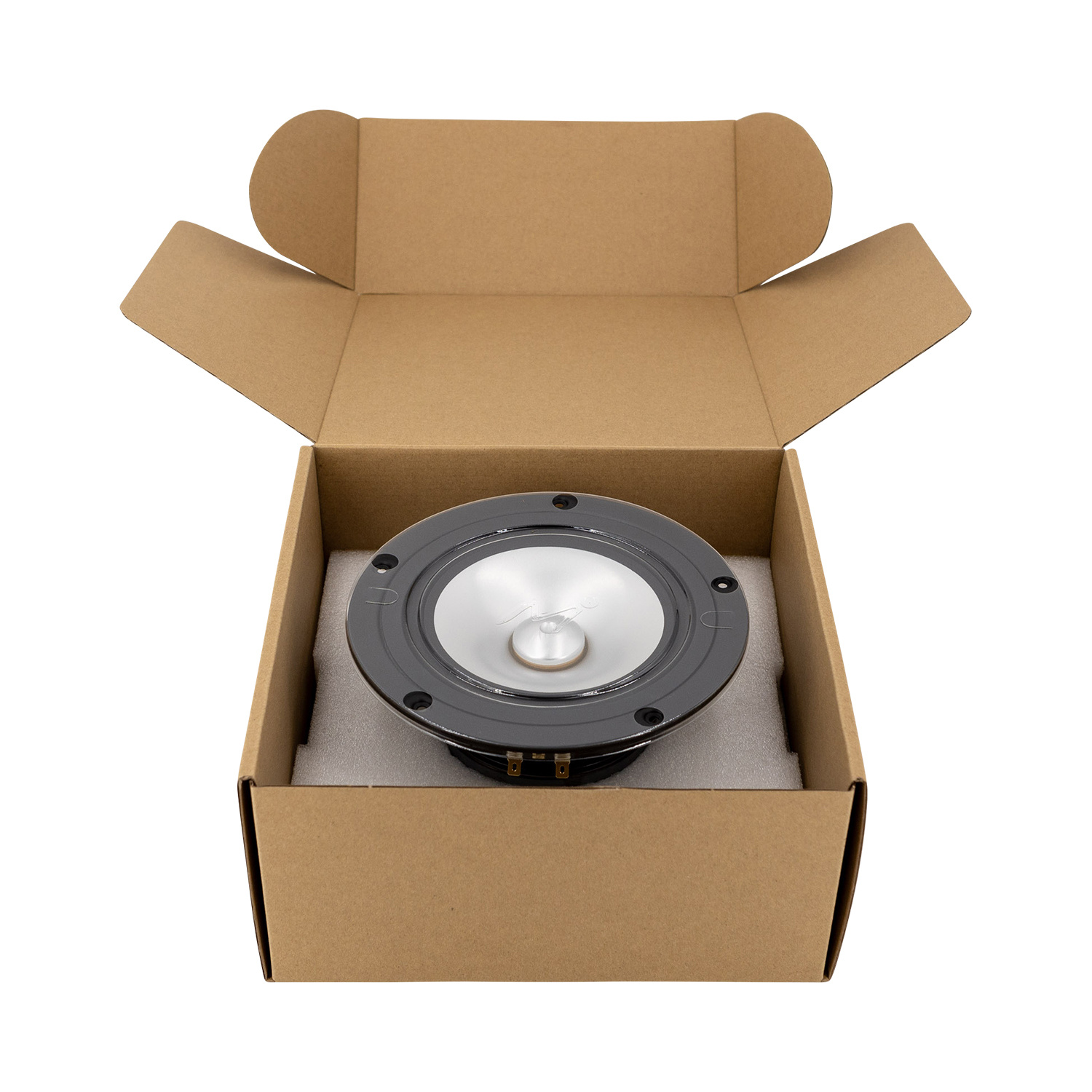

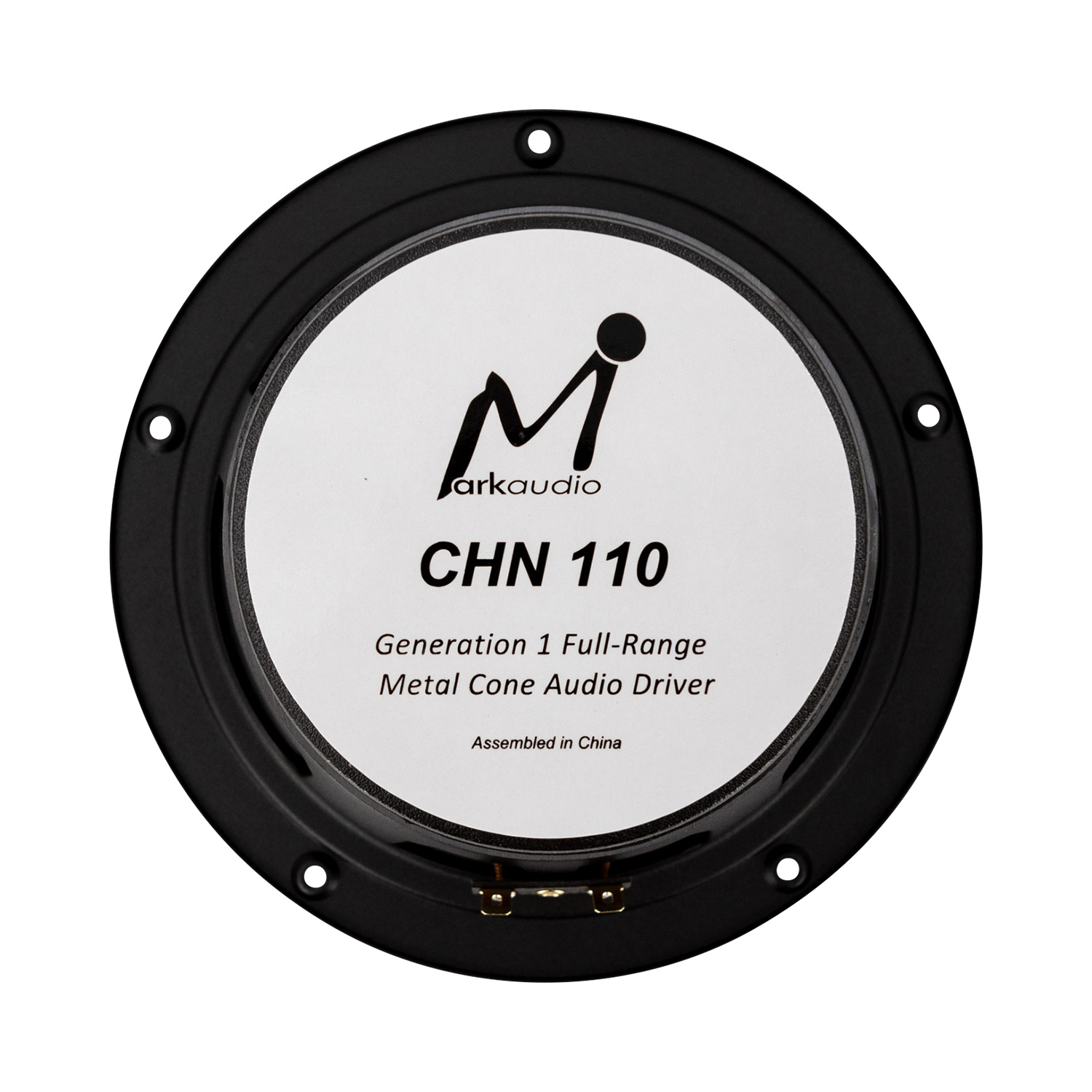

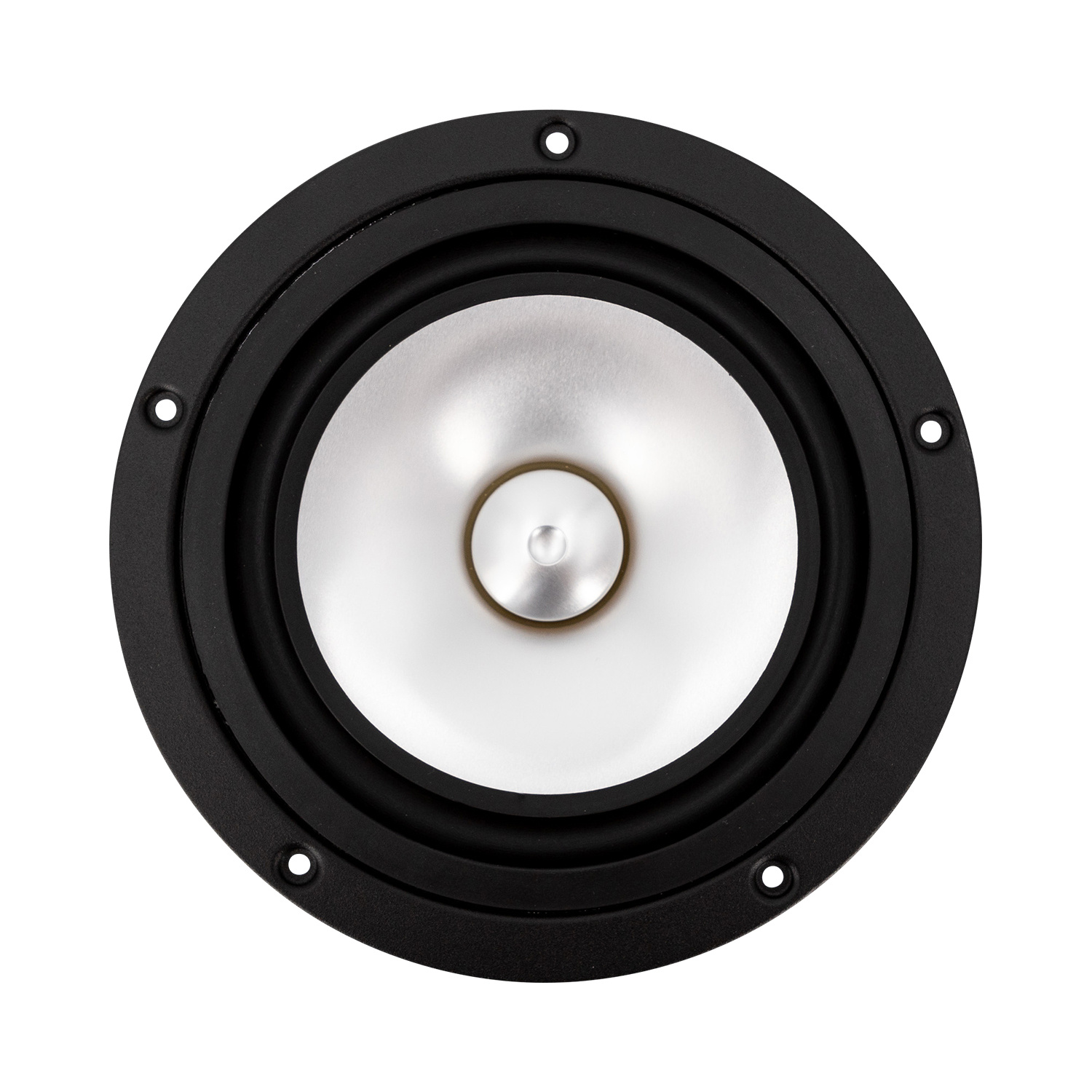

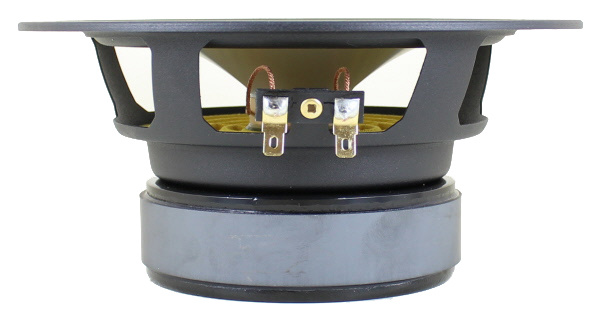

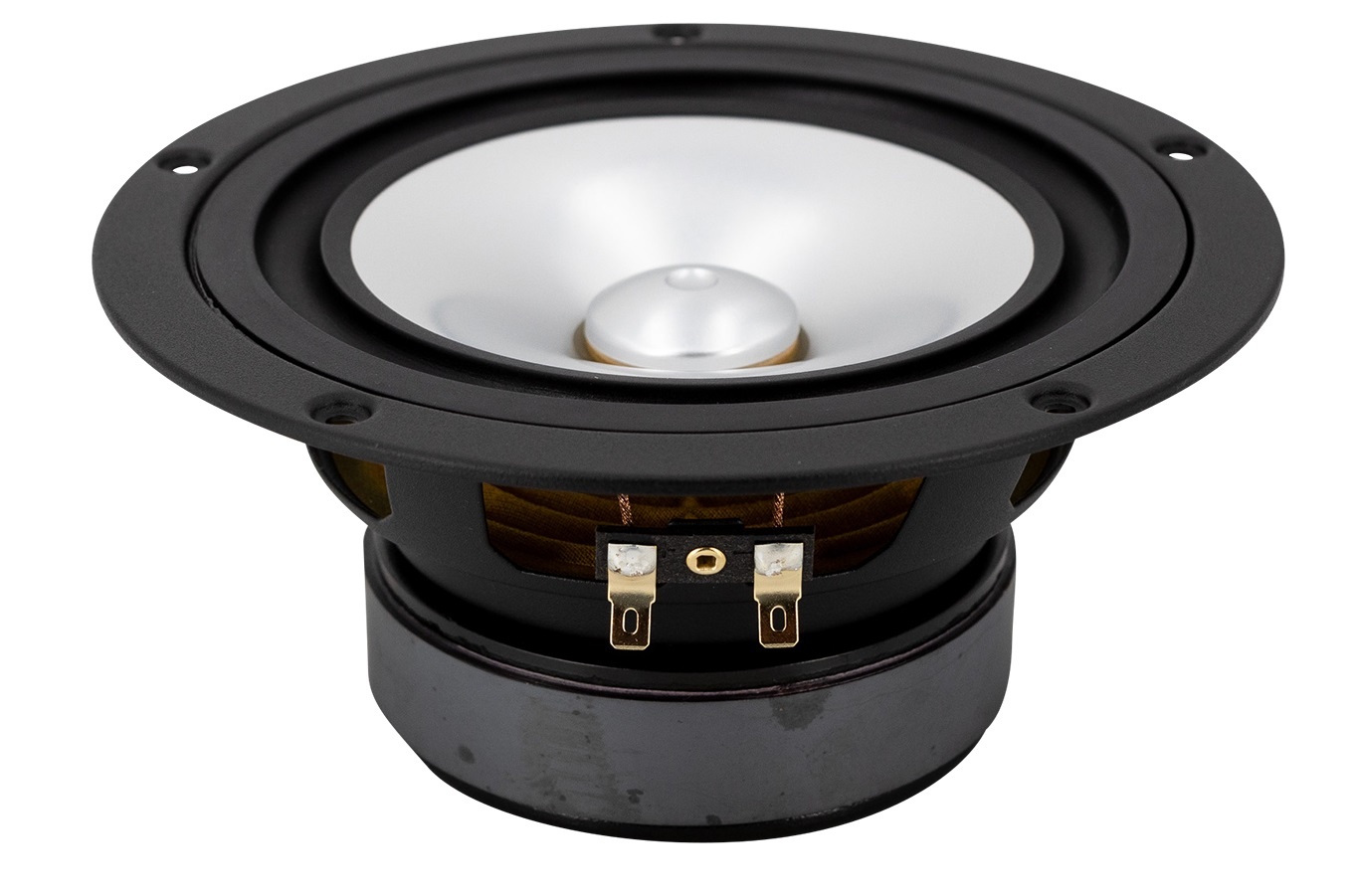

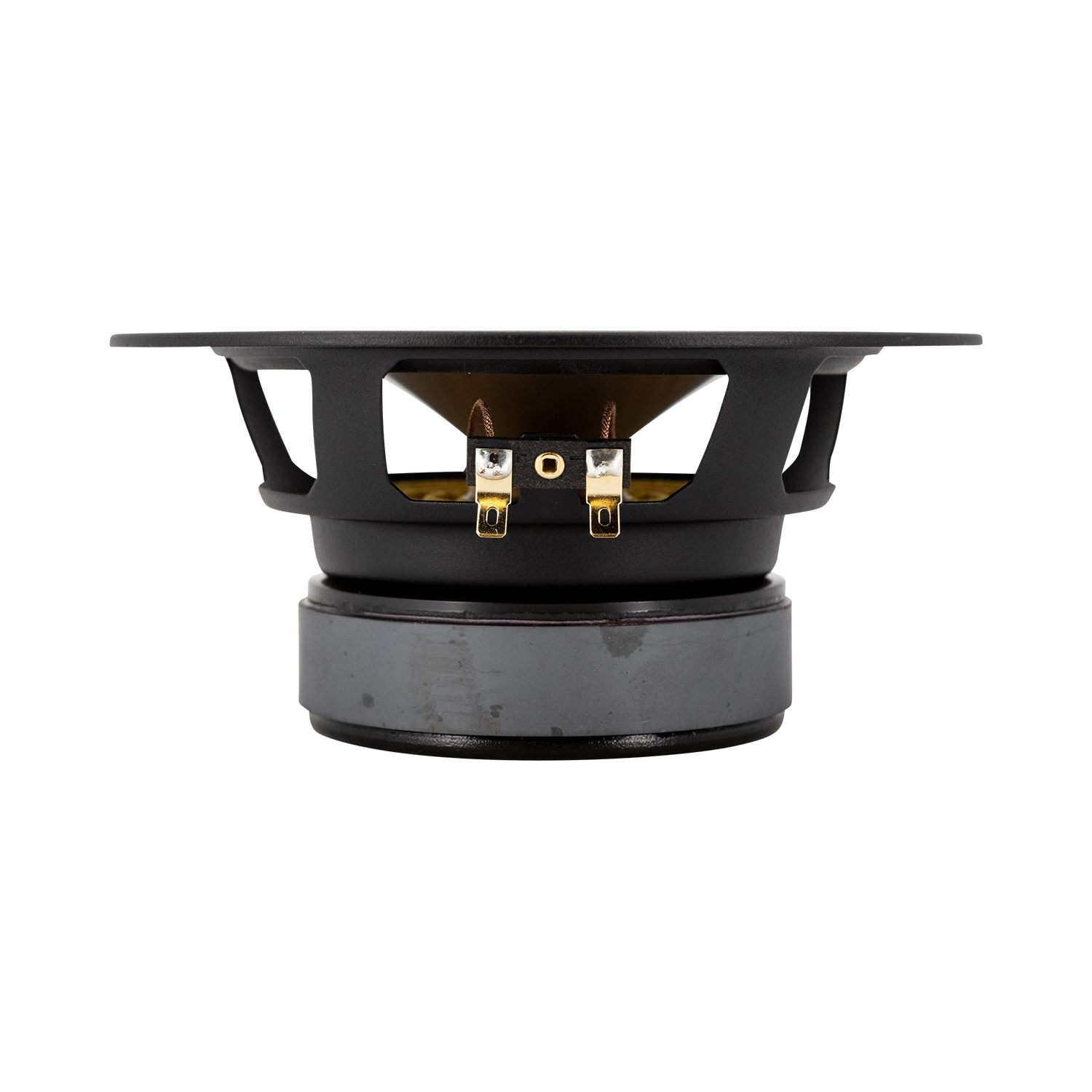

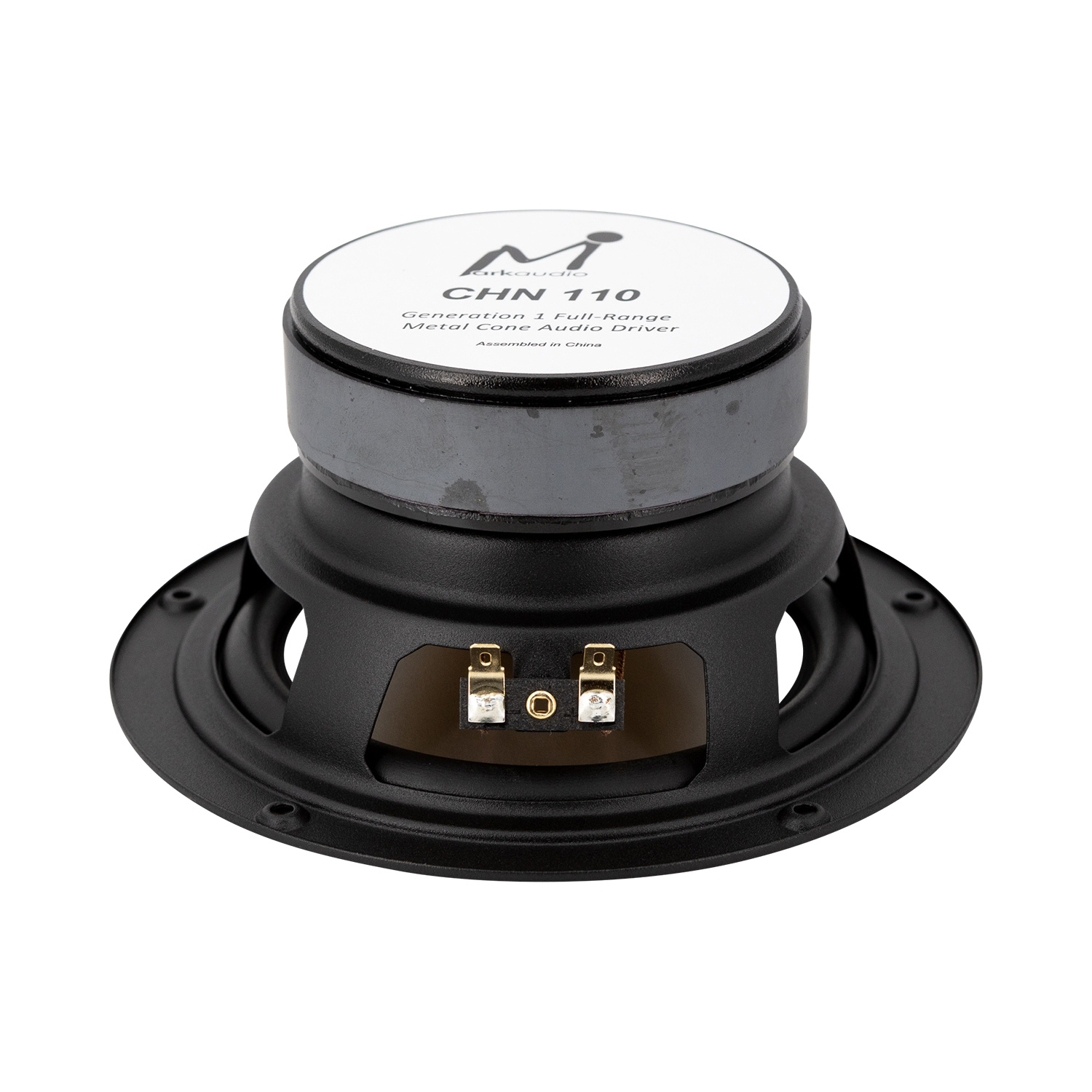

Markaudio CHN-110 Silver 6,75" Breitbandlautsprecher

Momentan nicht vorrätig. Lieferzeit beträgt 4-6 Woche

  • Artikelnummer: CHN-110
  • Nicht auf Lager

The CHN-110 is a brand-new 5.75" (actual frame diameter 6.75") driver high fidelity multi-purpose design. Exploiting technologies and features from Markaudio’s continuous research, it has been carefully optimised to provide exceptional bass extension beyo

€ 59,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €56,95 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Markaudio CHN-110 Silver 6,75" Breitbandlautsprecher

The CHN-110 is a brand-new 5.75" (actual frame diameter 6.75") driver high fidelity multi-purpose design. Exploiting technologies and features from Markaudio’s continuous research, it has been carefully optimised to provide exceptional bass extension beyond what many 5 ½ inch to 6 ½ inch mid-bass units can deliver combined with full-range frequency output.



Highlights

  • New low-distortion motor
  • Exceptional bass extension
  • Improved voice coil former



Product Details

Markaudio CHN-110  Silver  6,75" Full Range Woofer



The CHN-110 is a brand-new 5.75" (actual frame diameter 6.75") driver high fidelity multi-purpose design. Exploiting technologies and features from Markaudio’s continuous research, it has been carefully optimised to provide exceptional bass extension beyond what many 5 ½ inch to 6 ½ inch mid-bass units can deliver combined with full-range frequency output. The CHN-110 cone exploits a high-strength series aerospace grade alloy designed to cope with high bending stress loads. Based upon the shallow, wide-dispersion multiform cone concept, the material thickness has been increased to allow greater operational low frequency load capacity. The all-new long-stroke suspension has been optimised to enhance and support the remarkable low-frequency load capacity, and has an air volume compliance of almost 25 litres. With a new low-distortion motor designed to provide a medium Q, the CHN-110 is intended for use in larger enclosures where it can produce significant bass extension for a driver of its size, while providing a sensitivity of over 88dB 1m/w, and a smooth high frequency range extending to 25KHz at +80dB. Other features include an “easy install” heavy duty steel frame for both surface and recessed mounting.



The CHN-110 provides custom builders with wide operational flexibility at an affordable price, allowing use either as a genuine, high-performance full-range driver, or as a wide-range mid-bass with simple filtering. Ideal for use in high-fidelity, home-theatre, commercial A/V applications, and suiting a wide range of enclosure types, it continues Markaudio’s reputation for providing qualitative excellence and advanced mechanical engineering at an accessible level.

Eigenschaften

Spezifikationen für: CHN-110 Silver 6,75" Breitbandlautsprecher

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. CH Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Full-range
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch.
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square.
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 45watts Nom
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity
  • Frequency Response
  • Voice Coil Diameter
  • Magnet Weight
  • DC Resistance (Re)
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs)
  • Mechanical Q (Qms) 2.86
  • Electromagnetic Q (Qes) 0.4884
  • Total Q (Qts) 0.4172
  • Diaphragm Mass Inc. Airload (Mms) 8.7700 g
  • Moving Mass Of Diaphragm (Mmd) 8.1228 g
  • Mechanical Compliance of Suspension (Cms) 1.4811
  • Surface Area of Cone (Sd) 0.0109 m2
  • Volume of Displacement (Vd)
  • BL Product (BL) 5.8206 TM
  • Compliance Equivalent Volume (Vas) 24.7335 L
  • Maximum Linear Excursion (Xmax) 8mm 1 way
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminium
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter
  • Overall Depth
  • Baffle Cutout Diameter
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
