Lepai LP40PA 40W Mini Plate Amplifier Bluetooth Aux 3.5mm Input and Control Panel

Marke: Lepai

Alle anzeigen Audio-Komponenten

Vergleichen

1 x 40 W

LP40PA 40W Mini Plate Amplifier Bluetooth Aux 3.5mm Input and Control Panel

€ 59,95 >10 Auf Lager: Lieferzeit 1-3 Werktage

Building powered speakers is easier than ever with Lepai's LP40PA mini plate amplifier. Connecting your favorite devices is effortless with both Bluetooth 4.2 and 3.5 mm stereo inputs. This 2 x 20 watt RMS class D amplifier provides plenty of power for a... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

Highlights

Control panel allows you to set volume, start and stop playback, and select input
Bluetooth version 4.2 allows high fidelity wireless audio playback
Compact size of plate amplifier and control panel is ideal for use in portable systems
Capable of 2 x 20 watt RMS, ample power for smaller speaker designs
Spring loaded speaker wire connection for trouble free connections

Product details

Lepai LP40PA 40W Mini Plate Amplifier Bluetooth Aux 3.5mm Input and Control Panel

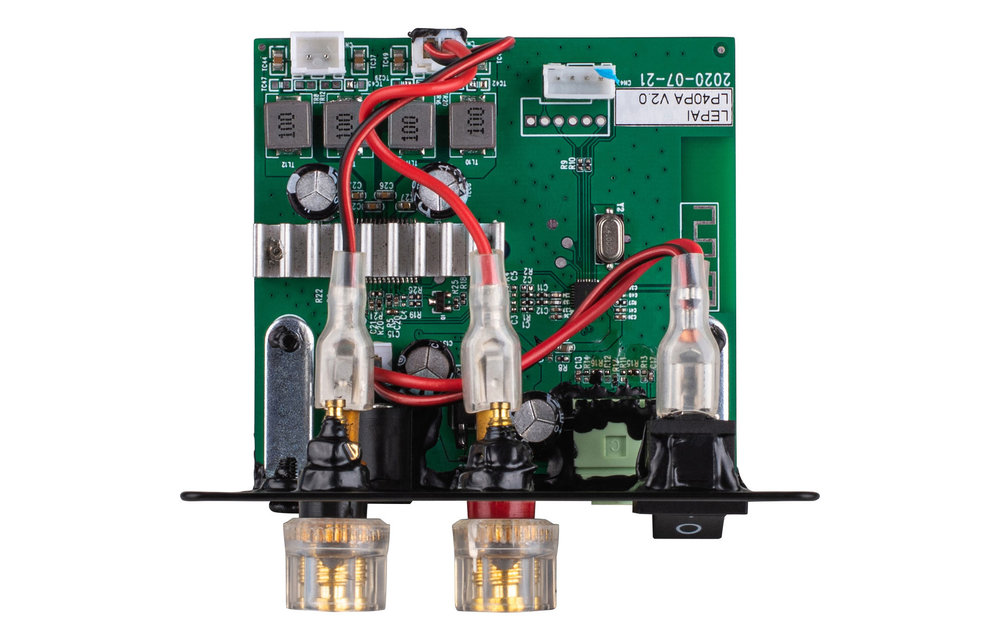

The Lepai LP40PA mini plate amplifier and control panel is a versatile package that makes it easy to turn any speaker pair into an active speaker system with Bluetooth capability, eliminating the need for a separate amplifier. Simply mount the amplifier and control panel in the right speaker, then connect your other speaker to the left output and that's it….quick and easy powered speaker system.

The LP40PA consists of two main parts, the plate amplifier and the control panel. The plate amplifier mounts into a 2.75" x 1.75" hole and includes output leads you attach internally to the crossover or driver of your right (master) speaker. A 2.6" x 0.79" hole is needed to install the 4-button control panel, which gives you the ability to select between Bluetooth and 3.5 mm inputs and adjust volume up and down. In addition, when in Bluetooth mode the control panel allows you to skip track forward and back along with play and pause.

Eigenschaften

Artikelnummer:: LP40PA
Rated power output: 2 x 20 watts
Bridged rated power output (RMS): -
Minimum load: 4 ohms
Signal-to-noise ratio (SNR): -
Distortion: <0.7 % THD
Distortion bridged: -
Amplifier classification: Class D
Circuit topology: TPA3116D2 based
Efficiency: -
Frequency response: 20 - 20,000 Hz
Input impedance: -
Input sensitivity: -
Auto turn-on sensitivity: -
DSP: -
DAC: -
Maximum sampling rate: -
Speaker output channels: 2
Analog in/out: 1/ -
S/PDIF in/out: -/-
AES/EBU in/out: -/-
Coaxial in/out: -/-
RCA in/out: -/-
XLR in/out: -/-
Jack in/out: 1/ -
USB connection: -
Network connection: -
Bluetooth: check
Subwoofer pre-out: -
Auto on/off: -
Remote control: -
App control: -
Equalizer (EQ) adjustment: -
Equalizer (EQ) profiles: -
Phase control: -
Crossover frequency adjustment: -
Presets: -
Control software: -
Windows/Mac compatible: -/-
Power requirements: 18 VDC (power supply included)
Power inlet connector: 2.1 x 5.5 mm
Standby power consumption: -
Current limit: -
Dimensions (H x W x D): 60 x 86 x 60 mm
Cutout dimensions: 44 x 70 mm

Data sheet

Bewertungen

5 from 5Based on 4 reviews

Produkt bewerten

5 van 5

Prima versterker, ben er erg blij mee. Gebruik hem met twee Peerless TC9FD18-08 in combinatie met een SMSL DAC, en dat klinkt fijn en kan erg luid. De Bluetooth verbinding gebruik ik zelf niet, maar ik heb het wel even geprobeerd en het werkt erg goed.

Durch Sven C. on 11 April 2021

5 van 5

I use these on a regular basis and you had them and got them here FAST

Durch Steve H. on 17 Juli 2020
