Lepai LP210PA 2x30W + 60W 2.1 Channel Mini Plate Amplifier TPA3118

€ 64,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The Lepai LP210PA is the ideal Class D plate amplifier for powering smaller 2.1 speaker systems. This compact plate amplifier can provide 30 watts x 2 to the full range outputs and 60 watt to the mono subwoofer channel for powerful output capability. The... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €61,70 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Lepai LP210PA is the ideal Class D plate amplifier for powering smaller 2.1 speaker systems. This compact plate amplifier can provide 30 watts x 2 to the full range outputs and 60 watt to the mono subwoofer channel for powerful output capability. The adjustable crossover frequency, sub volume, and main speaker volume makes it easy to create a smooth transition from a subwoofer to satellite speakers.



Highlights

  • Compact size (4.5" x 5" x 1") for installation into the smallest subwoofer enclosures
  • Satellite outout includes 6 dB per octave high pass at 100 Hz
  • Perfect for use in office, bedroom, or even portable speaker systems
  • Defeatable full range output for use as just a subwoofer amplifier
  • The full range speaker output uses high quality binding posts for easy connection



Product details

Lepai LP210PA 2x30W + 60W 2.1 Channel Mini Plate Amplifier TPA3118

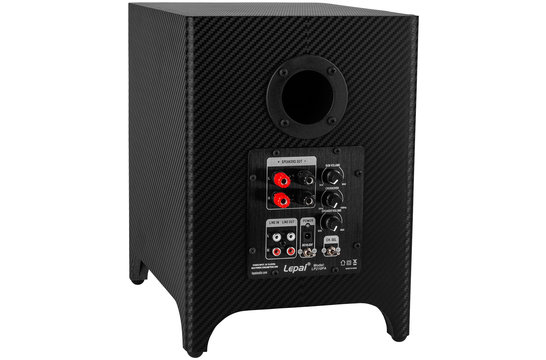

Lepai's LP210PA compact 2.1 plate amplifier makes it easy to create your own powered subwoofer/satellite speaker systems. At only 4.5" wide and 5" tall, you can install this amplifier in even the smallest subwoofer designs; however with 60 watts to the subwoofer and 30 watts to each satellite you can expect powerful output capability. This is the perfect plate amplifier for use in office, bedroom, or even portable subwoofer/satellite speaker systems.

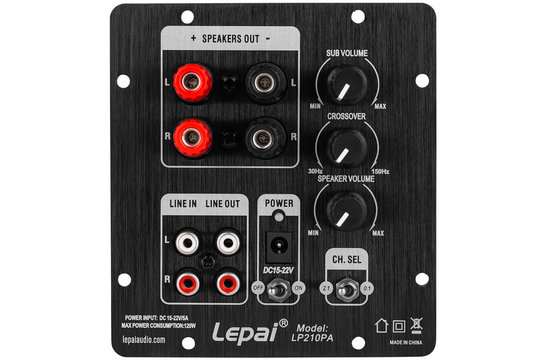

The straightforward features make the LP210PA extremely easy to connect and setup. Input is handled through stereo RCA connectors. For the power outputs, there is a Phoenix connector on the back of the amplifier to connect directly to your subwoofer driver, along with binding posts on the front of the plate for simple connection to a pair of separate satellite speakers. The adjustable subwoofer volume, crossover frequency, and main speaker volume makes it easy to create a smooth transition between the subwoofer and satellite speakers. In addition, this amplifier includes a unique channel selection switch, which allow you to turn off the satellite speakers and run just the subwoofer by itself allowing you to run separate powered satellites from the stereo RCA pass through outputs.



Note: Power supply not included.

Eigenschaften

Artikelnummer:
LP210PA
Rated power output
2 x 30 watts + 1 x 60 watts
Bridged rated power output (RMS)
-
Minimum load
4 ohms
Signal-to-noise ratio (SNR)
-
Distortion
-
Distortion bridged
-
Amplifier classification
Class D
Circuit topology
TPA3118 based
Efficiency
-
Frequency response
20 - 20,000 Hz
Input impedance
-
Input sensitivity
245 mV
Auto turn-on sensitivity
-
DSP
-
DAC
-
Maximum sampling rate
-
Speaker output channels
3
Analog in/out
1/1
S/PDIF in/out
-/-
AES/EBU in/out
-/-
Coaxial in/out
-/-
RCA in/out
1/1
XLR in/out
-/-
Jack in/out
-/-
USB connection
-
Network connection
-
Bluetooth
-
Subwoofer pre-out
-
Auto on/off
-
Remote control
-
App control
-
Equalizer (EQ) adjustment
-
Equalizer (EQ) profiles
-
Phase control
-
Crossover frequency adjustment
check
Presets
-
Control software
-
Windows/Mac compatible
-/-
Power requirements
15 - 22 VDC
Power inlet connector
2.1 x 5.5 mm plug
Standby power consumption
-
Current limit
-
Under/over voltage protection
-
Dimensions (H x W x D)
159 x 114 x 102 mm
Cutout dimensions
104.76 x 95.25 mm

Bewertungen

5 from 5Based on 6 reviews
Produkt bewerten
4 van 5
I have had a few more days testing this plate amp and I thought I would share some thoughts. I had a lot of fun building a small sub with this which turned out great. Combined with a pair of small bookshelves i bought many years ago it is perfect. However when I paired it with a pair of Dali Sektor 2, the highpass filter took alot away from the dalis. I believe there is a 100hz highpass filter. Perhaps this is a good thing for you, but I would not pair this amp with just any speaker. Also there is a slight self noise if you set the volume on the amp higher than 12 o clock (which really should not be necessary og all but the most unefficient speakers). I am using an old laptop power supply that is near the max this amp can take. All in all I am quite happy whith this for the price, and it was a fun project. I might be a bit critical as my main listening system is b&w cm9 with a rotel rb 1582 amp.
Durch Tomas M. on 11 Oktober 2020
5 van 5
No description was given
Durch Tomas M. on 6 Oktober 2020
