Jantzen Audio 001-7045 | 5,60 µF | 3% | 100 V | Alumen Z-Kondensator

Name: Jantzen Audio 001-7045 | 5,60 µF | 3% | 100 V | Alumen Z-Kondensator
Brand: Jantzen Audio
SKU: 001-7045
Price: 66.95 EUR
Availability: InStock

0 reviews

Marke: Jantzen Audio

Alle anzeigen Film / Folien Kondensatoren

Vergleichen

001-7045 | 5,60 µF | 3% | 100 V | Alumen Z-Kondensator

55,33 €66,95 € 2 Auf Lager

Kostenloser Versand ab 149 € (DE & A)
Jetzt bestellt, am Montag versendet
Hausinterner technischer Support
45 Tage Widerrufsrecht

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

The Alumen Z-Cap (pure aluminium foil capacitors) was especially designed for the tweeter and mid-section of crossovers for passive hi-fi speakers.

Highlights

Ultra-thin dielectric insulation to eliminate memory effect in the capacitor
An extremely fast reacting capacitor
High quality pure aluminium foil wound with highly specialised machinery and precision winding techniques
Specifically designed for the tweeter and mid-range section of passive crossovers
Can also be used as coupling capacitors for transistor amplifiers

Product details

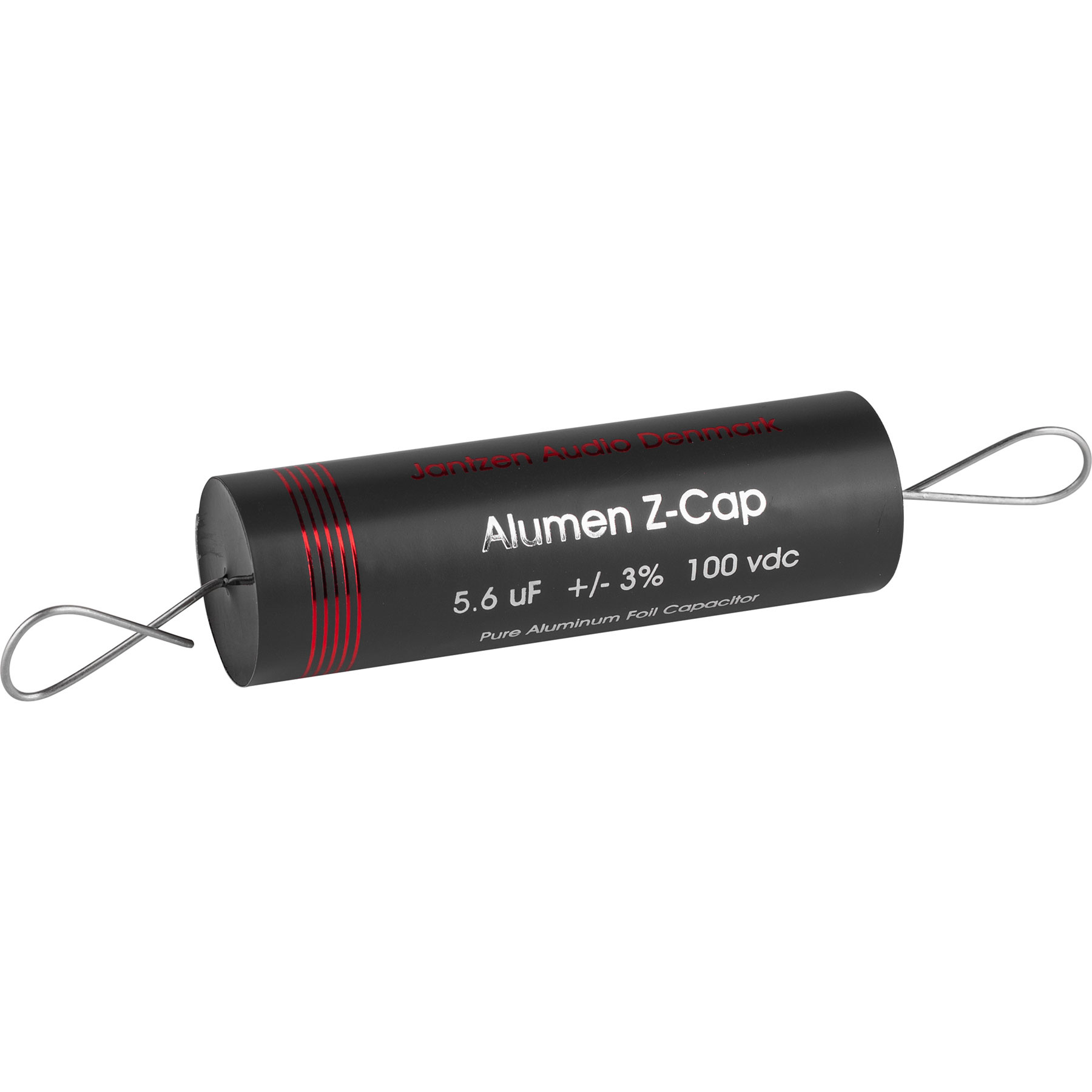

Jantzen Audio 001-7045 | 5,60 µF | 3% | 100 V | Alumen Z-Cap

The improved transparency performance of this new cap is on the same high level as Jantzen Silver/Gold Z-Cap, but with a slightly softer tonal presence and less brightness / sheen / glare in comparison. The Alumen Z-Cap will offer a more “neutral” presentation in the overall sound in certain crossover designs. By “neutral” Jantzen refers to the fact that the focus will be shifted from what can be a somewhat overemphasized brightness from a Super PP cap, to a more even balancing between the depth of the midrange and the presence of the tweeter.

It utilises a much thinner dielectric insulation compared to the market standard. A high voltage rating is not needed for application related to passive loudspeaker crossovers. The usage of a thinner dielectric insulator allows for a capacitor with less “memory” and one that is much faster reacting. The Alumen Z-Cap offers unparalleled value for money in terms of cost versus performance. Compared to the Superior capacitors, the Alumen Z-Cap will bring less brightness and a little more natural top end balance to your system. Ideal for audio aficionados who prefer a slightly less bright system, while also hearing improvements in the overall naturalness/neutrality of the system as a whole.

Specifications: Capacitor foil: Pure aluminium • Dielectric: Polypropylene • Voltage rating:100 VDC / 65 VAC • Capacitance tolerance: +/- 3% (on nominal value) • Temperature range: - 30C to + 85C • Extremely low ESR and SEL data • Non inductive construction • Terminal leads: Pure PCOCC grade copper • Dissipation factor: .0001 • Signal direction: None (non-polarised capacitor) • Very low ESR, SEL, inductance and dielectric absorption data • Leadout dimensions: 1mm (diameter) x 55mm (length).
