001-0566 | 5,60 µF | 2% | 800 V | Superior Z-Kondensator

€29,95

Zum Warenkorb hinzufügen

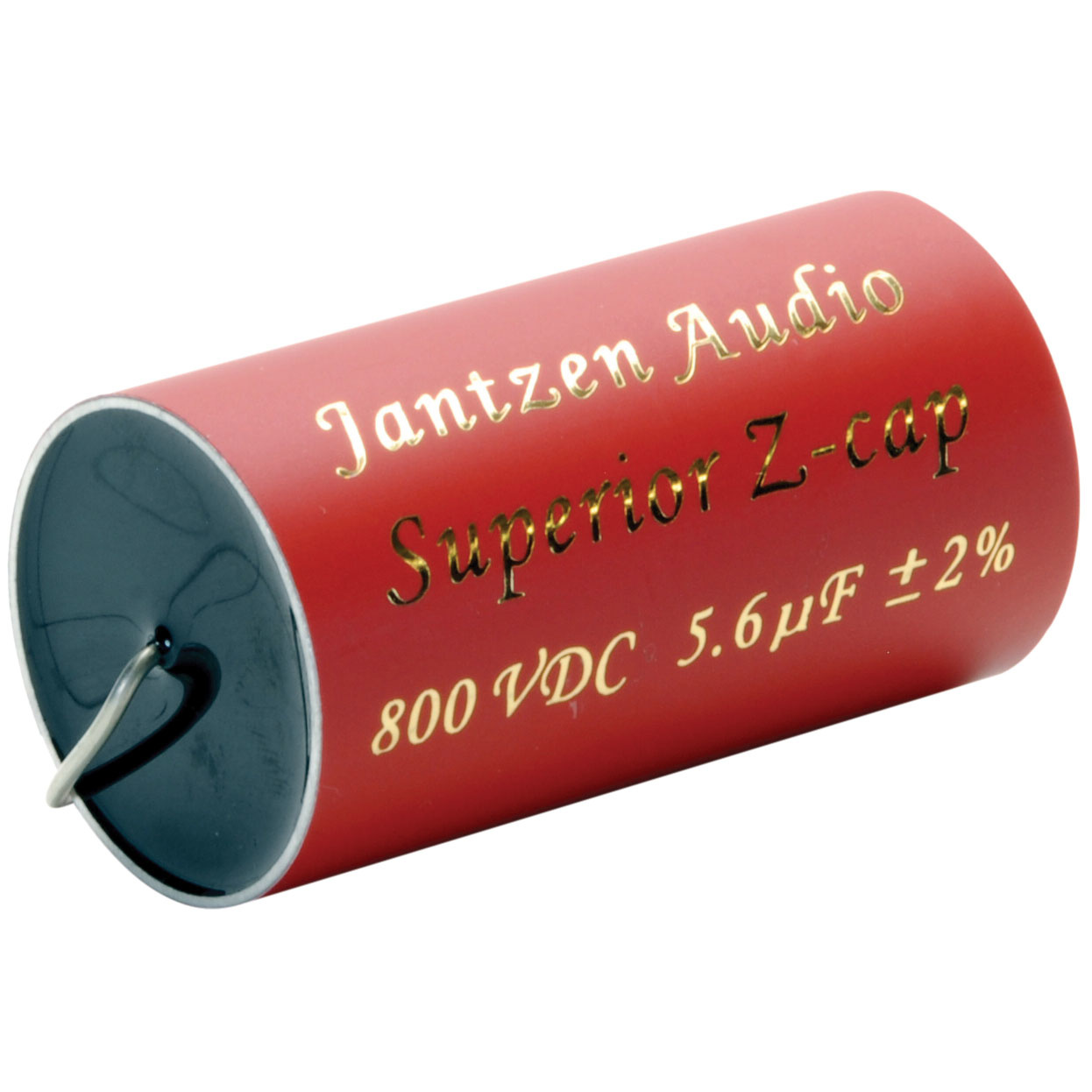

Jantzen Audio 001-0566 | 5,60 µF | 2% | 800 V | Superior Z-Kondensator

Name: Jantzen Audio 001-0566 | 5,60 µF | 2% | 800 V | Superior Z-Kondensator
Brand: Jantzen Audio
SKU: 001-0566
Price: 29.95 EUR
Availability: InStock
Rating: 5 (2 reviews)

2 reviews

Marke: Jantzen Audio

Zeige alle Film/ Folien Kondensatoren

001-0566 | 5,60 µF | 2% | 800 V | Superior Z-Kondensator

24,75 €29,95 € 7 Auf Lager

Wir versenden nach
Jetzt bestellt, heute versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

With the Superior Z-Cap even the finest nuances can be heard. The sound never gets over-edged, superb naturalness with a somewhat bright top-end.

Highlights

Capacitor foil: Metalized (ZnAl) polypropylene foil
Dielectric insulation: Polypropylene film
Terminal leads: PCOCC copper wire
Capacitance tolerance: +/- 2%
Signal direction: None (non-polarized capacitor)

Product details

Jantzen Audio 001-0566 | 5,60 µF | 2% | 800 V | Superior Z-Cap

All Jantzen Audio Z-Caps are nitrogen filled, which means that you get more foil per capacitor and no risk of the evaporation that can occur in oil/dielectric fluid filled capacitors. Highly recommended for use as a high-end tweeter capacitor or as a coupling cap in an amplifier. For the best performance, signal should enter on the left-hand side (From reading direction).

Specifications: Metallization: Aluminium and Zinc particles • Ends: Are made from copper thread • Dielectric: Polypropylene • Tolerance: 1% - 2% • Loss angle tan = 0.00002 to 1K • Loss angle tan = 0.00001 to 10K • Film: Metallized polypropylene • Dimension dia- 17/ 43 mm. hor • Axial • Non inductive construction • 0,47 uF - 22 uF AC value of the voltage rating 800 VDC / 425 VAC. • Loss factor: 1K 0.00002 • Working Temperature Range: - 30C to + 85C.
