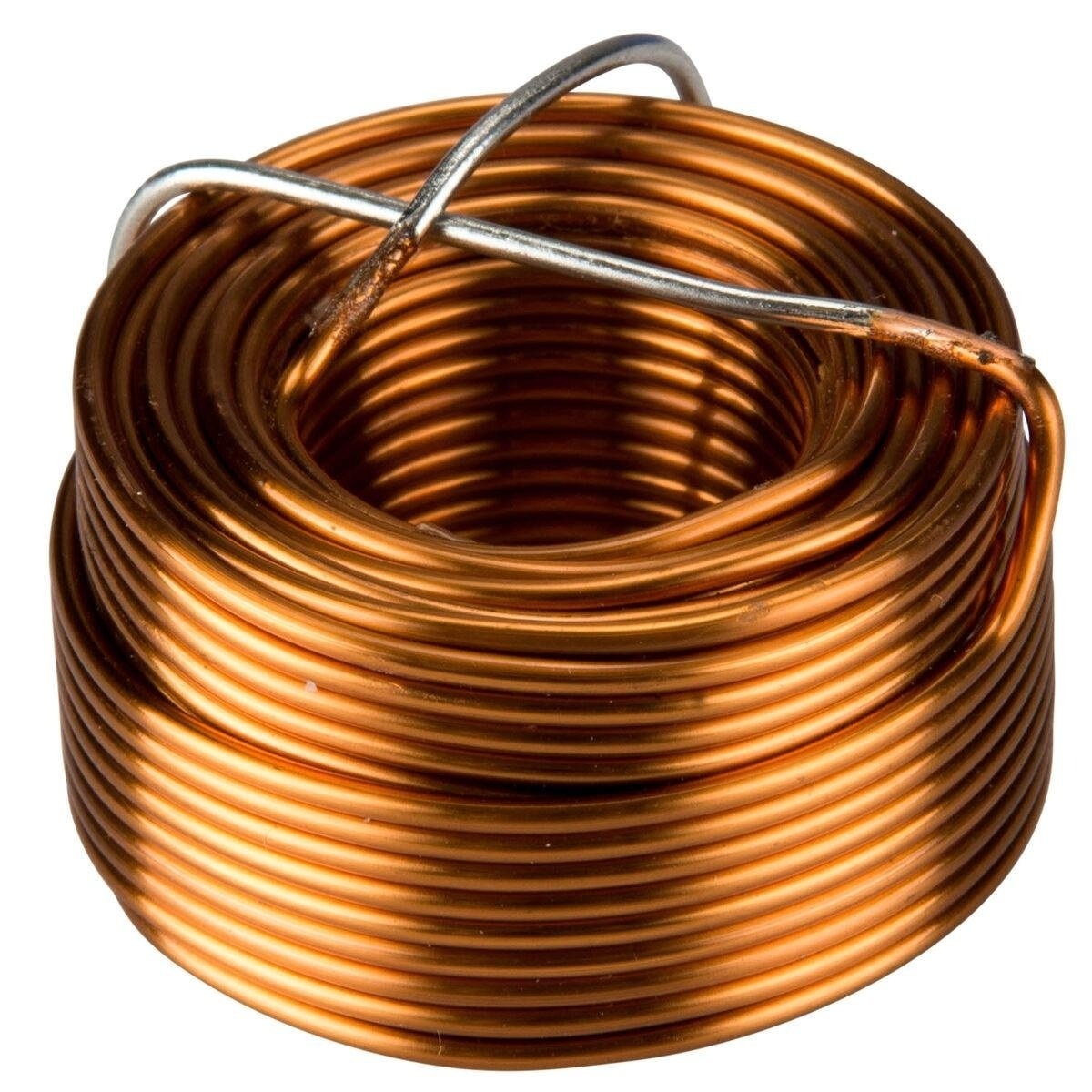

      Produktbeschreibung Jantzen Audio 000-1753 | 0,22 mH | 0,46 Ω | 3% | 21 AWG

      A compact 0.22 mH air core coil perfect for high-fidelity crossovers.



      Highlights

      • 0.22 mH inductance with low tolerance of +/-3%
      • 0.455 Ω resistance ensuring minimal signal loss
      • 21 AWG high-purity copper wire for superior conductivity
      • Self-supporting design, free from plastic bobbins



      Product details

      Jantzen Audio 000-1753 | 0,22 mH | 0,455 Ω | 3% | 21 AWG | Air Core Coil



      The Jantzen Audio 000-1753 air core coil is a meticulously crafted crossover component designed to deliver distortion-free audio in high-end sound systems. With an inductance of 0.22 mH and a resistance of just 0.455 Ω, it's engineered to ensure minimal signal loss while maintaining a tight inductance tolerance of +/-3%. The 21 AWG grade 1B copper wire is chosen for its exceptional electrical conductivity and is coated with a polyurethane and aliphatic polyamide bond, adhering to stringent IEC 60317-35 and DIN EN 60317-35 standards. This air core coil boasts a modern, self-supporting design that eliminates the need for plastic bobbins, further enhancing audio purity. Its enameled copper wire is easily solderable thanks to a self-bonding topcoat, class 155. Ideal for audiophiles and professional audio manufacturers, this coil stands as a testament to Jantzen Audio's commitment to high-quality, reliable audio components.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      000-1753
      EAN
      9505859831634
      Spulen-Typ
      Air core coils
      Induktion
      0.22 mH
      Gleichstromwiderstand
      0.46 ohms
      Toleranz
      3%
      Kabeldurchmesser
      21 AWG
      Abmessungen Ø * H (mm)
      23 x 27
