TRI92/0.68/0.80 | 0,68 mH | 0,14 Ω | 1% | 20 AWG | Tritec Spule

€89,95

Zum Warenkorb hinzufügen

Intertechnik TRI92/0.68/0.80 | 0,68 mH | 0,14 Ω | 1% | 20 AWG | Tritec Spule

Name: Intertechnik TRI92/0.68/0.80 | 0,68 mH | 0,14 Ω | 1% | 20 AWG | Tritec Spule
Brand: Intertechnik
SKU: TRI92/0.68/0.80
Price: 89.95 EUR
Availability: InStock

0 reviews

Marke: Intertechnik

Zeige alle Luftkernspulen

TRI92/0.68/0.80 | 0,68 mH | 0,14 Ω | 1% | 20 AWG | Tritec Spule

74,34 €89,95 € 2 Auf Lager

Wir versenden nach
Jetzt bestellt, am Montag versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

High-end crossover component, the I.T. Intertechnik TRI92/0.68/0.80 is a Tritec coil with superior audio properties.

Highlights

Uses "Septem Coxid" technology for optimal sound quality
Features 7-strand twisted wire for increased flexibility and current capacity
Low ohmic resistance and skin effect for efficient performance
Superior noise reduction properties due to multi-strand configuration

Product details

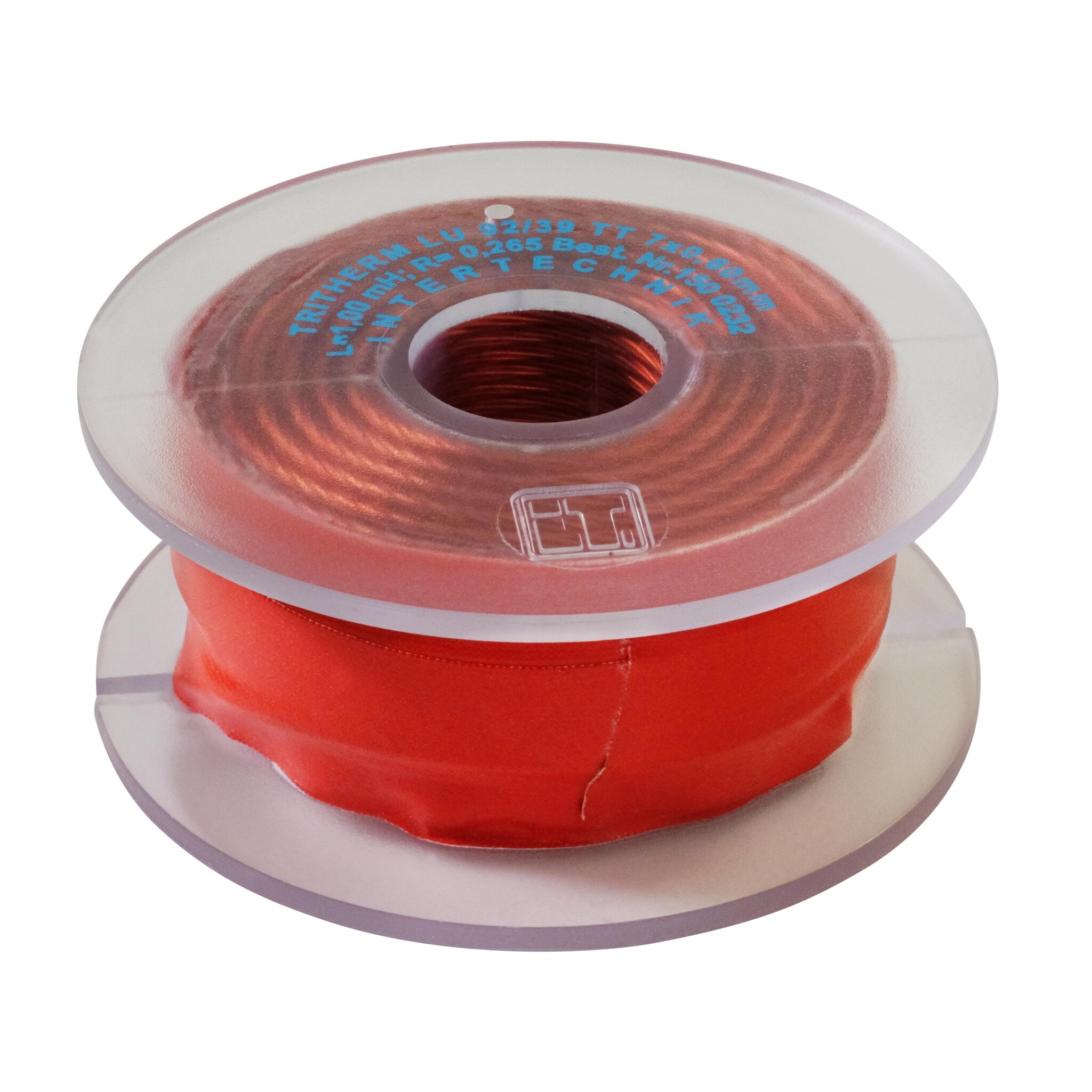

I.T. Intertechnik TRI92/0.68/0.80 | 0,68 mH | 0,14 Ω | 1% | 20 AWG | Tritec Coil

The I.T. Intertechnik TRI92/0.68/0.80 Tritec coil stands as a high-end product in the realm of crossover components. Utilising advanced "Septem Coxid" technology, this coil features a concentric stranded construction with 7 individual strands, offering greater flexibility and current capacity compared to a single wire design. The Thermoplastic enamel wire is baked and soaked, resulting in low ohmic resistance and minimal skin effect. It also boasts no saturation or hysteresis distortions, maintaining constant inductance under voltage and load fluctuations. Its low self-capacitance and exceptional sound properties make it an ideal choice for audio cabling. The wire's Cu purity is over 99.99%, and the coil body material is polycarbonate. The coil offers a -1% inductance tolerance, measured at a nominal 25 degrees C at 1kHz. It can withstand temperatures from -90 degrees C to 135 degrees C. The reduction in the skin effect and the consequent even distribution of current across the conductor, coupled with noise reduction capabilities, make this Tritec coil a preferred choice in audio cabling.

I.T. Intertechnik Artikelnummer: 1500286
