- Very high speaker output drive voltage
- Fully integrated, high-power amplifier and power supply
- Minimum load impedance at 3 Ohm
- Extensive monitoring and protection
- Real-time clip and thernal monitor outputs
- Audio signal and logic triggers
- Auxiliary power supply output
- Universal mains with active Power Factor Correction

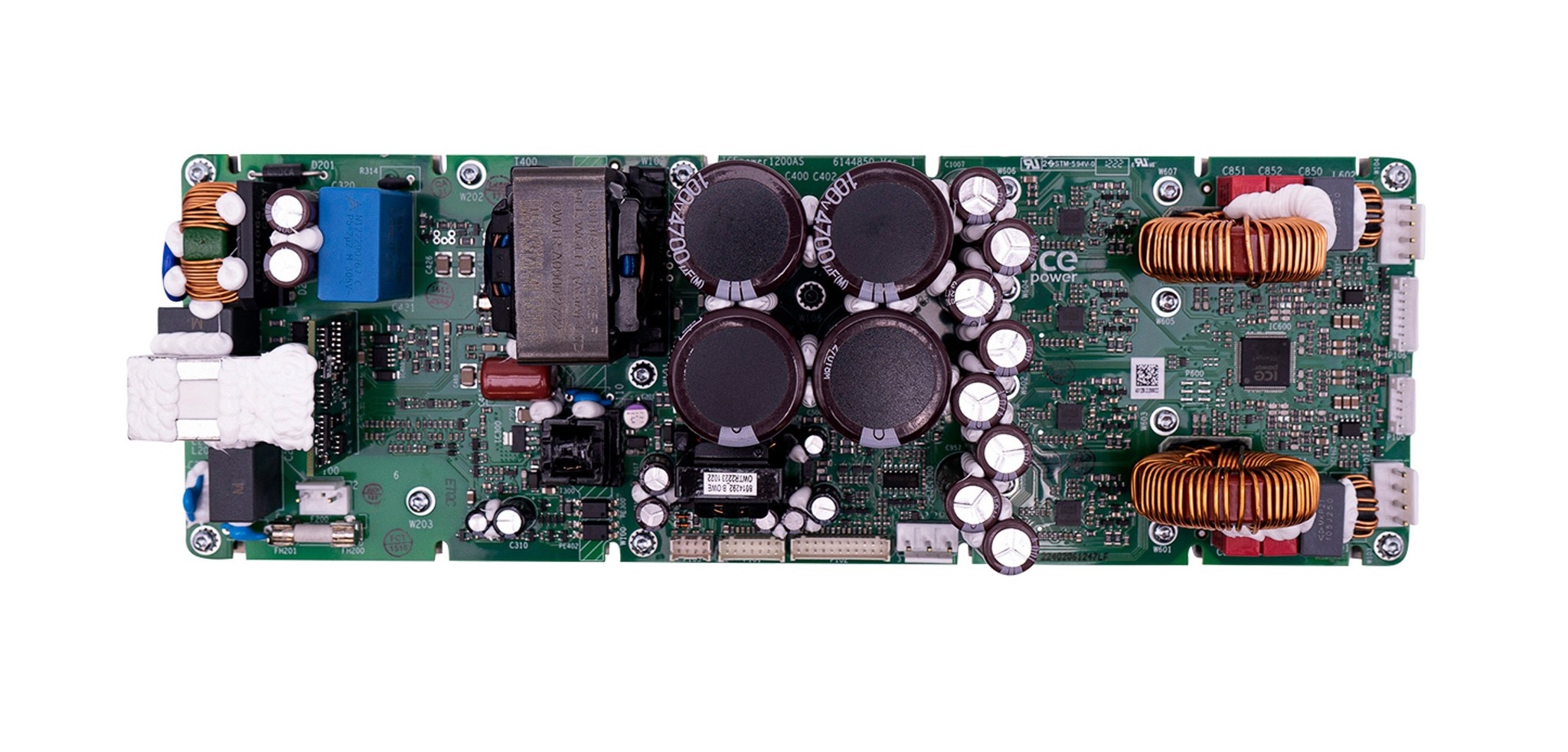

ICEpower 2000AS2 HV Amplifier Module with Integrated Universal Mains Power Supply
The ICEpower 2000AS2 HV combines two high-performance 2000 watt class D amplifier channels with an integrated mains power supply. Besides being the most powerful integrated solution, this is also the most convenient solution for two channels of extreme audio power and performance in the amplifier module category.
Just as all ICEpower products the noise and distortion performance is very good. And with a maximum output voltage of 149 V, this powerhouse gives a dynamic drive for any speaker and has high power capabilities into 8-Ohm loads.
A DC hanger bus with +/- 90 VDC output voltage is suitable for powering additional high power amplifier modules. Perfect for professional 2-way speakers and 2.1 systems as well as high-end consumer products such as subwoofers.
The ICEpower 2000AS family uses a universal mains ErP and Energy Star compliant power supply and provides comprehensive protection and monitoring functions. All are accessible through an easy-to-use control interface. Additionally, dedicated monitor outputs for speaker connector output voltage and current enable real-time protection system of the loudspeaker. The integrated aluminium base plate on the 2000AS HV acts as both a cooling and mechanical interface. This enables easy mechanical integration and extra cooling can be added. This ICEpower 2000AS2 HV is a two-channel module. Check out the ICEpower 1200AS1 for a high power single-channel module.
The included cable set gives access to all the functions of the 2000AS2 HV module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.
What’s In The Box of the ICEpower 2000AS2 HV?
- 1 x 2000AS2 HV Amplifier Module with Integrated Universal Mains Power Supply
- Cable set:
- 1 x (K) Mains without Earth
- 2 x (G) Speaker 1200AS
- 1 x (NC) Basic control/features
- 1 x (ND) Signal
- 1 x (NE) Voltage and Current Monitor 2 channel
- 1 X (NA) Audio input 2 channel
- 1 x (NG) Hanger Rail Supply
- 1 x (NH) Hanger Small Signal Supply
FAQ about the ICEpower 2000AS2
I am afraid I have received a 1200AS2 instead of the 2000AS2, what can I do?

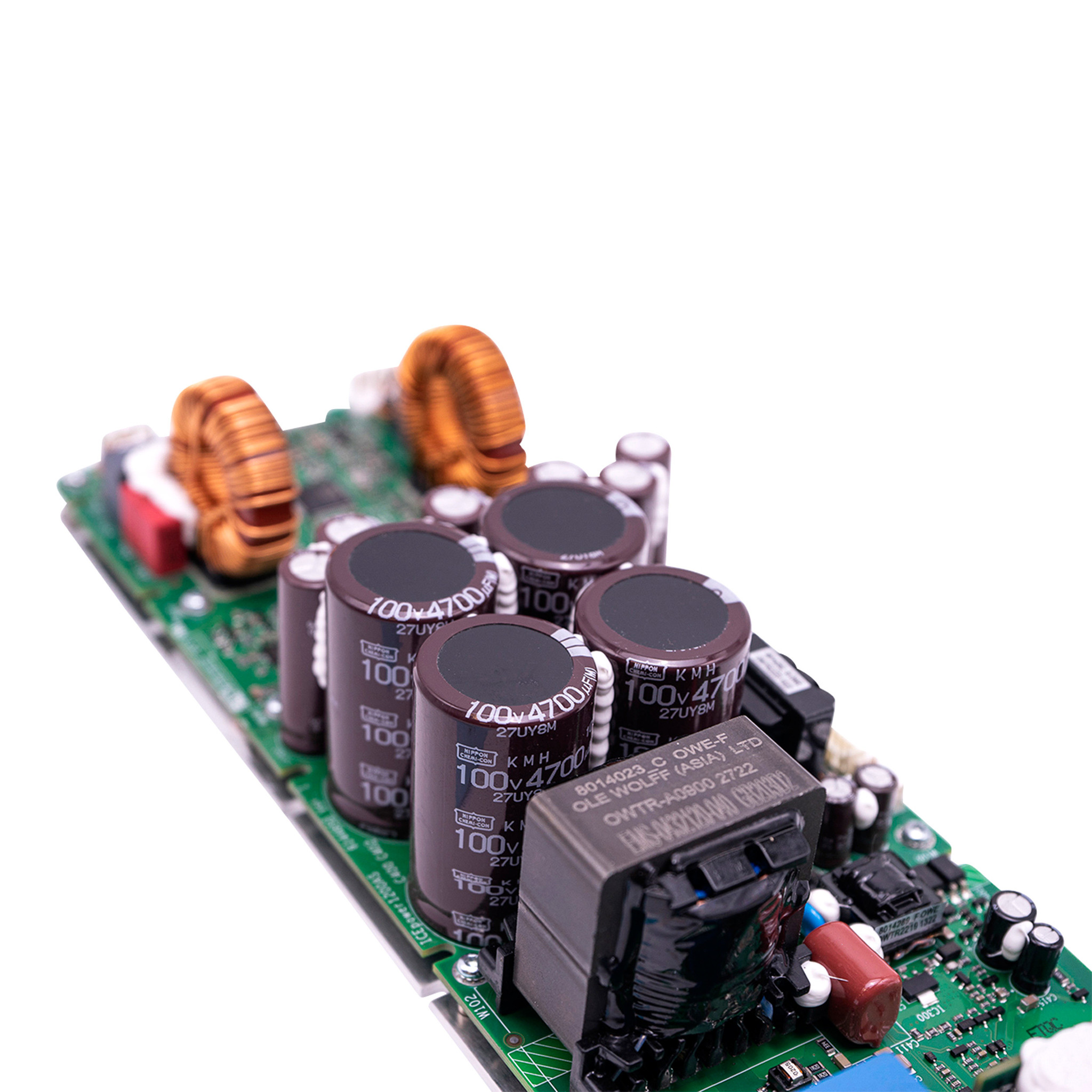

The 2000AS2 uses the same PCB as the 1200AS2. You can verify you have received the right module by checking the voltage rating on the large capacitors: The 2000AS2 uses 100V rated caps instead of 80V rated caps
