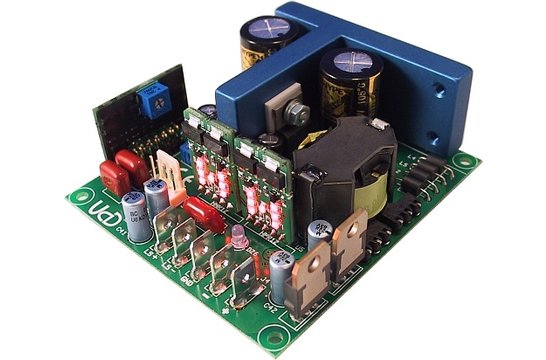

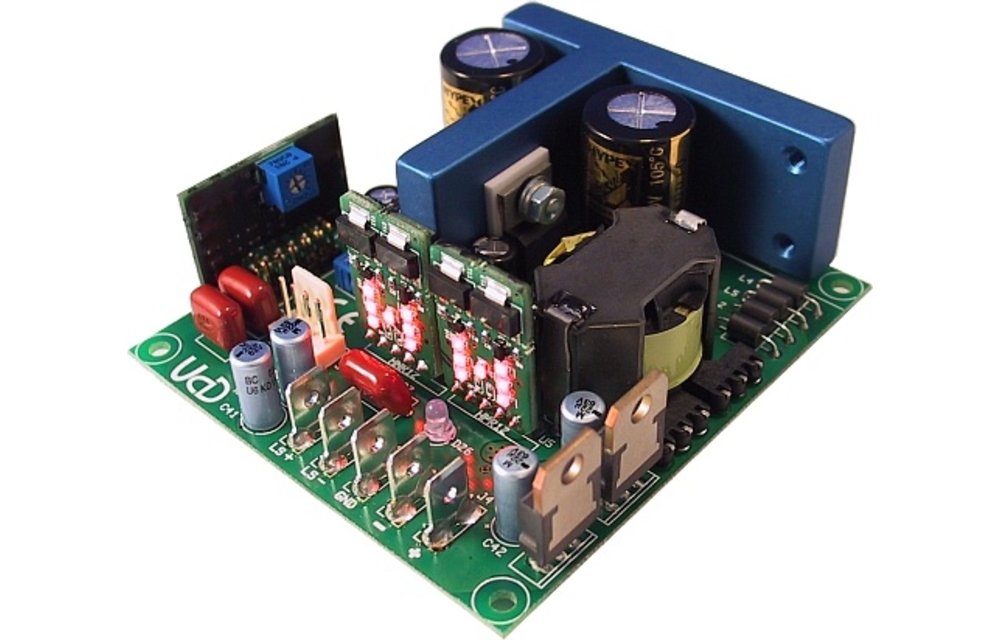

Hypex UcD400HG HxR 1x400W Universal Class D Amplifier Module

€ 159,95 6 Auf Lager: Lieferzeit 1-3 Werktage
The UcD400HG HxR amplifier module is an entry level high-end class D amplifier, with HxR upgrade from Hypex. This amplifier is known for its high performance, reliability and ease of use. The UcD400HG HxR comes with the required UcD Signal Cable.... Mehr anzeigen
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

The UcD400HG HxR amplifier module is an entry level high-end class D amplifier, with HxR upgrade from Hypex. This amplifier is known for its high performance, reliability and ease of use. The UcD400HG HxR comes with the required UcD Signal Cable.



Highlights

  • Flat, fully load-independent frequency
  • Low output impedance
  • Very low, frequency-independent THD

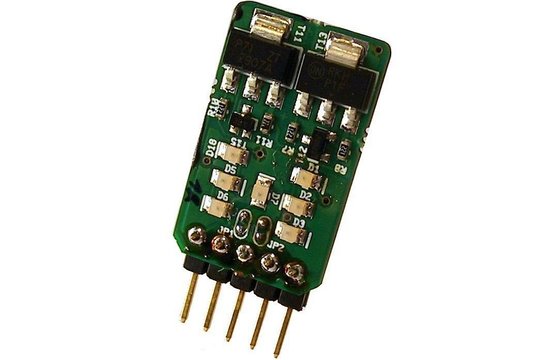

  • Ultra low noise due to HxR regulators



Product details

Hypex UcD400HG HxR 1x400W Universal Class D Amplifier Module



The UcD400HG HxR amplifier is intended for a wide range of audio applications, ranging from Public Address systems to ultrahigh-fidelity replay systems for studio and home use. Hypex distinguishes their amplifiers from other class D designs due a unique circuit topology. This results in flat frequency response irrespective of load impedance, nearly frequency-independent distortion behavior and very low radiated and conducted EMI.



The Hypex UcD modules have established themselves as the new standard, both in terms of measured and subjective performance and therefore very suitable as amplifier in professional audio as well in consumer purposes.



Features

  • Pop-free start and stop control
  • Differential audio input
  • Overcurrent and over voltage protection
  • No compromise components
  • LM4562 buffer OpAmp



What’s In The Box

  • UcD400HG HxR amplifier module
  • Mounting set UcD

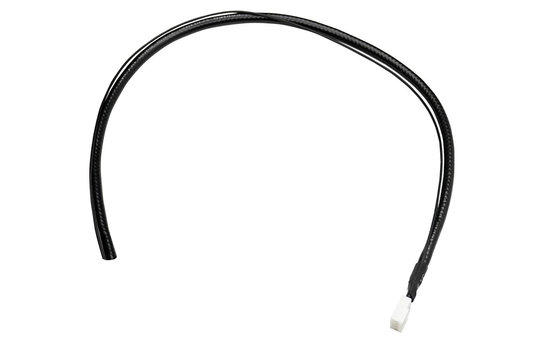

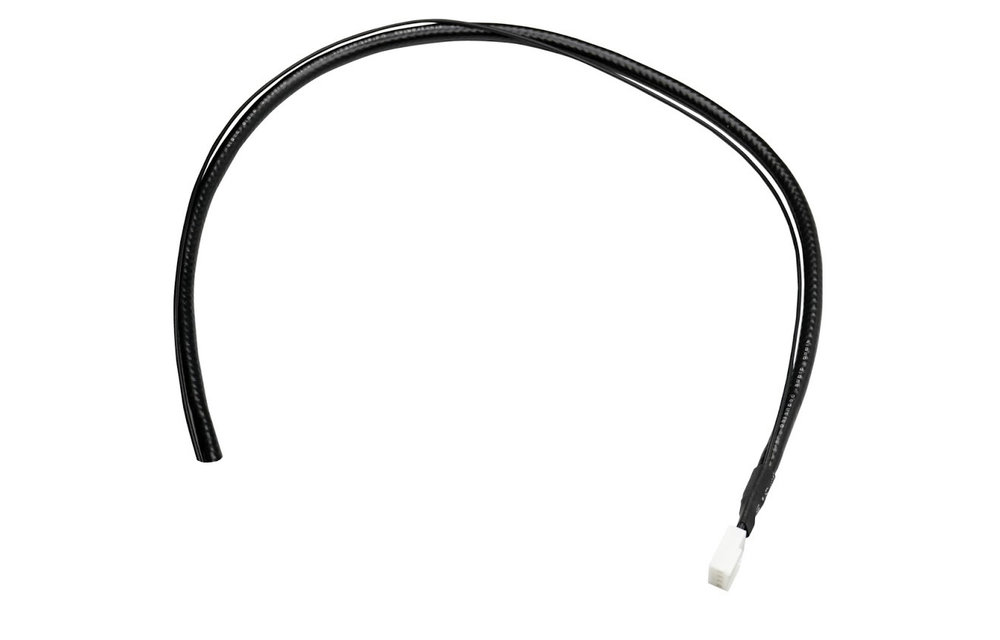

  • UcD Signal Cable
  • Manual



The UcD amplifier module only needs the proper power supply to start with their efficient, ultra clean power delivery. We recommend the SMPS400A400 as power supply for the UcD400HG HxR amplifier module.

Eigenschaften

Artikelnummer:
UcD400HG HxR
Rated power output
<p>400 watts at 4 ohms</br>240 watts at 8 ohms</p>
Minimum load
1 ohm
Efficiency
92 %
Signal-to-noise ratio (SNR)
-
Distortion
0.01 % THD+N (20-20,000 Hz at 0.5 x rated power output)
Frequency Response
10 - 50,000 Hz
Gain
26 dB
Input sensitivity
-
Input impedance
100k ohms
Amplifier Classification
Class D
Circuit Topology
UcD®
Speaker output channels
1
Input connection type
4 pin PCB connector
Speaker output connection type
Crimp/solder connection tabs
DSP function
-
Bluetooth
-
EQ Adjustment
-
Power Requirements
45 - 67 VDC (symmetric supply +/-)
Power inlet connector
Crimp/solder connection tabs
Current limit
20 A
Under/over voltage protection
check
Dimensions (L x W x H)
82 x 75 x 25 mm
Mounting hole diameter
-

Bewertungen

5 from 5Based on 6 reviews
Produkt bewerten
3 van 5
Prima product, echter het wordt nogal warm. (en dan bedoel ik niet het aluminium blok).
Ik heb i.v.m. de lage behuizing een ventilator geplaatst.
Durch Jaap B. on 9 Januar 2021
5 van 5
These modules are pretty simple about installation and they sound amazing. Be confident on these!
Durch Roberto B. on 1 Januar 2021
