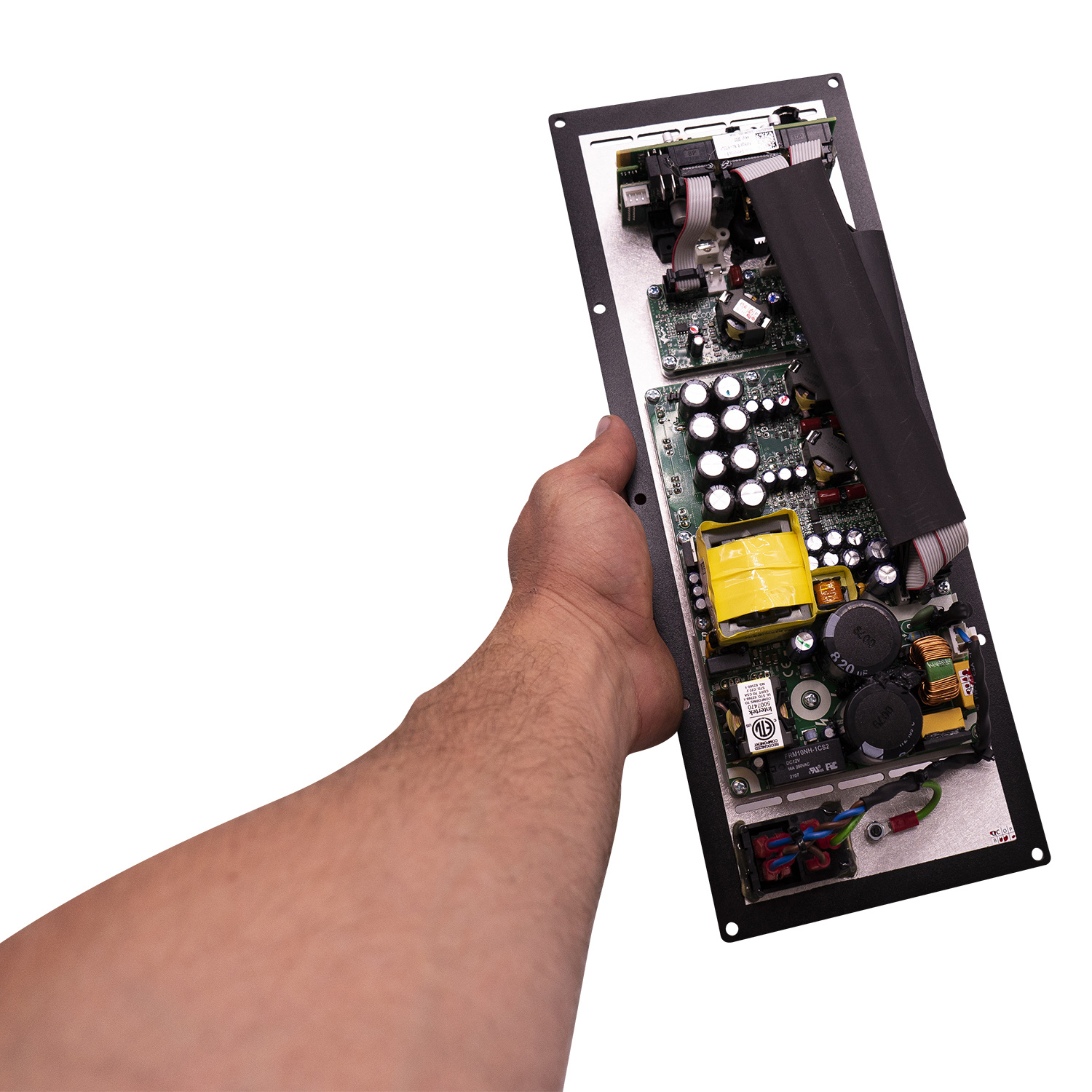

Hypex FA253 2 x 250 + 100 Watt FusionAmp

€ 487,56€ 589,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The FA253 2x250 +100 Watt FusionAmp is a DSP controlled three channel plate amplifier. It can be the basis of a powerful active two- or three-way speaker.... Mehr anzeigen
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support


The FA253 2x250 +100 Watt FusionAmp is a DSP controlled three channel plate amplifier. It can be the basis of a powerful active two- or three-way speaker.



  • Ncore based amplifier technology
  • DSP controlled
  • All-in-one Hypex Solution
  • Neutral and transparent reproduction


Product details

Hypex FA253 2x250 +100 Watt FusionAmp


Due the combination of SMPS, DSP and Ncore based amplifiers packed in this plate amplifier, FusionAmp is one of the best amplification solutions available for active speaker designs. The integrated DSP provides great audio processing functionality. Thanks to the Ncore technology distortion (THD and IMD) over the full audio and power range is negligible. Distortion at listening levels (1W) is unmeasurable.


The FA253 has two 250 watt Ncore amplifiers which can also be bridged to form one powerful 500 watt amplifier. The third channel is 100 watt Ncore tweeter channel. A variety of input options ensure compatibility with most source equipment. Hypex provides their HFD (Hypex Filter Design) software to design and configure filters for the FusionAmp. You can easily add functionality to the FusionAmp with the Fusion Remote Kit for remote controllability. Due to thermal regulation these FusionAmp's are not airtight.


To protect your valuable drivers, the DSP does not contain a filter out of the box. A filter needs to be configured and uploaded using Hypex Filter design (HFD) software before the FusionAmp will produce an output signal. You can download the HFD software here.



  • 15 biquads per amplifier
  • Three selectable presets for filters
  • Source selection
  • Signal detect
  • Auto shutdown
  • BTL capable
  • Clip protect
  • Thermal protect
  • Filter protection

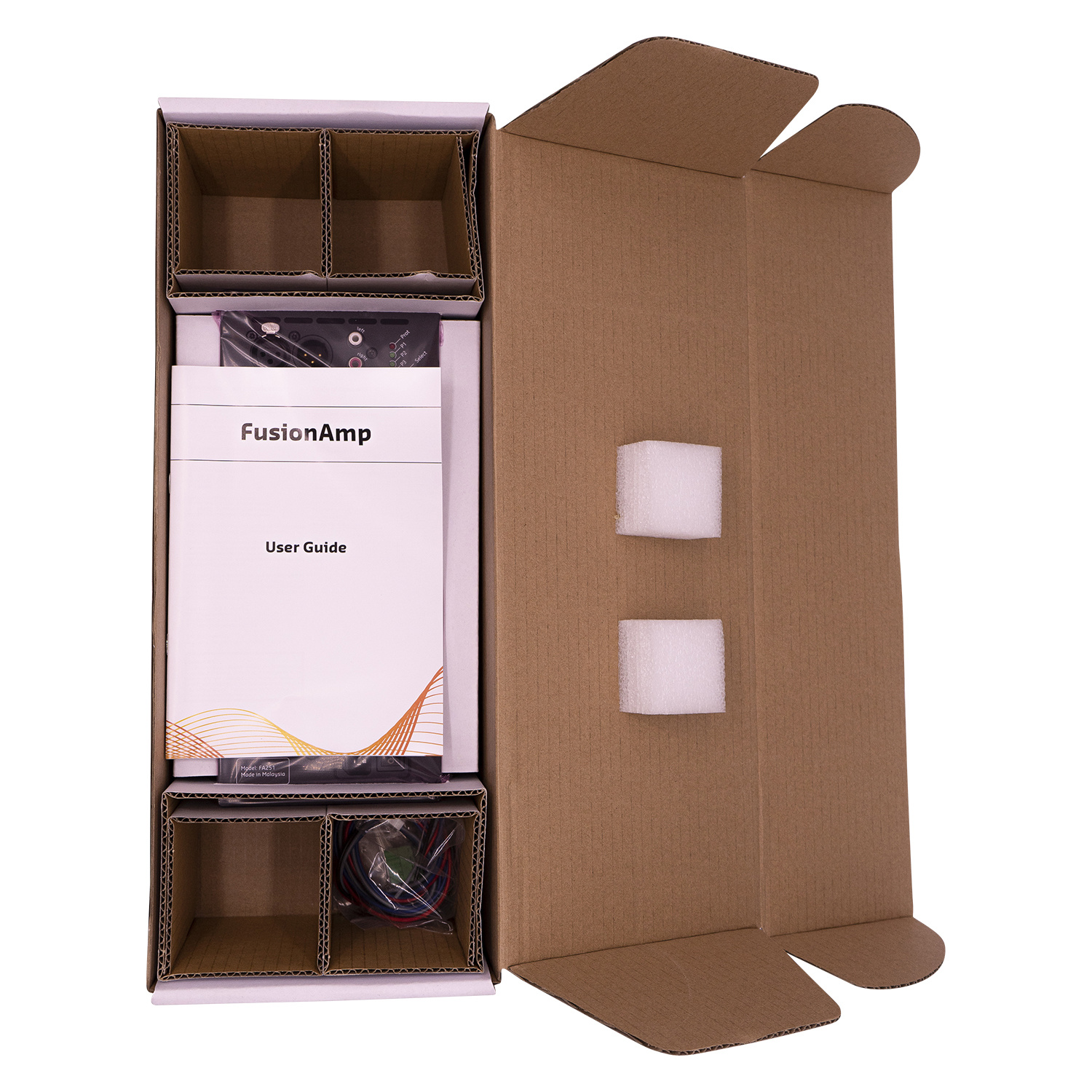

What’s in the box?

  • FA253 FusioAmp
  • A printed copy of the user guide
  • Speaker connection cables
  • EU (or UK) C13 Power cable


Curious about designing an active speaker with DSP using Hypex Fusion amplifiers? – Check out our blog post with a “step by step” guide!


Rated power output

2 x 250 + 1 x 100 watts at 4 ohms
2 x 200 + 1 x 100 watts at 8 ohms
2 x 180 watts at 2 ohms + 1 x 100 at 4 ohms

Bridged rated power output (RMS)

1 x 400 at 4 ohms
1 x 500 at 8 ohms

Minimum load
2 ohms (4 ohms for tweeter channel)
Signal-to-noise ratio (SNR)
121 dB
0.0015 % THD+N (10-20,000 Hz at 0.5 x rated power output)
Distortion bridged
Amplifier classification
Class D
Circuit topology
92 % at full power
Frequency response
10 - 50,000 Hz
Input impedance

54k ohms (unbalanced RCA)
44k ohms (balanced XLR DM)
2.2m ohms (balanced XLR CM)

Input sensitivity
1.66 Vrms for rated power output
Auto turn-on sensitivity
Maximum sampling rate

192 kHz
96 kHz (optical)

Speaker output channels
Analog in/out
S/PDIF in/out
AES/EBU in/out
Coaxial in/out
RCA in/out
1/ -
XLR in/out
Jack in/out
- / -
USB connection
check configure port only
Network connection
Subwoofer pre-out
Auto on/off
Remote control
check Sold separately
App control
Equalizer (EQ) adjustment
Equalizer (EQ) profiles
Phase control
Crossover frequency adjustment
Control software
Hypex Filter Design
Windows/Mac compatible
check/ -
Power requirements
200-240 VAC ±10%
Power inlet connector
Standby power consumption
Current limit
17.5 A
Under/over voltage protection
Dimensions (H x W x D)
360 x 135 x 55 mm
Cutout dimensions
336 x 111 mm
