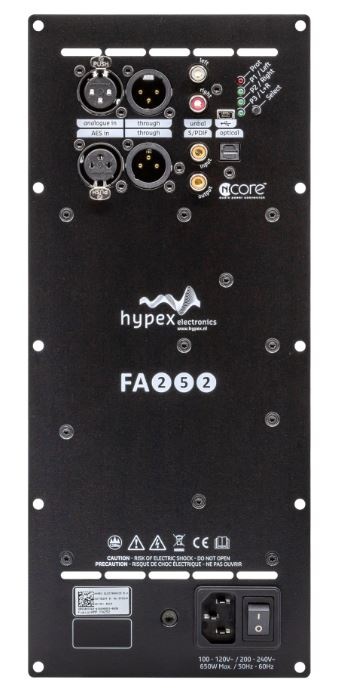

Hypex FA252 2 x 250 Watt FusionAmp

€ 519,95 2 Auf Lager: Lieferzeit 1-3 Werktage
The FA252 2x250 Watt FusionAmp is a DSP controlled two channel plate amplifier. It can be the basis of a two-way active speaker or an active subwoofer.... Mehr anzeigen
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The FA252 2x250 Watt FusionAmp is a DSP controlled two channel plate amplifier. It can be the basis of a two-way active speaker or an active subwoofer.



Highlights

  • Ncore based amplifier technology
  • DSP controlled
  • All-in-one Hypex Solution
  • Neutral and transparent reproduction
  • Wide range of analog and digital inputs



Product details

Hypex FA252 2x250 Watt FusionAmp



Due to the combination of SMPS, DSP and Ncore based amplifiers packed in this plate amplifier, FusionAmp is one of the best amplification solutions available for active speaker designs. The integrated DSP provides great audio processing functionality. Thanks to the Ncore technology distortion (THD and IMD) over the full audio and power range is negligible. Distortion at listening levels (1W) is unmeasurable.



The FA252 has two 250 watt Ncore amplifiers which can also be bridged to form one powerful 500 watt amplifier. A variety of input options ensure compatibility with most source equipment. Hypex provides their HFD (Hypex Filter Design) software to design and configure filters for the FusionAmp. You can easily add functionality to the FusionAmp with the Fusion Remote Kit for remote controllability. Due to thermal regulation these FusionAmp's are not airtight.



To protect your valuable drivers, the DSP does not contain a filter out of the box. A filter needs to be configured and uploaded using Hypex Filter design (HFD) software before the FusionAmp will produce an output signal. You can download the HFD software here.



Features

  • 15 biquads per amplifier
  • Three selectable presets for filters
  • Source selection
  • Signal detect
  • Auto shutdown
  • BTL capable
  • Clip protect
  • Thermal protect
  • Filter protection



What’s in the box?

  • FA252 FusioAmp
  • A printed copy of the user guide
  • Speaker connection cables
  • EU (or UK) C13 Power cable

Eigenschaften

Artikelnummer:
FA252
Rated power output
<p>2 x 250 watts at 4 ohms<br />2 x 200 watts at 8 ohms<br />2 x 180 watts at 2 ohms</p>
Bridged rated power output (RMS)
<p>1 x 400 watts at 4 ohms<br />1 x 500 watts at 8 ohms</p>
Minimum load
2 ohms
Signal-to-noise ratio (SNR)
121 dB
Distortion
0.0015 % THD+N (10-20,000 Hz at 0.5 x rated power output)
Distortion bridged
-
Amplifier classification
Class D
Circuit topology
Ncore®
Efficiency
92 % at full power
Frequency response
10 - 50,000 Hz
Input impedance
<p>54k ohms (unbalanced RCA) <br/> 44k ohms (balanced XLR DM) <br/> 2.2m ohms (balanced XLR CM) </p>
Input sensitivity
1.66 Vrms for rated power output
Auto turn-on sensitivity
-
DSP
check
DAC
check
Maximum sampling rate
<p>192 kHz <br/> 96 kHz (optical) </p>
Speaker output channels
2
Analog in/out
1/1
S/PDIF in/out
2/1
AES/EBU in/out
1/1
Coaxial in/out
1/1
RCA in/out
1/ -
XLR in/out
2/2
Jack in/out
- / -
USB connection
check configure port only
Network connection
-
Bluetooth
-
Subwoofer pre-out
-
Auto on/off
check
Remote control
check (sold separately)
App control
-
Equalizer (EQ) adjustment
check
Equalizer (EQ) profiles
check
Phase control
check
Crossover frequency adjustment
check
Presets
check
Control software
Hypex Filter Design
Windows/Mac compatible
check/ -
Power requirements
200-240 VAC ±10%
Power inlet connector
IEC C14
Standby power consumption
-
Current limit
17.5 A
Under/over voltage protection
check
Dimensions (H x W x D)
315 x 135 x 55 mm
Cutout dimensions
291 x 111 mm
