Hypex FA122 2 x 125 Watt FusionAmp

€ 314,01€ 379,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The FA122 2x125 Watt FusionAmp is a DSP controlled two channel plate amplifier. It can be the basis of a two-way active speaker or an active subwoofer.... Mehr anzeigen
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

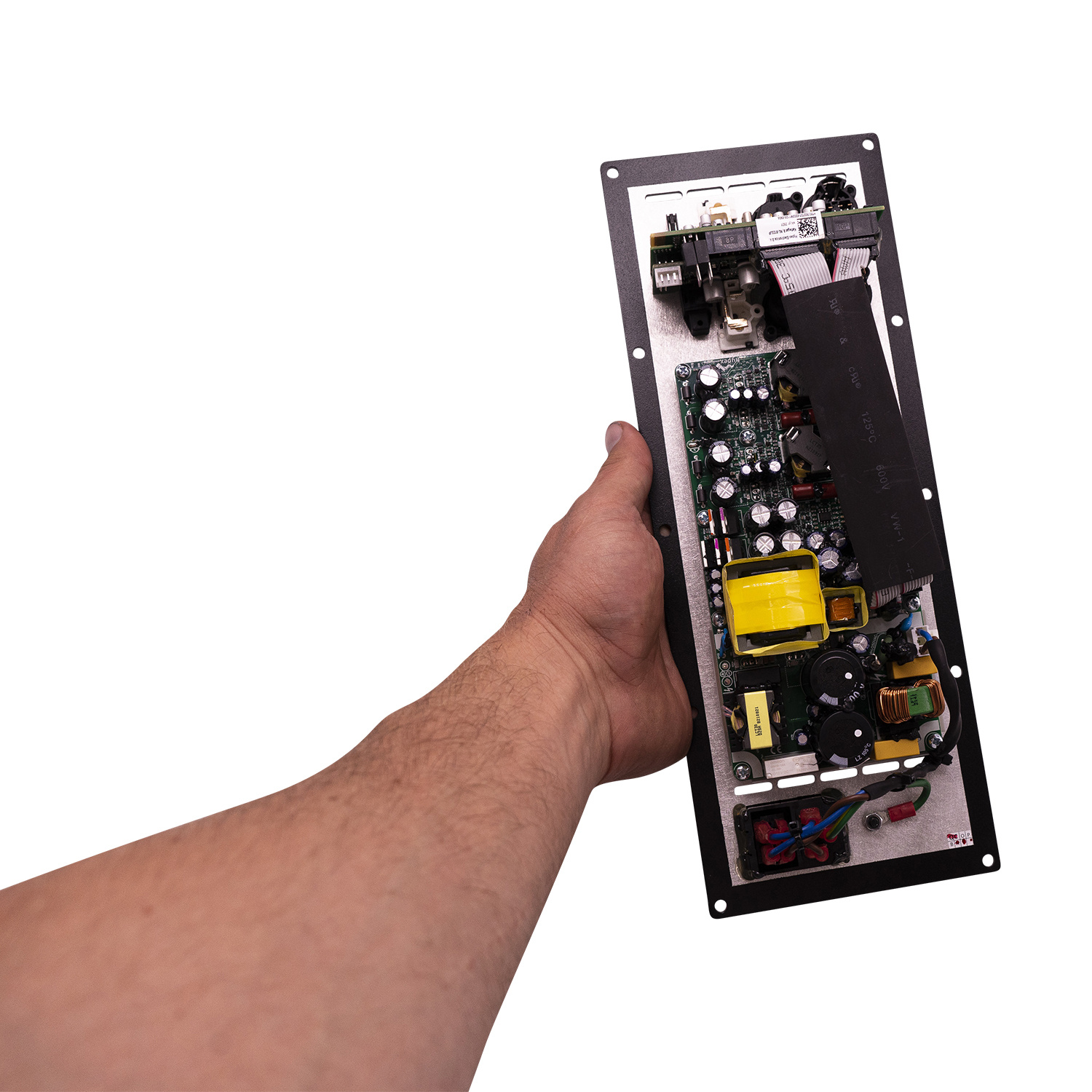

The FA122 2x125 Watt FusionAmp is a DSP controlled two channel plate amplifier. It can be the basis of a two-way active speaker or an active subwoofer.



Highlights

  • Ncore based amplifier technology
  • DSP controlled
  • All-in-one Hypex Solution
  • Neutral and transparent reproduction
  • Wide range of analog and digital inputs



Product details

Hypex FA122 2x125 Watt FusionAmp



Due to the combination of SMPS, DSP and Ncore based amplifiers packed in this plate amplifier, FusionAmp is one of the best amplification solutions available for active speaker designs. The integrated DSP provides great audio processing functionality. Thanks to the Ncore technology distortion (THD and IMD) over the full audio and power range is negligible. Distortion at listening levels (1W) is unmeasurable.



The FA122 has two 125 watt Ncore amplifiers which can also be bridged to form one powerful 250 watt amplifier. A variety of input options ensure compatibility with most source equipment. Hypex provides their HFD (Hypex Filter Design) software to design and configure filters for the FusionAmp. You can easily add functionality to the FusionAmp with the Fusion Remote Kit for remote controllability. Due to thermal regulation these FusionAmp's are not airtight.



To protect your valuable drivers, the DSP does not contain a filter out of the box. A filter needs to be configured and uploaded using Hypex Filter design (HFD) software before the FusionAmp will produce an output signal. You can download the HFD software here.



Features

  • 15 biquads per amplifier
  • Three selectable presets for filters
  • Source selection
  • Signal detect
  • Auto shutdown
  • BTL capable
  • Clip protect
  • Thermal protect
  • Filter protection



What’s in the box?

  • FA122 FusioAmp
  • A printed copy of the user guide
  • Speaker connection cables
  • EU (or UK) C13 Power cable

Eigenschaften

Artikelnummer:
FA122
Rated power output

2 x 125 watts at 4 ohms
2 x 75 watts at 8 ohms
2 x 115 watts at 2 ohms

Bridged rated power output (RMS)

1 x 200 watts at 4 ohms
1 x 250 watts at 8 ohms

Minimum load
2 ohms
Signal-to-noise ratio (SNR)
118 dB
Distortion
0.0015 % THD+N (10-20,000 Hz at 0.5 x rated power output)
Distortion bridged
-
Amplifier classification
Class D
Circuit topology
Ncore®
Efficiency
92 % at full power
Frequency response
10 - 50,000 Hz
Input impedance

54k ohms (unbalanced RCA)
44k ohms (balanced XLR DM)
2.2m ohms (balanced XLR CM)

Input sensitivity
1.17 Vrms for rated power output
Auto turn-on sensitivity
-
DSP
check
DAC
check
Maximum sampling rate

192 kHz
96 kHz (optical)

Speaker output channels
2
Analog in/out
1/1
S/PDIF in/out
2/1
AES/EBU in/out
1/1
Coaxial in/out
1/1
RCA in/out
1/ -
XLR in/out
2/2
Jack in/out
- / -
USB connection
check configure port only
Network connection
-
Bluetooth
-
Subwoofer pre-out
-
Auto on/off
check
Remote control
check (sold separately)
App control
-
Equalizer (EQ) adjustment
check
Equalizer (EQ) profiles
check
Phase control
check
Crossover frequency adjustment
check
Presets
check
Control software
Hypex Filter Design
Windows/Mac compatible
check/ -
Power requirements
200-240 VAC ±10%
Power inlet connector
IEC C14
Standby power consumption
-
Current limit
12.5 A
Under/over voltage protection
check
Dimensions (H x W x D)
315 x 120 x 55 mm
Cutout dimensions
291 x 96 mm

Bewertungen

5 from 5Based on 2 reviews
Produkt bewerten
4 van 5
Waanzinnige sound voor het kleine formaat. Ervaar de versterker als kraakhelder en zeer gebruiksvriendelijk. Auto source detectie en auto wake functies werken bijzonder goed, geen plopjes of kraakjes bij opstarten en overschakelen. De filtersoftware is even wennen maar overzichtelijk, al is de user interface niet altijd even vriendelijk.
Ik mis persoonlijk een netwerk, of rs232 poort voor het bedienen van de versterker, jammer dat hier ook geen module voor beschikbaar is. Verder, absoluut waar voor zijn geld, de 2e ligt al in het winkelmandje!
Durch Richard Osseweijer on 31 Dezember 2020
5 van 5
Klasse versterker. Veelzijdig en makkelijk te programmeren.
Nu heb ik nog maar een versterker nodig om de verschillende luidsprekers actief aan te sturen.
Daarnaast gebruik ik de versterker als test omgeving bij het ontwikkelen van luidsprekers met bijbehorend filter.
Durch Gerard L. on 8 August 2019
