HiVi F6 6-1/2" Bass/Midrange

€ 41,28€ 49,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €47,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The HiVi F6 has been optimized for dynamic bass reproduction in small or medium vented systems. Midrange clarity and tonal balance are remarkable.



Highlights

  • Kevlar and paper fiber cone
  • Phase plug improves frequency response and dispersion
  • Magnetically shielded
  • Remarkable midrange clarity and tonal balance



Product details

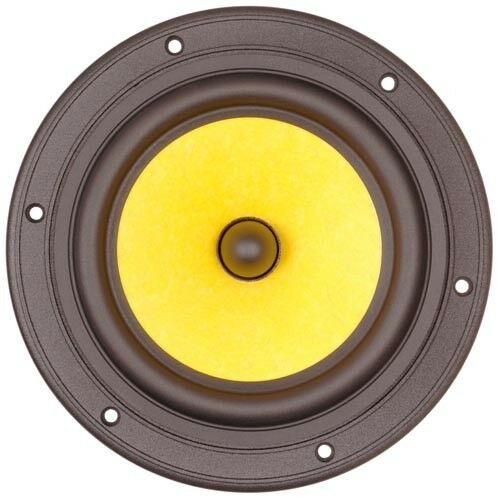

HiVi F6 6-1/2" Bass/Midrange



The HiVi F6 has been optimized for dynamic bass reproduction in small or medium vented systems. Midrange clarity and tonal balance are remarkable. The F6 utilizes a newly developed matrix of Kevlar and paper fibers, and the cone weighs less, is more rigid, and has an improved damping factor. The back of the cone is hand coated with a special damping compound to further maximize performance stability and control of structural resonances. The driver features a central phase plug to avoid air compression and internal air volume resonance, and the plug improves frequency response and dispersion as well. An aluminum former voice coil and spider contribute to the driver's linear operation at high power levels. The massive aluminum die-cast basket has been developed to minimize structural resonances, and the shielded magnet structure allows the F6 to be incorporated into audio/video applications. It may be used in a small vented or closed box when a subwoofer is employed.

Eigenschaften

Artikelnummer:
F6
Tieftönertyp
Midwoofer
Nenndurchmesser
6-1/2"
Belastbarkeit (QMW)
45 Watts
Belastbarkeit (max)
90 Watts
Impedanz (Z)
8 ohms
Empfindlichkeit
88 dB 2.83V/1m
Frequenzgang
42 to 4,000 Hz
Schwingspulendurchmesser
1"
Gleichstromwiderstand (Re)
6.5 ohms
Resonanzfrequenz (Fs)
45 Hz
Mechanische Güte (Qms)
3.91
Elektrische Güte (Qes)
0.38
Gesamtgüte (Qts)
0.35
Bewegliche Masse (Mms)
18.3g
Nachgiebigkeit der Aufhängung (Cms)
0.07 mm/N
Membranfläche (Sd)
139 cm²
Äquivalentvolumen (Vas)
0.58 ft.³
Maximale Auslenkung (Xmax)
4.3 mm
Cone / Diaphragm Material
Paper / Kevlar
Sicke-Material
Rubber
Schwingspulenformmaterial
Kapton® / Polyimide
Dual Voice Coil
No
Korb- / Rahmenmaterial
Cast Aluminum
Magnetmaterial
Ferrite
Magnetisch abgeschirmt
Yes
Außendurchmesser
7.75"
Gesamttiefe
3.75"
Ausschnittdurchmesser
5.875"
# Befestigungsbohrungen
6
Geschlossenes Volumen
0.19 ft.³
Geschlossenes F3
94 Hz
Bassreflex Volumen
0.53 ft.³
Bassreflex F3
53 Hz

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
nice woofer in a 3way system. unexpected felt pressure, precision and low range in a 20l cabinet. also i never had placement issues with systems using this woofer.
if you have high expectations, you'd rather skip thinking of a 2way system with it, at least compared to the f5 the midrange isn't as musical and present. you might still like it for rock music in a 2way system, when trying to keep the xover at 2k or lower.
Durch Martin Z. on 28 Mai 2020
