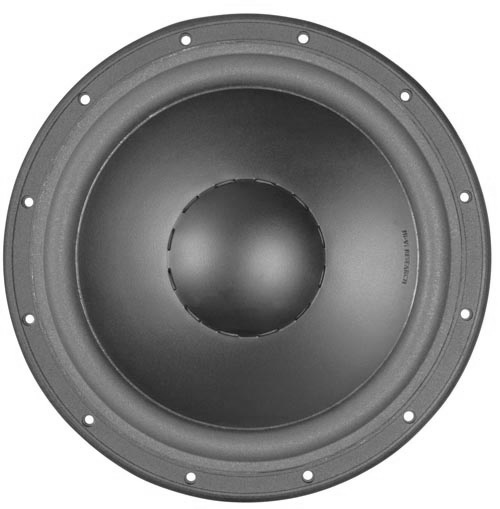

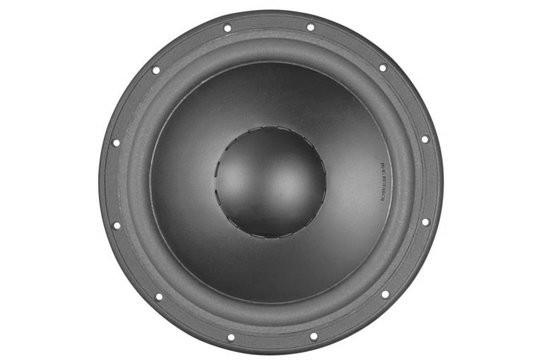

HiVi D10.8 | 10"| Poly Cone Woofer

€ 179,95 4 Auf Lager: Lieferzeit 1-3 Werktage
The HiVi D10.8 represents a design in which the voice coil is positioned over an undercut central pole piece with a large thermally stabilized neodymium magnet at the bottom and a high energy ceramic magnet on the top.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €170,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The HiVi D10.8 represents a design in which the voice coil is positioned over an undercut central pole piece with a large thermally stabilized neodymium magnet at the bottom and a high energy ceramic magnet on the top.



Highlights

  • Extreme power handling 100 mm voice coil with a black anodized aluminum former
  • Shielded vented magnet system with a huge Neodymium magnet
  • Fatigue resistant foam surround
  • Long-throw symmetrically driving motor structure
  • Progressive spider with decompressed rear volume
  • High density aluminum die-cast frame



Product details

HiVi D10.8 | 10"| Poly Cone Woofer



The HiVi D10.8 represents a design in which the voice coil is positioned over an undercut central pole piece with a large thermally stabilized neodymium magnet at the bottom and a high energy ceramic magnet on the top. A specially shaped, CNC machined steel cup completes the magnetic structure from the outside, creating a shielded magnet system with symmetrical flux density distribution along the gap. The long-throw voice coil experiences a symmetric driving force that substantially decreases inductance and back electromotive force modulations. The magnet structure is optimized using Finite Element Analysis technique, resulting in a radical improvement of driver linearity. The cone has a shallow, high integrity structure that is extremely rigid and dynamically stable. The large voice coil diameter allows for a more uniform cone movement, delivering clear and accurate reproduction. The vented motor design and high temperature rated voice coil provide a dramatic increase in power handling. D10.8 is an excellent woofer for high power "no compromise" audiophile systems and control monitors. It also may be used as a subwoofer in various configurations.

Eigenschaften

Artikelnummer:
D10.8
Woofer Series
D10 Series
Woofer Type
Poly Cone Woofer
Nominal Diameter
10"
Power Handling (RMS)
150 Watts
Power Handling (max)
300 Watts
Impedance
8 ohms
Sensitivity
90 dB 2.83V/1m
Frequency Response
24 to 2,300 Hz
Voice Coil Diameter
4"
DC Resistance (Re)
6.5 ohms
Resonant Frequency (Fs)
24 Hz
Mechanical Q (Qms)
6.84
Electromagnetic Q (Qes)
0.44
Total Q (Qts)
0.41
Diaphragm Mass Inc. Airload (Mms)
75.5g
Mechanical Compliance of Suspension (Cms)
0.56 mm/N
Surface Area of Cone (Sd)
434 cm²
BL Product (BL)
13.4 Tm
Compliance Equivalent Volume (Vas)
5.2 ft.³
Maximum Linear Excursion (Xmax)
8 mm
Cone / Diaphragm Material
Poly
Surround Material
Foam
Voice Coil Wire Material
CCA
Voice Coil Former
Kapton® / Polyimide
Basket / Frame Material
Cast Aluminum
Magnet Material
Neodymium
Sealed Volume
1.93 ft.³
Sealed F3
43 Hz
Vented Volume
5.71 ft.³
Vented F3
24 Hz
