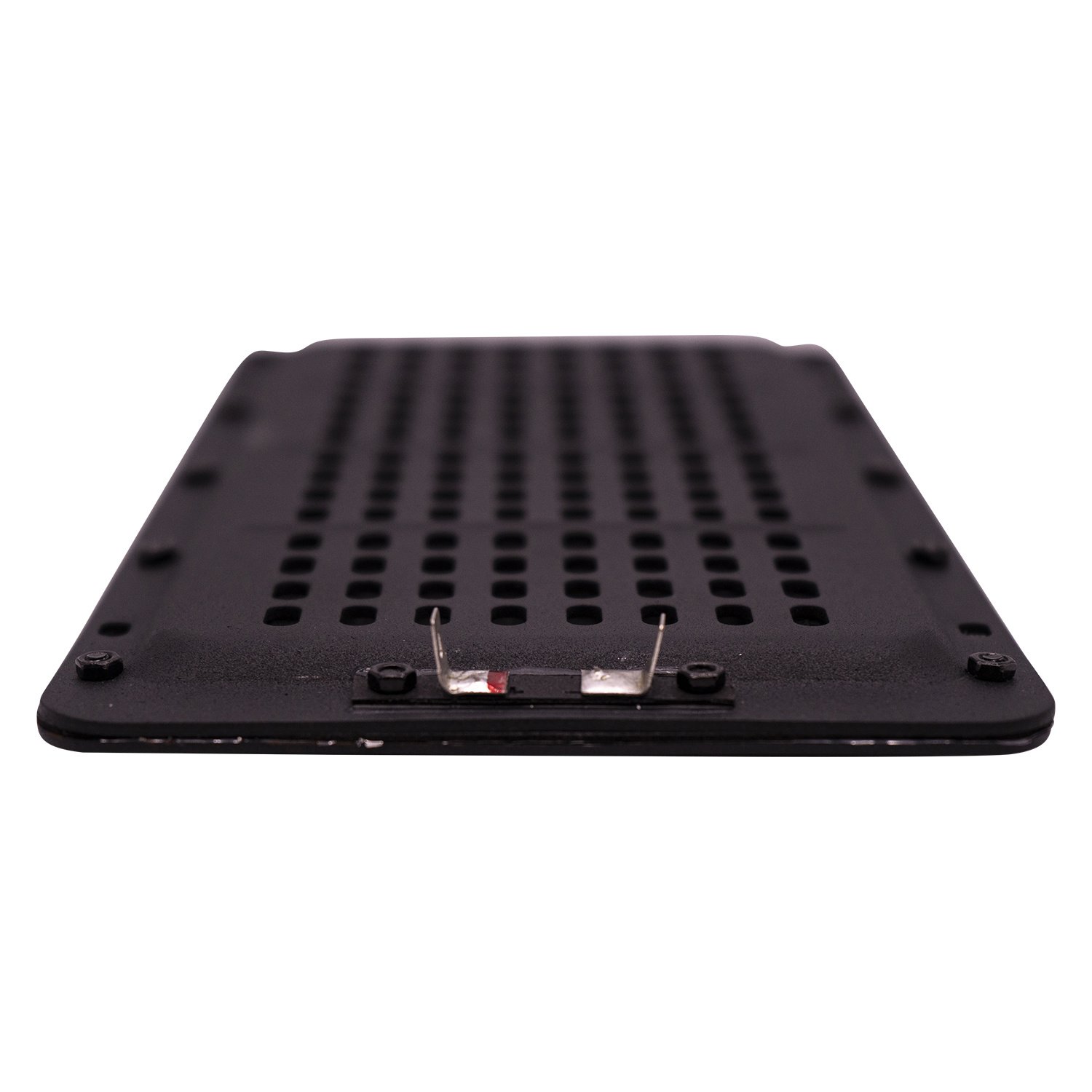

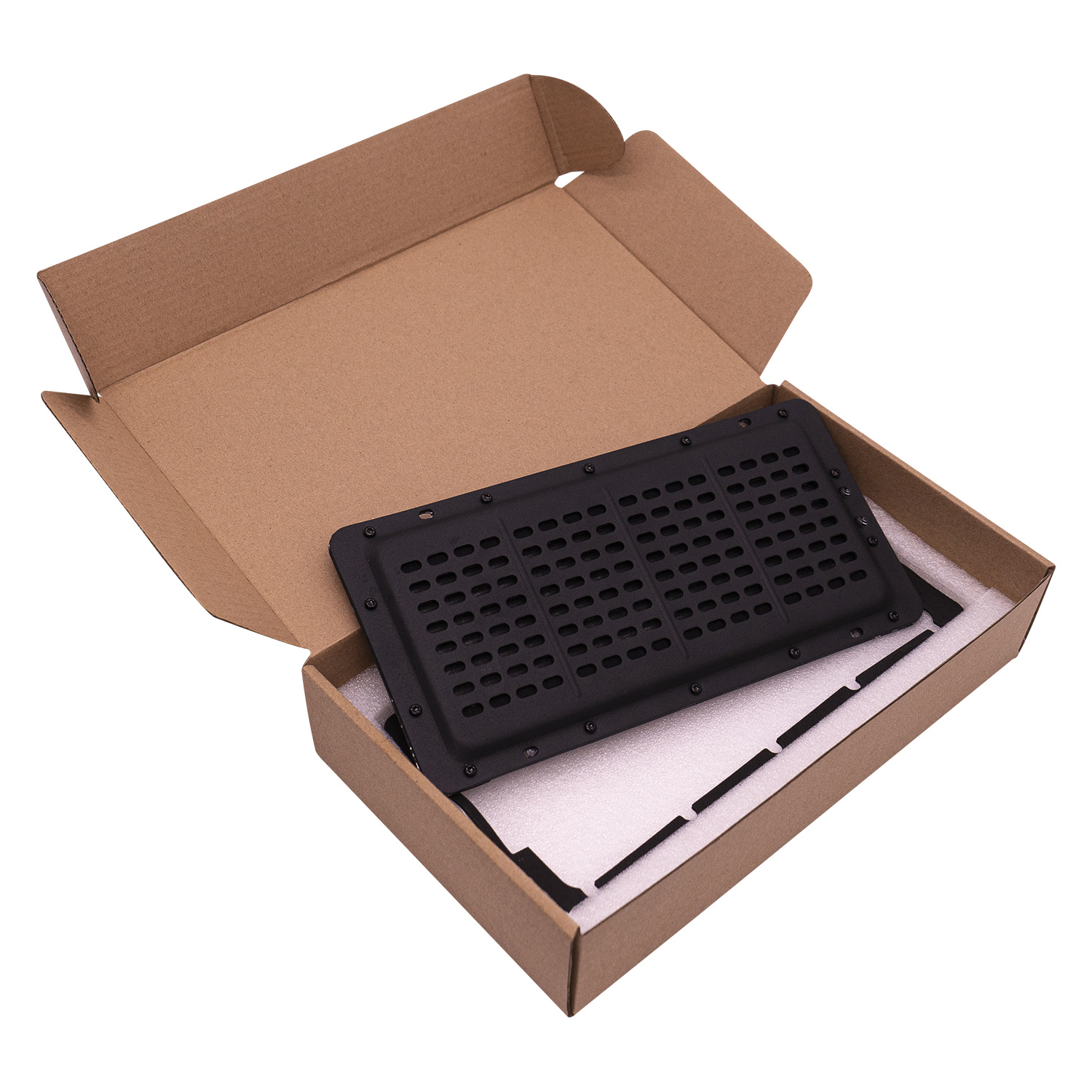

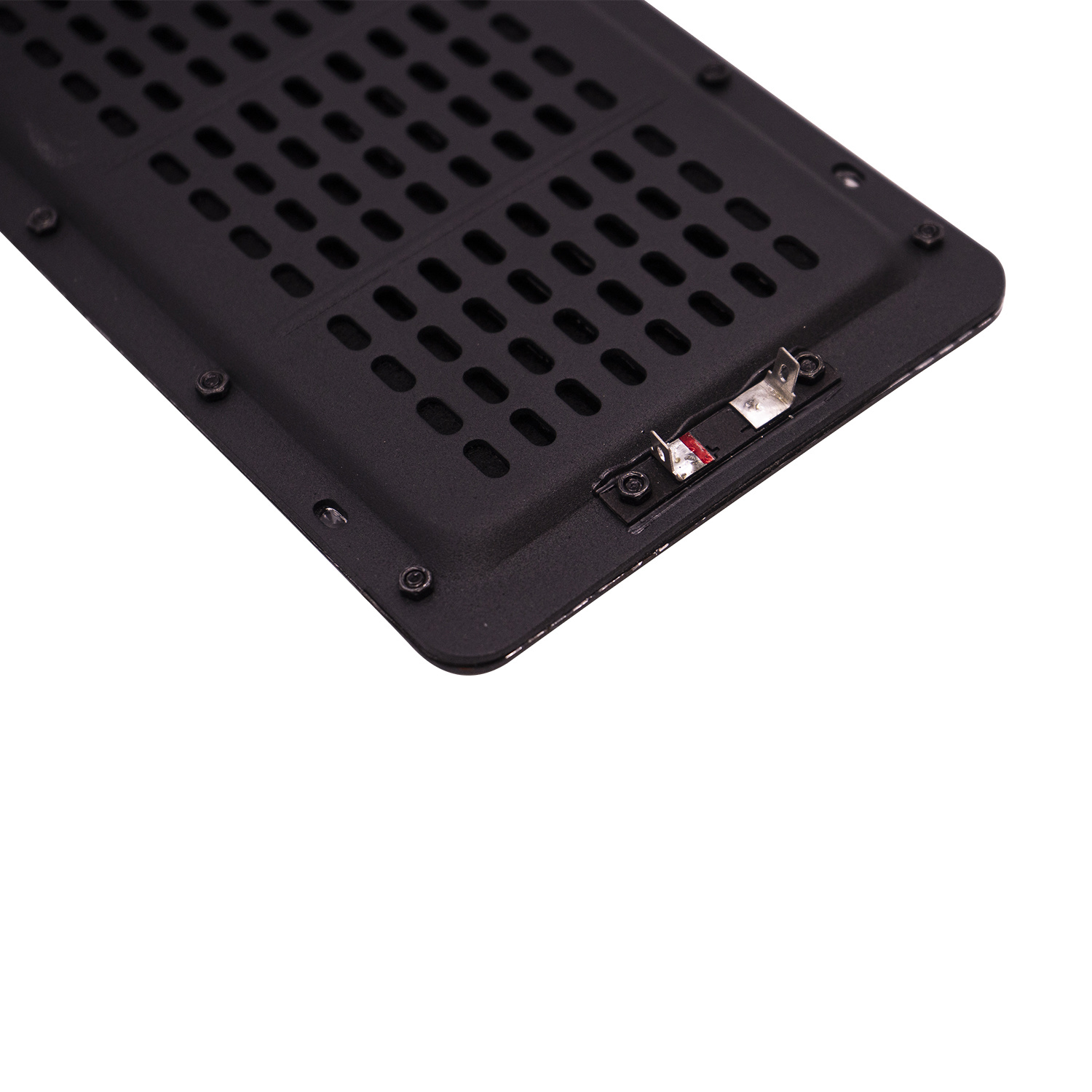

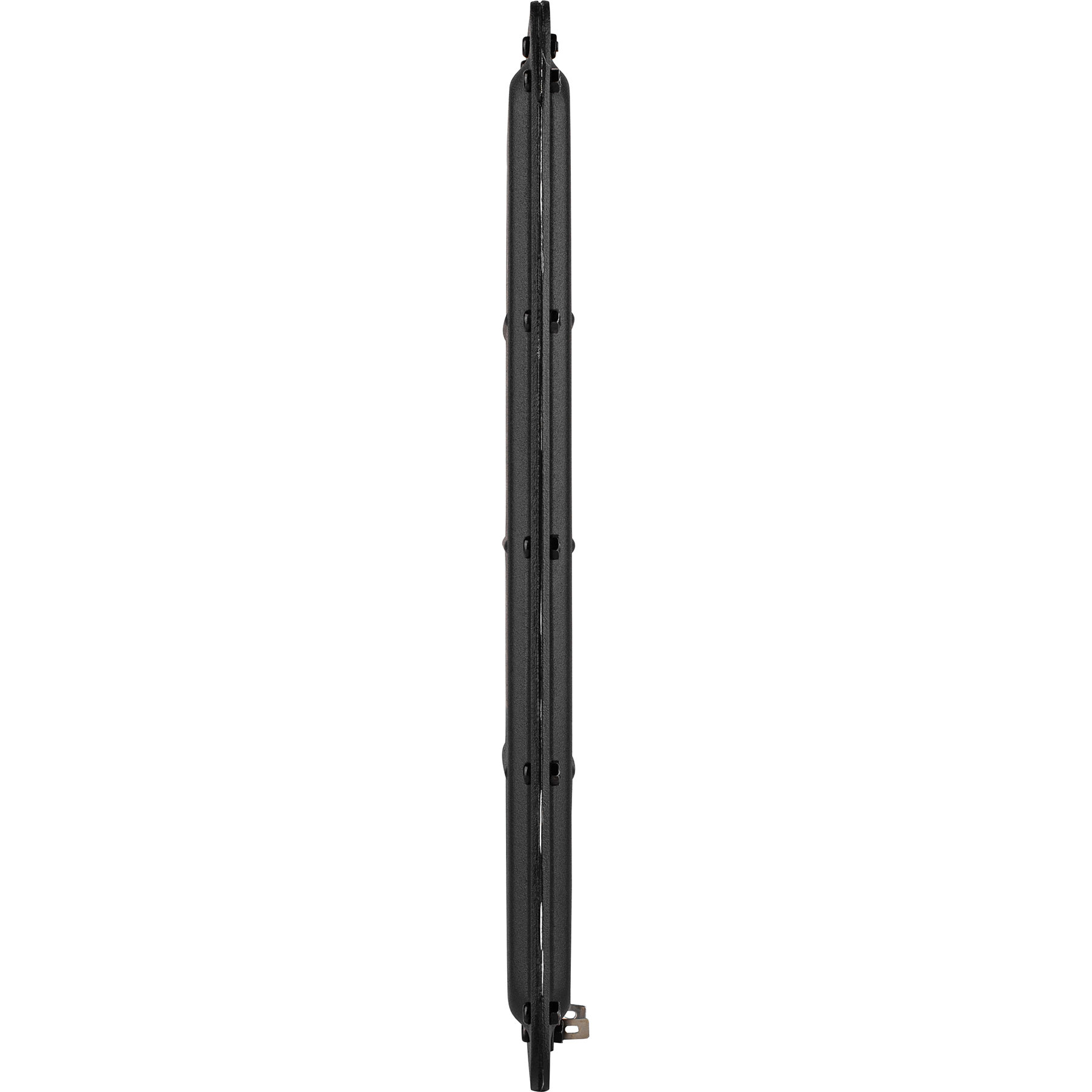

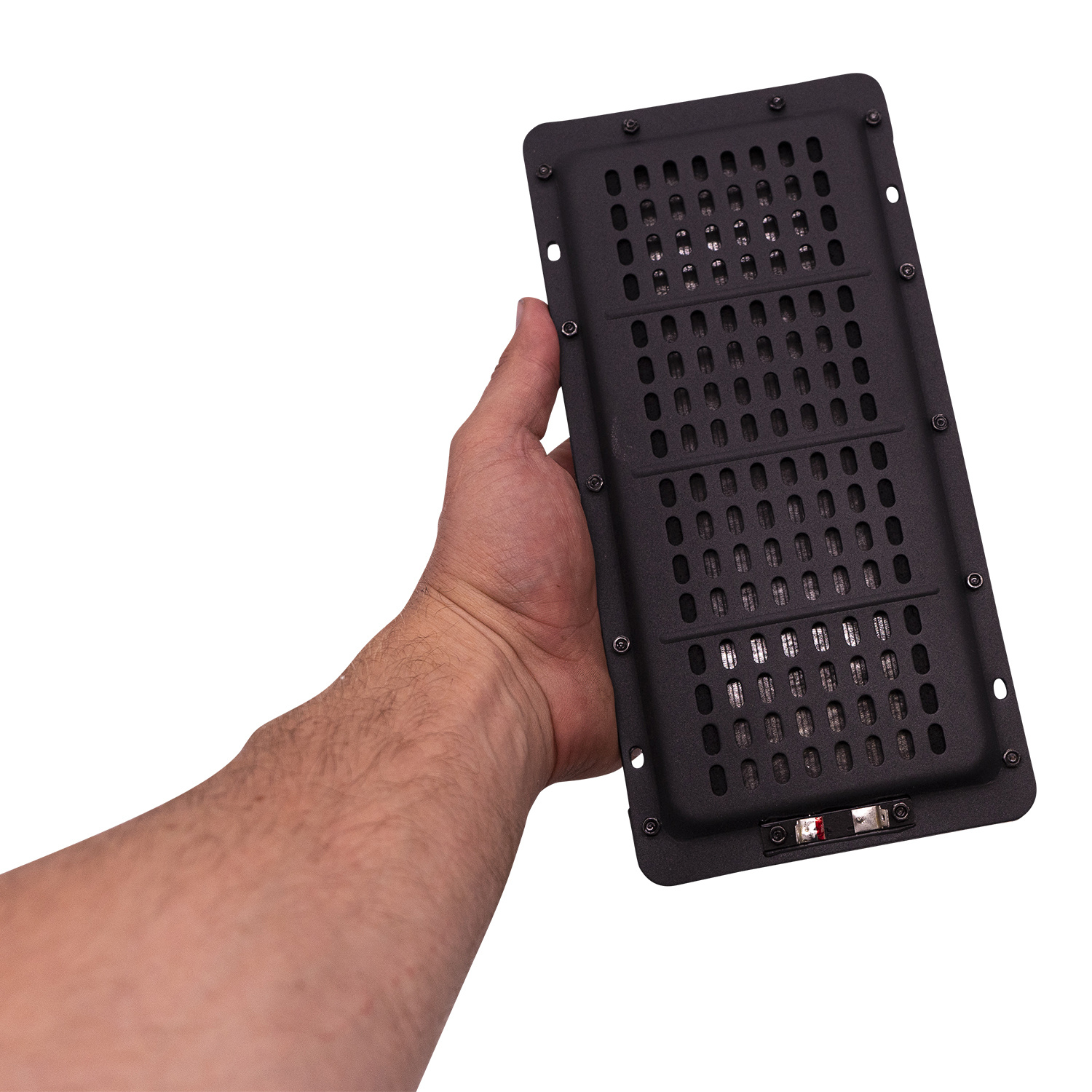

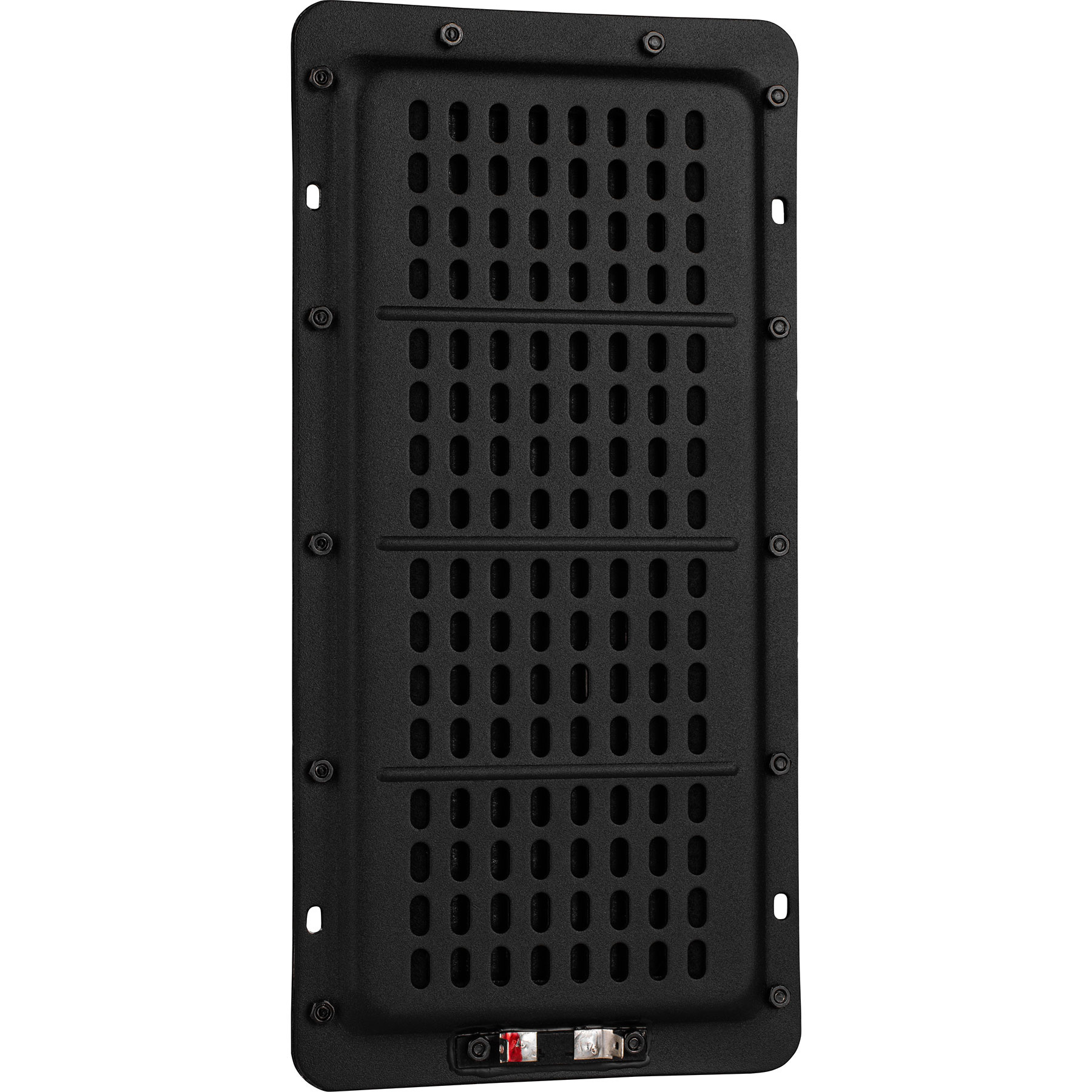

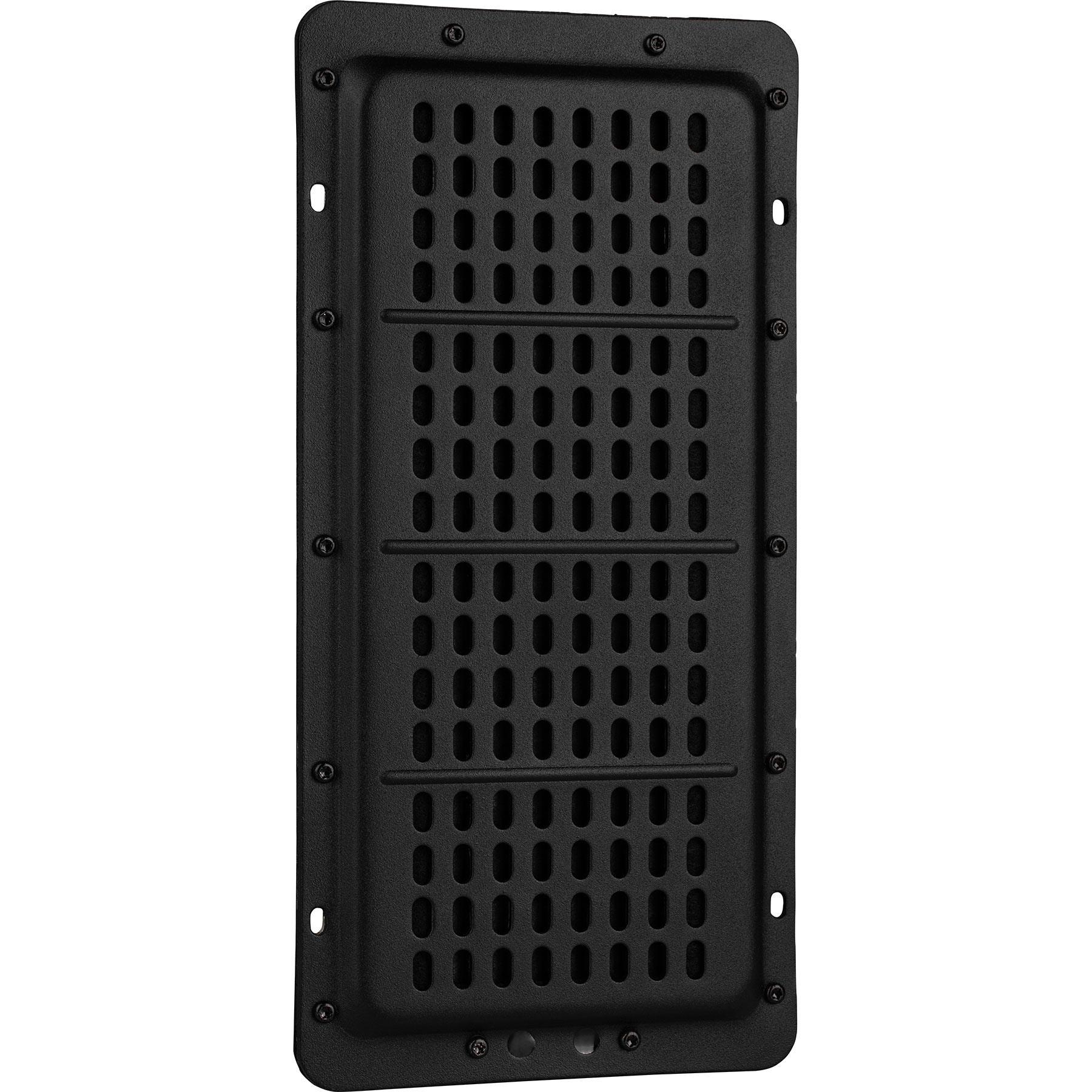

GRS PT5010-8 10" Planar Mittelhochtöner 8 Ohm

€ 132,19€ 159,95 8 Auf Lager: Lieferzeit 1-3 Werktage
Capable of delivering extremely wide bandwidth with low distortion, the GRS PT5010-8 open back planar driver is designed to deliver natural midrange response while remaining accurate to the highest frequencies. With an extremely lightweight diaphragm and... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €151,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Capable of delivering extremely wide bandwidth with low distortion, the GRS PT5010-8 open back planar driver is designed to deliver natural midrange response while remaining accurate to the highest frequencies. With an extremely lightweight diaphragm and a neodymium motor system, this driver is capable of excellent transient response with amazing dynamics. The open back construction produces true dipole radiation which is ideal for use in open baffle designs.



Highlights

  • Extremely low mass diaphragm provides excellent transient response and accuracy
  • Large diaphragm produces high efficiency with incredible dynamics
  • Remarkably wide bandwidth for predictable transition to woofer and tweeter drivers
  • Open back delivers true dipole radiation for use in open baffle designs
  • Linear impedance simplifies crossover design
  • Shallow mounting depth for use in low profile designs



Product Details

GRS PT5010-8 10" Planar Mid/Tweeter 8 Ohm



With the ability to provide low distortion output from 300-8,000 Hz, the GRS PT5010-8 open back midrange/tweeter is an excellent choice for use in 2-way designs or even as a drop in replacement for many existing systems. Thanks to a lightweight damped Polyethylene Naphthalate film diaphragm driven by 56 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and detail. With a nearly linear 6.8 ohm impedance keeps crossover design simple with predictable final results. In addition, the open back design gives this midrange/tweeter true dipole radiation making it the perfect choice for use in high end open baffle speaker designs.

Eigenschaften

Artikelnummer:
PT5010-8
Tweeter Type
Planar
Power Handling (RMS)
70 Watts
Impedance
8 ohms
Sensitivity
94 dB 2.83V/1m
Frequency Response
200 to 8,000 Hz
DC Resistance (Re)
6.8 ohms
Voice Coil Inductance (Le)
0.01 mH
Mechanical Q (Qms)
2.14
Total Q (Qts)
1.96
Overall Outside Diameter
10.04" x 4.92"
Cutout Diameter
9.05" x 4.20"
Depth
0.6"

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
Sehr guter Mittelhochtöner. Perfekt für Open Baffle Anwendungen. Ab 600 Hz sinnvoll einsetzbar!
Durch Bernhard W. on 20 Januar 2021
