GRS 8FR-8 Full-Range 8" Speaker Pioneer Type B20FU20-51FW

Marke: GRS
Bewertungen: (1) Kundenmeinung hinzufügen
Vergleichen
Vergleichen
Auf den Wunschzettel

Lieferzeit: 1-3 Werktage

Artikelnummer: 8FR-8
Vorrat: 9 Auf Lager

The GRS 8FR-8 full-range 8" speaker is engineered to withstand rigorous commercial use, but will also deliver great results when used in point-source hi-fi applications.

€ 16,95 Inkl. MwSt.

Kaufen Sie 4 für je €15,26 und sparen Sie 10% Sale 10%

Menge Auf den Wunschzettel

Heute verschickt? Du hast noch: 2018/12/25
Gratis DHL-Versand ab 149€ (DE, A) Tooltip
Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen
Versand am selben Tag
45 Tage Bedenkzeit
Zahlung mit Paypal/Kreditkarte

Produktbeschreibung
Eigenschaften
Bewertungen

GRS 8FR-8 Full-Range 8" Speaker Pioneer Type B20FU20-51FW

The GRS 8FR-8 full-range 8" speaker is engineered to withstand rigorous commercial use, but will also deliver great results when used in point-source hi-fi applications.

Highlights

Replacement for Pioneer B20FU20-51FW
GRS quality construction
1 year warranty
Superb multipurpose speaker for DIY projects

Product Details

GRS 8FR-8 Full-Range 8" Speaker Pioneer Type B20FU20-51FW

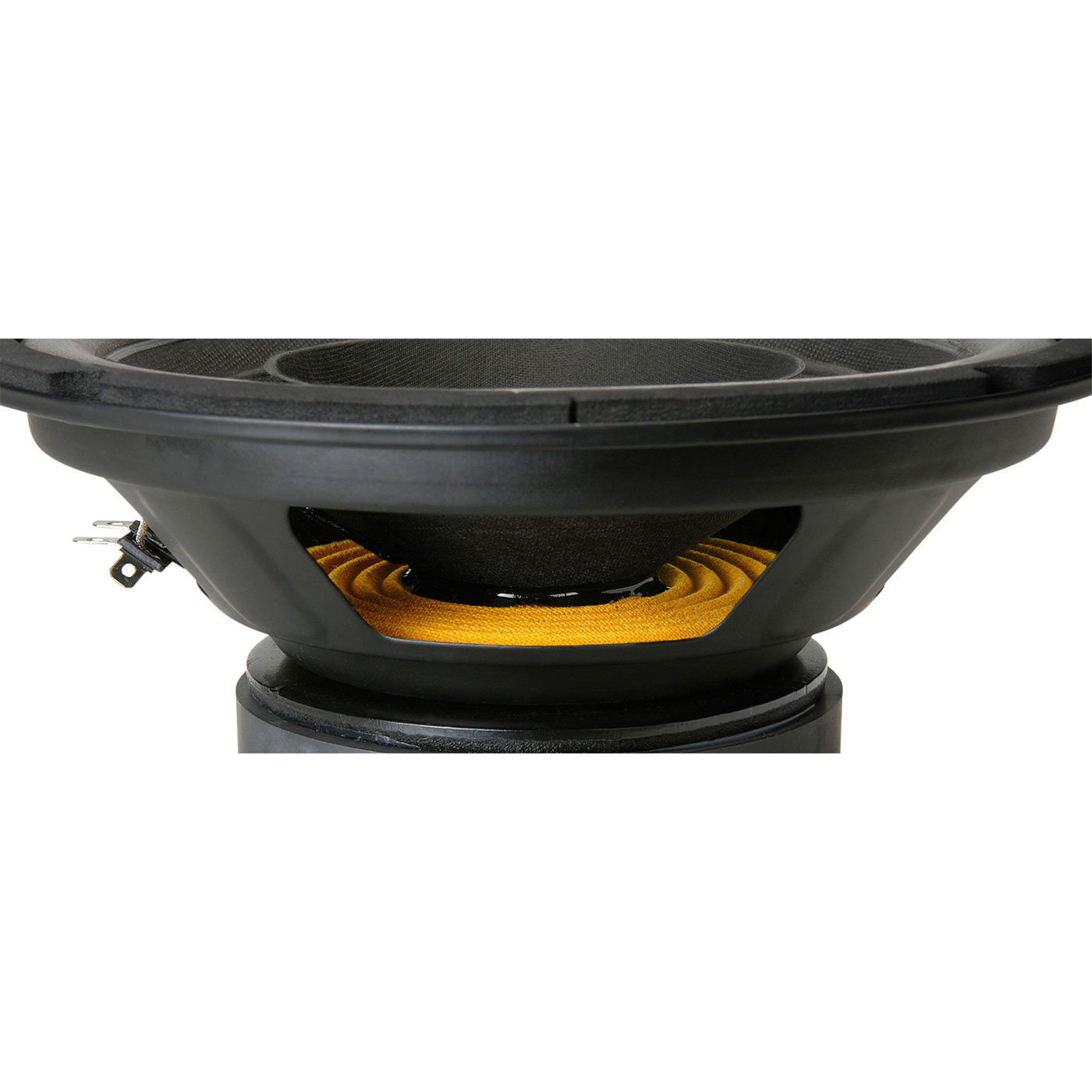

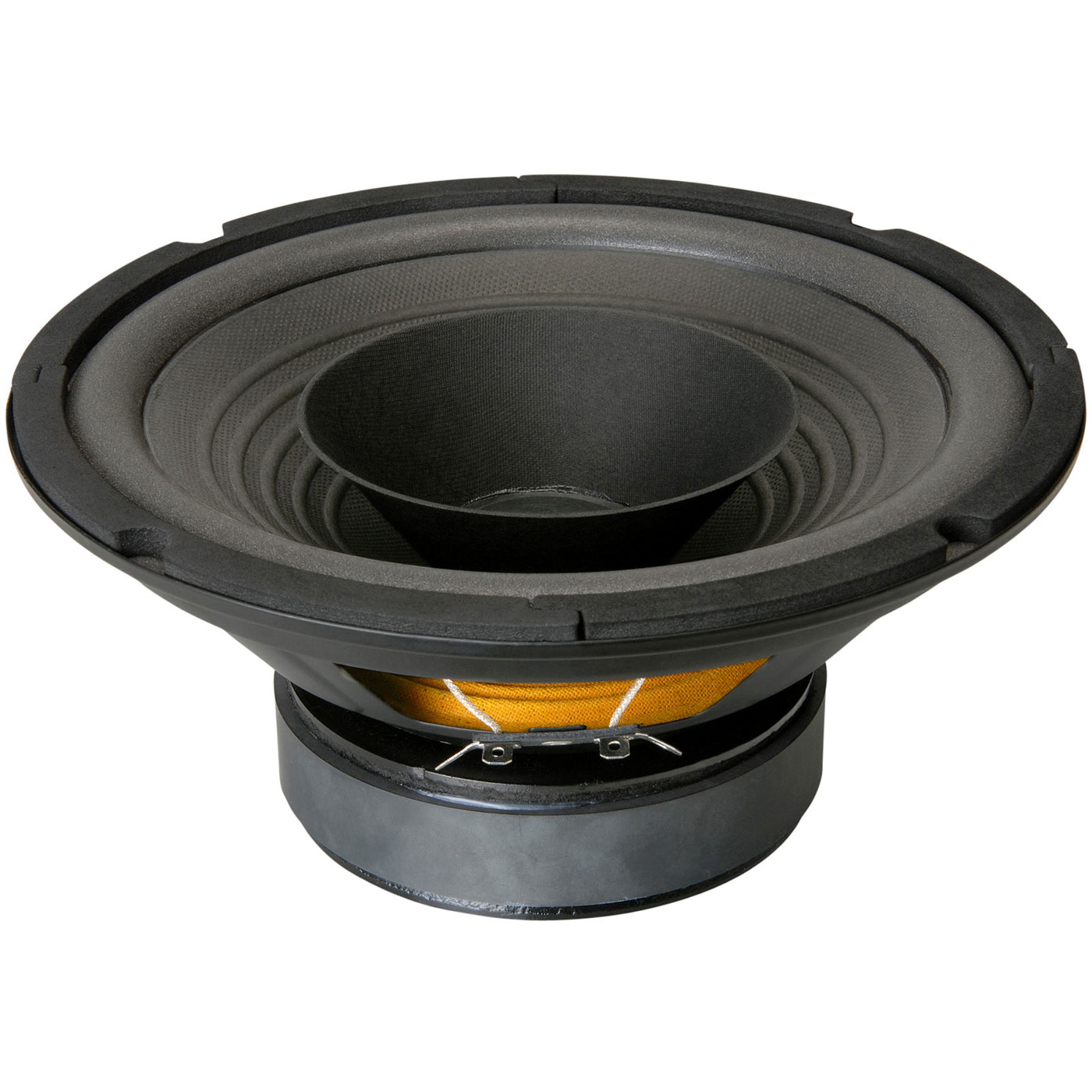

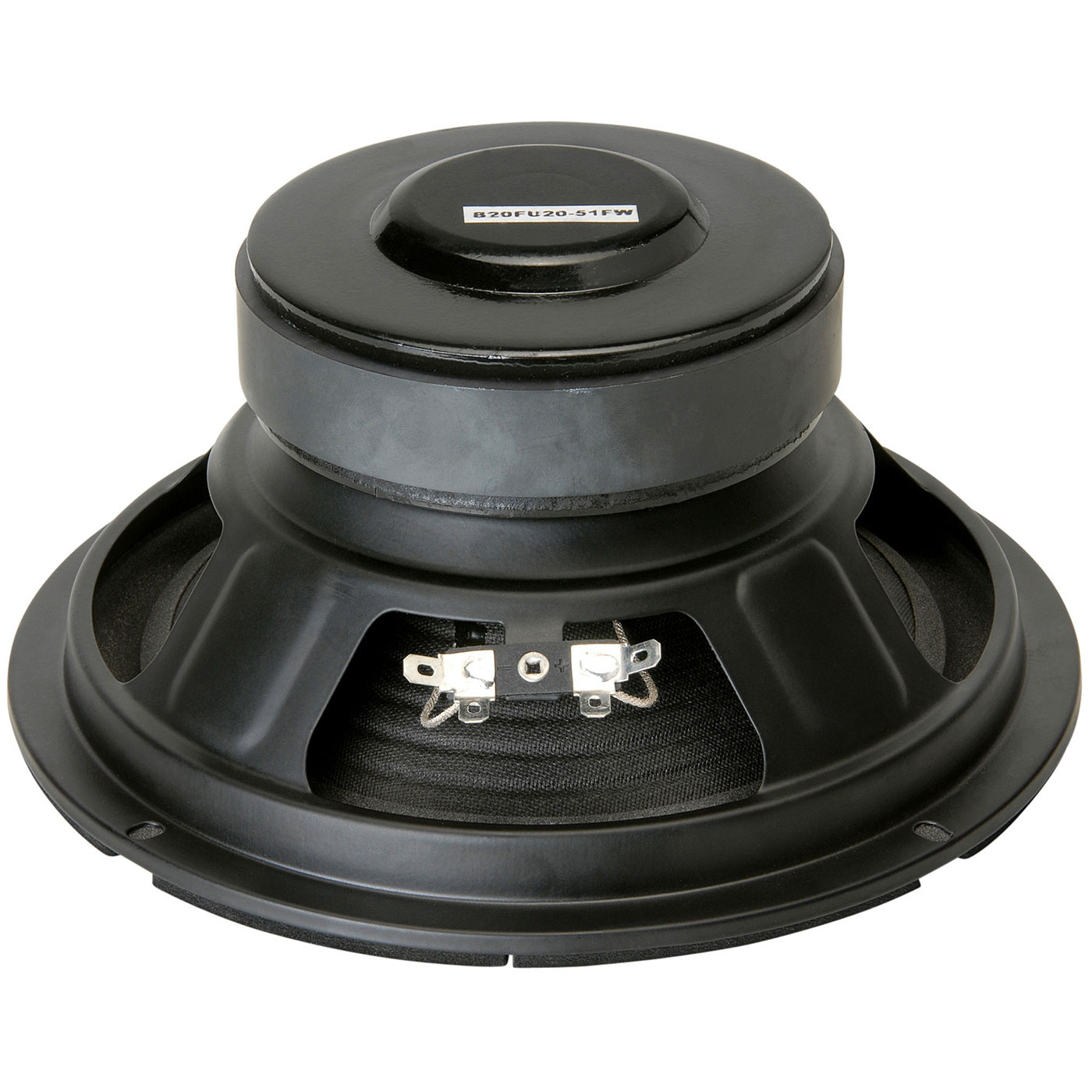

The GRS 8FR-8 full-range 8" speaker features a paper cone with poly foam surround. A whizzer cone extends high frequency response and dispersion. Engineered to withstand rigorous commercial use, this driver will also deliver great results when used in point-source hi-fi applications. Affordable pricing makes it perfect for DIY applications. Ideal replacement for the Pioneer B20FU20-51FW (also known in DIY communities as the BOFU)

Spezifikationen für: 8FR-8 Full-Range 8" Speaker Pioneer Type B20FU20-51FW

Woofer SeriesSpezielle Woofer- Produktionsreihe des Herstellers. Replacement woofer
Woofer TypeArt des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Full-range
Nominal DiameterUngefährer Durchmesser des Drivers, gemessen in Inch. 8"
Power Handling (RMS)Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 60 Watts
Power Handling (max)Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 85 Watts
View all specifications
Continuous Program Power
Impedance 8 ohms
Sensitivity 91 dB 1W/1m
Frequency Response 39 to 16,000 Hz
Voice Coil Diameter 1.5"
Magnet Weight
DC Resistance (Re) 7.02 ohms
Voice Coil Inductance (Le) 1.28 mH
Resonant Frequency (Fs) 39 Hz
Mechanical Q (Qms) 2.94
Electromagnetic Q (Qes) 0.46
Total Q (Qts) 0.4
Diaphragm Mass Inc. Airload (Mms)
Moving Mass Of Diaphragm (Mmd)
Mechanical Compliance of Suspension (Cms)
Surface Area of Cone (Sd)
Volume of Displacement (Vd)
BL Product (BL)
Compliance Equivalent Volume (Vas) 2.26 ft.³
Maximum Linear Excursion (Xmax) 3 mm
Driver's Mechanical Losses (Rms)
Cone / Diaphragm Material Paper
Surround Material
Voice Coil Wire Material
Voice Coil Former
Dual Voice Coil
Basket / Frame Material
Magnet Material Ferrite
Shielded
Overall Outside Diameter 8"
Overall Depth 3.875"
Baffle Cutout Diameter 7.25"
Bolt Circle Diameter
# Mounting Holes 4
Mounting Hole Diameter
Sealed Volume 0.71 ft.³
Sealed F3 78 Hz
Vented Volume 1.76 ft.³
Vented F3 43 Hz
