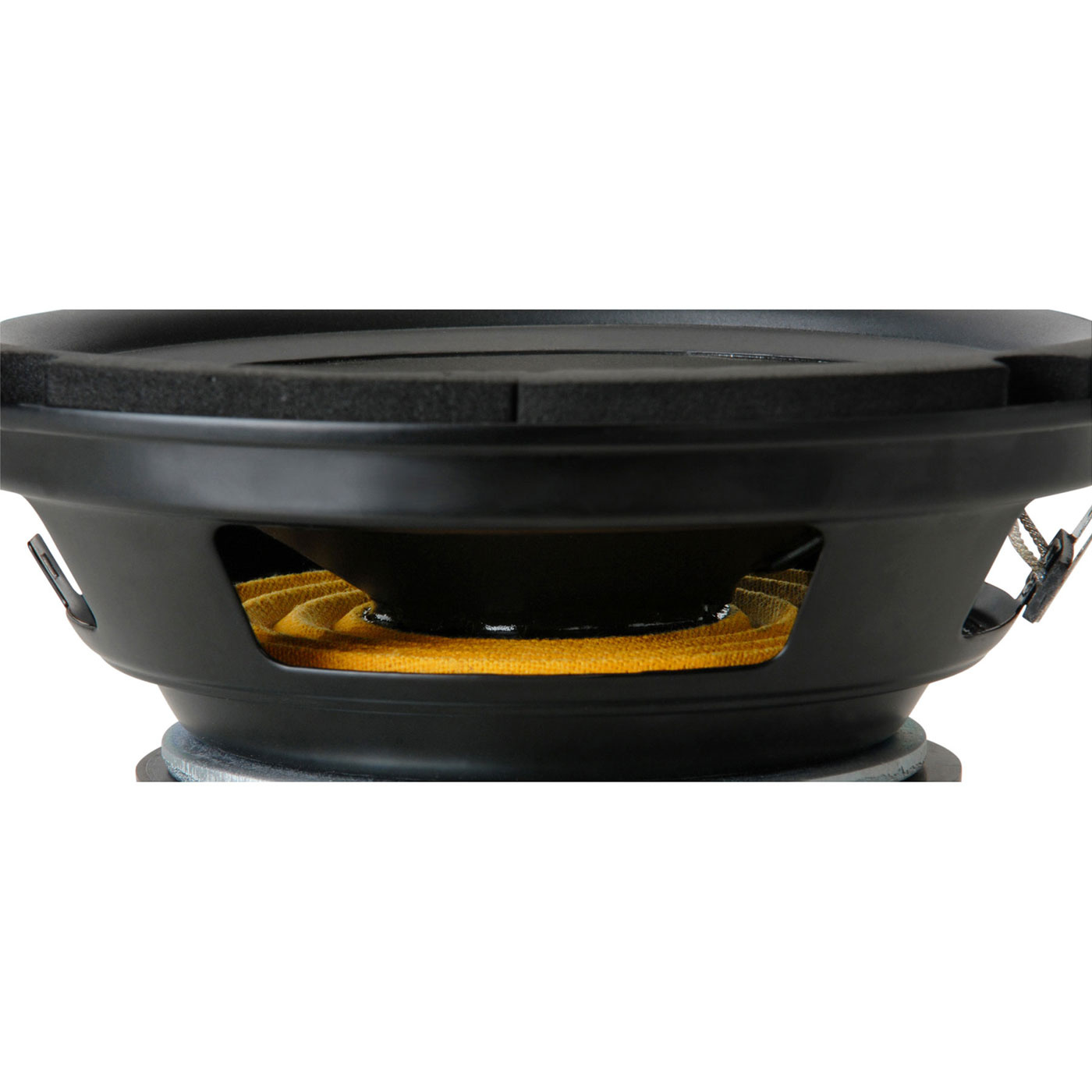

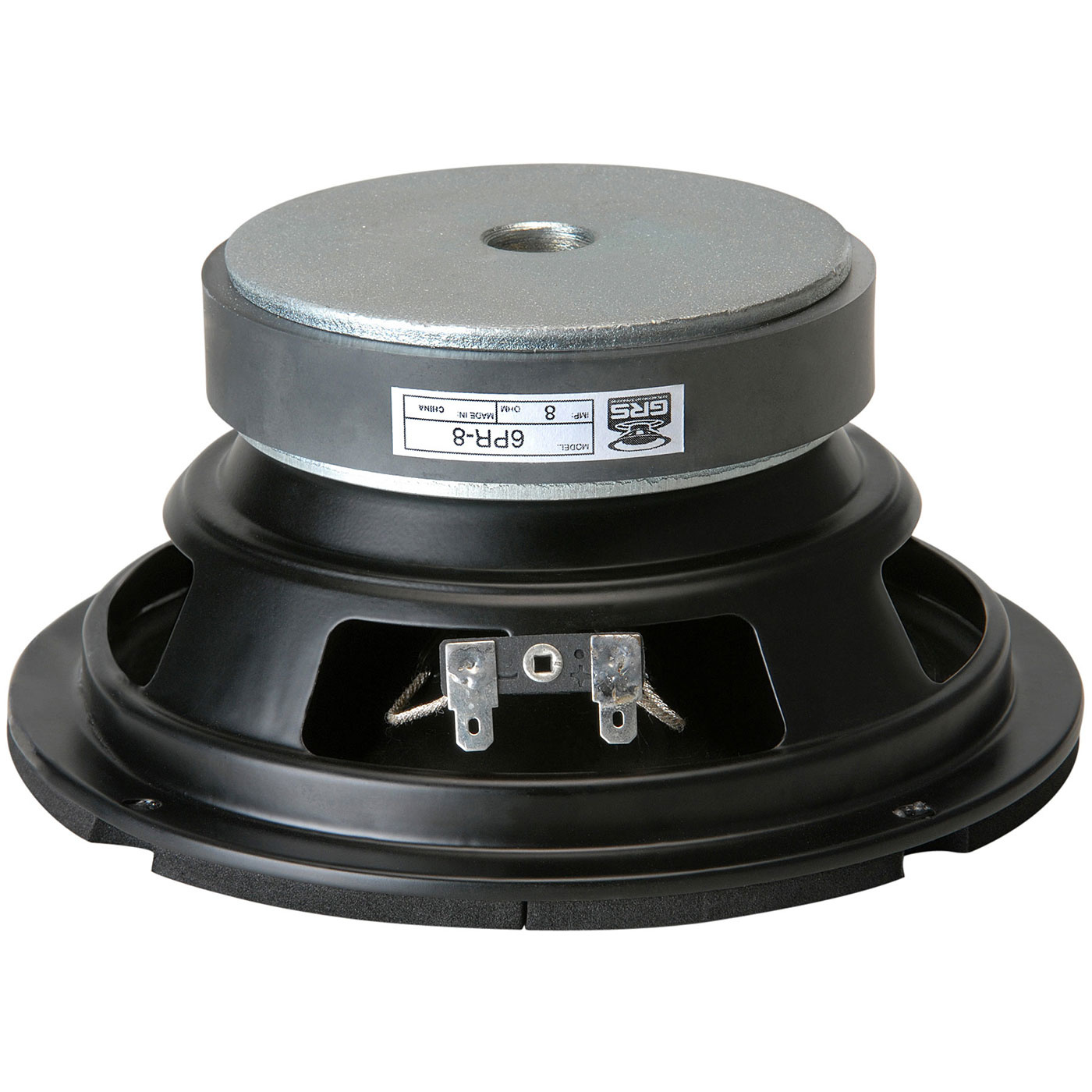

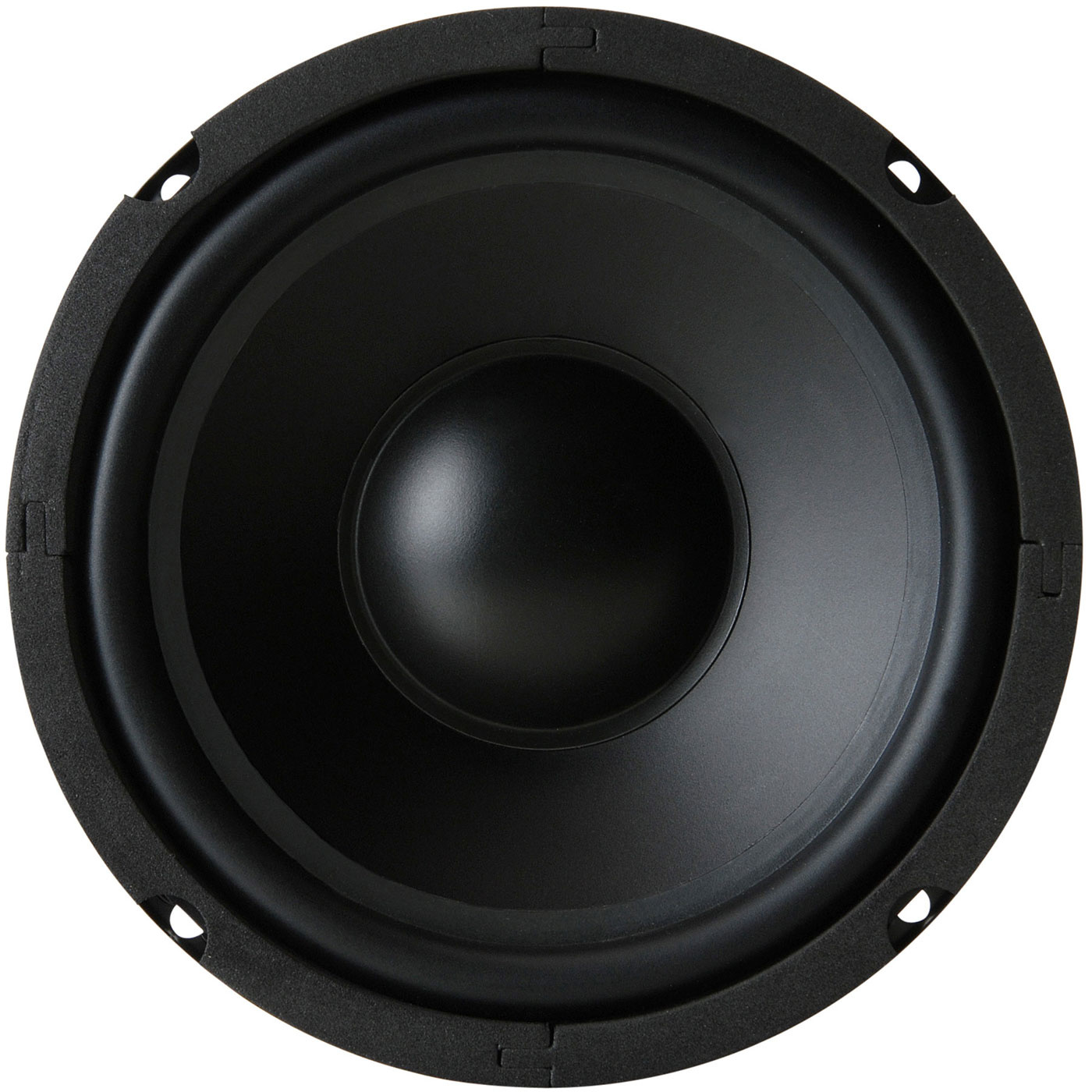

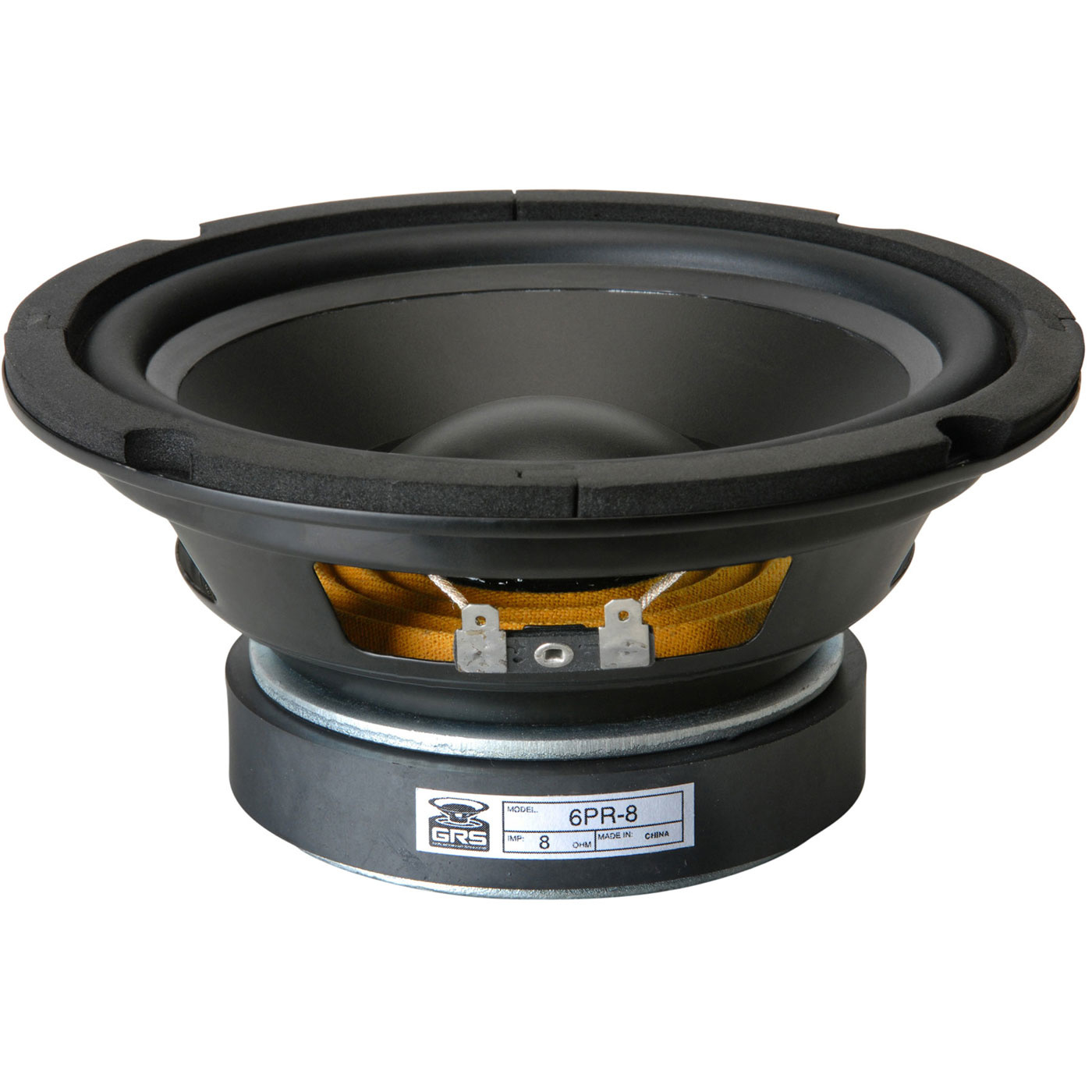

GRS 6PR-8 6-1/2" Poly Cone Rubber Surround Woofer

Spezifikationen für: 6PR-8 6-1/2" Poly Cone Rubber Surround Woofer

• Woofer SeriesSpezielle Woofer- Produktionsreihe des Herstellers. Replacement woofer
• Woofer TypeArt des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
• Nominal DiameterUngefährer Durchmesser des Drivers, gemessen in Inch. 6-1/2"
• Power Handling (RMS)Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 60 Watts
• Power Handling (max)Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 85 Watts
• View all specifications
• Continuous Program Power
• Impedance 8 ohms
• Sensitivity 85 dB 1W/1m
• Frequency Response 60 to 8,000 Hz
• Voice Coil Diameter 1.5"
• Magnet Weight
• DC Resistance (Re) 7.55 ohms
• Voice Coil Inductance (Le) 1.11 mH
• Resonant Frequency (Fs) 75 Hz
• Mechanical Q (Qms) 4.32
• Electromagnetic Q (Qes) 1.34
• Total Q (Qts) 1.02
• Diaphragm Mass Inc. Airload (Mms)
• Moving Mass Of Diaphragm (Mmd)
• Mechanical Compliance of Suspension (Cms)
• Surface Area of Cone (Sd)
• Volume of Displacement (Vd)
• BL Product (BL)
• Compliance Equivalent Volume (Vas) 0.24 ft.³
• Maximum Linear Excursion (Xmax) 3 mm
• Driver's Mechanical Losses (Rms)
• Cone / Diaphragm Material Poly
• Surround Material Rubber
• Voice Coil Wire Material
• Voice Coil Former
• Dual Voice Coil
• Basket / Frame Material
• Magnet Material Ferrite
• Shielded
• Overall Outside Diameter 6.5"
• Overall Depth 3.0625"
• Baffle Cutout Diameter 5.625"
• Bolt Circle Diameter
• # Mounting Holes 4
• Mounting Hole Diameter
• Sealed Volume 0.29 ft.³
• Sealed F3 78 Hz
• Vented Volume 1.48 ft.³
• Vented F3 43 Hz
