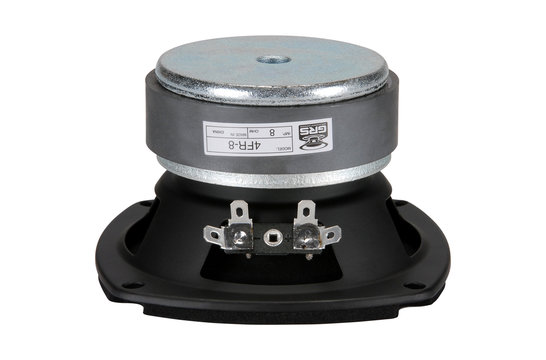

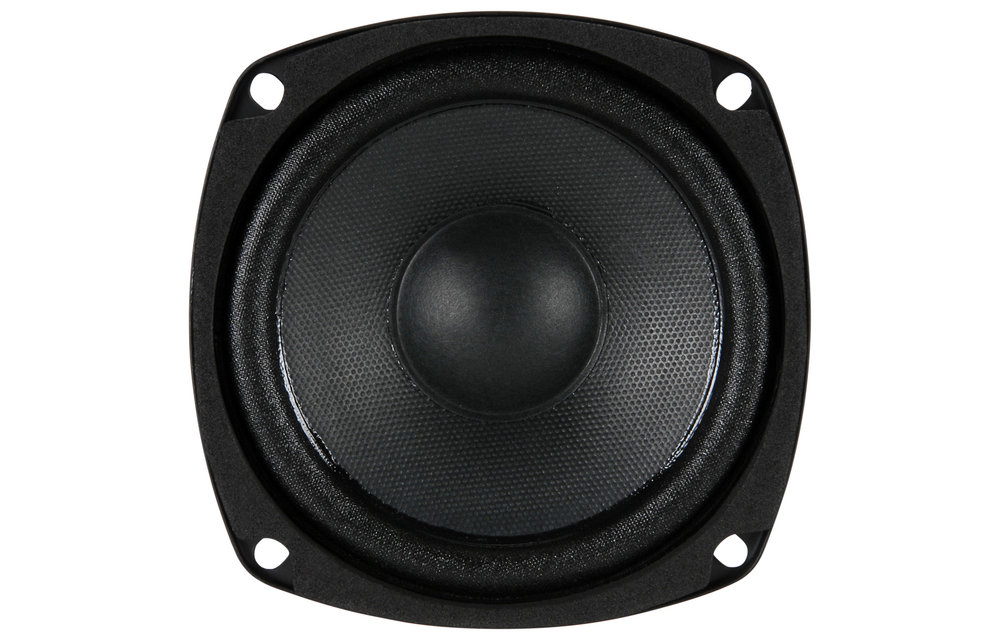

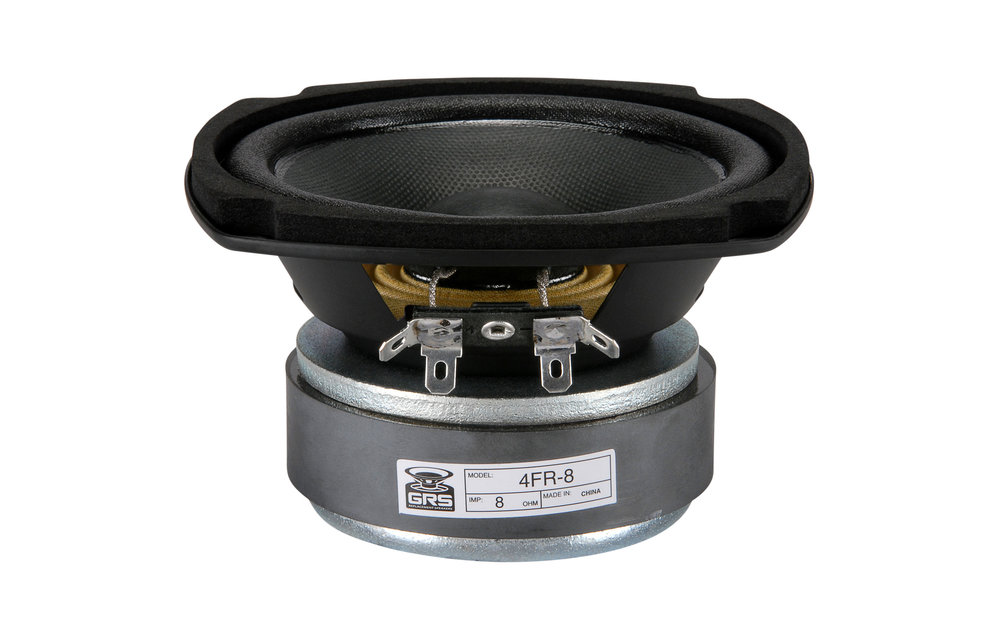

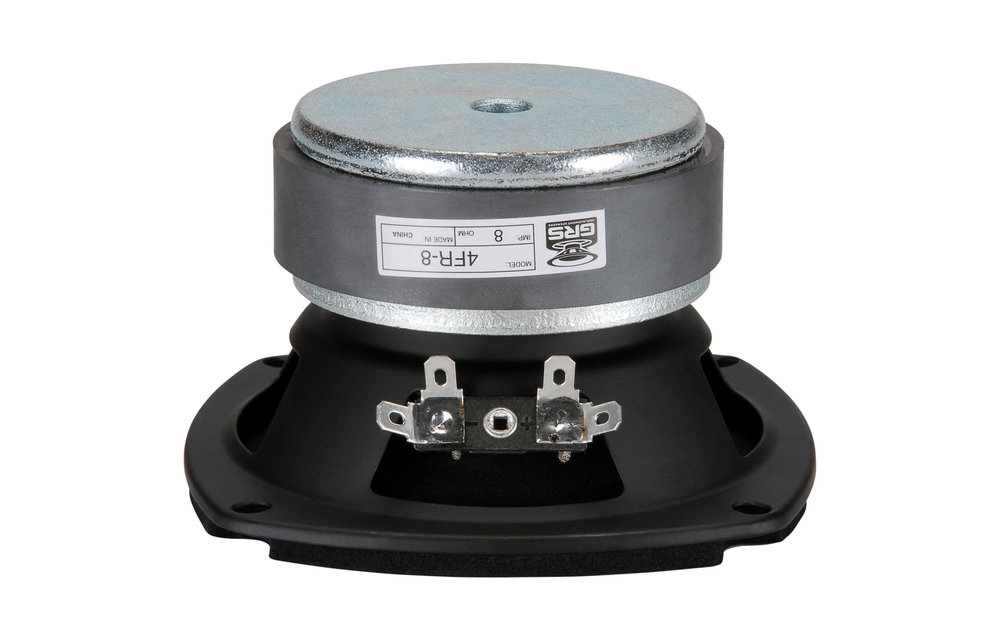

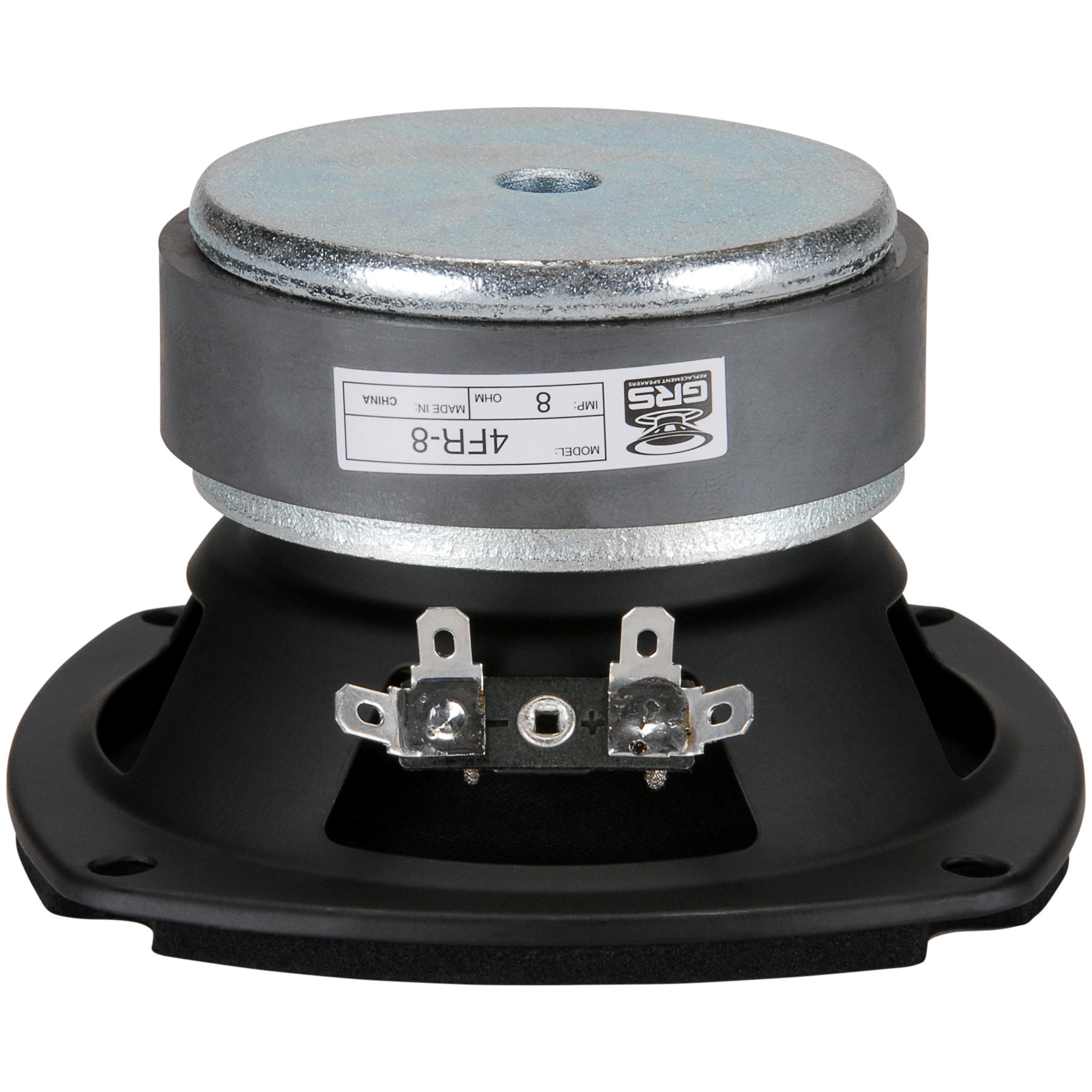

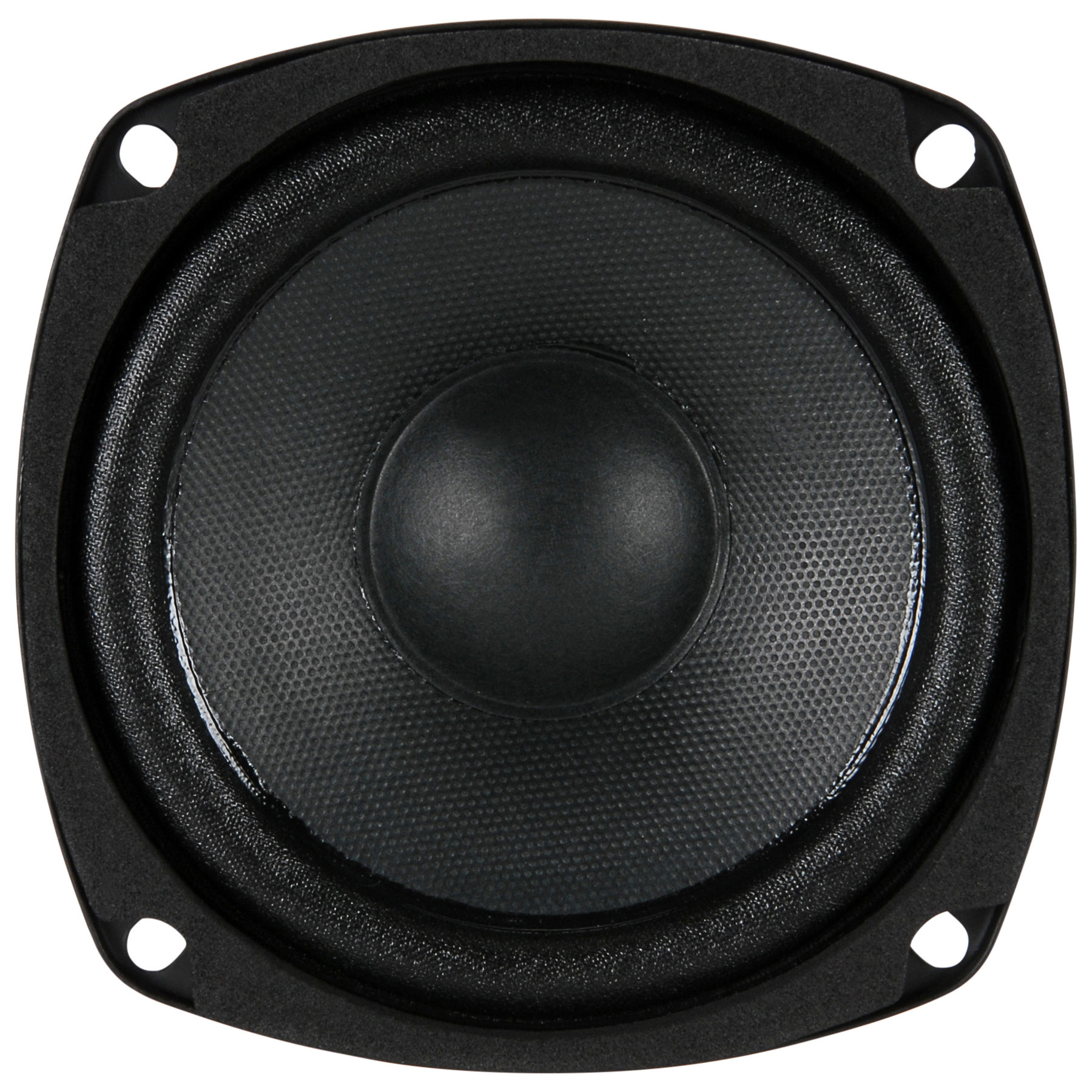

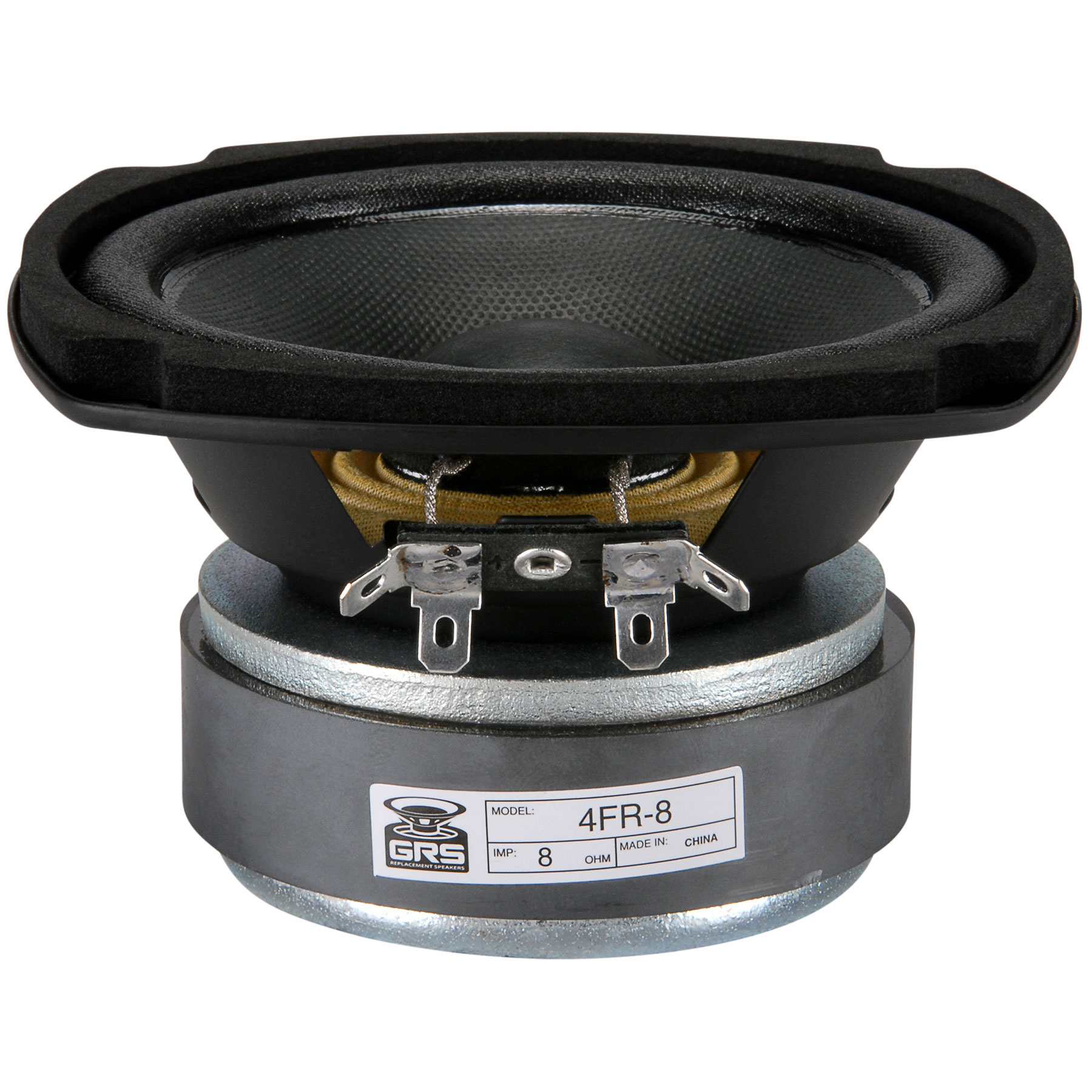

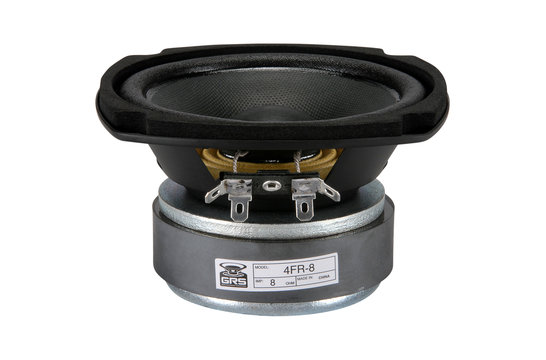

GRS 4FR-8 Full-Range 4-1/2" Speaker Pioneer Type A11EC80-02F 8 Ohm

Marke: GRS
Bewertungen: (5) Kundenmeinung hinzufügen
Vergleichen
Vergleichen
Auf den Wunschzettel

Momentan nicht vorrätig. Lieferzeit beträgt 1 Woche

Artikelnummer: 4FR-8
Nicht auf Lager

The GRS 4FR-8 is perfect for compact designs that require wide-bandwidth, high-sensitivity performance at an economical price. It’s also a drop-in replacement for other popular 4-1/2" full-range drivers.

€ 8,45 Inkl. MwSt.

Kaufen Sie 4 für je €7,61 und sparen Sie 10% Sale 10%

Menge Auf den Wunschzettel

Gratis DHL-Versand ab 149€ (DE, A) Tooltip
Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen
Versand am selben Tag
45 Tage Bedenkzeit
Zahlung mit Paypal/Kreditkarte

Produktbeschreibung
Eigenschaften
Bewertungen

GRS 4FR-8 Full-Range 4-1/2" Speaker Pioneer Type A11EC80-02F 8 Ohm

Highlights

Replacement for Pioneer A11EC80-02F
Extended bandwidth and high sensitivity
Natural-sounding paper cone
Quality GRS construction

Product Details

GRS 4FR-8 Full-Range 4-1/2" Speaker Pioneer Type A11EC80-02F 8 Ohm

GRS 4FR-8 full-range 4-1/2" speaker features a well-damped paper cone and long-lasting treated fabric surround. Its design parameters have been carefully chosen to suit a wide variety of enclosures for hi-fi or commercial use, and it's great for use as a full-range driver or as a high-sensitivity midwoofer.

The large ceramic motor structure and lightweight Kapton voice coil former ensure crisp, highly-dynamic reproduction. This driver is a perfect drop-in replacement for the classic Pioneer model A11EC80-02F full-range driver, or other popular 4-1/2" full-range drivers.

Spezifikationen für: 4FR-8 Full-Range 4-1/2" Speaker Pioneer Type A11EC80-02F 8 Ohm

Woofer SeriesSpezielle Woofer- Produktionsreihe des Herstellers.
Woofer TypeArt des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer
Nominal DiameterUngefährer Durchmesser des Drivers, gemessen in Inch. 4-1/2"
Power Handling (RMS)Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 15 Watts
Power Handling (max)Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 30 Watts
View all specifications
Continuous Program Power
Impedance 8 ohms
Sensitivity 91 dB 1W/1m
Frequency Response 100 to 10,000 Hz
Voice Coil Diameter 1"
Magnet Weight
DC Resistance (Re) 8.11 ohms
Voice Coil Inductance (Le) 0.71 mH
Resonant Frequency (Fs) 100 Hz
Mechanical Q (Qms) 5.14
Electromagnetic Q (Qes) 0.98
Total Q (Qts) 0.82
Diaphragm Mass Inc. Airload (Mms)
Moving Mass Of Diaphragm (Mmd)
Mechanical Compliance of Suspension (Cms)
Surface Area of Cone (Sd)
Volume of Displacement (Vd)
BL Product (BL)
Compliance Equivalent Volume (Vas) 0.11 ft.³
Maximum Linear Excursion (Xmax) 1 mm
Driver's Mechanical Losses (Rms)
Cone / Diaphragm Material Paper
Surround Material Cloth
Voice Coil Wire Material
Voice Coil Former
Dual Voice Coil
Basket / Frame Material Steel
Magnet Material Ferrite
Shielded
Overall Outside Diameter 4.5"
Overall Depth 2.71"
Baffle Cutout Diameter 4.01"
Bolt Circle Diameter
# Mounting Holes 4
Mounting Hole Diameter
Sealed Volume 0.05 ft.³
Sealed F3 135 Hz
Vented Volume 0.1 ft.³
Vented F3 95 Hz

Erfahrungsberichte 4.6 / 5 Bewertungen: (5)

RZ Durch Robert Z. an 15-04-2020 10:21

4 / 5

Great value for money. I used it as great sounding mid in open baffle.
MK Durch Mario K. an 15-03-2020 06:08

4 / 5

really nice sounding little speakers. good value
LD Durch Lovro d. an 18-02-2020 14:51

5 / 5

I made box for this speaker and use it like central for my stereo. sound is pretty good for the price and i am very satisfied. thanks!
ML Durch Marius L. an 04-01-2020 10:49

5 / 5

Great speakers and great service from soundimports! will order again def.
AS Durch Aniello S. an 18-05-2019 19:53

5 / 5

These speakers performs very well into my mini box as full range speakers. High quality at low cost! I want to try them also in a tower loudspeaker as midrange.
