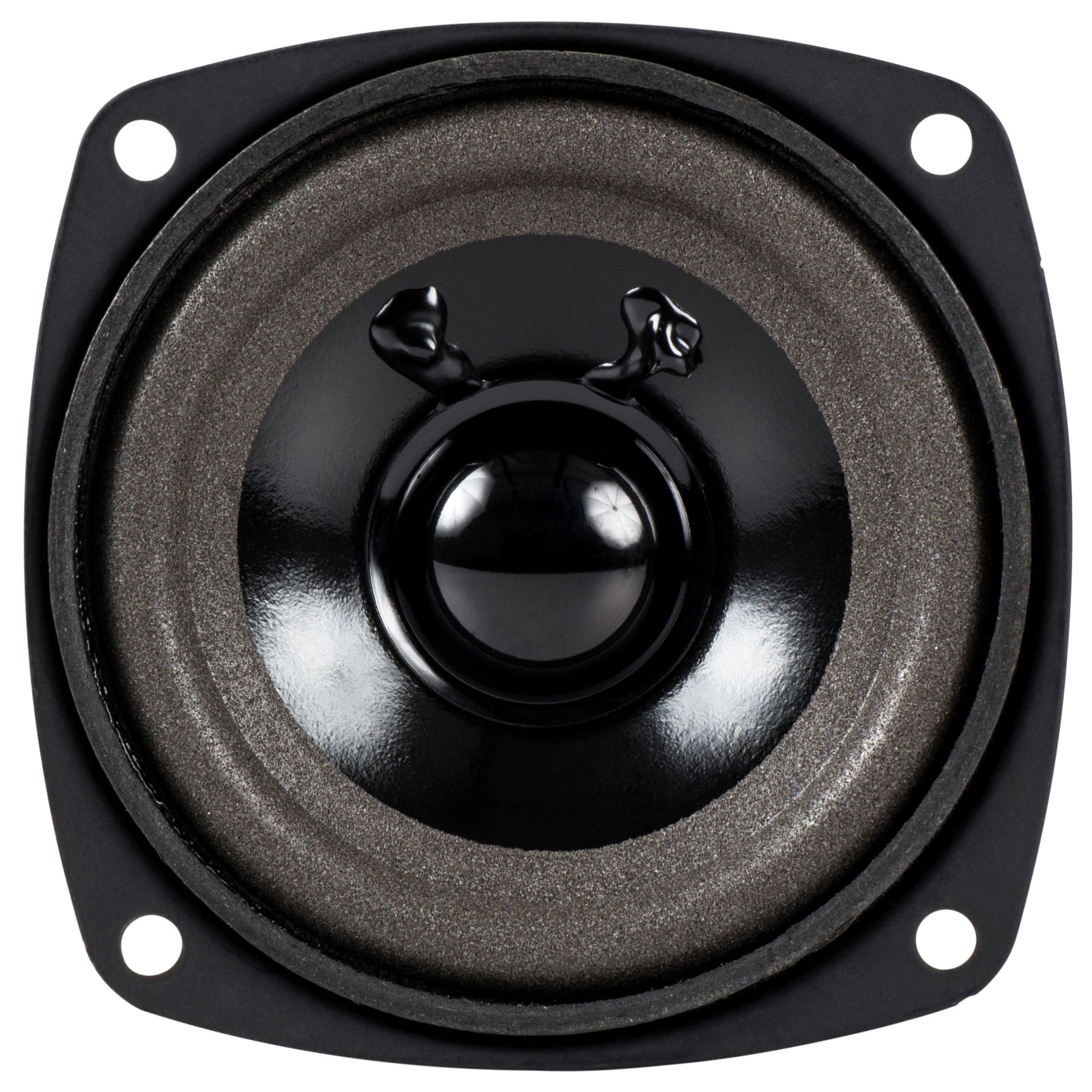

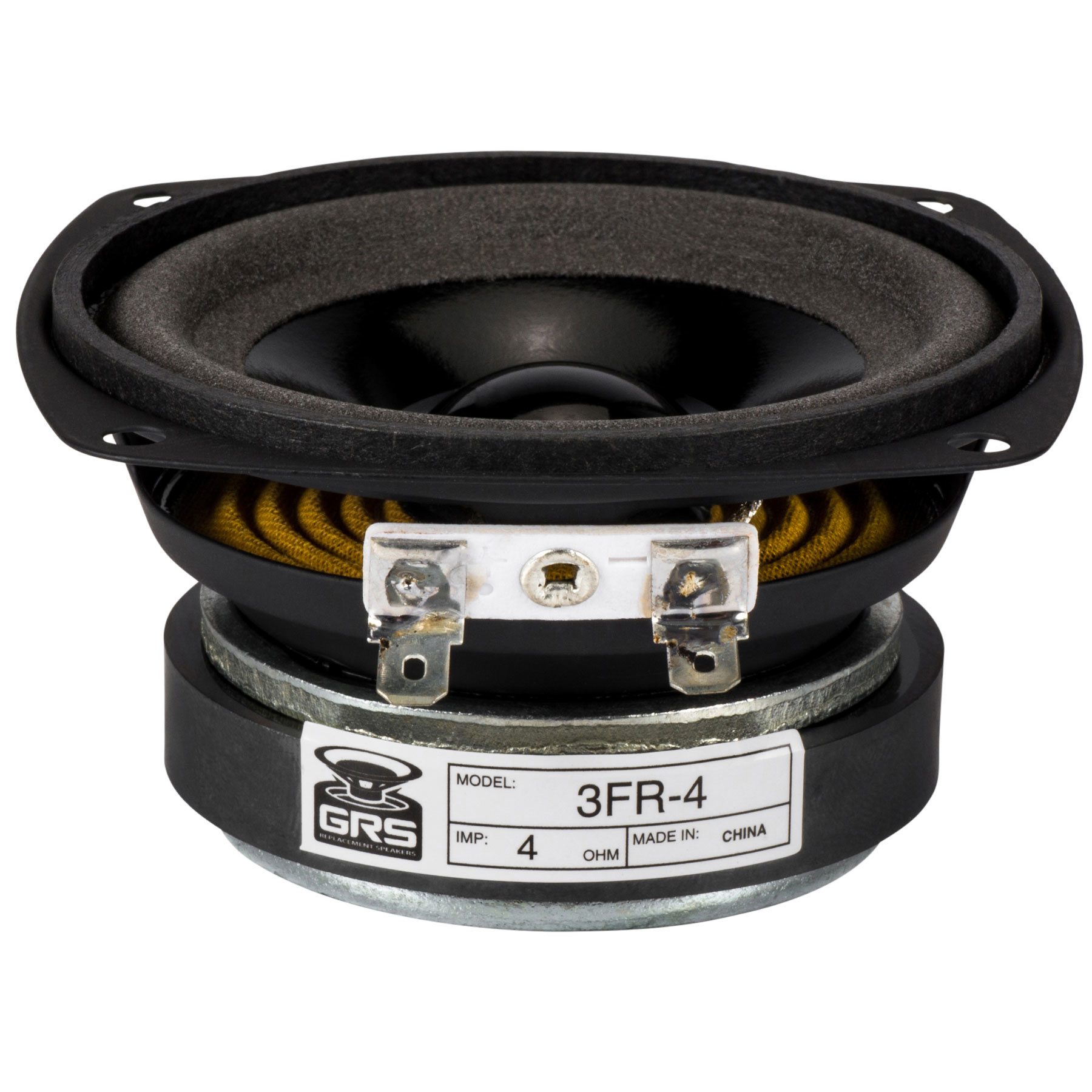

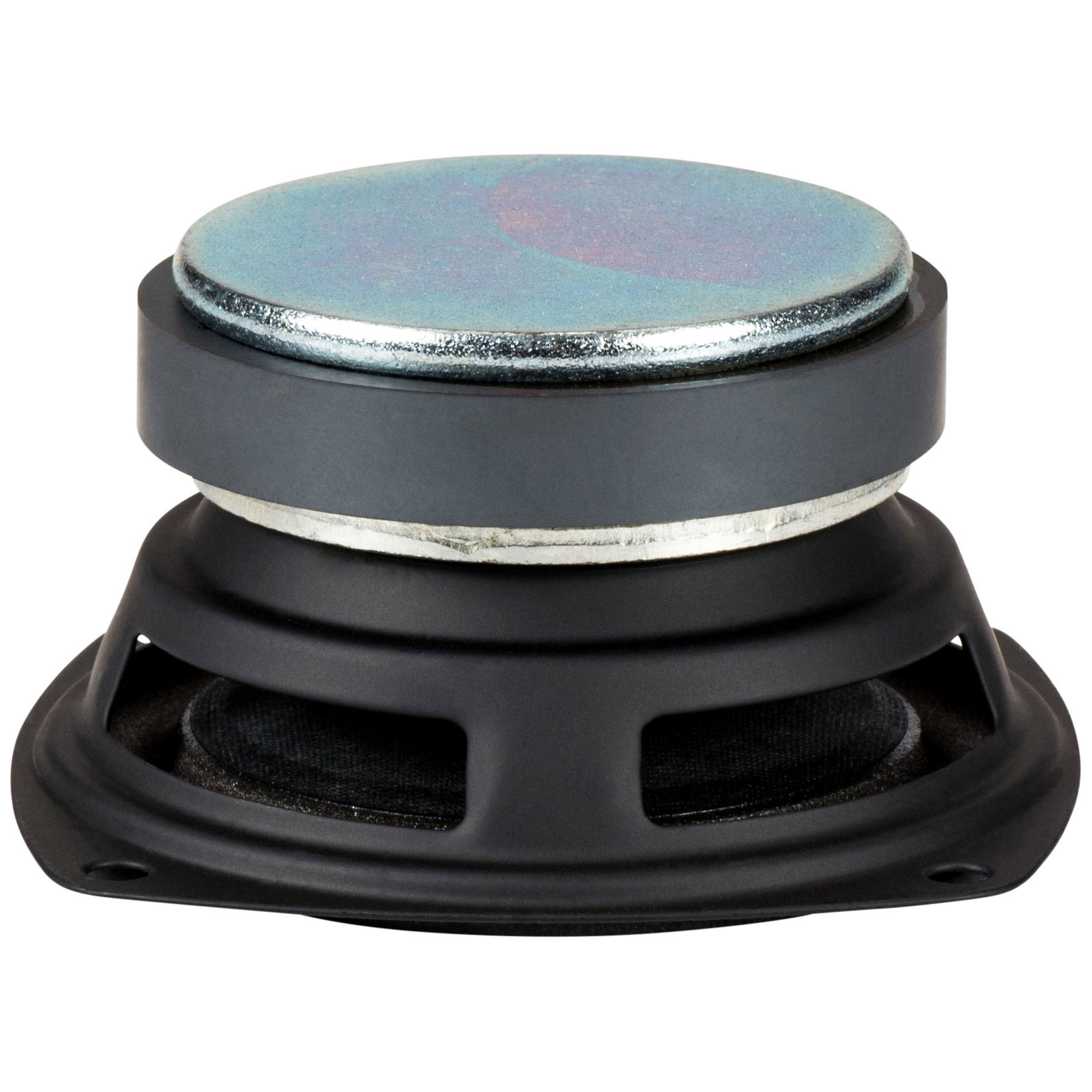

GRS 3FR-4 Full-Range 3" Speaker Driver 4 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: 3FR-4
  • Vorrat: 1 Auf Lager

The GRS 3FR-4 3" driver makes a great economical replacement full-range speaker for devices like multimedia speakers, table radios, and home theater soundbar systems. It’s also an excellent choice for new designs. 4 ohm impedance.

€ 5,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €4,91 und sparen Sie 10% Sale 10%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

GRS 3FR-4 Full-Range 3" Speaker Driver 4 Ohm

The GRS 3FR-4 3" driver makes a great economical replacement full-range speaker for devices like multimedia speakers, table radios, and home theater soundbar systems. It’s also an excellent choice for new designs. 4 ohm impedance.



Highlights

  • Coated paper cone with foam surround for clear sound
  • Pincushion-shape frame with front gasket
  • Economical ferrite magnet assembly
  • Quality GRS construction and 1-year warranty



Product Details

GRS 3FR-4 Full-Range 3" Speaker Driver 4 Ohm



Why pay more? The GRS 3FR-4 is a great replacement driver for the widely-used, 3"-size full range drivers found commonly in home theater systems, table radios, “sound bars”, and multimedia speaker systems, among many other uses. It’s also useful as a replacement for 3" woofers.



A sturdy stamped steel frame with “pincushion”-shaped mounting flange supports a robust ferrite ceramic magnet, and the coated paper cone with foam surround delivers clear sound that you might not expect from a driver this affordable.

Eigenschaften

Spezifikationen für: 3FR-4 Full-Range 3" Speaker Driver 4 Ohm

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. Full-Range Speakers
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midrange / Midbass Drivers
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 3"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 10 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 20 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 81 dB 1W/1m
  • Frequency Response 135 to 16,000 Hz
  • Voice Coil Diameter 0.75"
  • Magnet Weight
  • DC Resistance (Re) 4.00 ohms
  • Voice Coil Inductance (Le) 0.39 mH
  • Resonant Frequency (Fs) 135 Hz
  • Mechanical Q (Qms) 4.11
  • Electromagnetic Q (Qes) 1.11
  • Total Q (Qts) 0.88
  • Diaphragm Mass Inc. Airload (Mms)
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms)
  • Surface Area of Cone (Sd)
  • Volume of Displacement (Vd)
  • BL Product (BL)
  • Compliance Equivalent Volume (Vas) 0.03 ft.³
  • Maximum Linear Excursion (Xmax) 2 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper
  • Surround Material Foam
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 3.75"
  • Overall Depth 1.69"
  • Baffle Cutout Diameter 2.82"
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.08 ft.³
  • Sealed F3 131 Hz
  • Vented Volume 0.15 ft.³
  • Vented F3 78 Hz
