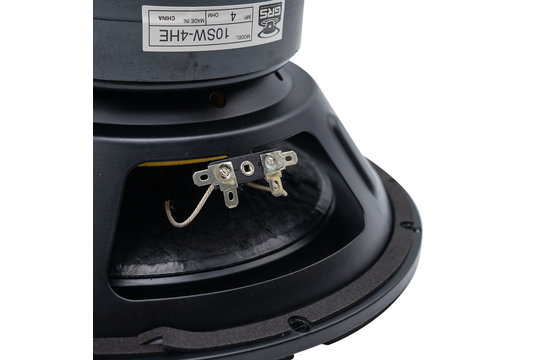

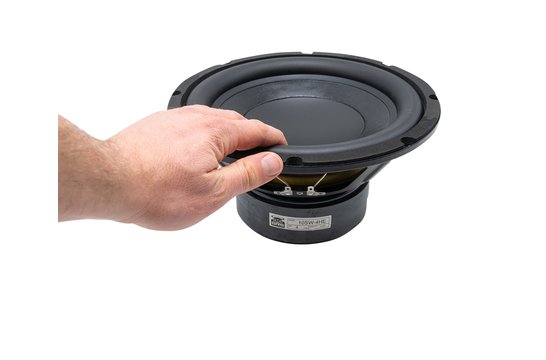

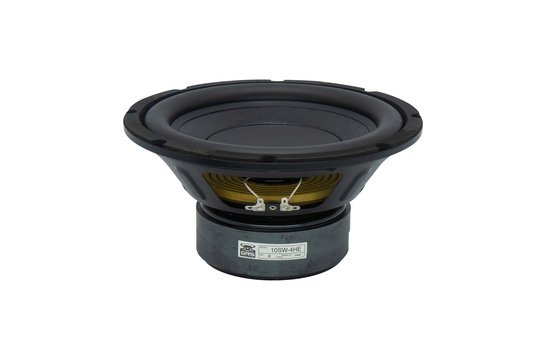

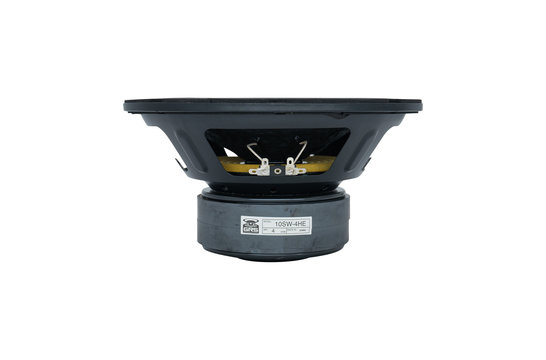

GRS 10SW-4HE 10" High Excursion Tieftöner 4 Ohm

Name: GRS 10SW-4HE 10" High Excursion Tieftöner 4 Ohm
Brand: GRS
SKU: 10SW-4HE
Price: 79.95 EUR
Availability: InStock

0 reviews

Marke: GRS

Alle anzeigen Subwoofer

Vergleichen

10'' | 4 Ω

10SW-4HE 10" High Excursion Tieftöner 4 Ohm

66,07 €79,95 € 6 Auf Lager

Kostenloser Versand ab 149 € (DE & A)
Jetzt bestellt, heute versendet
Hausinterner technischer Support
45 Tage Widerrufsrecht

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

The versatile 10SW-4HE 10” high excursion subwoofer from GRS is designed to produce excellent low frequency extension in a variety of designs. Suitable for both sealed and vented enclosures, this driver the ideal replacement or upgrade for your existing subwoofers with worn out or blown drivers. Featuring extensive venting, rubber surround, high temperature voice coil, low Fs, and 10.5 mm of excursion the 10SW-4HE is built for remarkable bass response on a budget.

Highlights

High excursion and low Fs to produce powerful low frequency output
2” voice coil on a thick aluminum former to handle up to 200 watts RMS

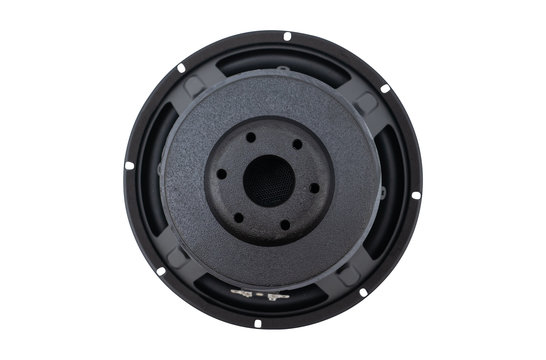

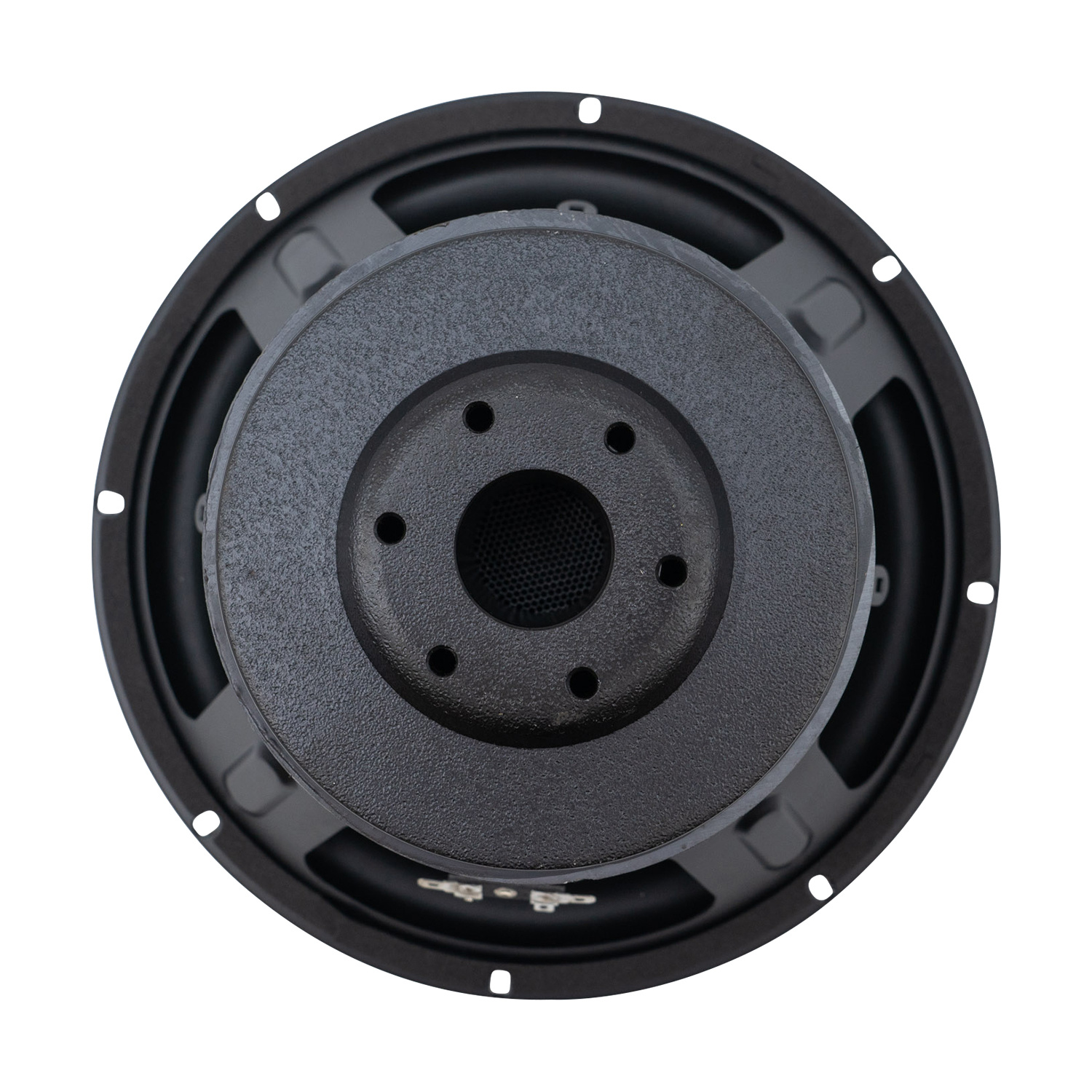

Venting under the spider, through the pole piece, and in the magnetic gap for excellent heat dissipation

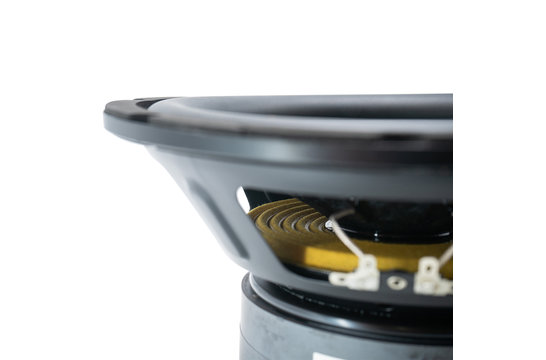

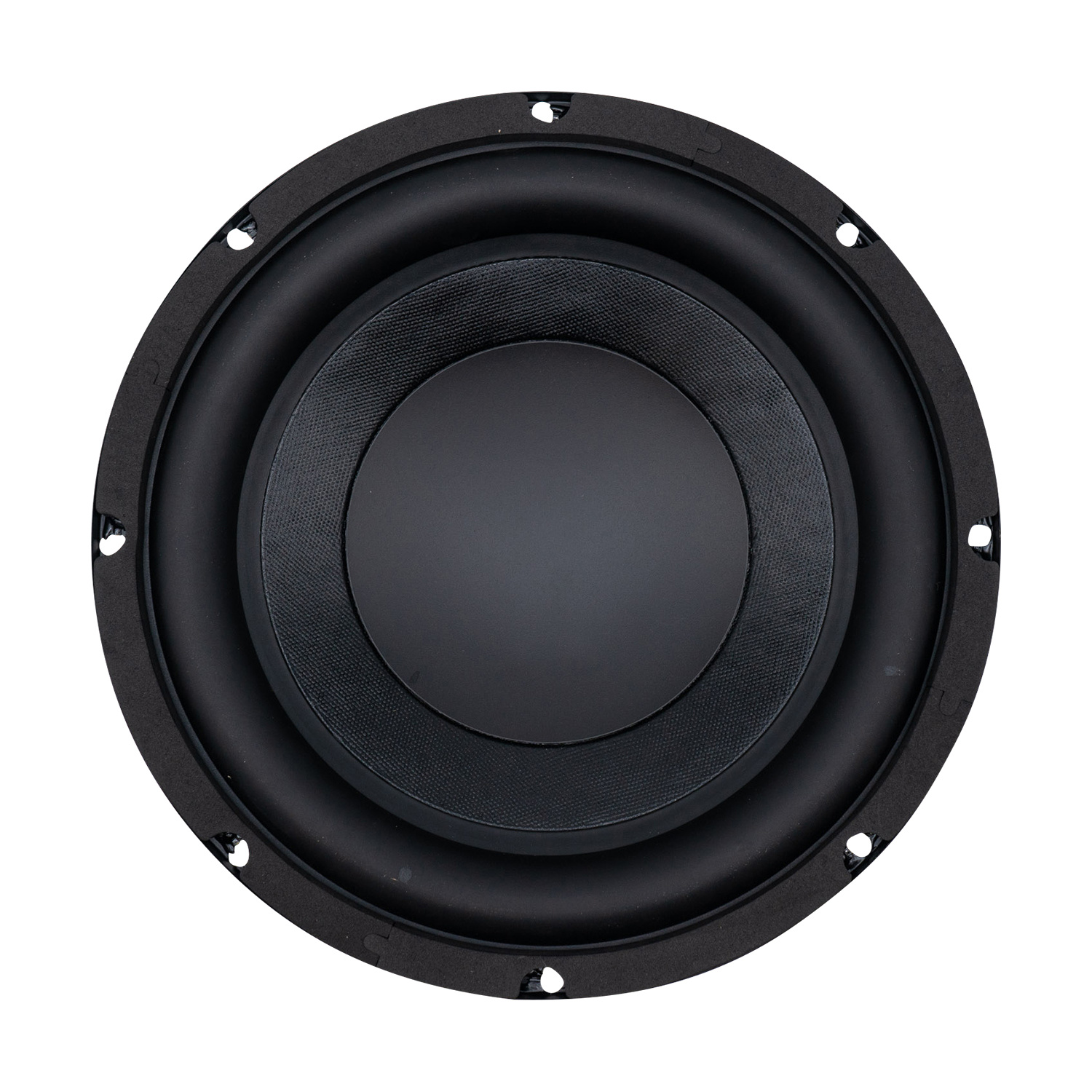

Durable reinforced paper cone with rubber surround produces reliable and consistent performance

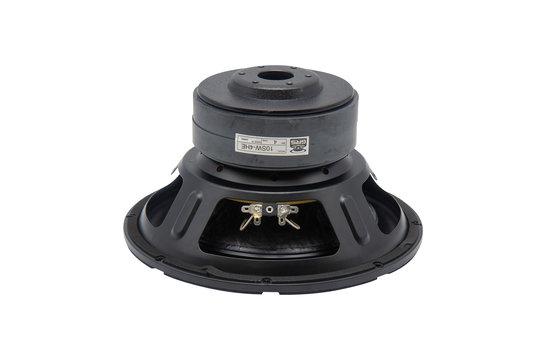

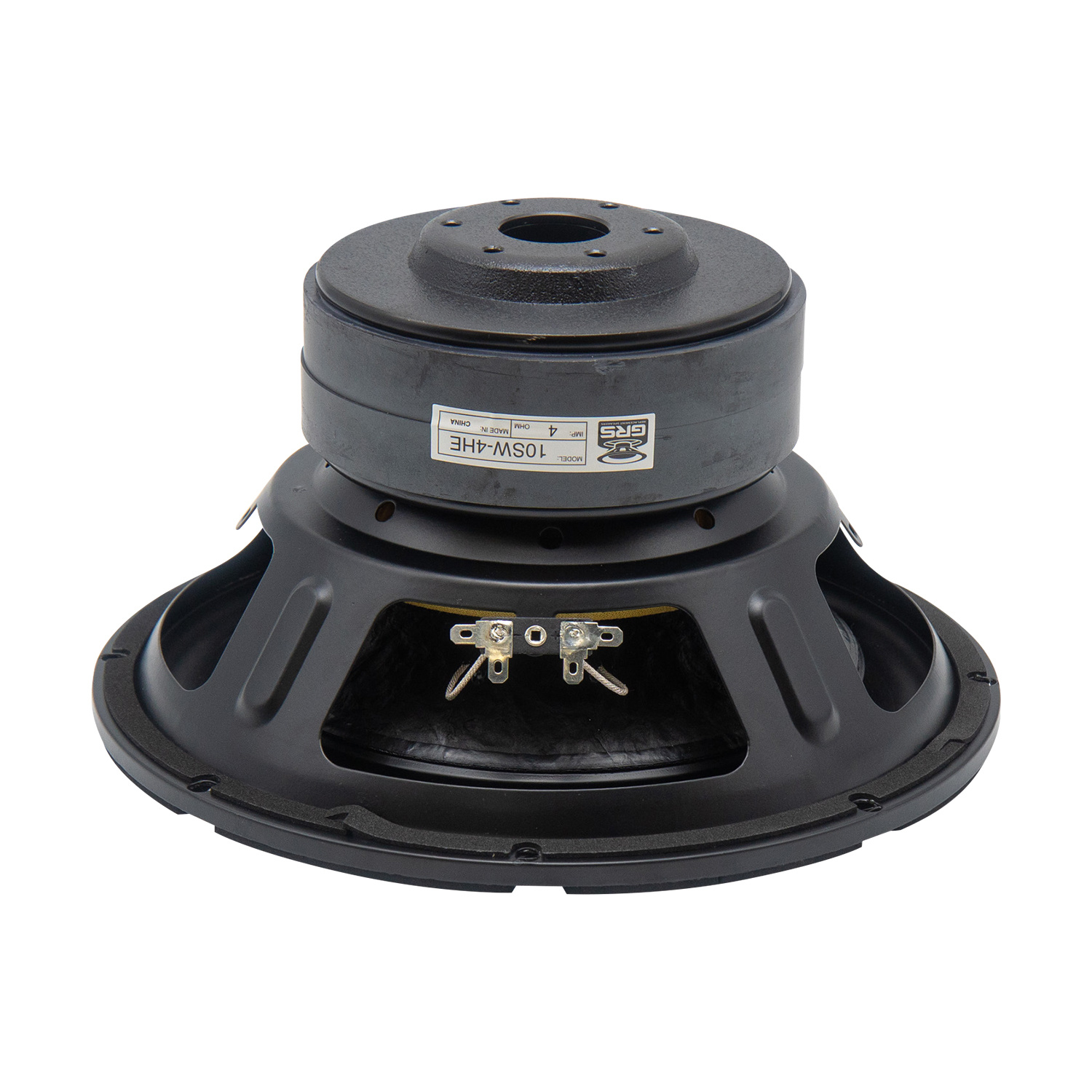

Extended frame and bumped back plate allow ample clearance for high excursion

Product details

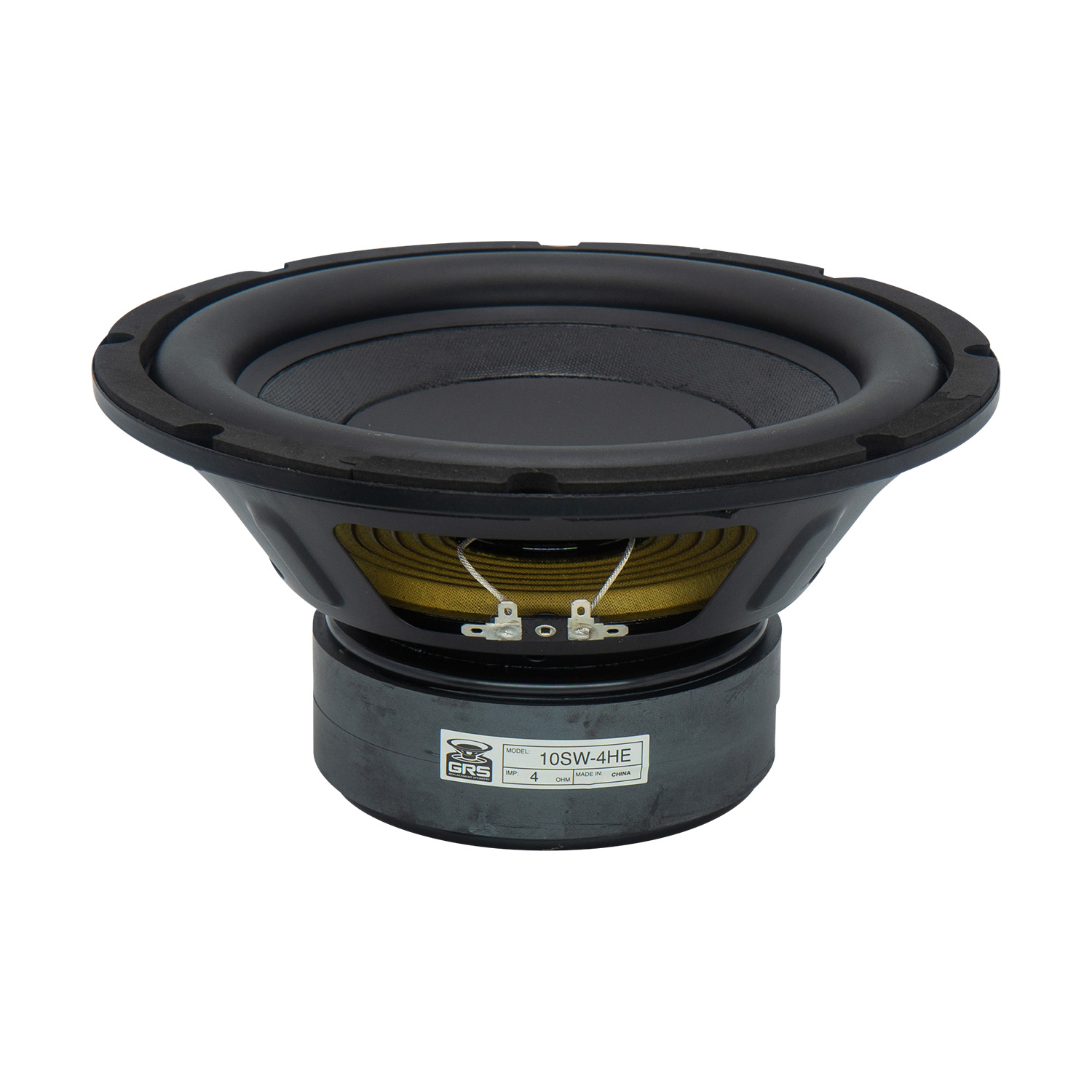

GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm

The GRS 10SW-4HE 10” high excursion subwoofer from GRS is an ideal replacement driver for existing subwoofer systems or an excellent choice for new economical designs. Capable of producing powerful bass response in both sealed and vented designs, the 10SW-4HE is suitable as a drop-in replacement for most existing 10” subwoofers.

Key Specs:

Nominal Diameter: 10"
Power Handling (RMS): 200W
Power Handling (MAX): 400W
Impedance: 4 Ω
Frequency Response: 26-500Hz
Sensitivity: 87.5dB 2.83V/1m
Voice Coil Diameter: 2"
Maximum Linear Excursion: 11mm

Frequency Response & Impedance Curve

The GRS 10SW-4HE has a bass-centric response from 20Hz up to 800Hz and is highly efficient within its passband. This efficiency and a low QTS lends itself well to both vented and sealed subwoofers for incredibly deep bass from an 10-inch driver.

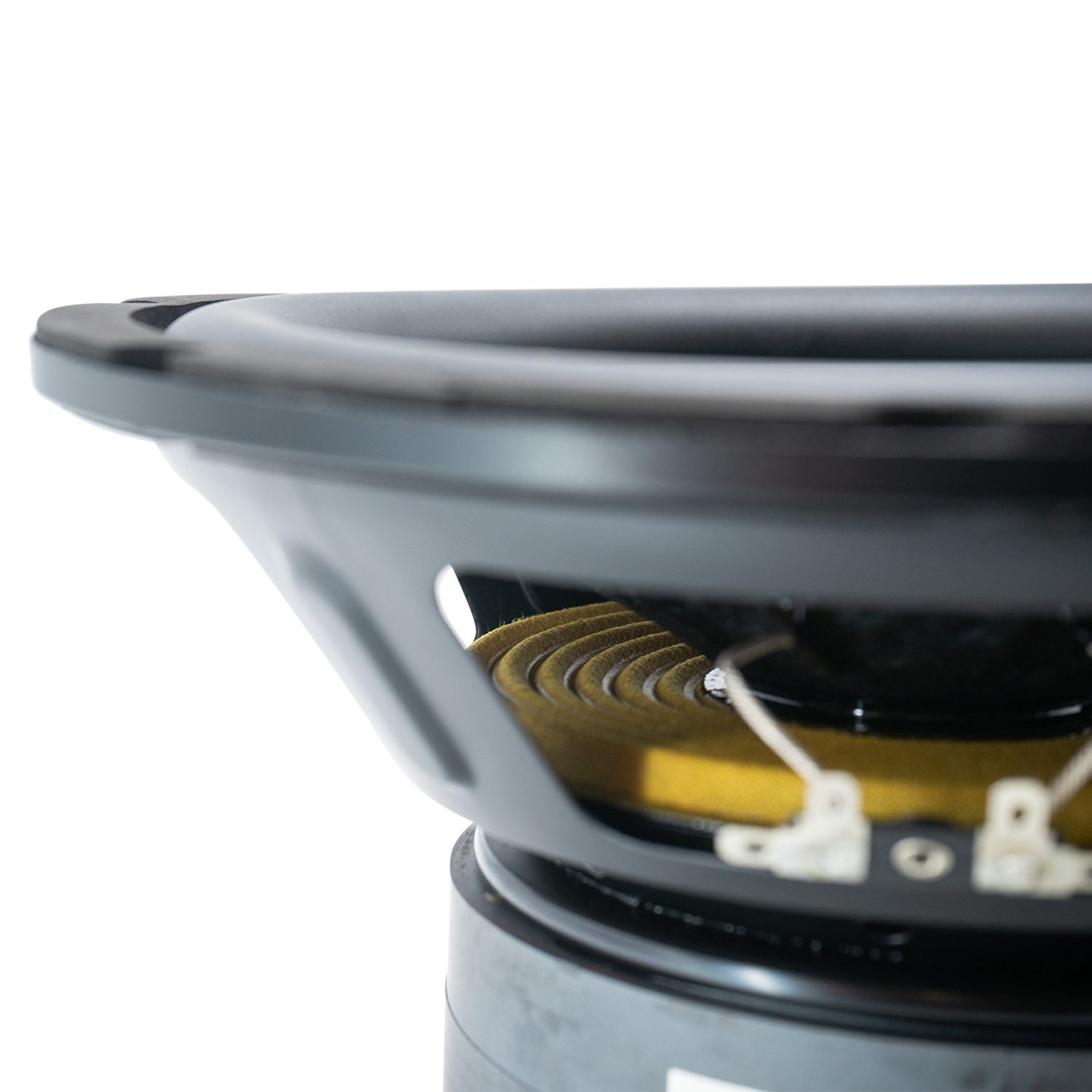

Extensive venting through the frame, pole piece, and magnetic gap dissipates excess heat to keep power compression to a minimum, even when driven hard for long periods. The rigid paper cone is supported by a large diameter spider and rubber surround to keep excursion linear while providing reliable performance. With a high temperature 2” voice coil wound on a thick aluminum former the 10SW-4HE can comfortably handle up to 200 watts RMS of power.
