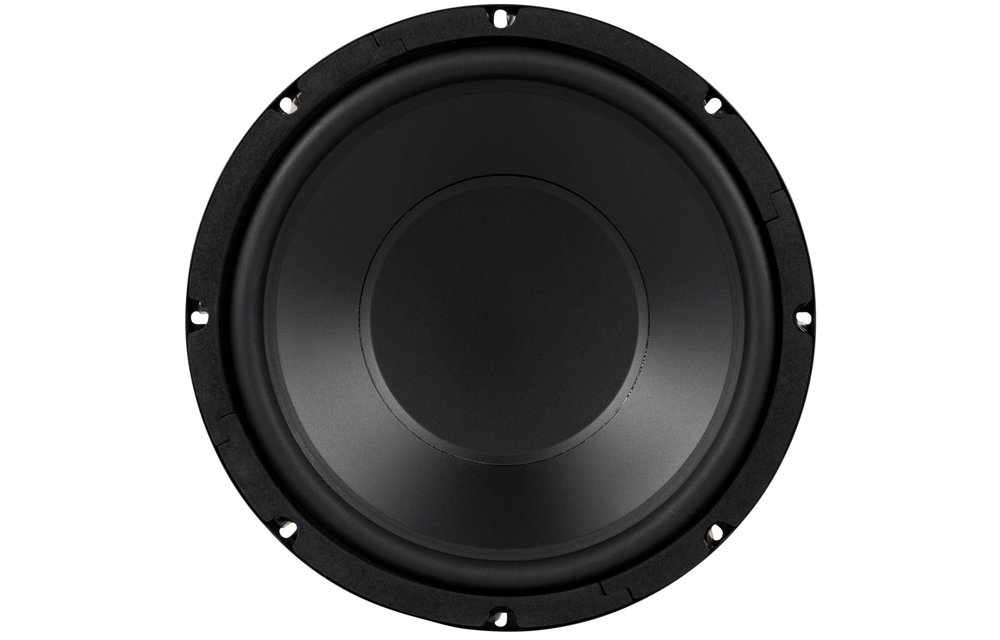

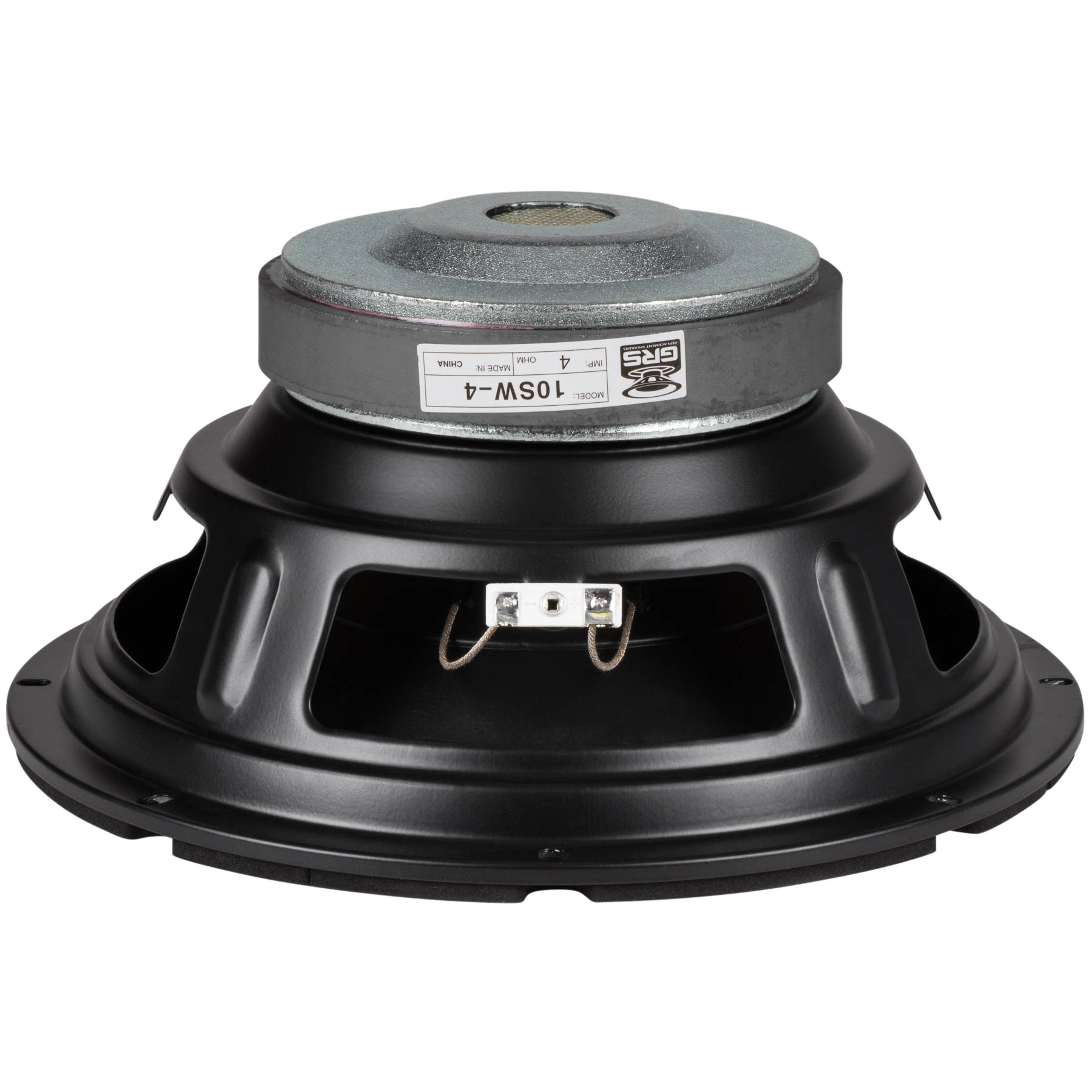

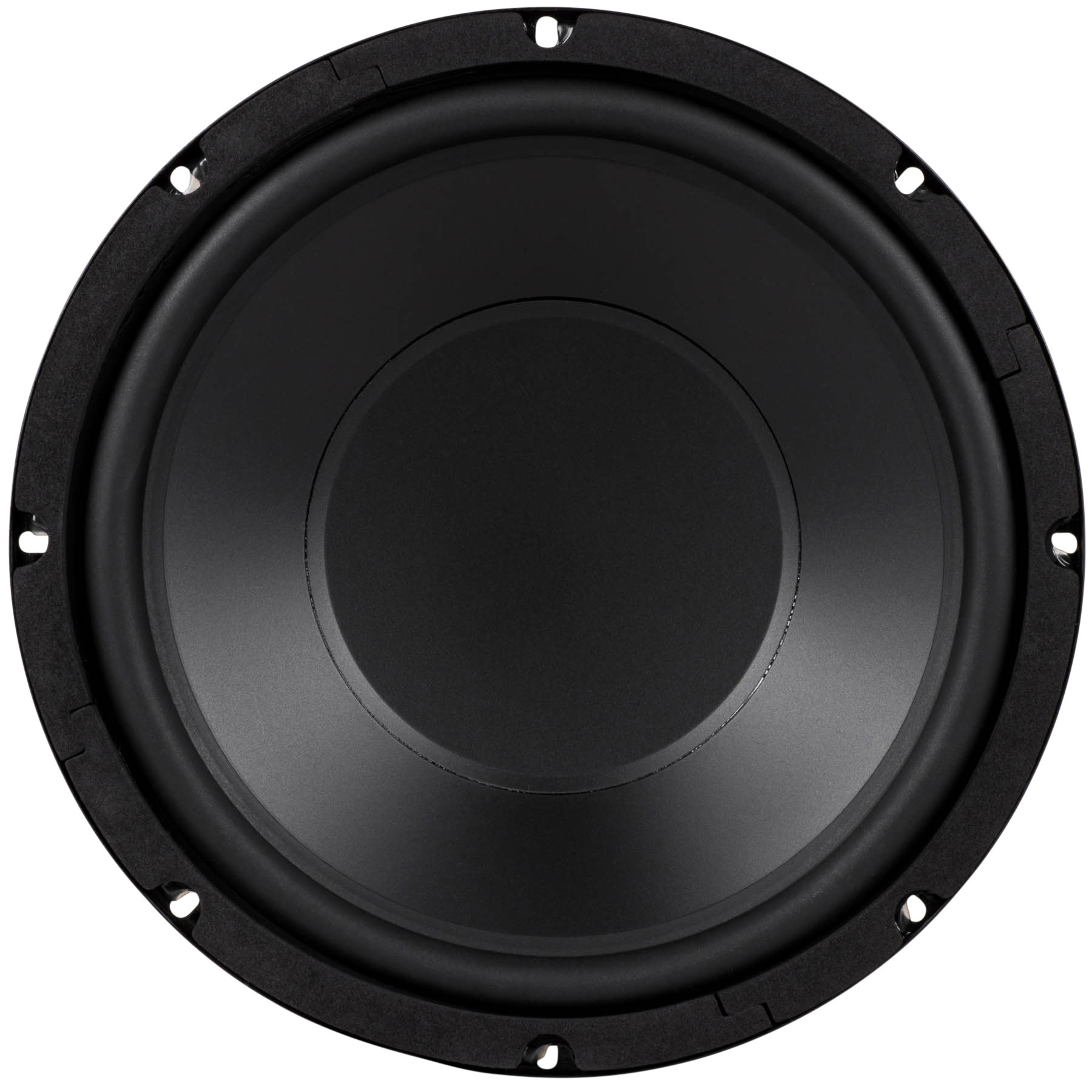

GRS 10SW-4 10" Poly Cone Subwoofer 4 Ohm

€ 27,23€ 32,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The GRS 10SW-4 10" 4 ohm poly cone subwoofers are a true bargain in replacement subwoofers! These economical subs feature a large diameter voice coil, durable polypropylene cone, and extended excursion for high energy bass reproduction.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €31,30 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The GRS 10SW-4 10" 4 ohm poly cone subwoofers are a true bargain in replacement subwoofers! These economical subs feature a large diameter voice coil, durable polypropylene cone, and extended excursion for high energy bass reproduction.



Highlights

  • Butyl rubber surround ensures high excursion and long-term durability
  • Polypropylene cone for perfect balance of stiffness, mass, and self-damping
  • Long-throw design for deep, powerful bass
  • Large 2" voice coil and bumped back plate enable high power handling



Product details

GRS 10SW-4 10" Poly Cone Subwoofer 4 Ohm



Now you can replace blown or damaged subwoofers with new drivers that equal or outperform the original! GRS poly cone subwoofers are not only the perfect replacement for tired, worn out subwoofers in a variety of audio gear, but they are also a great choice for new designs. Their handsome polypropylene cones provide durability and good looks, while the large vented magnet assemblies and extended voice coils enable long-throw performance and authoritative bass in a variety of enclosures.



The 10" model features a 2" diameter voice coil with big 8.5mm excursion for solid bass performance in compact sealed and vented enclosures. These versatile subs are also rugged enough to be used in dipole and automotive infinite baffle applications.



See the below list of recommended enclosure alignments for new design.



Recommended sealed enclosure: Vb = 1.0 ft^3, F3 = 42 Hz, Qtc: 1.17



Recommended vented enclosure: Vb = 1.5 ft^3, Fb = 35 Hz, F3 = 32 Hz

Eigenschaften

Artikelnummer:
10SW-4
Woofer Series
Replacement woofer
Woofer Type
Sub Woofer
Nominal Diameter
10"
Power Handling (RMS)
120 Watts
Power Handling (max)
240 Watts
Impedance
4 ohms
Sensitivity
88 dB 2.83V/1m
Frequency Response
34 to 800 Hz
Voice Coil Diameter
2"
DC Resistance (Re)
4.14 ohms
Voice Coil Inductance (Le)
1.23 mH
Resonant Frequency (Fs)
34 Hz
Mechanical Q (Qms)
3.38
Electromagnetic Q (Qes)
0.78
Total Q (Qts)
0.63
Compliance Equivalent Volume (Vas)
2.03 ft.³
Maximum Linear Excursion (Xmax)
8.5 mm
Cone / Diaphragm Material
Poly
Surround Material
Rubber
Voice Coil Wire Material
Copper
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
10"
Overall Depth
5"
Baffle Cutout Diameter
9"
Bolt Circle Diameter
9.5"
# Mounting Holes
8
