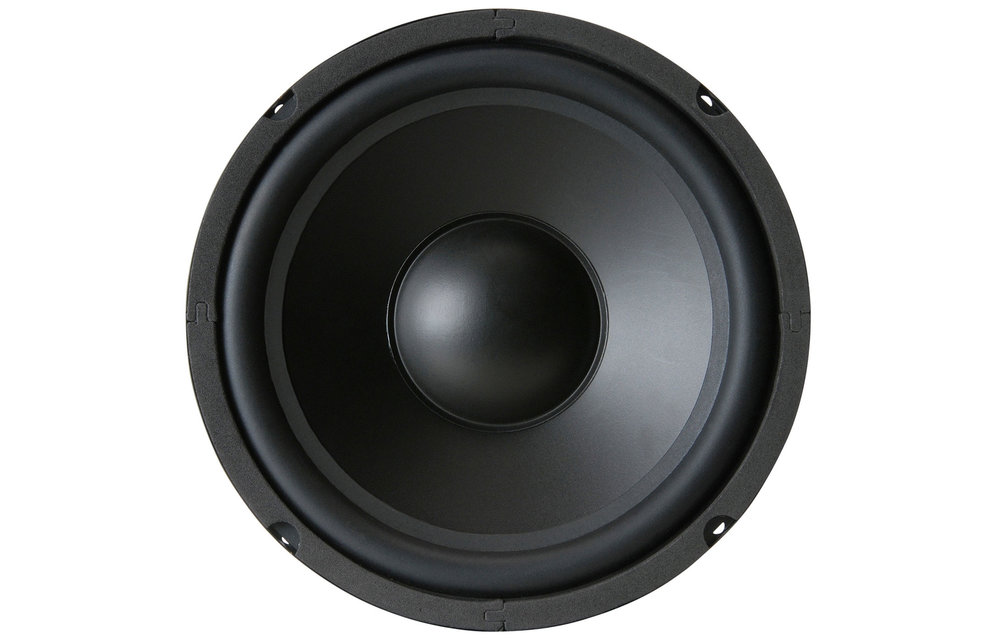

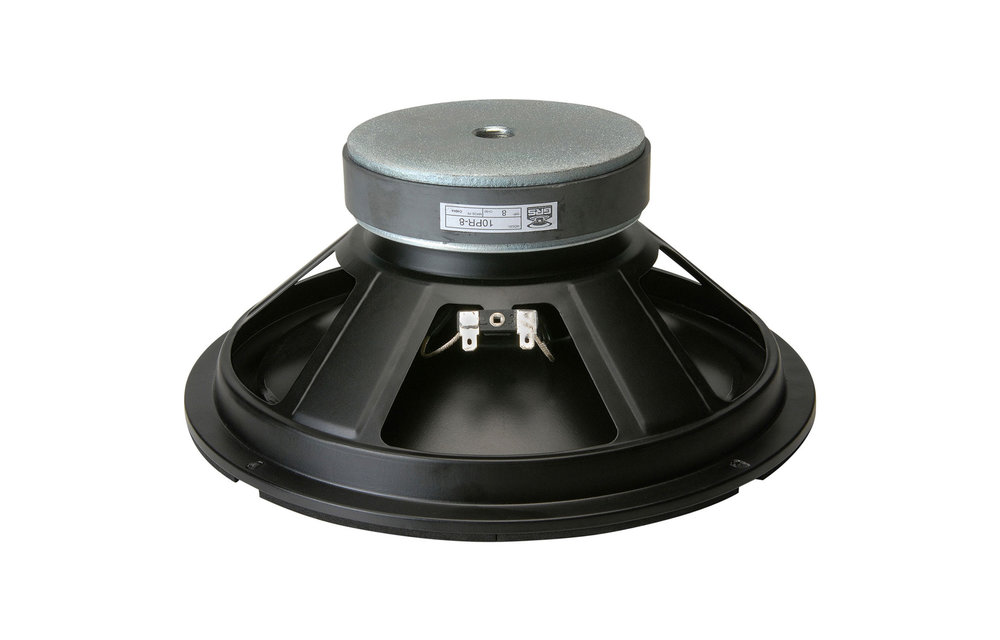

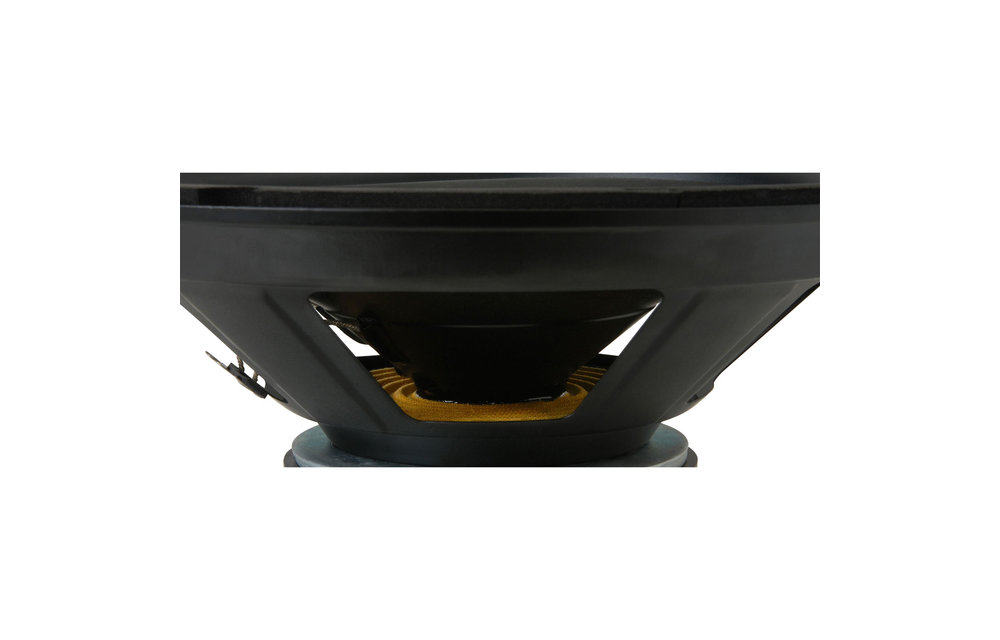

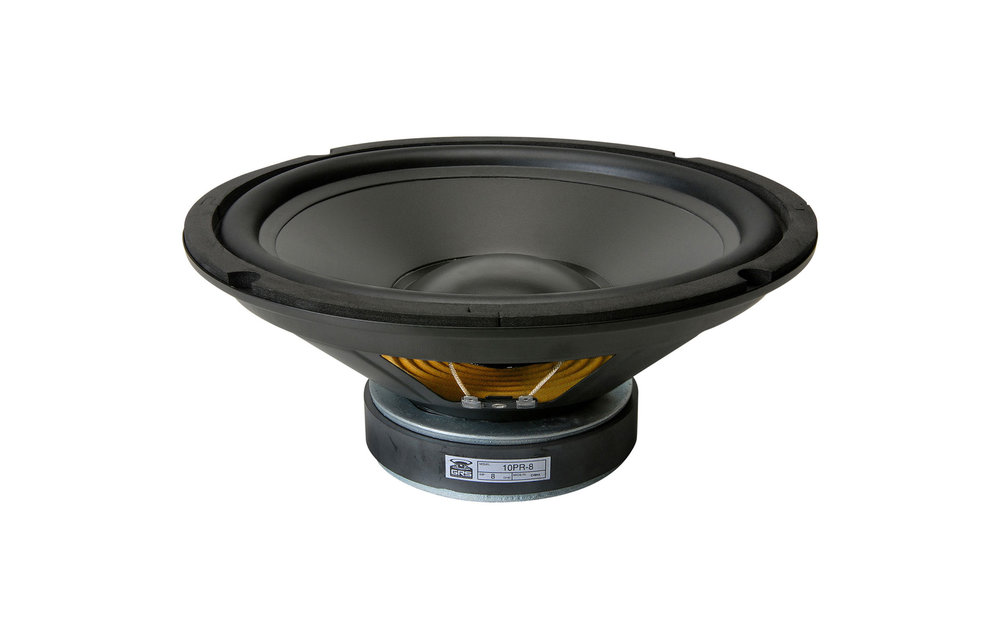

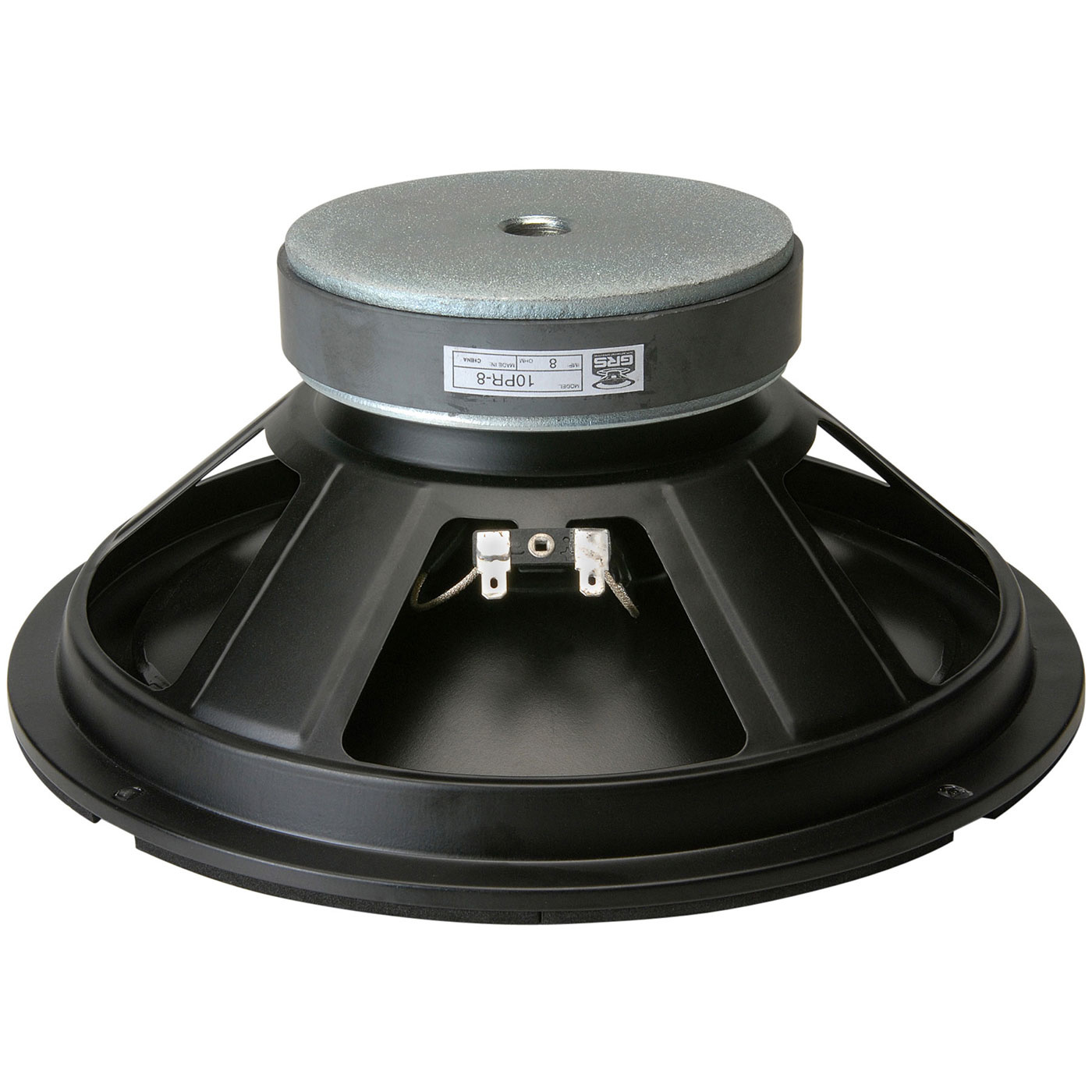

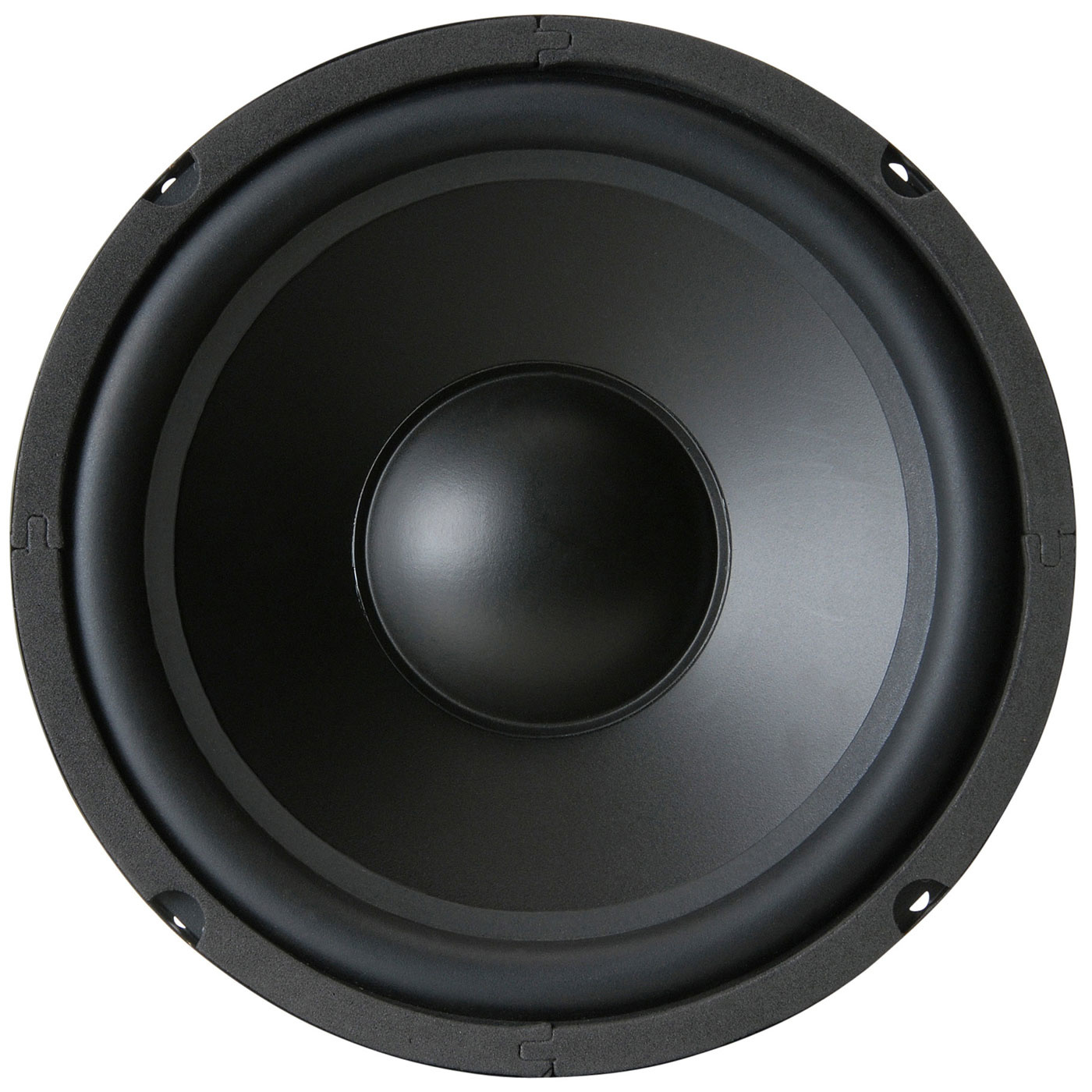

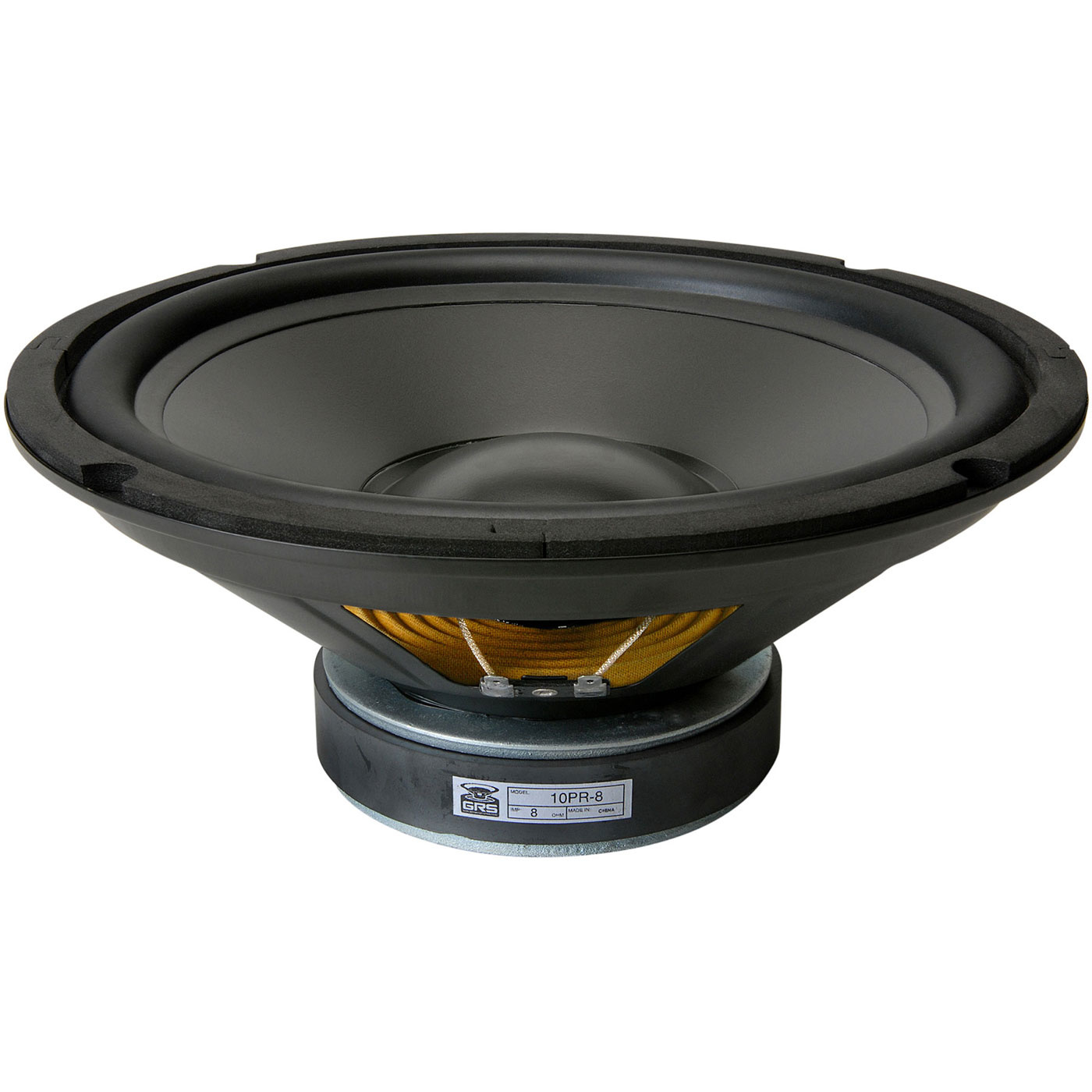

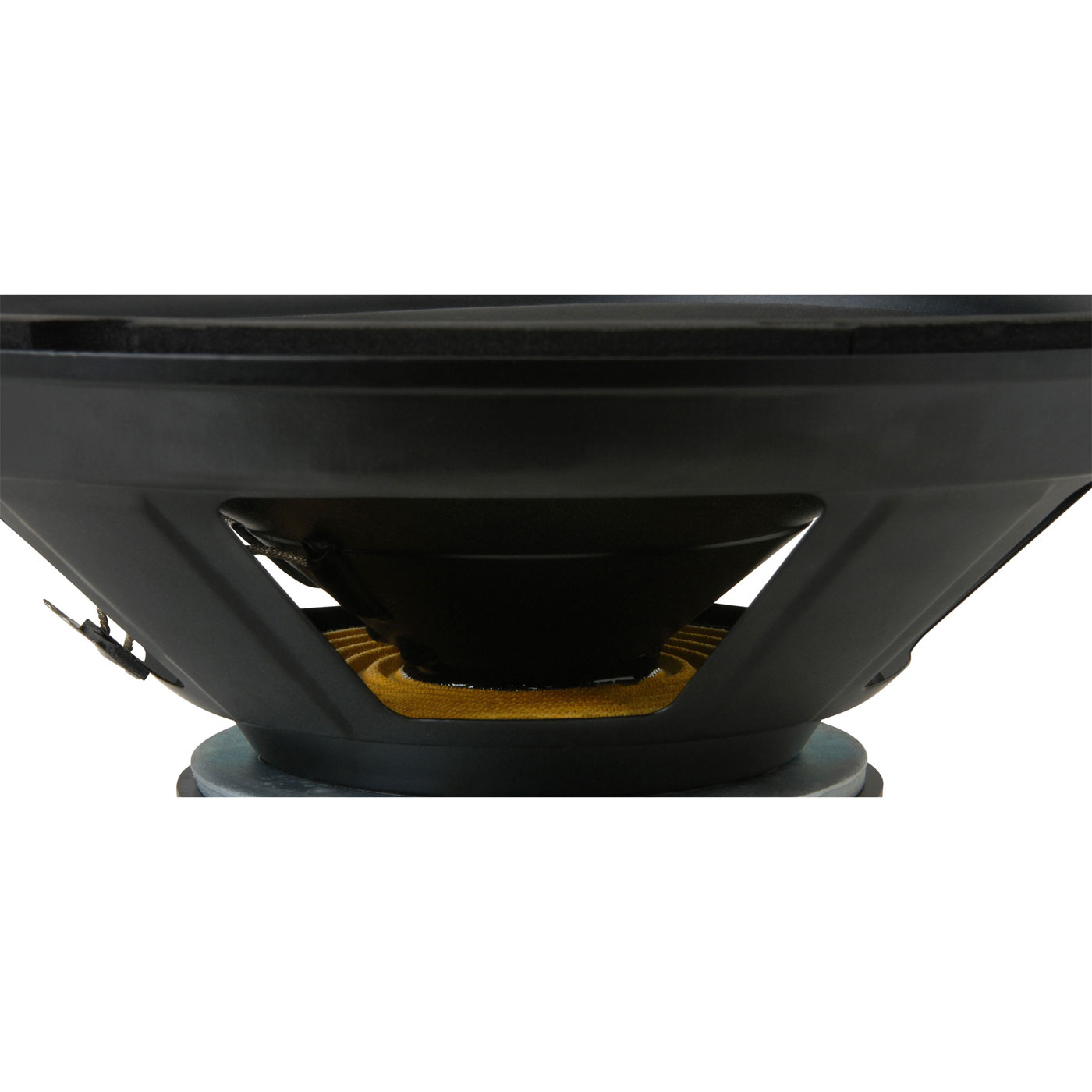

GRS 10PR-8 10" Poly Cone Rubber Surround Woofer

Marke: GRS
Bewertungen: (0) Kundenmeinung hinzufügen
Vergleichen
Vergleichen
Auf den Wunschzettel

Lieferzeit: 1-3 Werktage

Artikelnummer: 10PR-8
Vorrat: >10 Auf Lager

Many popular, classic 10" speaker designs can be replaced or upgraded with a GRS 10PR-8 poly cone woofer.

€ 24,95 Inkl. MwSt.

Kaufen Sie 4 für je €22,46 und sparen Sie 10% Sale 10%

Menge Auf den Wunschzettel

Heute verschickt? Du hast noch: 2018/12/25
Gratis DHL-Versand ab 149€ (DE, A) Tooltip
Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen
Versand am selben Tag
45 Tage Bedenkzeit
Zahlung mit Paypal/Kreditkarte

Produktbeschreibung
Eigenschaften
Bewertungen

GRS 10PR-8 10" Poly Cone Rubber Surround Woofer

Many popular, classic 10" speaker designs can be replaced or upgraded with a GRS 10PR-8 poly cone woofer.

Highlights

Polypropylene cone for perfect balance of stiffness, mass, and self-damping
Butyl rubber surround ensures high excursion and long term durability
Stamped steel frame keeps components in perfect alignment
Optimized motor features high-energy ceramic ferrite magnet, vented pole piece

Product Details

GRS 10PR-8 10" Poly Cone Rubber Surround Woofer

Many popular, classic 10" speaker designs can be replaced or upgraded with a GRS 10PR-8 poly cone woofer. Thanks to their carefully optimized parameters, GRS 10PR-8 10" polypropylene cone woofers with butyl rubber surrounds offer a high degree of compatibility when used as replacement speakers—they also provide excellent performance in new projects, too.

Spezifikationen für: 10PR-8 10" Poly Cone Rubber Surround Woofer

Woofer SeriesSpezielle Woofer- Produktionsreihe des Herstellers. Replacement woofer
Woofer TypeArt des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
Nominal DiameterUngefährer Durchmesser des Drivers, gemessen in Inch. 10"
Power Handling (RMS)Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 80 Watts
Power Handling (max)Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 115 Watts
View all specifications
Continuous Program Power
Impedance 7.58 ohms
Sensitivity 85 dB 1W/1m
Frequency Response 35 to 3,000 Hz
Voice Coil Diameter 1.5"
Magnet Weight
DC Resistance (Re) 7.58 ohms
Voice Coil Inductance (Le) 1.12 mH
Resonant Frequency (Fs) 37 Hz
Mechanical Q (Qms) 4.8
Electromagnetic Q (Qes) 1.5
Total Q (Qts) 1.14
Diaphragm Mass Inc. Airload (Mms)
Moving Mass Of Diaphragm (Mmd)
Mechanical Compliance of Suspension (Cms)
Surface Area of Cone (Sd)
Volume of Displacement (Vd)
BL Product (BL)
Compliance Equivalent Volume (Vas) 2.15 ft.³
Maximum Linear Excursion (Xmax) 3 mm
Driver's Mechanical Losses (Rms)
Cone / Diaphragm Material Poly
Surround Material Rubber
Voice Coil Wire Material
Voice Coil Former
Dual Voice Coil
Basket / Frame Material
Magnet Material Ferrite
Shielded
Overall Outside Diameter 10"
Overall Depth 4.125"
Baffle Cutout Diameter 9.25"
Bolt Circle Diameter
# Mounting Holes 4
Mounting Hole Diameter
Sealed Volume 2.11 ft.³
Sealed F3 39 Hz
Vented Volume 16.5 ft.³
Vented F3 21 Hz
