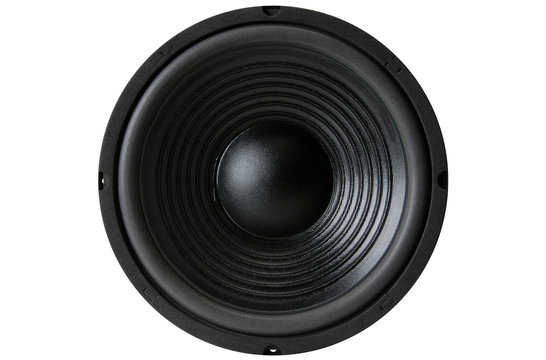

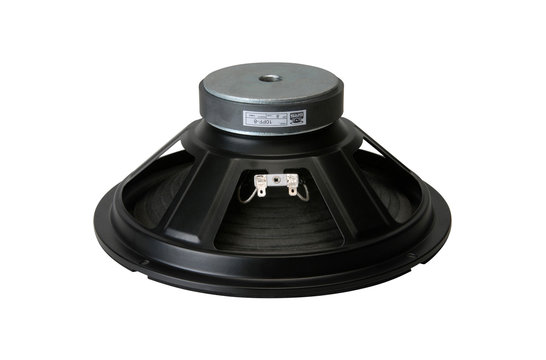

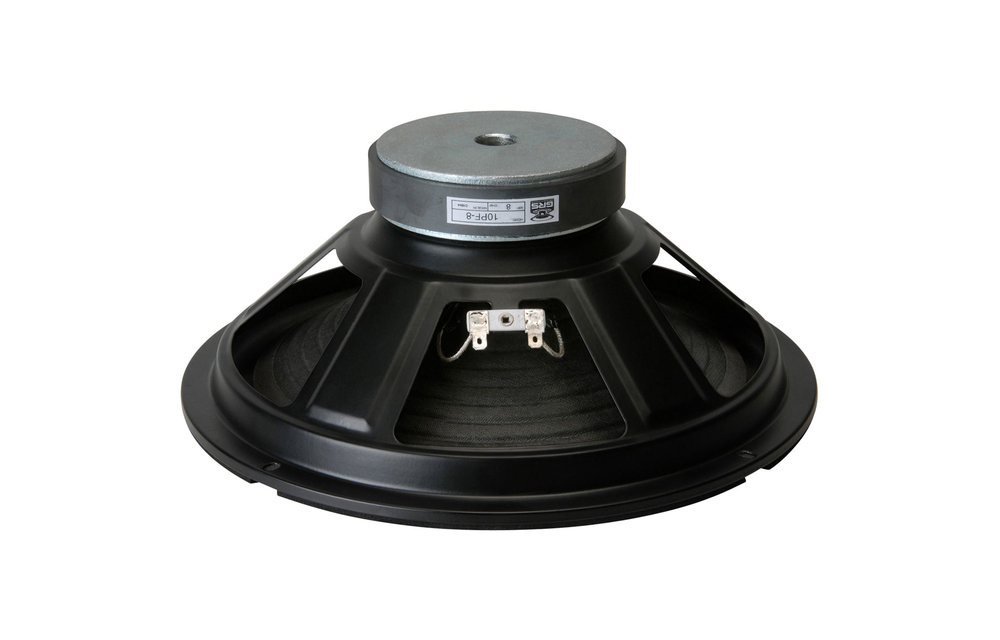

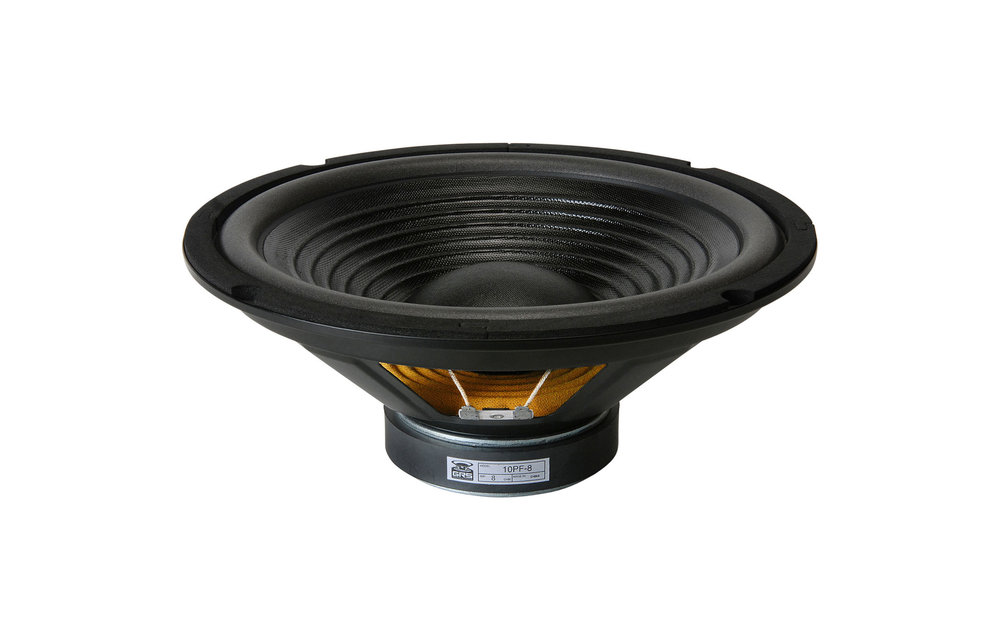

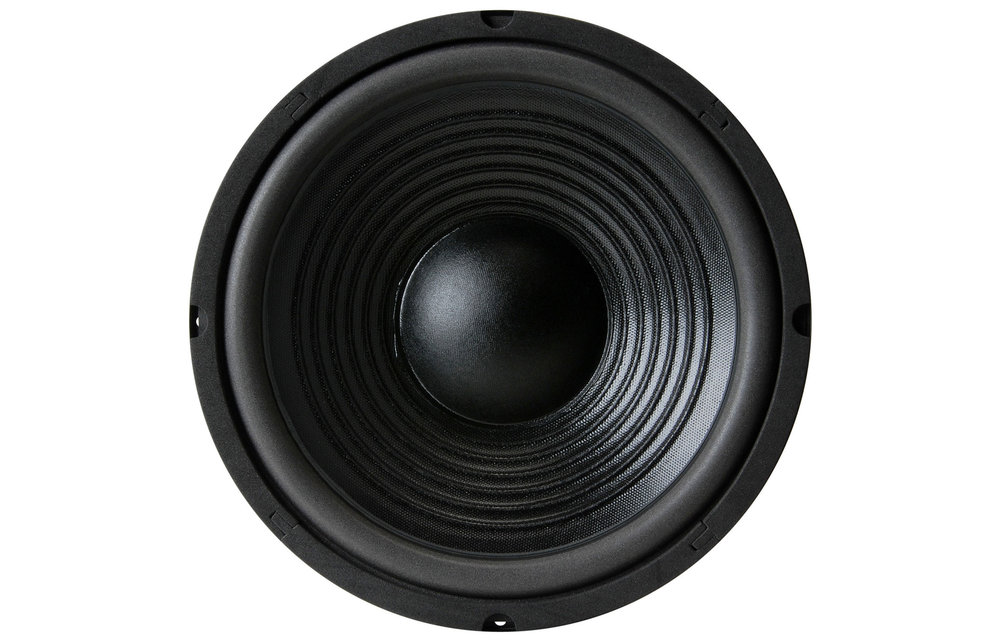

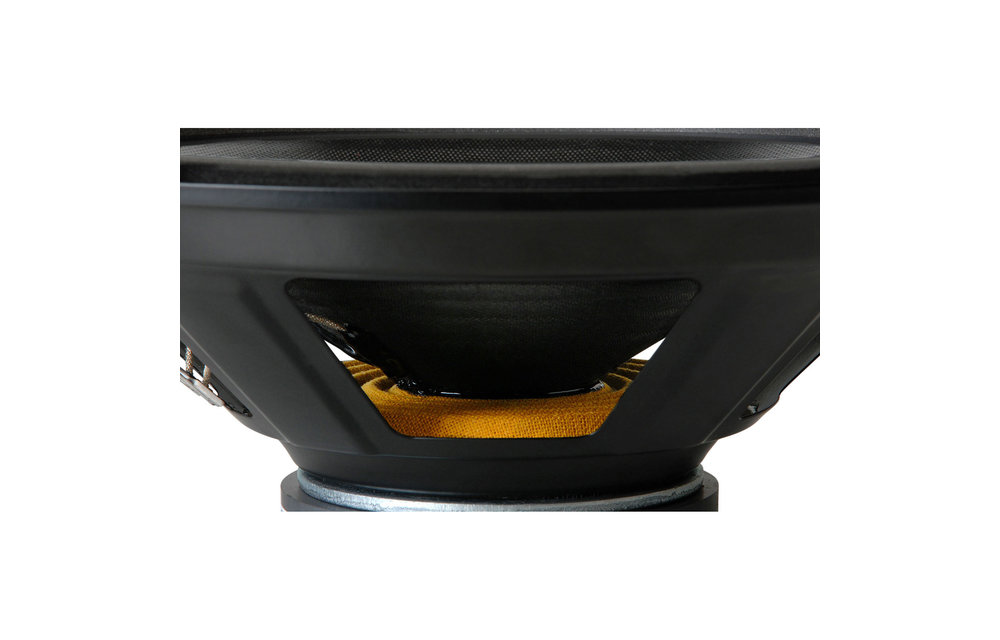

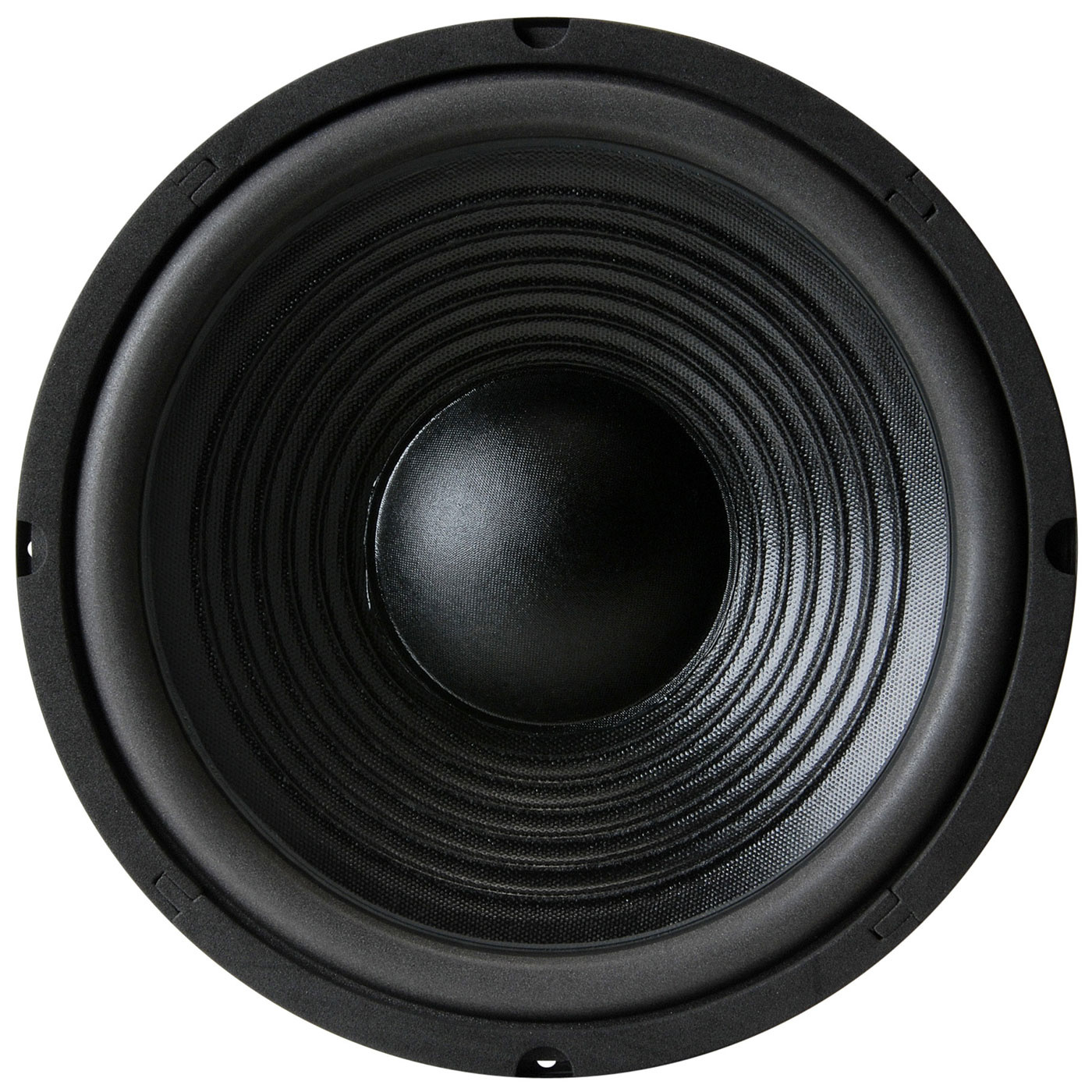

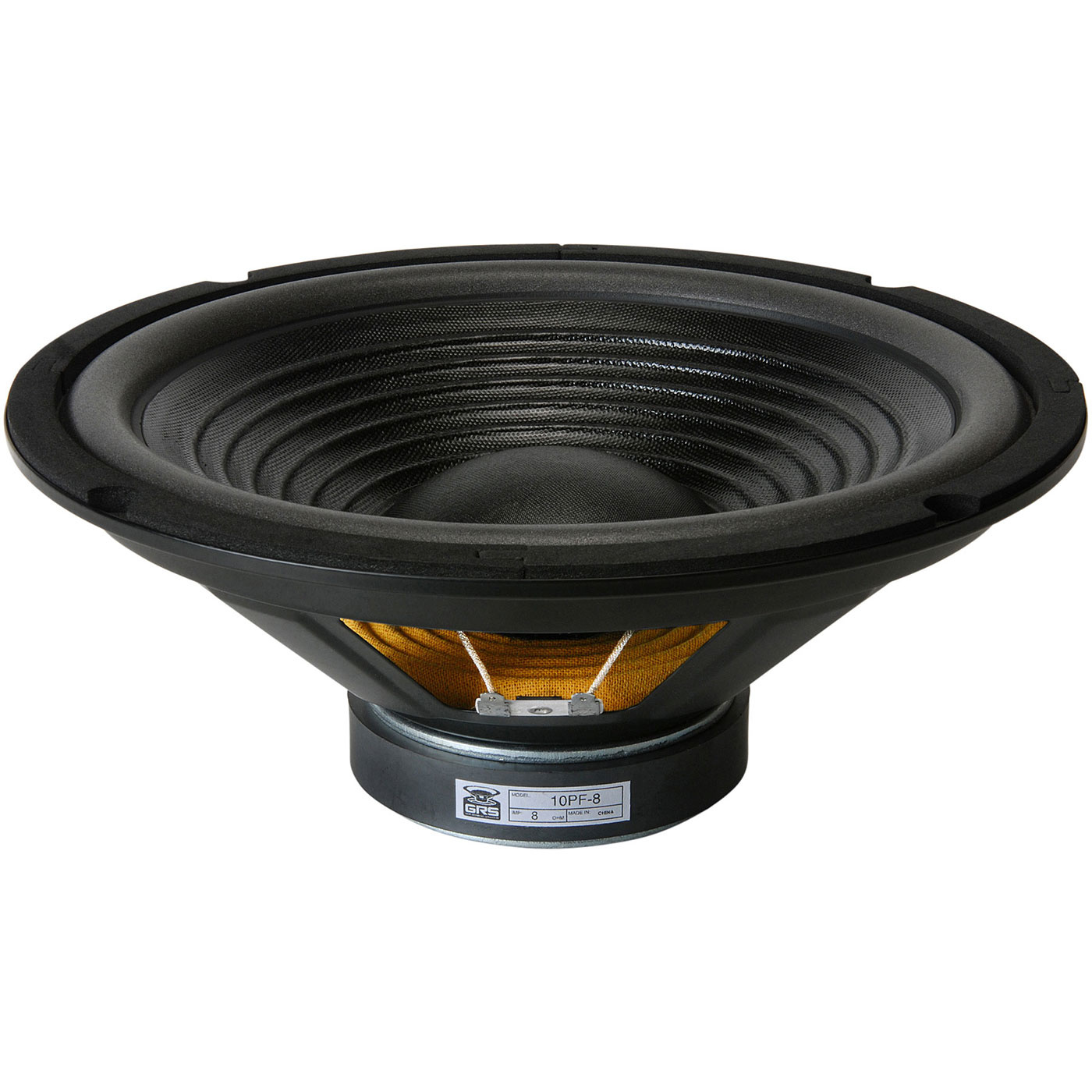

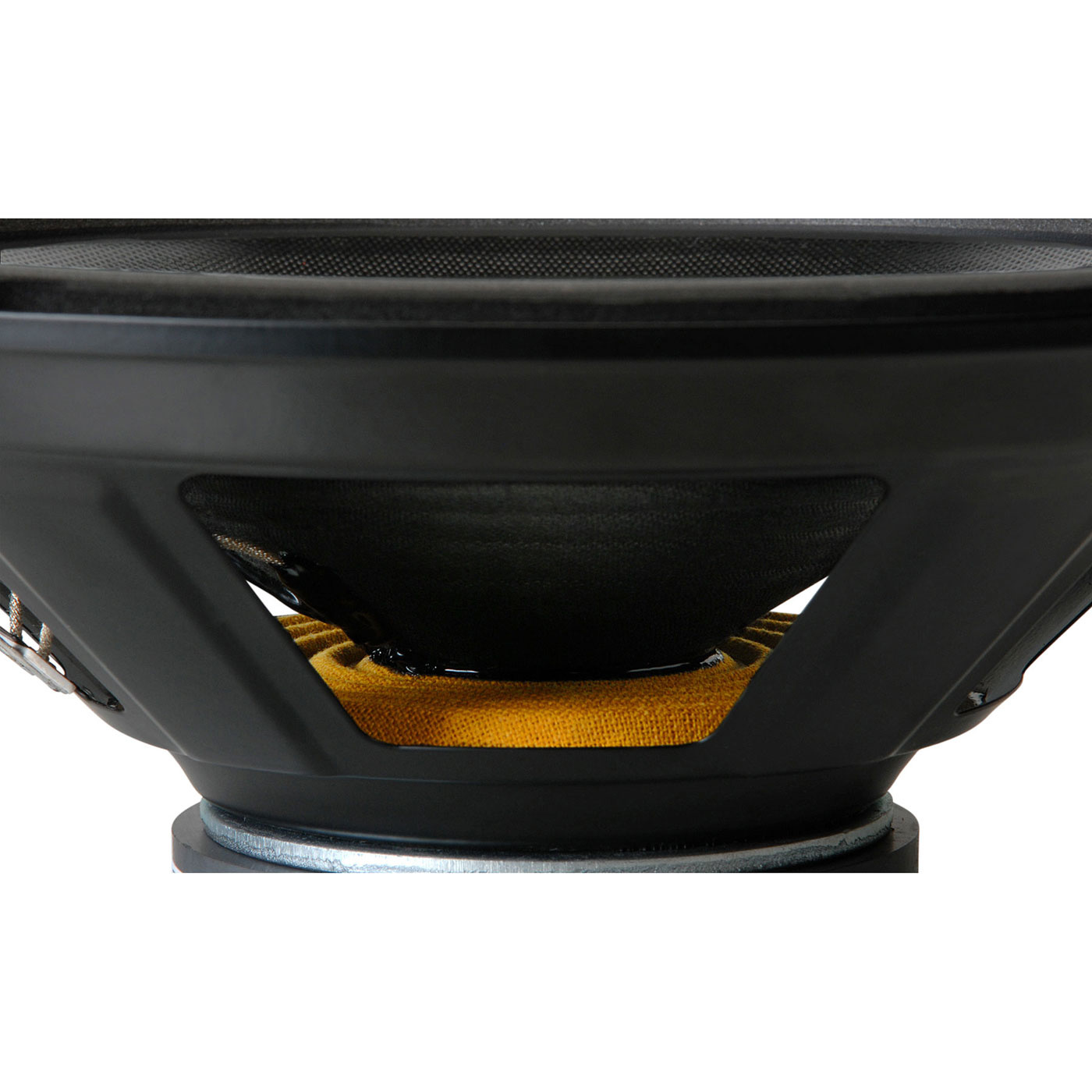

GRS 10PF-8 10" Paper Cone Foam Surround Woofer

€ 18,45 Nicht auf Lager: Lieferzeit beträgt 1 Woche
GRS 10PF-8 10" paper cone woofers are ideal replacement speakers for use in sealed-box loudspeaker systems in almost any application.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -10% Kauf 4 für nur €16,61 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

GRS 10PF-8 10" paper cone woofers are ideal replacement speakers for use in sealed-box loudspeaker systems in almost any application.



Highlights

  • Perfect for use in sealed-box home theater and music systems
  • Poly-laminated paper cone, treated foam surround, and polymer dust cap
  • Smooth frequency response with minimal cone breakup



Product details

GRS 10PF-8 10" Paper Cone Foam Surround Woofer



GRS 10PF-8 10" paper cone woofers are ideal replacement speakers for use in sealed-box loudspeaker systems in almost any application. Thanks to their carefully optimized parameters, GRS 10PF-8 10" poly-laminated paper cone woofers offer a high degree of compatibility when used as replacement speakers—they also provide excellent performance in new projects, too.

Eigenschaften

Artikelnummer:
10PF-8
Woofer Series
Replacement woofer
Woofer Type
Midwoofer
Nominal Diameter
10"
Power Handling (RMS)
110 Watts
Power Handling (max)
220 Watts
Impedance
8 ohms
Sensitivity
87 dB 1W/1m
Frequency Response
40 to 5,000 Hz
Voice Coil Diameter
1.5"
DC Resistance (Re)
7.56 ohms
Voice Coil Inductance (Le)
1.19 mH
Resonant Frequency (Fs)
43 Hz
Mechanical Q (Qms)
5.32
Electromagnetic Q (Qes)
1.66
Total Q (Qts)
1.27
Compliance Equivalent Volume (Vas)
2.27 ft.³
Maximum Linear Excursion (Xmax)
3 mm
Cone / Diaphragm Material
Treated Paper
Magnet Material
Ferrite
Overall Outside Diameter
10"
Overall Depth
4.125"
Baffle Cutout Diameter
9.25"
# Mounting Holes
4
Sealed Volume
1.87 ft.³
Sealed F3
45 Hz
Vented Volume
21.49 ft.³
Vented F3
24 Hz

Bewertungen

5 from 5Based on 3 reviews
Produkt bewerten
5 van 5
Top zeker voor dat geld
Durch jeroen h. on 12 August 2020
5 van 5
I stared off quite disliking the company, as I ordered a pair of these woofers and they both arrived damaged and unusable. On emailing the company about the problem, they send out a replacement pair free of charge the next day and to top it all off, I got to keep the other pair for possible replacement parts! I will definitely be using this company again to finish off my current project. I will also write a second review on these woofers when I have the whole system up and running.
Durch David S. on 15 Januar 2020
