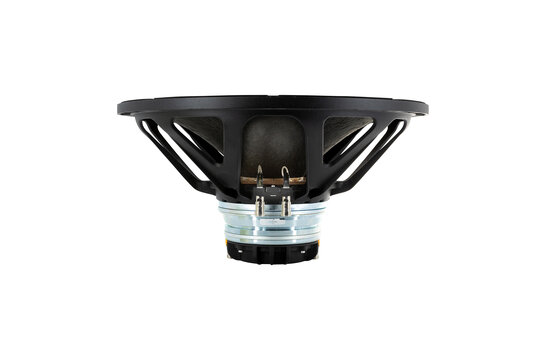

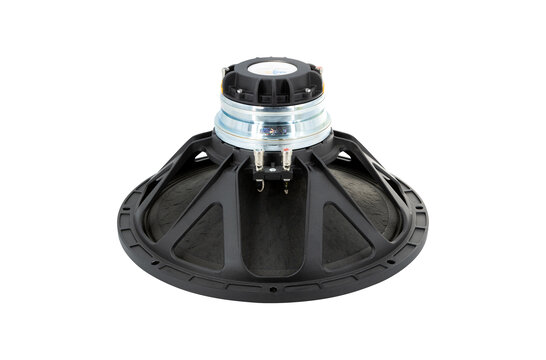

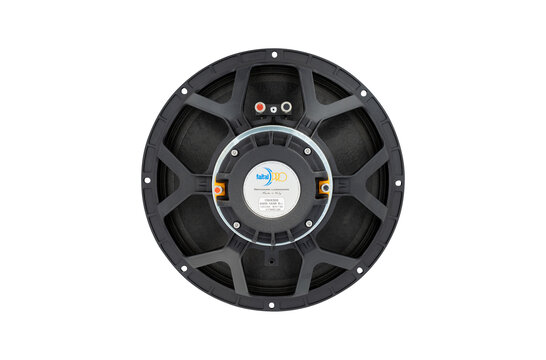

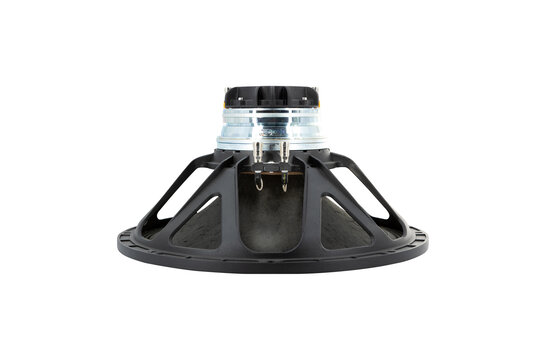

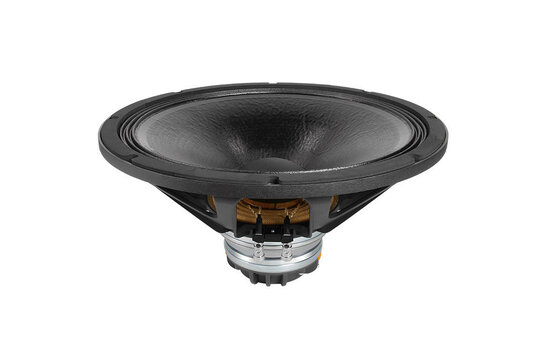

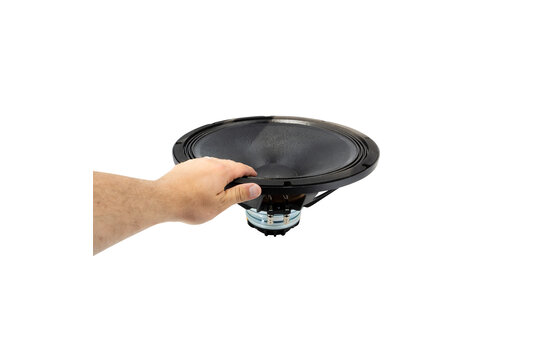

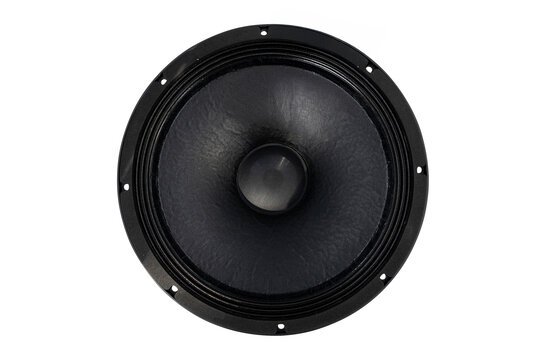

      15HX500-8P 15" Coaxial Woofer 8 Ohm

      FaitalPRO 15HX500-8P 15" Coaxial Woofer 8 Ohm

      €699,95

      2 Auf Lager

      Zum Warenkorb hinzufügen

      FaitalPRO 15HX500-8P 15" Coaxial Woofer 8 Ohm

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: FaitalPRO
      Zeige alle Subwoofer
      15" | 8 Ω
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      578,47 €699,95 € 2 Auf Lager
      • -5% Bestelle 4 für nur 664,95 € je Stück
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm
      15HX500-8P 15" Coaxial Woofer 8 Ohm

      Produktbeschreibung FaitalPRO 15HX500-8P Coaxial Woofer

      The FaitalPRO 15HX500 is a powerful coaxial loudspeaker combining a 15-inch LF woofer with a high-efficiency HF compression driver. Designed for full-range professional audio applications, it offers wide bandwidth, high SPL handling, and compact system integration in a single unit.



      Highlights of the FaitalPRO 15HX500

      • Integrated 15" low-frequency woofer and 2.9" high-frequency compression driver
      • 400 W AES (LF) and 90 W AES (HF) power handling for high-output performance
      • Excellent sensitivity: 97 dB (LF) and 105 dB (HF) for efficient system response
      • Neodymium magnets for both LF and HF keep the weight at just 6.1 kg



      Product details FaitalPRO 15HX500

      FaitalPRO 15HX500 Coaxial Loudspeaker Driver – 8 Ohm Version



      The FaitalPRO 15HX500 is a professional coaxial transducer integrating a 15-inch woofer and a 1.4" exit compression driver in a single frame. The LF section features a 77 mm (3 in) copper voice coil on a glass fiber former, handling up to 400 W AES and delivering deep, controlled bass from 40 Hz to 3150 Hz. The HF driver employs a 74 mm (2.91 in) aluminum voice coil with a titanium dome diaphragm and neodymium motor, offering smooth and extended high-frequency response from 500 Hz to 20 kHz.

      With 105 dB sensitivity in the HF and 97 dB in the LF, this coaxial driver is highly efficient and ideal for compact, high-output enclosures in stage monitors, front fills, or portable full-range systems. The integrated design improves phase coherence and reduces enclosure volume requirements, while the 900 Hz recommended crossover point ensures clean, natural transition between LF and HF sections. Its aluminum basket and demodulation ring in the woofer further enhance thermal and mechanical performance.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      15HX500-8P
      EAN
      9508736425841
      Tieftönertyp
      Coaxial Woofer
      Nenndurchmesser
      15''
      Belastbarkeit (QMW)
      400 Watts
      Belastbarkeit (max)
      800 Watts (LF) + 180 Watts (HF)
      Impedanz (Z)
      8 Ω
      Empfindlichkeit (SPL bei 1m / 2,83V)
      97 dB (LF) + 105 dB (HF)
      Frequenzgang
      40-3.150 Hz (LF) + 500-20.000 Hz (HF)
      Schwingspulendurchmesser
      77 mm (LF) + 74 mm (HF)
      Gleichstromwiderstand (Re)
      5 Ω (LF) + 5.6 Ω (HF)
      Schwingspuleninduktion (Le)
      0.84 mH
      Resonanzfrequenz (Fs)
      40 Hz
      Mechanische Güte (Qms)
      5.5
      Elektrische Güte (Qes)
      0.29
      Gesamtgüte (Qts)
      0.28
      Bewegliche Masse (Mms)
      110.0 g
      Moving Mass Of Diaphragm (Mmd)
      81.3 g
      Nachgiebigkeit der Aufhängung (Cms)
      0.14 mm/N
      Membranfläche (Sd)
      864 cm²
      Kraftfaktor (BL)
      22.2 N/A
      Äquivalentvolumen (Vas)
      150.1 cm³
      Maximale Auslenkung (Xmax)
      9.40 mm
      Driver's Mechanical Losses (Rms)
      5.0 kg/s
      Schwingspulendrahtmaterial
      Cu (LF) + Al (HF)
      Schwingspulenformmaterial
      Glass Fiber (LF) + Kapton (HF)
      Korb- / Rahmenmaterial
      Aluminium
      Magnetmaterial
      Neodymium
      Außendurchmesser
      380 mm
      Gesamttiefe
      200 mm
      Ausschnittdurchmesser
      352 mm
      Bolt Circle Diameter
      374 mm
      # Befestigungsbohrungen
      8
      Durchmesser Befestigungslochs
      7.4 mm
