Dayton Audio XO3W-625/5K 3-Way Speaker Crossover 625/5,000 Hz

Produktbeschreibung

These 3-way, 2nd-order (12 dB/octave) crossovers were designed with a 3 octave spread between crossover points. Dayton Audio metallized polyester film capacitors are used in critical midrange and tweeter signal paths. 18 gauge tweeter and midrange inductors, and 20 gauge woofer inductors are used to keep DC resistance to a minimum.



Highlights

  • Designed with a 3 octave spread between crossover points
  • Metallized polyester film capacitors are used in the critical midrange and tweeter signal paths
  • Low-pass section allows for the use of 4 or 8 ohm woofers



Product details

Dayton Audio XO3W-625/5K 3-Way Speaker Crossover 625/5,000 Hz

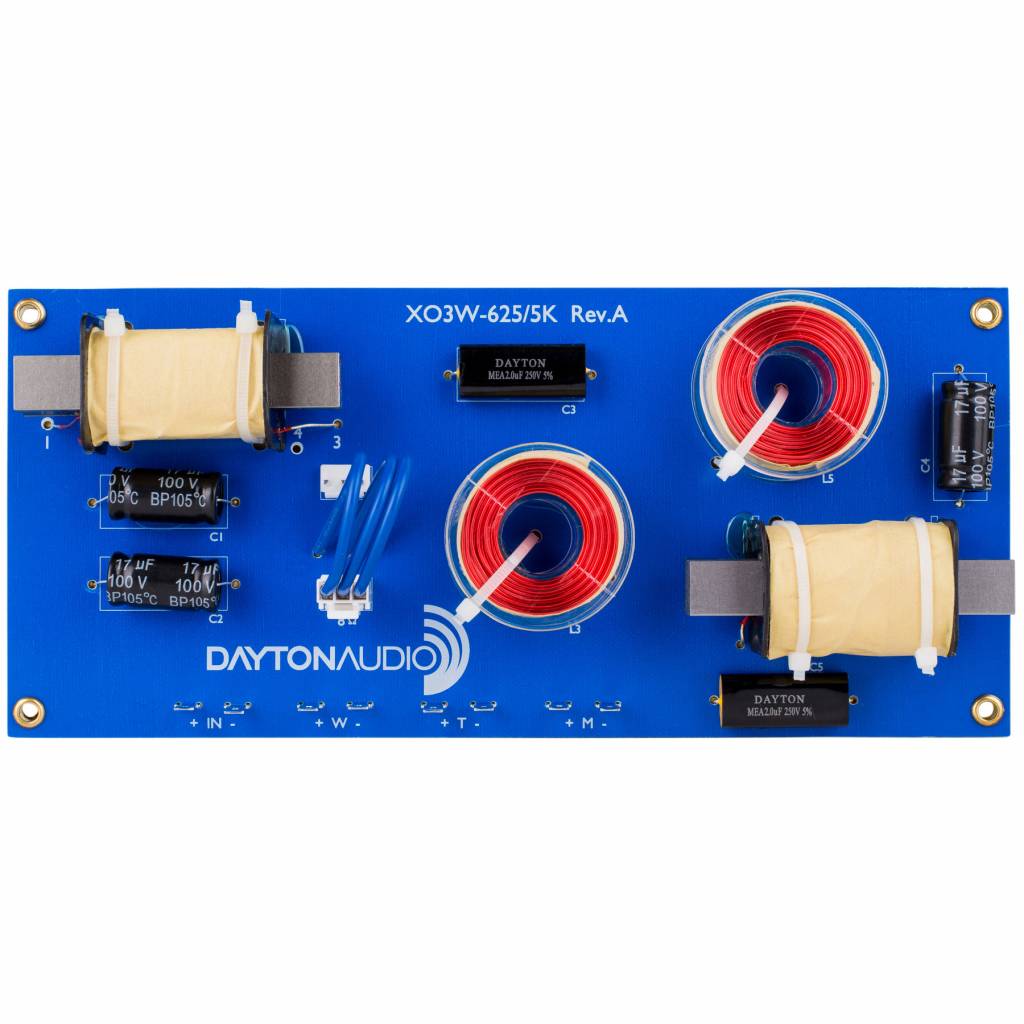

These 3-way, 2nd-order (12 dB/octave) crossovers were designed with a 3 octave spread between crossover points. Dayton Audio metallized polyester film capacitors are used in the critical midrange and tweeter signal paths. 18 gauge tweeter and midrange inductors, and 20 gauge woofer inductors are used to keep DC resistance to a minimum. A unique design feature of the low-pass section allows for the use of 4 or 8 ohm woofers, perfect for building a multi woofer system. The midrange and high-pass sections are rated for an 8 ohm load. All components are glued or fastened down to eliminate buzzing and vibrations. The high quality blue PC board uses a back plate for added rigidity and eyelet holes for easy mounting. Available in a variety of crossover points. 300W power handling. Board measures: 11-3/8" W x 4-3/8" H x 2" D. Terminals are 0.205".

Eigenschaften

Artikelnummer:
XO3W-625/5K

Bewertungen

0 from 5Based on 0 reviews
Produkt bewerten

Es wurden noch keine Bewertungen für dieses Produkt abgegeben..

Ergänzende Produkte

Schließen Sie Ihren Einkauf ab

XO3W-625/5K 3-Way Speaker Crossover 625/5,000 Hz
€ 53,68
€ 64,95
XO3W-625/5K 3-Way Speaker Crossover 625/5,000 Hz
3 Auf Lager: Lieferzeit 1-3 Werktage
