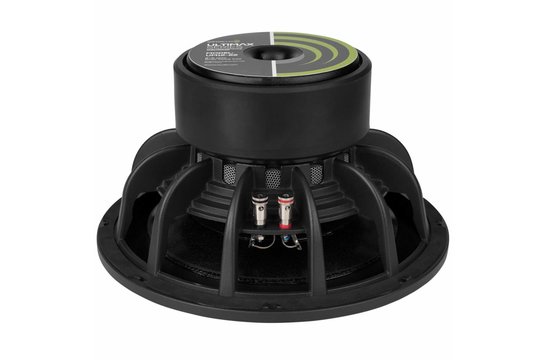

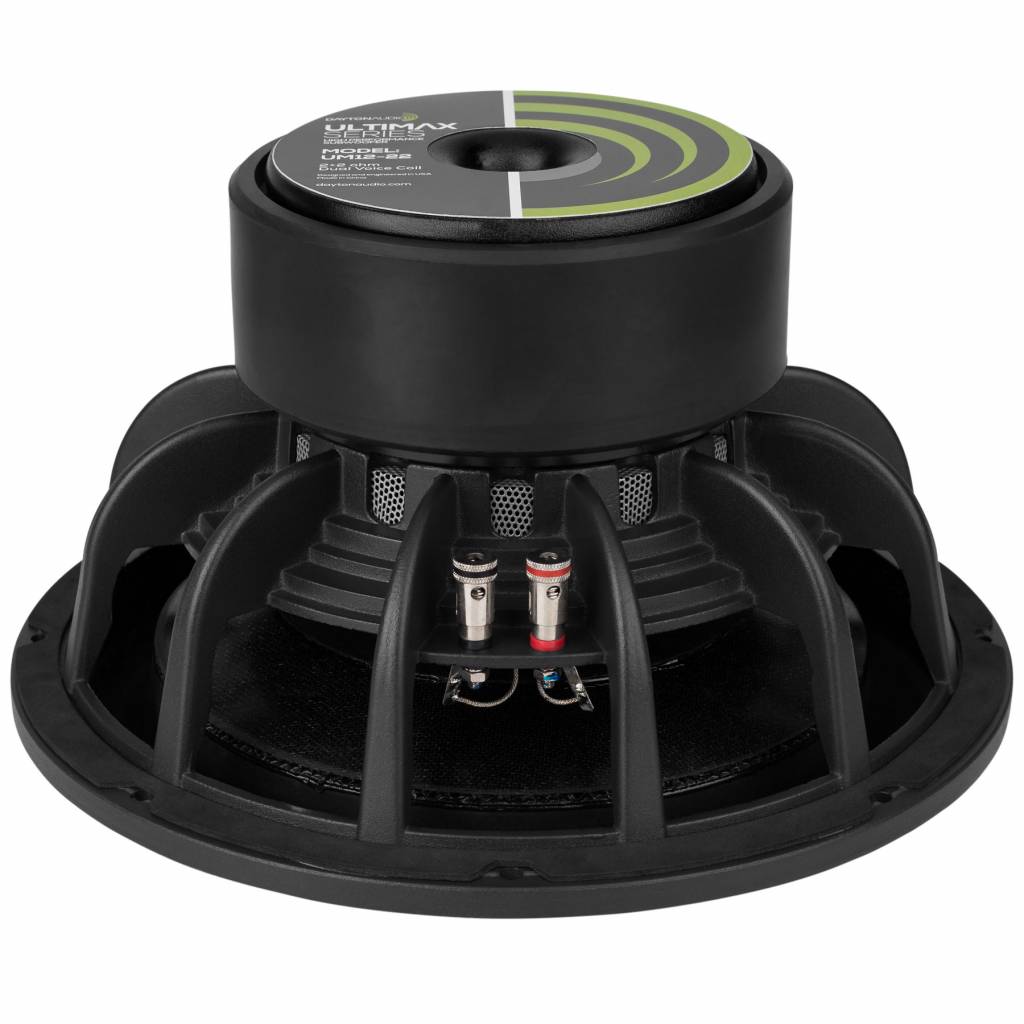

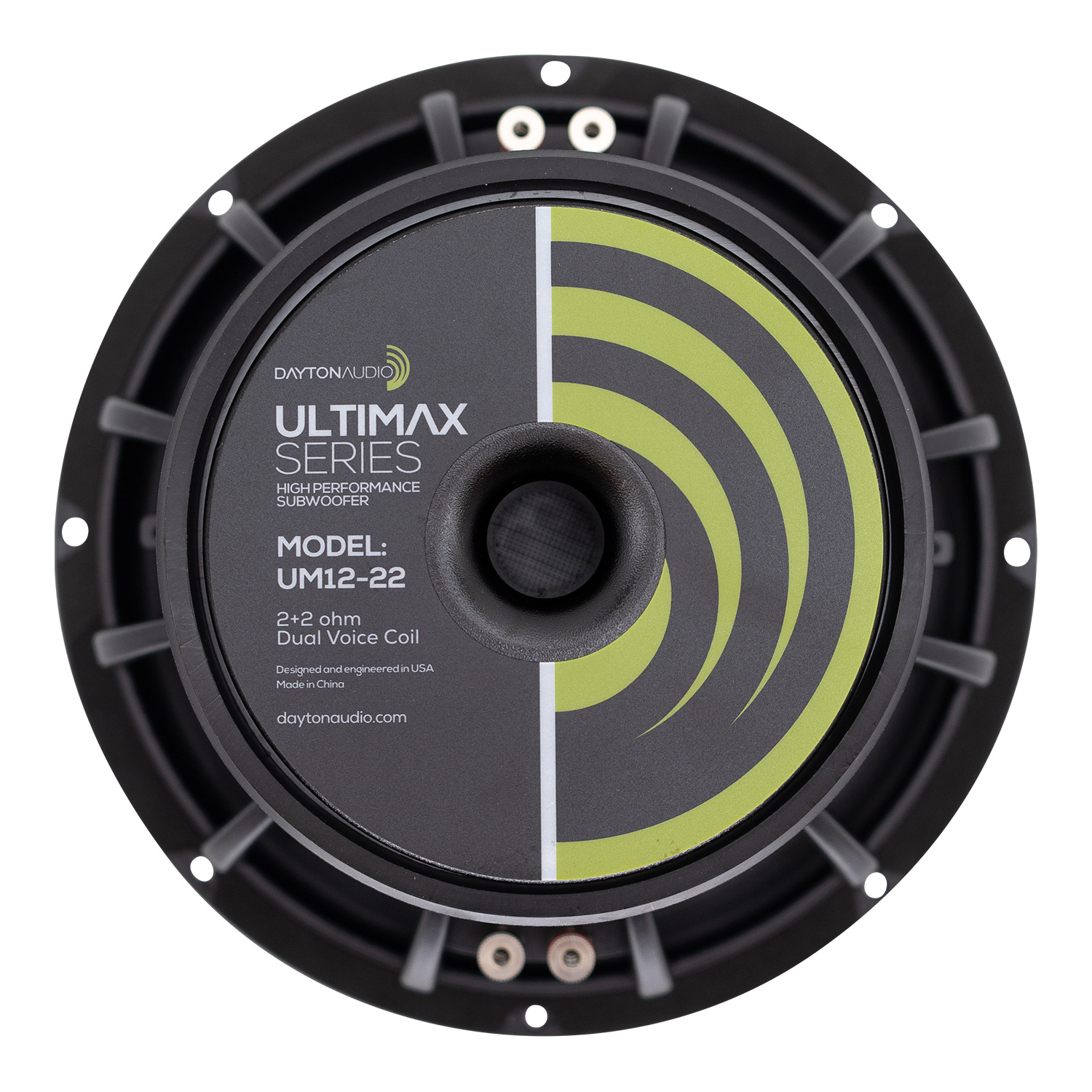

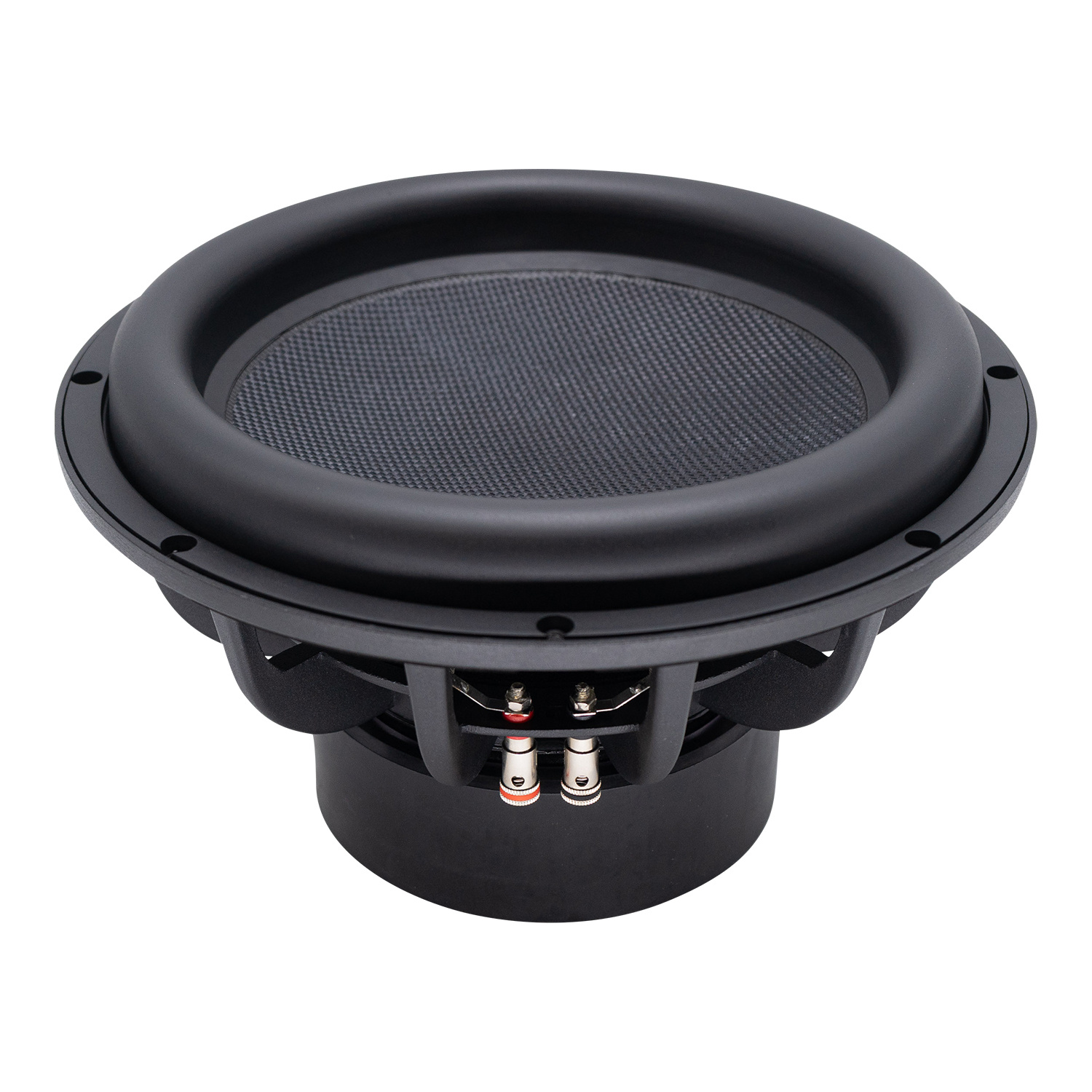

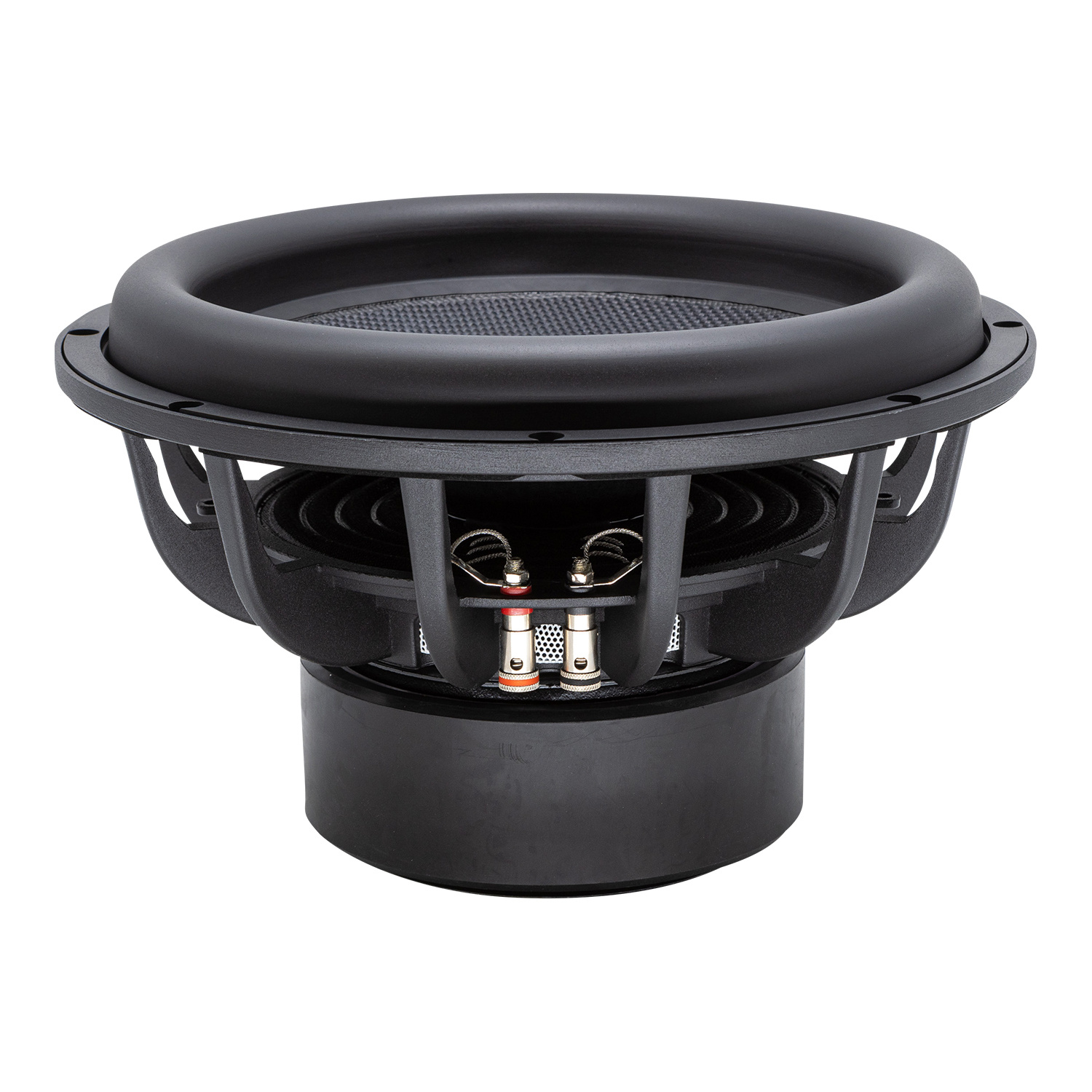

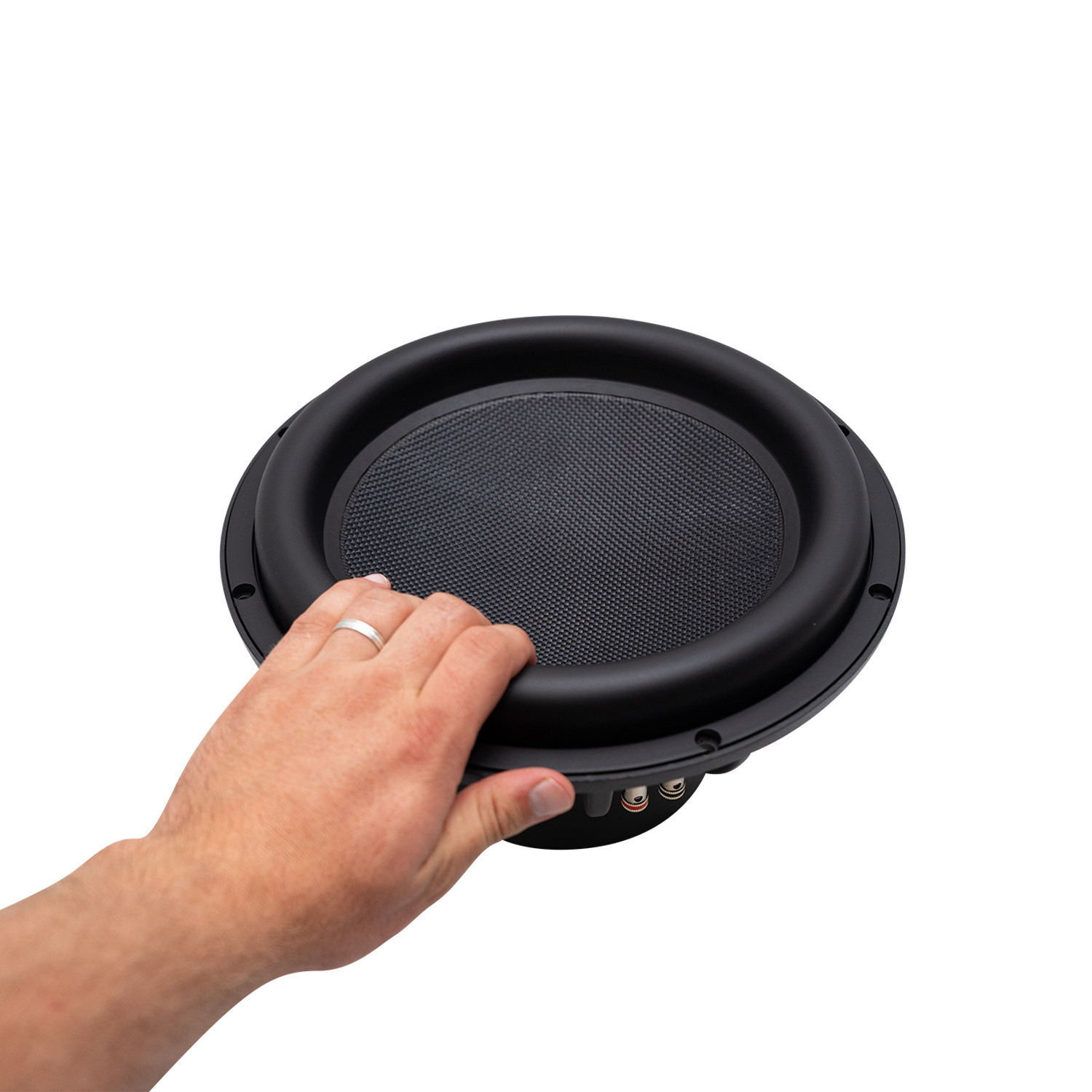

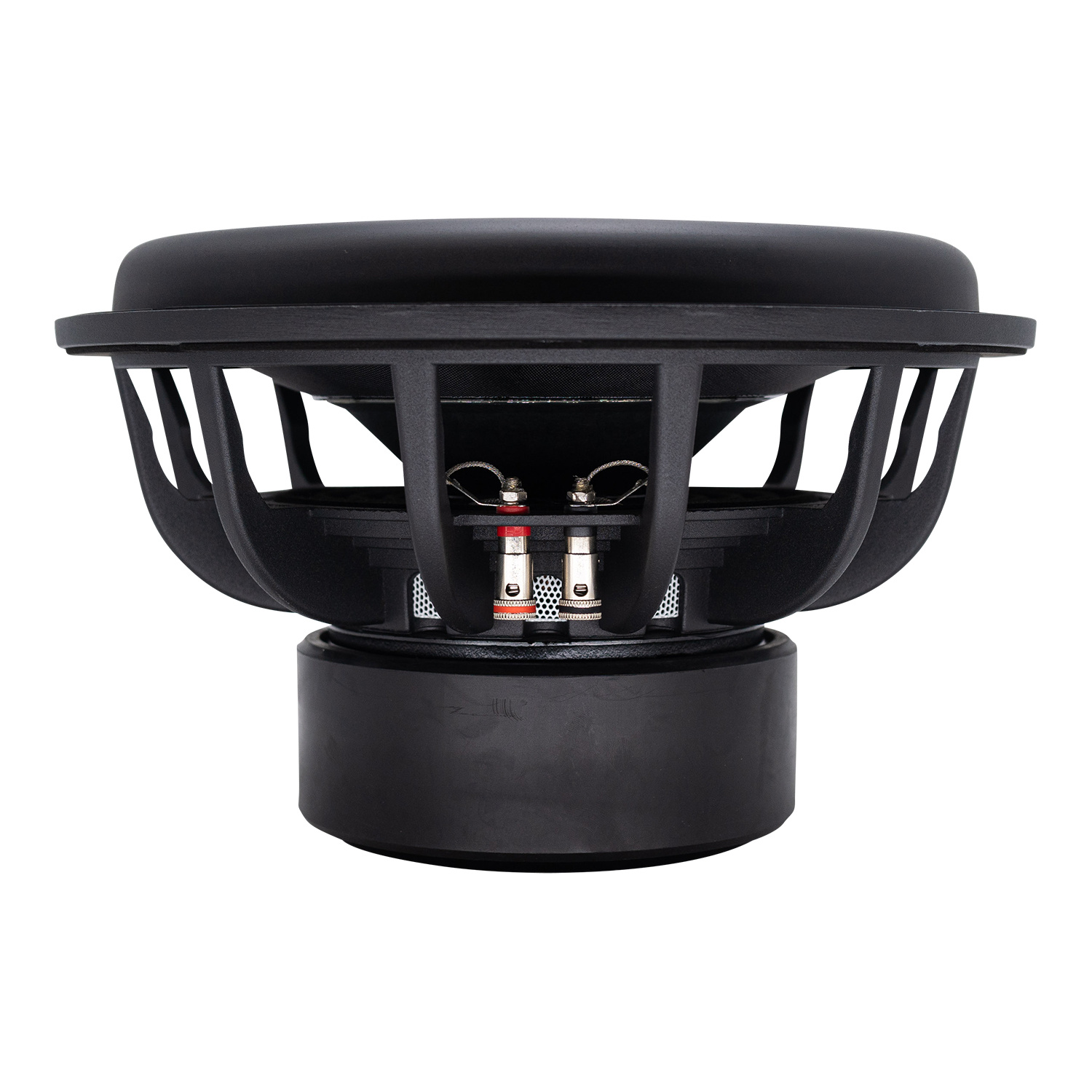

Dayton Audio UM12-22 12" Ultimax DVC Subwoofer 2 ohms Per Coil

€ 249,95 Nicht auf Lager: Lieferzeit beträgt 3 bis 6 Wochen
Dayton Audio's Ultimax Series DVC subwoofers are purpose-built to move air and create clean, articulate, fast bass. Experience the apex of subwoofer design.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €237,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio's Ultimax Series DVC subwoofers are purpose-built to move air and create clean, articulate, fast bass. Experience the apex of subwoofer design.



Highlights

  • Thick, one-piece Nomex honeycomb covered cone with woven heavy-duty glass-fiber
  • Tall-boy rubber surround for extra-long linear excursion without reducing cone surface area
  • 600 watts RMS power handling
  • Copper shorting rings and cap reduce distortion due to inductance variations
  • Dual 2 ohm, 2-layer copper voice coils
  • Large vented pole piece and under-spider venting
  • Black anodized aluminum former and black pole improves heat dissipation



Product details

Dayton Audio UM12-22 12" Ultimax DVC Subwoofer 2 ohms Per Coil



If you want outrageous amounts of bass, you gotta move some air

The Ultimax Series of dual voice coil subwoofers, from Dayton Audio, are not for the faint of heart. Built using the latest in subwoofer technology, Ultimax subwoofers are the pinnacle of low frequency driver design. An Ultimax subwoofer tests the strength of your foundation with fast, articulate, gut-wrenching bass.



The versatility you need for mobile, home, or pro subwoofer excellence

Dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility.



Built to produce massive low frequency output and keep on doing it

To improve power handling, increase thermal management, and reduce power compression, Dayton Audio designed the Ultimax Series with large black anodized formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils.



Over 1-1/2" of travel (3/4" Xmax) is kept completely linear through the use of dual spiders that also limit distortion and rocking modes. "Tall-boy" rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. Thick, one-piece Nomex honeycomb covered cones are covered with woven, heavy-duty glass fibers creating ultra-still cones that resist deformation.



A strong motor takes you to wherever you want to be

A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for "faster" response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring Qts down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures.

Cabinet recommendations:

  • Sealed 2.0 cubic ft. (net internal) with 1 lbs. of Acousta-Stuf polyfill, f3 of 36 Hz with a 0.707 Qtc alignment
  • Vented 4.0 cubic ft. (net internal, not including driver or port volume) tuned to 20 Hz with a 10" wide by 1.5" high slot port that is 25" long, which yields an f3 of 19 Hz



Note: All parameters derived with voice coils wired in series.



Eigenschaften

Artikelnummer:
UM12-22
Woofer Series
Ultimax Series
Woofer Type
Subwoofer
Power Handling (RMS)
600 watts
Power Handling (max)
1,200 watts
Impedance
2+2 ohms
Sensitivity
86.7 dB @ 2.83V/1m
Frequency Response
20 - 1,000 Hz
Voice Coil Diameter
63.5 mm
DC Resistance (Re)
3.2 ohms
Voice Coil Inductance (Le)
1.25 mH @ 1kHz
Resonant Frequency (Fs)
26.2 Hz
Mechanical Q (Qms)
3.62
Electromagnetic Q (Qes)
0.71
Total Q (Qts)
0.59
Diaphragm Mass Inc. Airload (Mms)
270g
Mechanical Compliance of Suspension (Cms)
0.14 mm/N
Surface Area of Cone (Sd)
490.9 cm²
Volume of Displacement (Vd)
932.7 cm³
BL Product (BL)
14.2 Tm
Compliance Equivalent Volume (Vas)
46.8 liters
Maximum Linear Excursion (Xmax)
19 mm
Cone / Diaphragm Material
Nomex Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Dual Voice Coil
Yes
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
314.5 mm
Overall Depth
191 mm
Baffle Cutout Diameter
272.5 mm
# Mounting Holes
8
Sealed Volume
2.0 cubic ft. (net internal) with 1 lbs. of Acousta-Stuf polyfill
Sealed F3
36 Hz with a 0.707 Qtc alignment
Vented Volume
4.0 cubic ft. (net internal, not including driver or port volume) tuned to 20 Hz with a 10" wide by 1.5" high slot port that is 25" long
Vented F3
19 Hz
