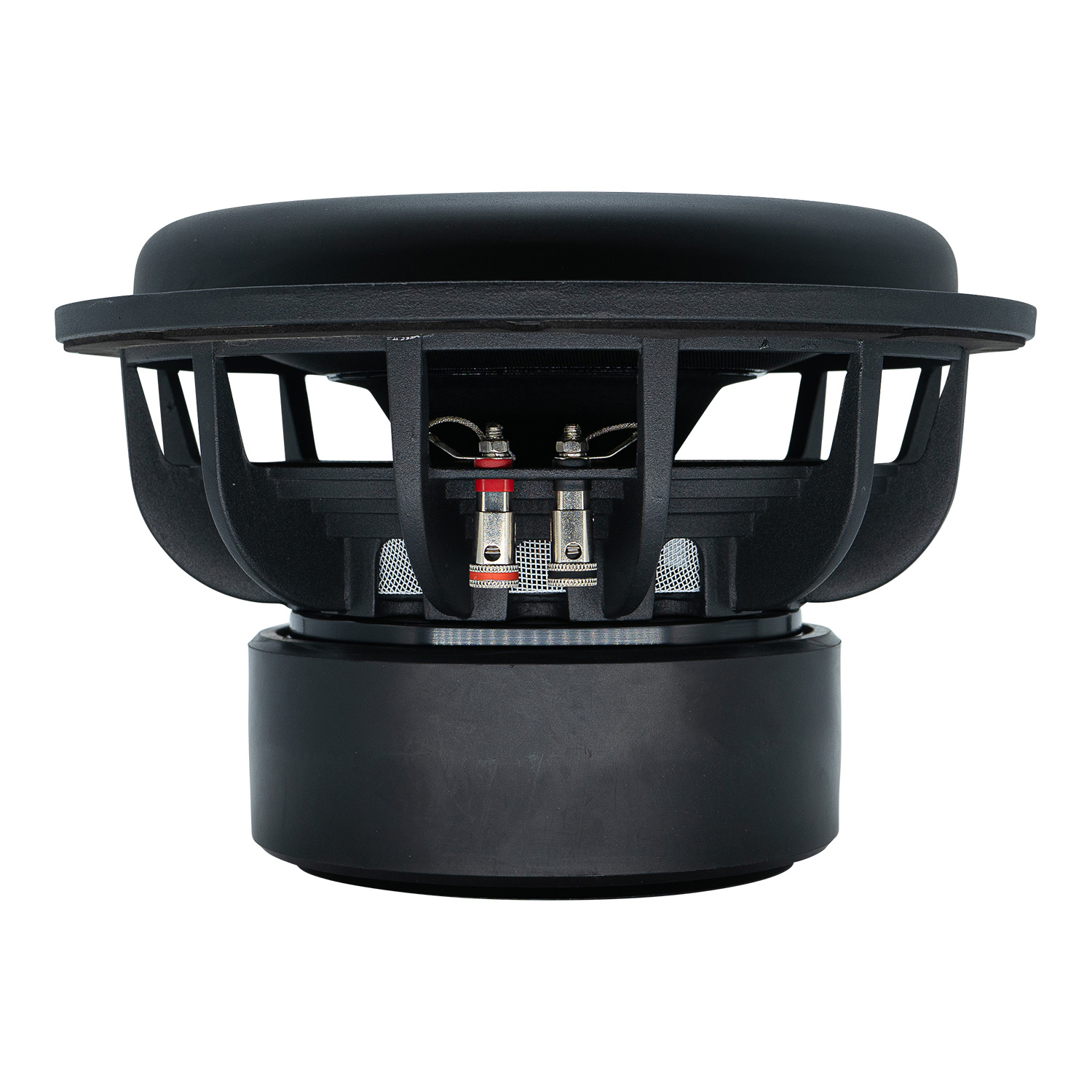

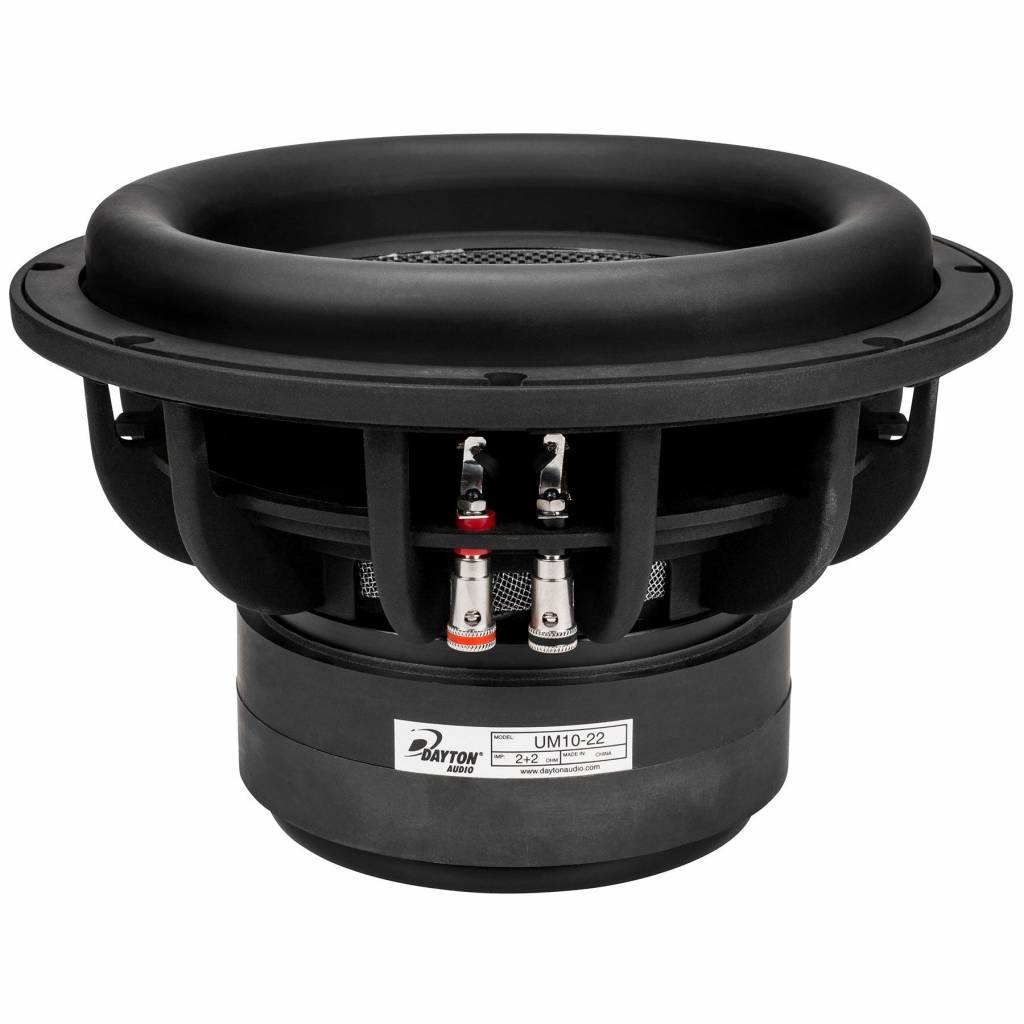

      Ultimax UM10-22 Subwoofer Tieftöner

      Ultimax UM10-22 Subwoofer Tieftöner

      €269,95

      Zum Warenkorb hinzufügen

      Dayton Audio Ultimax UM10-22 Subwoofer Tieftöner

      2 reviews
      5 von 5
      2 reviews
      5 Sterne
      100%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Dayton Audio
      Zeige alle Subwoofer
      10" | 2+2 Ω
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      223,10 €269,95 € 10+ Auf Lager
      • -5% Bestelle 4 für nur € 256,45 je Stück
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Jetzt bestellt, heute versendet
      • Fünf Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner
      Ultimax UM10-22 Subwoofer Tieftöner

      Produktbeschreibung

      Dayton Audio's Ultimax Series DVC subwoofers are purpose-built to move air and create clean, articulate, fast bass. Experience the apex of subwoofer design.



      Highlights

      • Dual 2 ohm, 2-layer copper voice coils
      • Large vented pole piece and under-spider venting
      • 500 watts RMS power handling
      • Black anodized aluminum former and black pole improves heat dissipation
      • Thick, one-piece Nomex honeycomb covered cone with woven heavy-duty glass-fiber

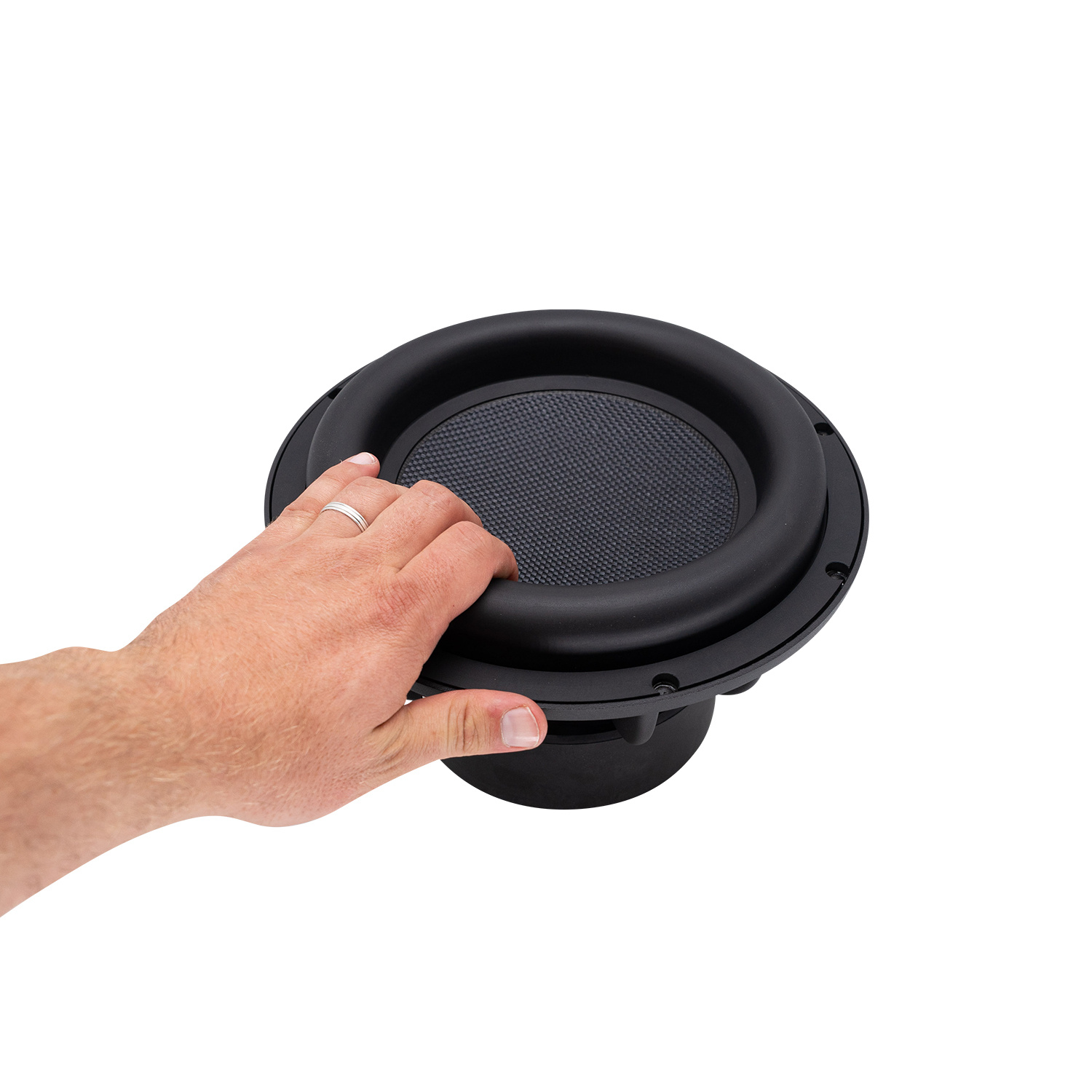

      • Tall-boy rubber surround for extra-long linear excursion without reducing cone surface area
      • Dual linear stiffness spiders limit distortion and rocking modes



      Product details

      Dayton Audio UM10-22 10" Ultimax DVC Subwoofer 2 ohms Per Coil



      If you want outrageous amounts of bass, you gotta move some air

      The Ultimax Series of dual voice coil subwoofers, from Dayton Audio, are not for the faint of heart. Built using the latest in subwoofer technology, Ultimax subwoofers are the pinnacle of low frequency driver design. An Ultimax subwoofer tests the strength of your foundation with fast, articulate, gut-wrenching bass.



      The versatility you need for mobile, home, or pro subwoofer excellence

      Dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility.



      Built to produce massive low frequency output and keep on doing it

      To improve power handling, increase thermal management, and reduce power compression, Dayton Audio designed the Ultimax Series with large black anodized formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils.

      Over 1-1/2" of travel (3/4" Xmax) is kept completely linear through the use of dual spiders that also limit distortion and rocking modes. "Tall-boy" rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. Thick, one-piece Nomex honeycomb covered cones are covered with woven, heavy-duty glass fibers creating ultra-still cones that resist deformation.



      A strong motor takes you to wherever you want to be

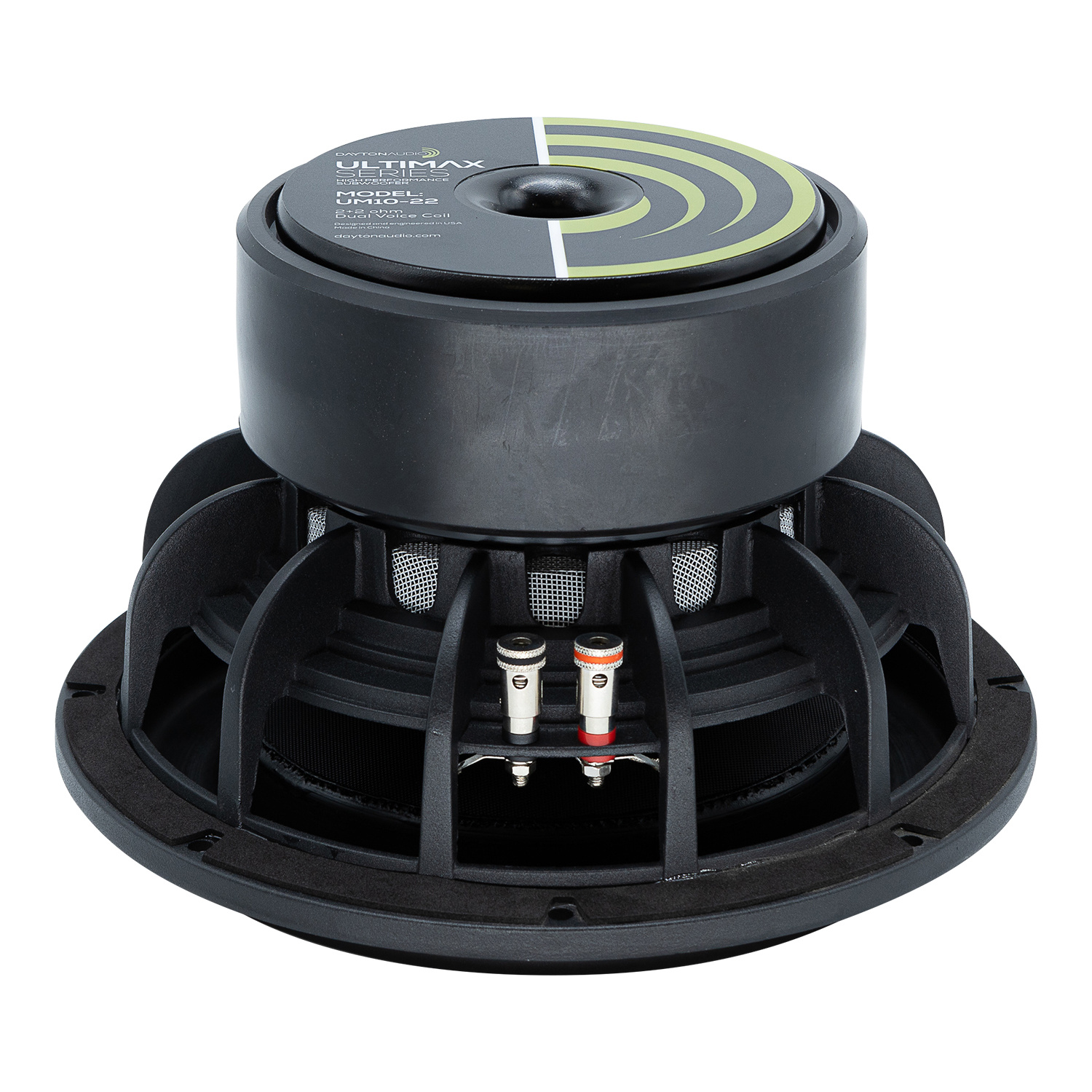

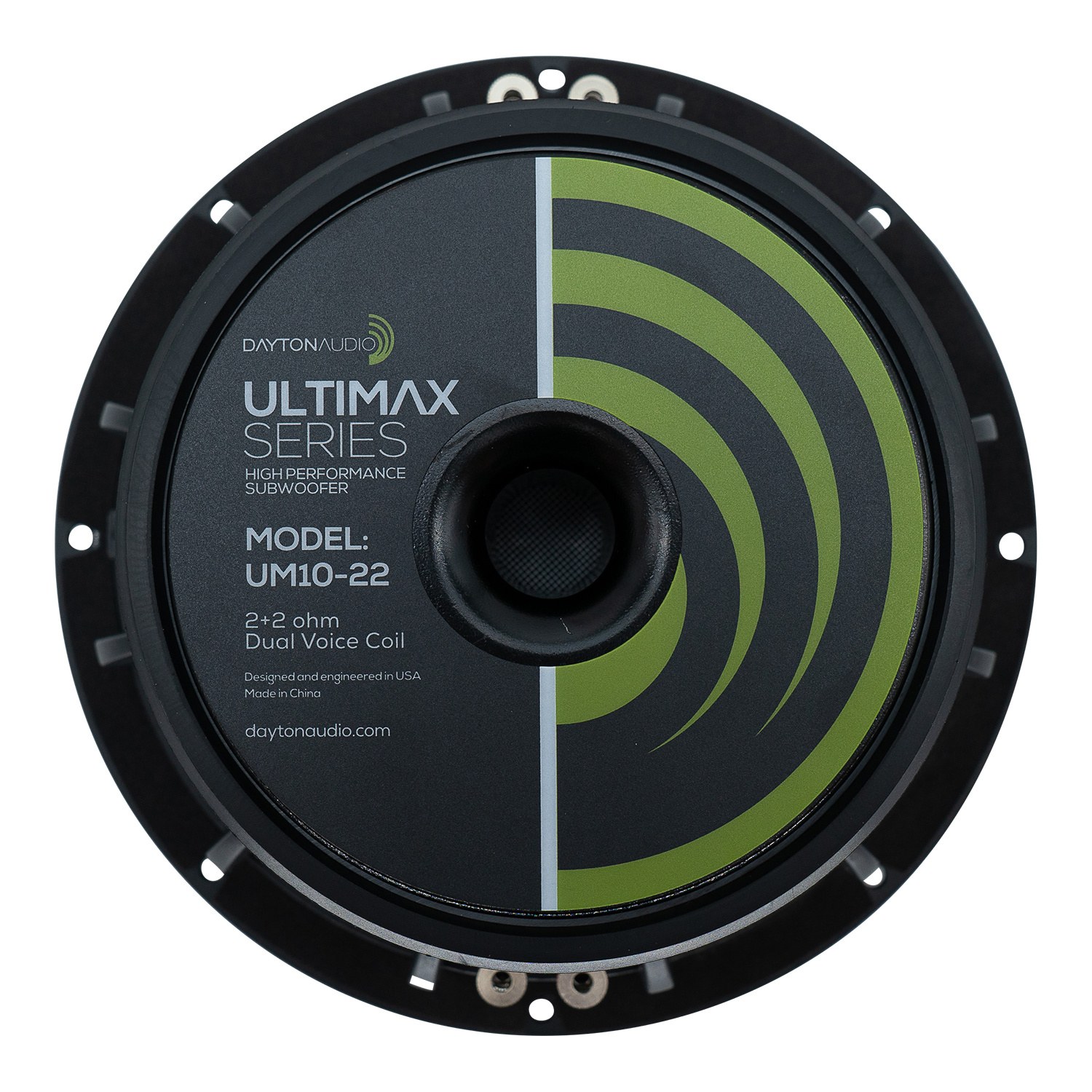

      A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for "faster" response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring Qts down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures.

      Cabinet recommendations:

      • Sealed: 0.75 cubic ft. (net internal, not including driver volume) produces an f3 of 38 Hz with a 0.85 Qtc alignment
      • Vented: 1.3 cubic ft. (net internal, not including driver or port volume) produces an f3 of 22 Hz



      Note: All parameters derived with voice coils wired in series.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      UM10-22
      Tieftöner-Serie
      Ultimax Series
      Tieftönertyp
      Subwoofer
      Belastbarkeit (QMW)
      500 watts
      Belastbarkeit (max)
      1,000 watts
      Impedanz (Z)
      2+2 ohms
      Empfindlichkeit (SPL bei 1m / 2,83V)
      84.8 dB
      Frequenzgang
      25 - 1,500 Hz
      Schwingspulendurchmesser
      63.5 mm
      Gleichstromwiderstand (Re)
      3.7Ω
      Schwingspuleninduktion (Le)
      0.77mH
      Resonanzfrequenz (Fs)
      31.9Hz
      Mechanische Güte (Qms)
      3.02
      Elektrische Güte (Qes)
      0.94
      Gesamtgüte (Qts)
      0.72
      Bewegliche Masse (Mms)
      192g
      Nachgiebigkeit der Aufhängung (Cms)
      0.13mm/N
      Membranfläche (Sd)
      327.8 cm²
      Verschiebevolumen (Vd)
      622.8 cm³
      Kraftfaktor (BL)
      12.3T·m
      Äquivalentvolumen (Vas)
      19.5 liters
      Maximale Auslenkung (Xmax)
      19 mm
      Cone / Diaphragm Material
      Nomex Cone
      Sicke-Material
      Rubber
      Schwingspulendrahtmaterial
      Copper
      Schwingspulenformmaterial
      Aluminum
      Dual Voice Coil
      Yes
      Korb- / Rahmenmaterial
      Cast Aluminum
      Magnetmaterial
      Ferrite
      Außendurchmesser
      273.5 mm
      Gesamttiefe
      178 mm
      Ausschnittdurchmesser
      236.7 mm
      Geschlossenes Volumen
      0.63 cubic ft. (net internal)
      Geschlossenes F3
      45 Hz with a 0.707 Qtc alignment
      Bassreflex Volumen
      1.75 cubic ft. (net internal, not including driver or port volume) tuned to 25 Hz with a 10" wide by 1" high slot port that is 24" long
      Bassreflex F3
      23 Hz

      Mehr anzeigen

      Bewertungen

      2 reviews
      Produkt bewerten
      5 von 5
      Using it in a small (25l) sealed box with Monacor SAM500D, connected to an Onkyo TX-RZ740 AVR, doing some trickery with bass management. This thing is absolutely brutal, yet the sound is so nice to listen to. With some EQ and enough power this thing will go incredibly low and doesn't even need a big box. Mine had a manufacturing defect, though - too much glue on the spider, which was causing noticable noise. I had to grind it from there.
      Durch tk. on 22 März 2020
      5 von 5
      No description was given
      Durch sanmugam b. on 3 Januar 2018
