Dayton Audio TCP115-8 4" Treated Paper Cone Woofer

€ 12,36€ 14,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
With high excursion capabilities and low Fs, Dayton Audio's TCP115-8 can produce a surprising amount of bass for a 4" woofer. In addition to its low frequency performance, this driver also performs very well through the midrange, making this driver ideal... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €14,20 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

With high excursion capabilities and low Fs, Dayton Audio's TCP115-8 can produce a surprising amount of bass for a 4" woofer. In addition to its low frequency performance, this driver also performs very well through the midrange, making this driver ideal for use in smaller 2-way designs.



Highlights

  • Powerful motor for efficiency and compact enclosure
  • 1" diameter 4-layer voice coil improves power handling and low frequency response
  • Aluminum former keeps voice coil cool for high power handling
  • Extended pole piece creates symmetrical magnetic field for lower distortion
  • Cosmetic low-profile mounting flange looks good without flush mountin



Product details

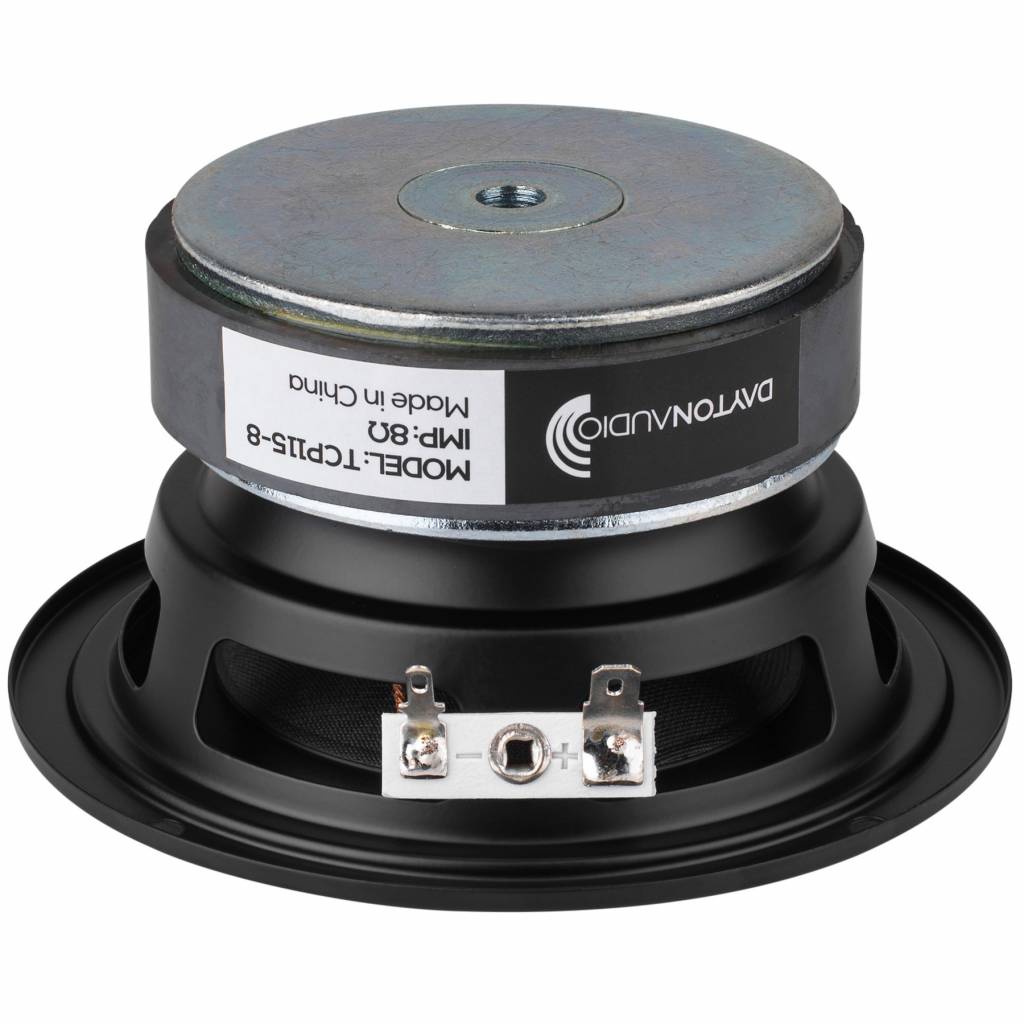

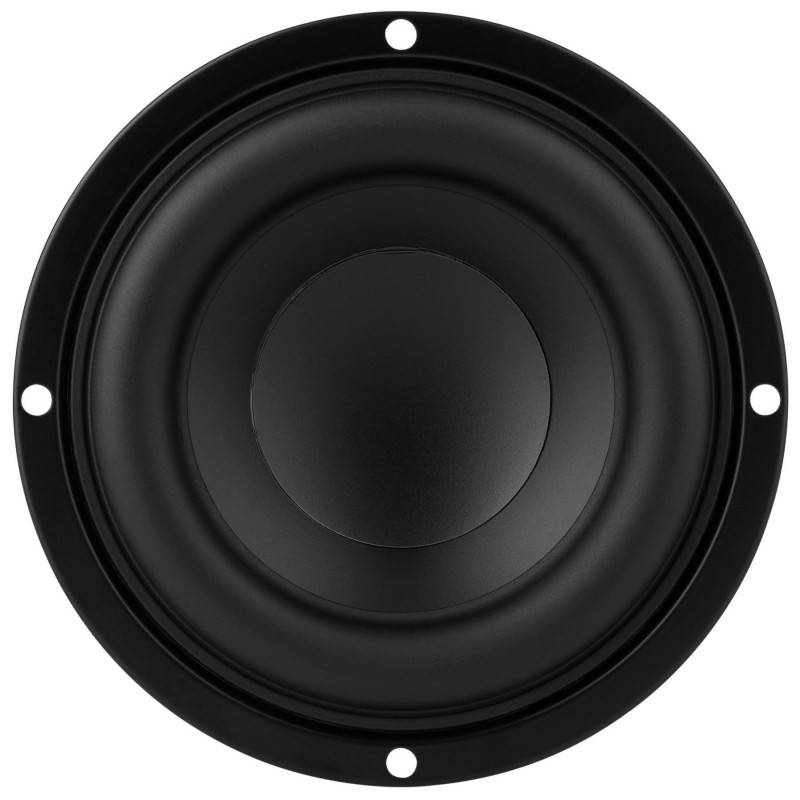

Dayton Audio TCP115-8 4" Treated Paper Cone Woofer



The TCP115-8 combines a large motor, 1" 4-layer voice coil, vented pole, and a sizable rubber surround to make use of its 4 mm of Xmax. This combination of features makes it a very versatile driver which can be used as a bass driver in a small 2-way system, center channel, or even portable Bluetooth speaker designs.

Eigenschaften

Artikelnummer:
TCP115-8
Woofer Series
Specialty Drivers Series
Woofer Type
Midwoofer
Nominal Diameter
4"
Power Handling (RMS)
40 Watts
Power Handling (max)
80 Watts
Impedance
8 ohms
Sensitivity
81.9 dB 2.83V/1m
Frequency Response
55 to 6,000 Hz
Voice Coil Diameter
1"
DC Resistance (Re)
7.8 ohms
Voice Coil Inductance (Le)
1.9 mH
Resonant Frequency (Fs)
59.2 Hz
Mechanical Q (Qms)
2.3
Electromagnetic Q (Qes)
0.54
Total Q (Qts)
0.43
Diaphragm Mass Inc. Airload (Mms)
10.16g
Mechanical Compliance of Suspension (Cms)
0.71 mm/N
Surface Area of Cone (Sd)
50 cm²
BL Product (BL)
7.4 Tm
Compliance Equivalent Volume (Vas)
0.09 ft.³
Maximum Linear Excursion (Xmax)
4 mm
Cone / Diaphragm Material
Treated Paper
Surround Material
Rubber
Voice Coil Wire Material
CCA
Voice Coil Former
Aluminum
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
4.57"
Overall Depth
2.32"
Baffle Cutout Diameter
3.77"
Bolt Circle Diameter
4.25"
# Mounting Holes
4
Sealed Volume
0.03 ft.³
Sealed F3
116Hz
Vented Volume
0.10 ft.³
Vented F3
60 Hz
