      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil

      Dayton Audio SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil

      €189,95

      7 erwartet auf 19-12-2025

      Zum Warenkorb hinzufügen

      Dayton Audio SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Dayton Audio
      Zeige alle Neue Produkte
      8" | 2+2 Ω
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      156,98 €189,95 € Nicht auf Lager7 erwartet auf 19-12-2025
      • -5% Bestelle 4 für nur 180,45 € je Stück
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Bald wieder auf Lager
      • Fünf Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil
      SS8-22 Signature Series 8" DVC Tieftöner 2 ohms Per Coil

      Produktbeschreibung Dayton Audio Signature SS8-22 DVC Tieftöner

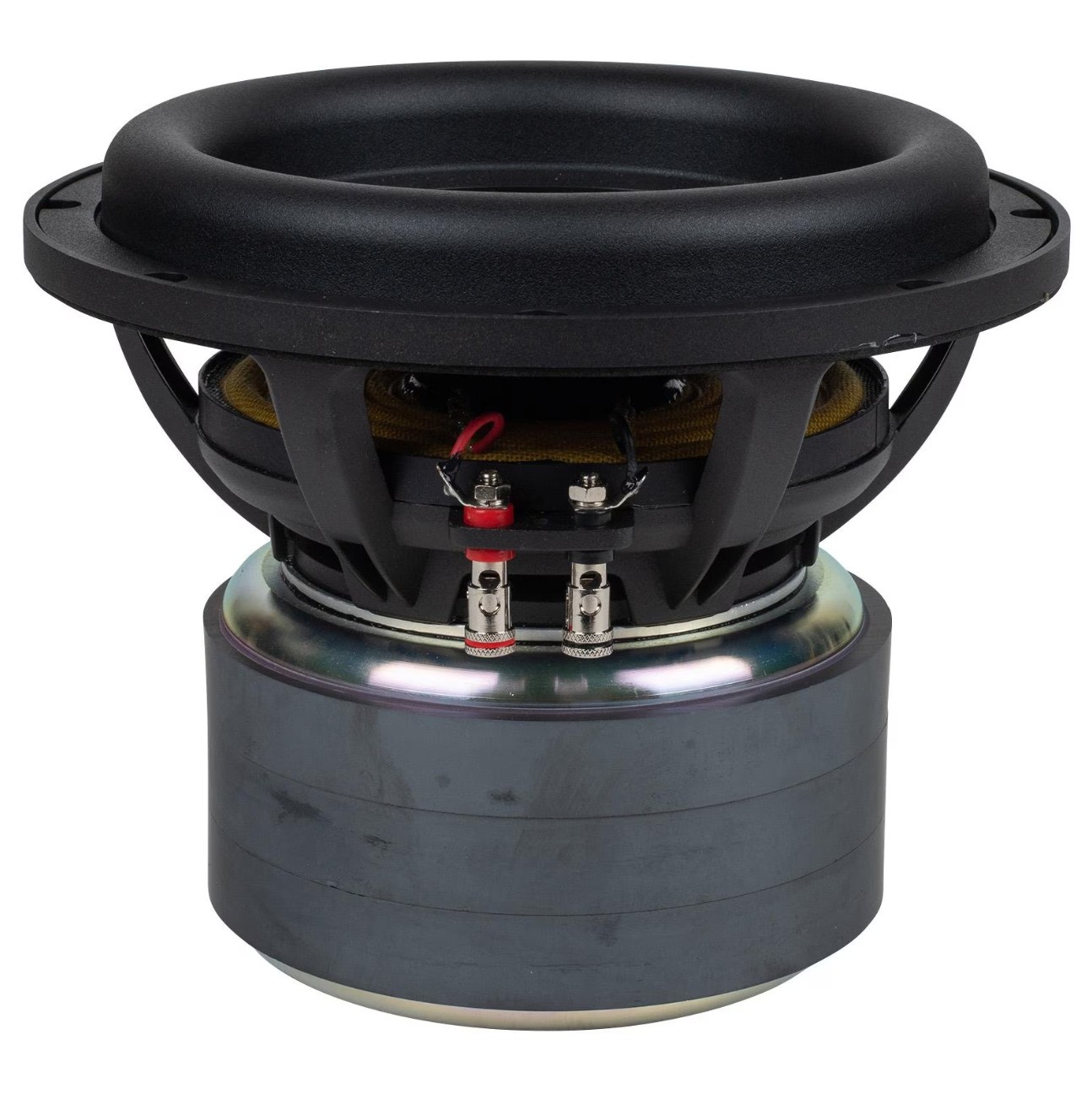

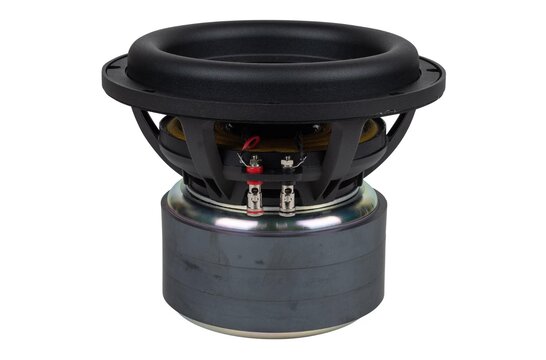

      The SS8-22 is a premium 8" Signature Series subwoofer featuring dual 2-ohm voice coils, engineered for powerful and precise low-frequency reproduction. Ideal for both home theater and car audio applications, this driver combines high excursion, robust construction, and low distortion performance into a compact format.



      Highlights of the SS8-22 Signature Series Subwoofer

      • Rigid one-piece aluminum cone with rubber surround for durability and accuracy
      • Dual 2-ohm voice coils and 500W RMS power handling for versatile system integration
      • Triple magnet motor structure and dual spiders for high excursion and linearity
      • Extensive venting design improves voice coil cooling and reduces compression



      Product details Dayton Audio SS8-22 Signature Series Subwoofer

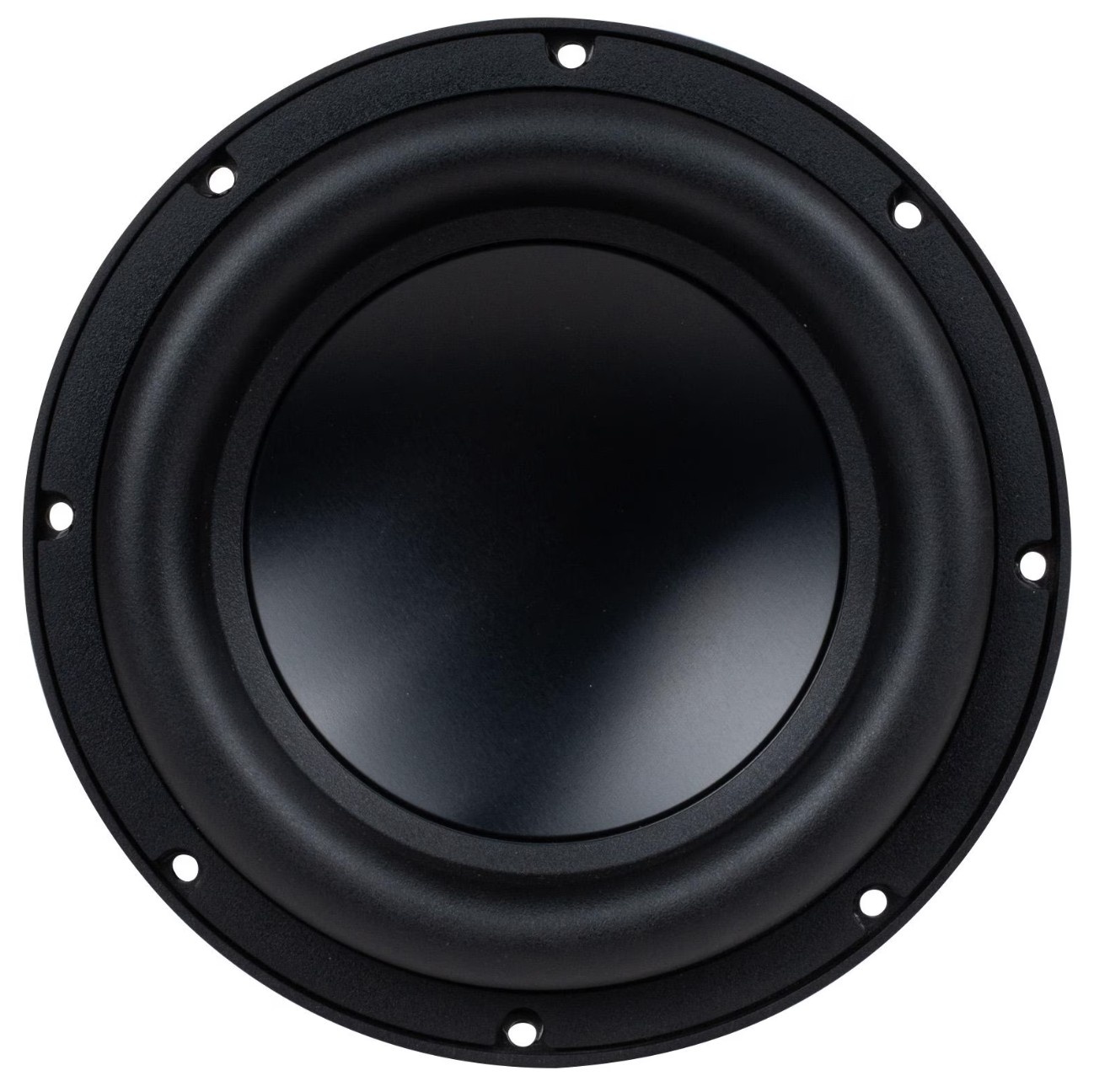

      The SS8-22 8" subwoofer is part of the Signature Series, designed to deliver deep, clean bass in compact sealed or vented enclosures. With dual 2-ohm voice coils, the SS8-22 allows for flexible wiring options, ideal for high-output custom installations. It features a one-piece aluminum cone for improved rigidity and piston motion, paired with a compliant rubber surround that maintains durability under extreme excursion.

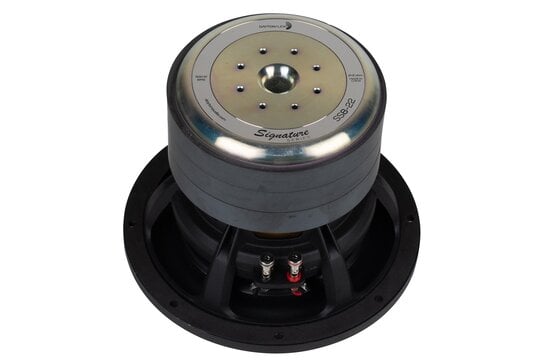

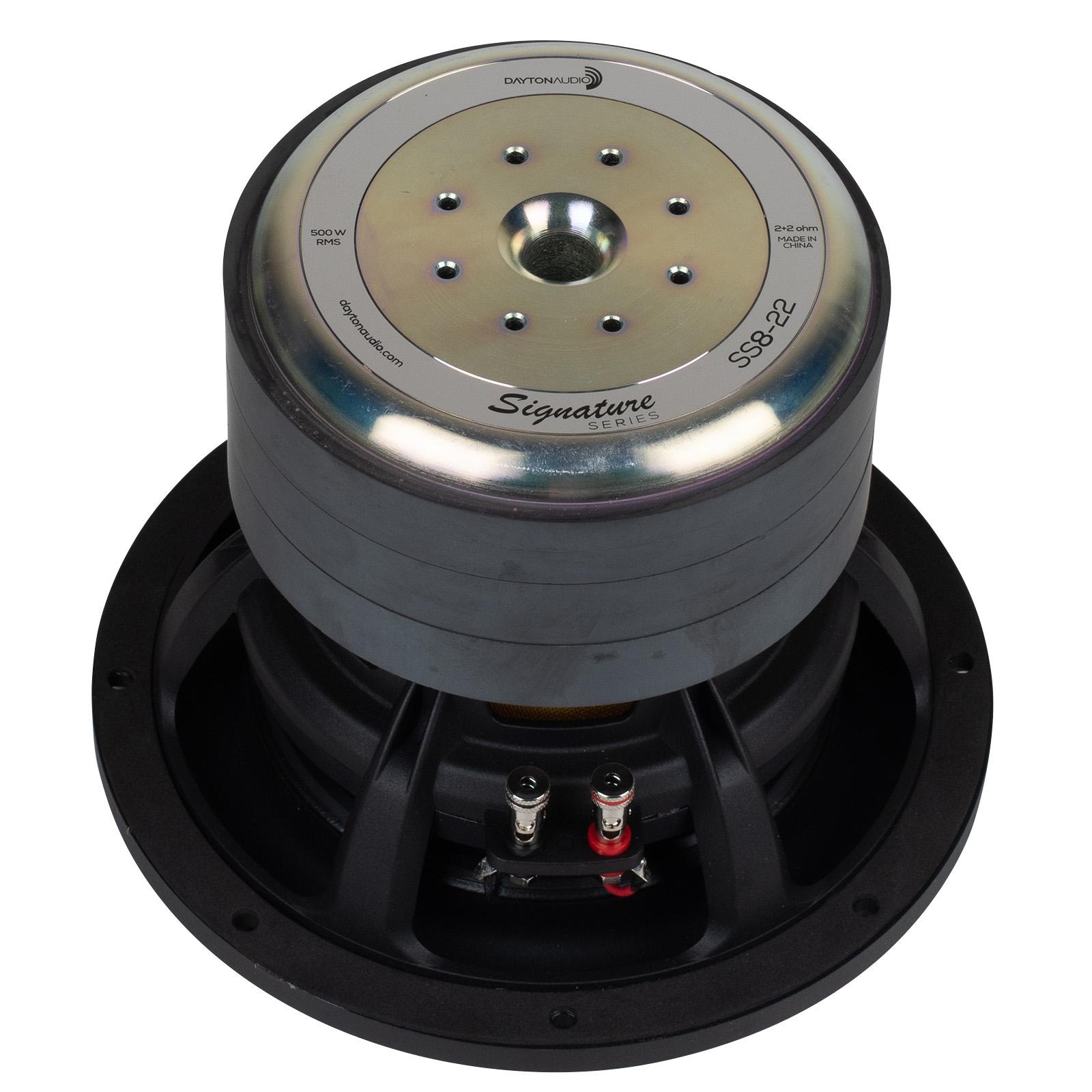

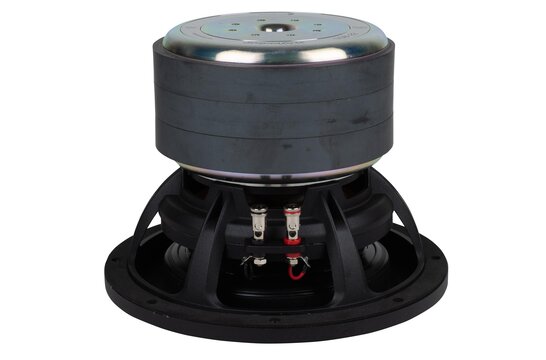

      Internally, the motor structure is equipped with a powerful triple-stacked magnet system and triple shorting paths to lower inductance and reduce distortion, ensuring clean and responsive bass. A long-stroke 2.5" 4-layer copper-clad aluminum voice coil (CCAW) delivers a high RMS power rating of 500 watts, and the driver’s Xmax of 17 mm allows it to produce significant output at very low frequencies.

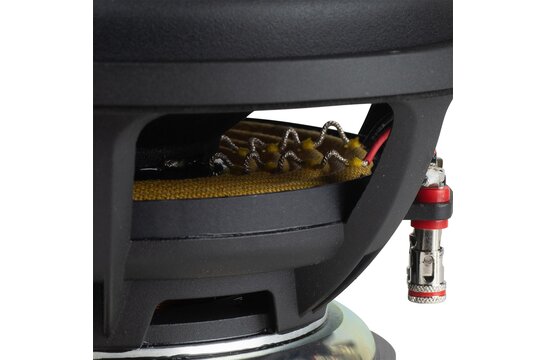

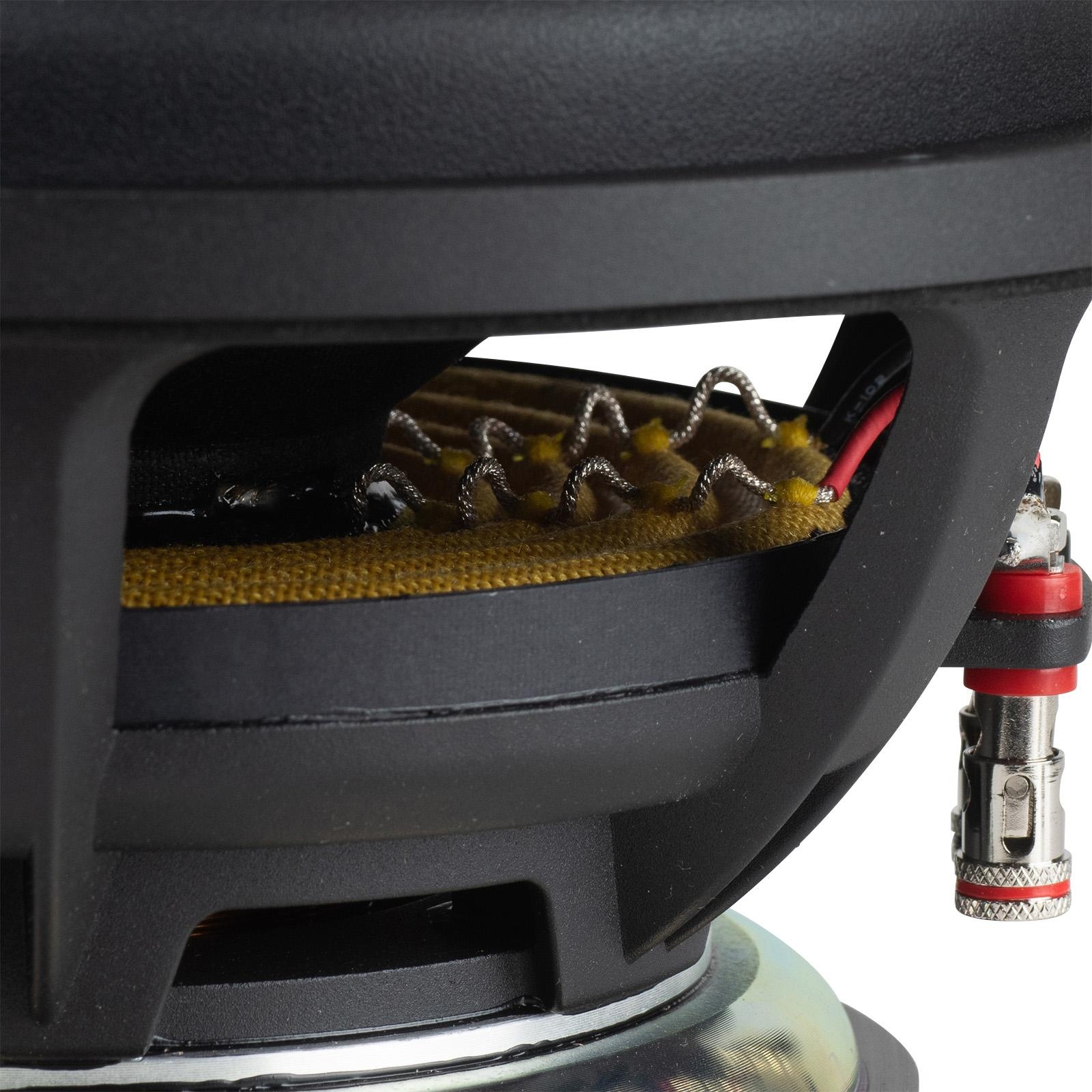

      The SS8-22 also features dual spiders for cone control and extensive venting to keep the voice coil cool during demanding use. With a sensitivity of 84.9 dB (2.83V/1m) and a usable frequency range of 20–500 Hz, this subwoofer is built to deliver authoritative bass for both music and cinematic content.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      SS8-22
      EAN
      0848791011108
      Tieftöner-Serie
      Dayton Audio Signature series
      Tieftönertyp
      subwoofer
      Nenndurchmesser
      8"
      Belastbarkeit (QMW)
      500 Watts
      Belastbarkeit (max)
      1,000 watts
      Impedanz (Z)
      2 + 2 ohms
      Empfindlichkeit (SPL bei 1m / 2,83V)
      84.9 dB
      Frequenzgang
      20-500 Hz
      Schwingspulendurchmesser
      63.5 mm
      Gleichstromwiderstand (Re)
      4.4 ohms
      Schwingspuleninduktion (Le)
      1.6 mH
      Resonanzfrequenz (Fs)
      38 Hz
      Mechanische Güte (Qms)
      4.37
      Elektrische Güte (Qes)
      0.50
      Gesamtgüte (Qts)
      0.45
      Bewegliche Masse (Mms)
      101g
      Nachgiebigkeit der Aufhängung (Cms)
      0.17 mm/N
      Membranfläche (Sd)
      200 cm²
      Verschiebevolumen (Vd)
      325 cm³
      Kraftfaktor (BL)
      14.6 Tm
      Äquivalentvolumen (Vas)
      9.7 liters
      Maximale Auslenkung (Xmax)
      17 mm
      Cone / Diaphragm Material
      aluminium
      Sicke-Material
      rubber
      Schwingspulendrahtmaterial
      CCA
      Schwingspulenformmaterial
      aluminium
      Dual Voice Coil
      Korb- / Rahmenmaterial
      Cast Aluminum
      Magnetmaterial
      Ferrite
      Außendurchmesser
      214 mm
      Gesamttiefe
      157 mm
      Ausschnittdurchmesser
      184.7 mm
      Bolt Circle Diameter
      200 mm
      # Befestigungsbohrungen
      8
