      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil

      Dayton Audio SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil

      €569,95

      10 erwartet auf 19-12-2025

      Zum Warenkorb hinzufügen

      Dayton Audio SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Dayton Audio
      Zeige alle Neue Produkte
      18" | 2+2 Ω
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      471,03 €569,95 € Nicht auf Lager10 erwartet auf 19-12-2025
      • -5% Bestelle 4 für nur 541,45 € je Stück
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Bald wieder auf Lager
      • Fünf Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Tieftöner 2 ohms Per Coil

      Vor-und Nachteile

      Laut unserer Spezialisten
      • 3" 4-layer CCAW voice coil for high power handling

      Produktbeschreibung Dayton Audio Signature SS18-22 DVC Tieftöner

      The SS18-22 is an 18" Signature Series subwoofer built for uncompromising low-frequency performance. With massive displacement, dual 2-ohm voice coils, and an ultra-powerful motor system, it’s designed to deliver reference-level bass in high-output home theater, professional audio, or car audio systems.



      Highlights of the SS18-22 Signature Series Subwoofer

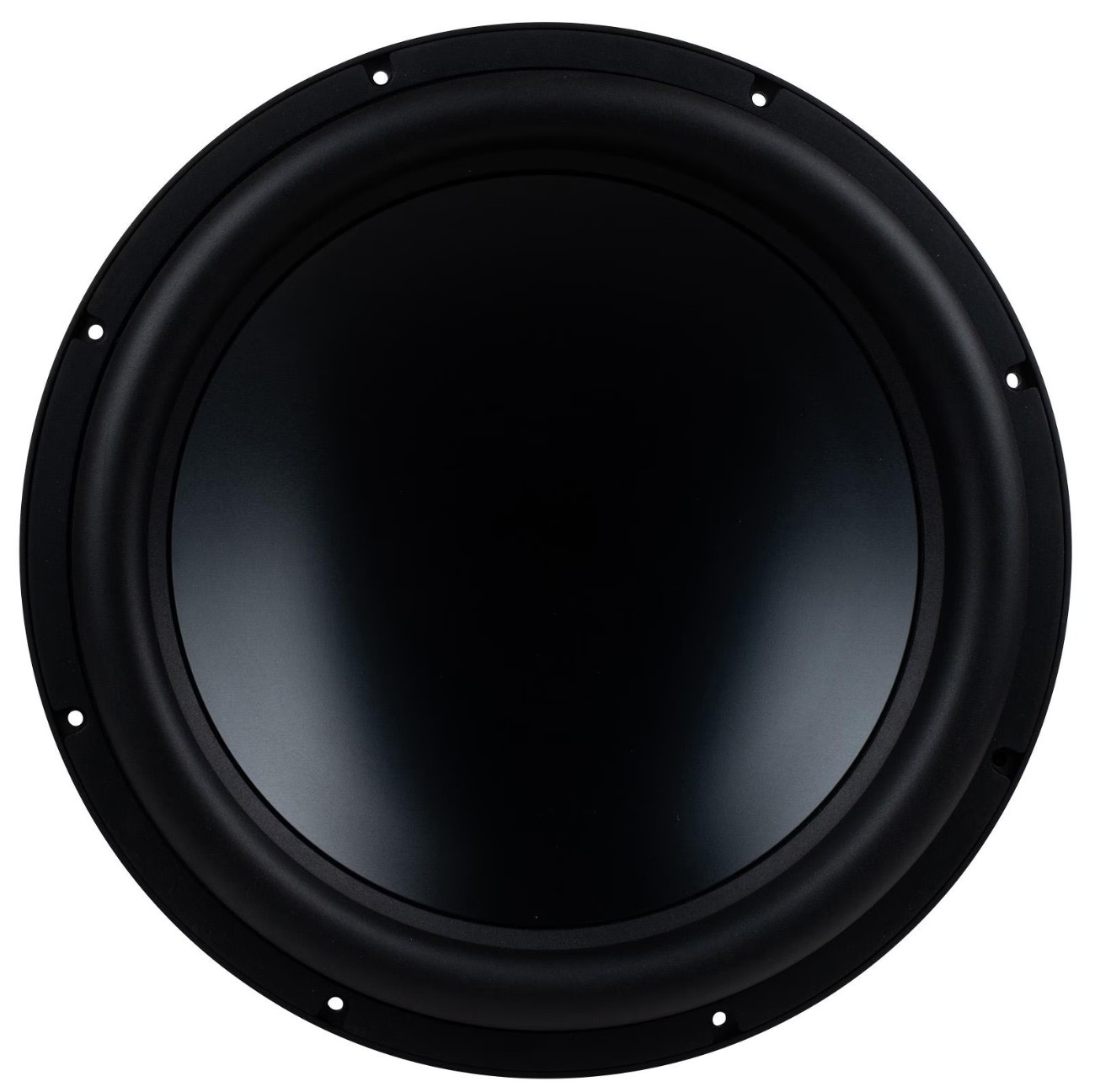

      • Huge 18" aluminum cone with rubber surround for strength and controlled excursion
      • 1300W RMS power handling with a 3" 4-layer CCAW voice coil
      • 26 mm Xmax and an enormous 3038 cm³ of air displacement for extreme bass output
      • Triple magnet motor and shorting paths minimize distortion and improve linearity



      Product details SS18-22 Signature Series Subwoofer





      The SS18-22 represents the ultimate subwoofer in the Signature Series, engineered for maximum impact and ultra-deep bass reproduction. Its 18" aluminum cone is reinforced by a compliant rubber surround, designed to withstand the stresses of high excursion while maintaining accuracy and control.

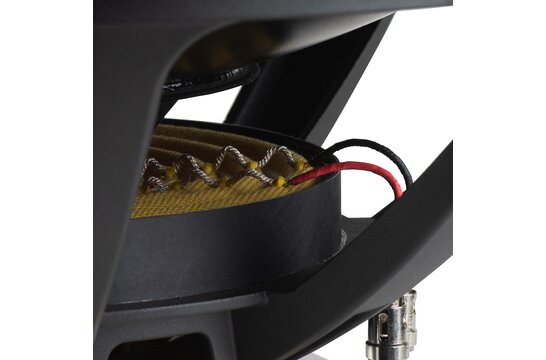

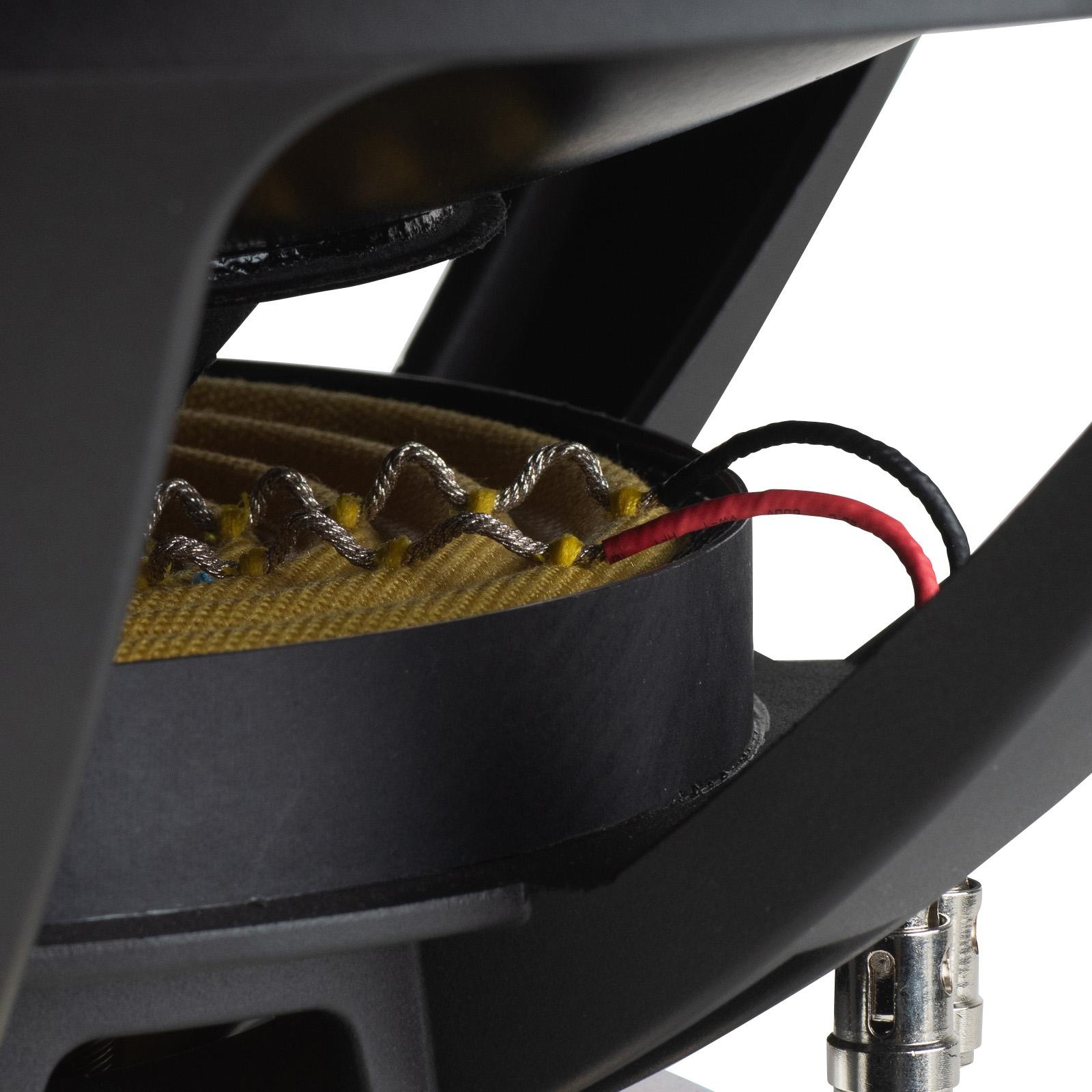

      At the heart of the SS18-22 is a massive motor system with a triple magnet structure, delivering a commanding BL factor of 29.2 Tm. The 3" 4-layer copper-clad aluminum voice coil (CCAW) is supported by dual spiders and extensive venting, allowing the driver to sustain 1300 watts RMS of continuous power without thermal issues. With an extraordinary 26 mm Xmax and piston area of 1188 cm², the SS18-22 achieves a displacement (Vd) of over 3 liters—producing earth-shaking bass with authority.



      The low resonance frequency (Fs) of 21 Hz, combined with a Qts of 0.37 and Vas of 224 liters, makes the SS18-22 particularly suited for large vented or infinite baffle systems where maximum depth and efficiency are desired. Its sensitivity of 90.8 dB (2.83V/1m) and usable response from 20–400 Hz ensure it integrates seamlessly into full-range setups as a dedicated low-frequency powerhouse.



      For those seeking the deepest, loudest, and most commanding bass, the SS18-22 is the definitive choice in the Signature Series lineup.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      SS18-22
      EAN
      0848791011184
      Tieftöner-Serie
      Dayton Audio Signature series
      Tieftönertyp
      Subwoofer
      Nenndurchmesser
      18"
      Belastbarkeit (QMW)
      1300 Watts
      Belastbarkeit (max)
      2,600W
      Impedanz (Z)
      2 + 2 Ω
      Empfindlichkeit (SPL bei 1m / 2,83V)
      90.8 dB
      Frequenzgang
      200 - 400 Hz
      Schwingspulendurchmesser
      77 mm
      Gleichstromwiderstand (Re)
      5.4 Ω
      Schwingspuleninduktion (Le)
      2.1 mH
      Resonanzfrequenz (Fs)
      21 Hz
      Mechanische Güte (Qms)
      3.40
      Elektrische Güte (Qes)
      0.42
      Gesamtgüte (Qts)
      0.37
      Bewegliche Masse (Mms)
      497 g
      Nachgiebigkeit der Aufhängung (Cms)
      0.112 mm/N
      Membranfläche (Sd)
      1188 cm²
      Verschiebevolumen (Vd)
      3038 cm³
      Äquivalentvolumen (Vas)
      224 Liters
      Maximale Auslenkung (Xmax)
      26 mm
      Korb- / Rahmenmaterial
      Aluminium
      Außendurchmesser
      470 mm
      Gesamttiefe
      290 mm
      Ausschnittdurchmesser
      426 mm
      Bolt Circle Diameter
      447 mm
      # Befestigungsbohrungen
      8
      Durchmesser Befestigungslochs
      6.5 mm

      Mehr anzeigen
