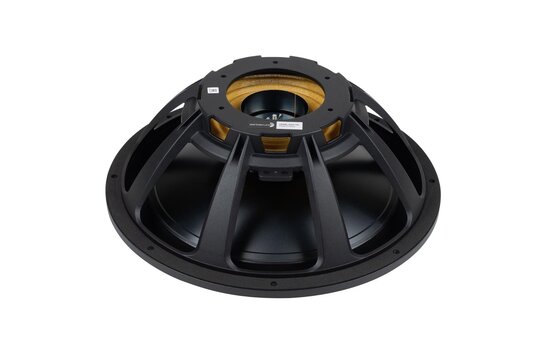

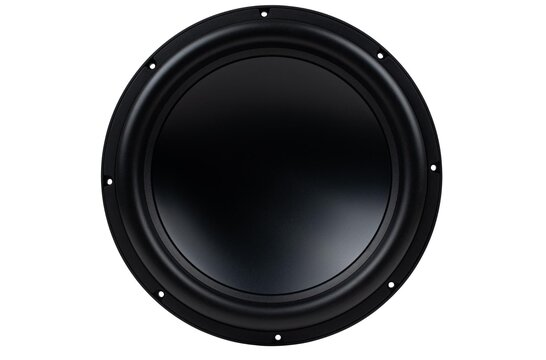

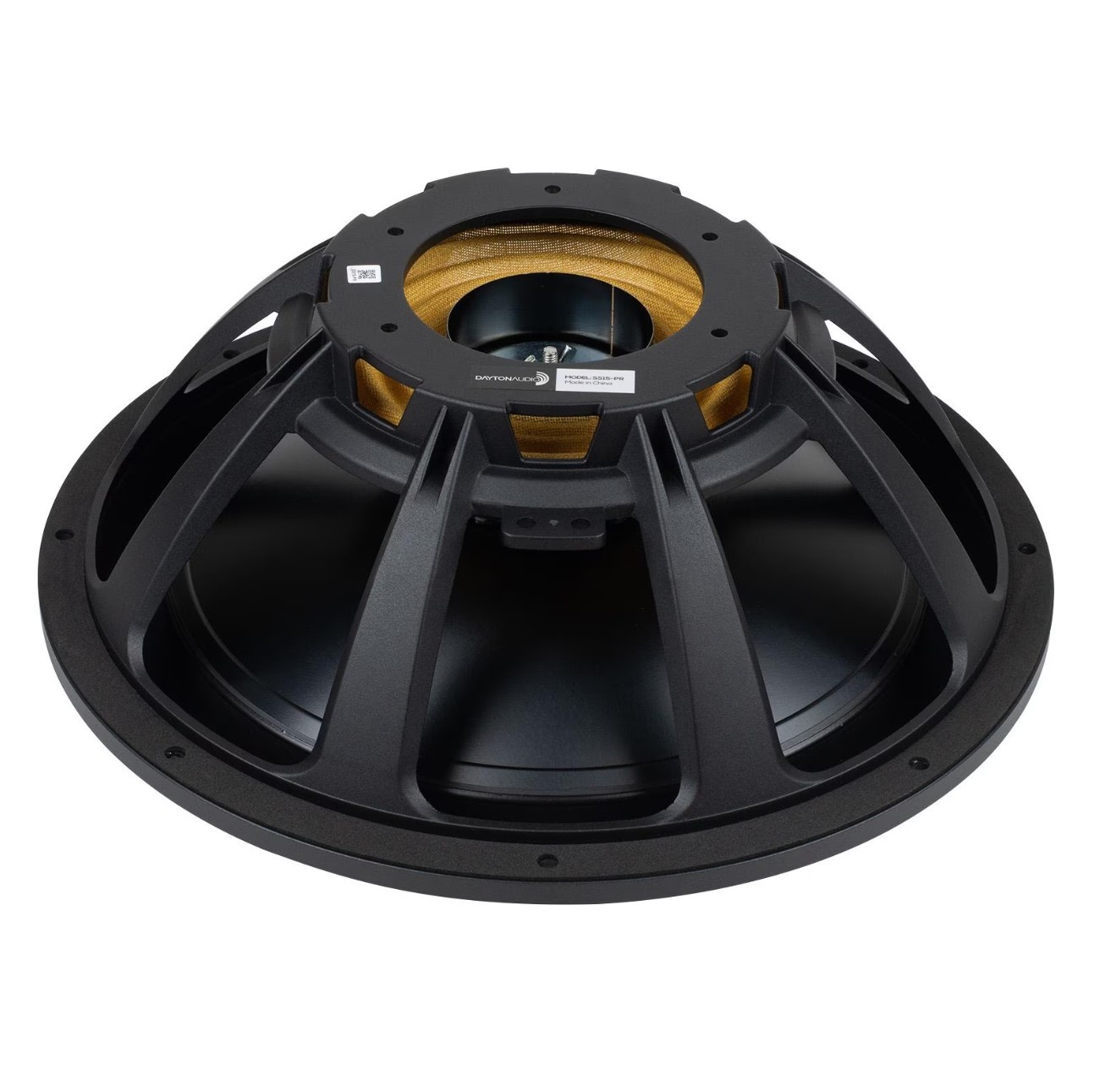

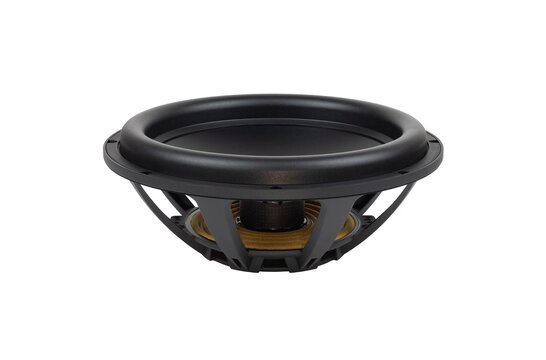

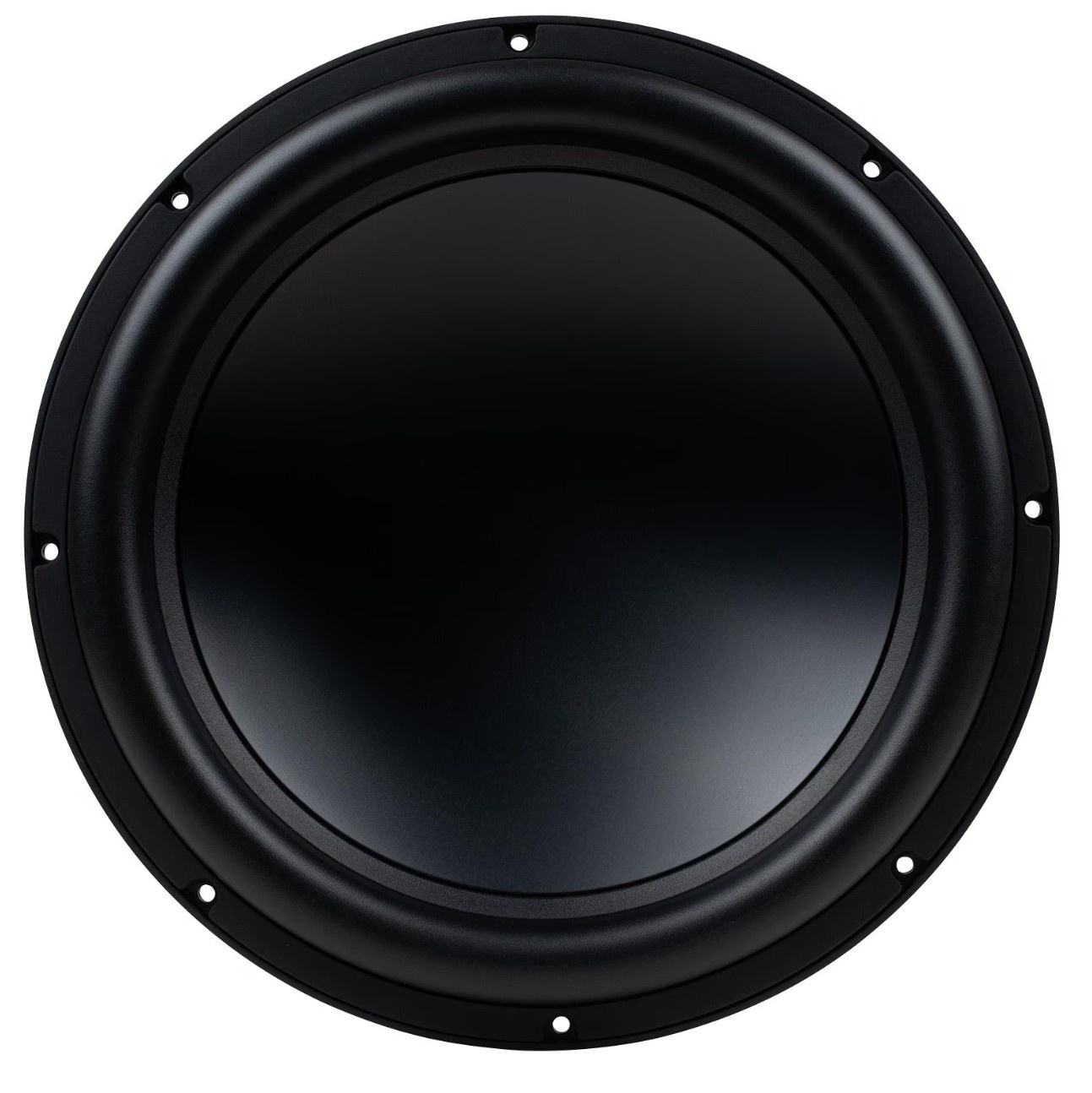

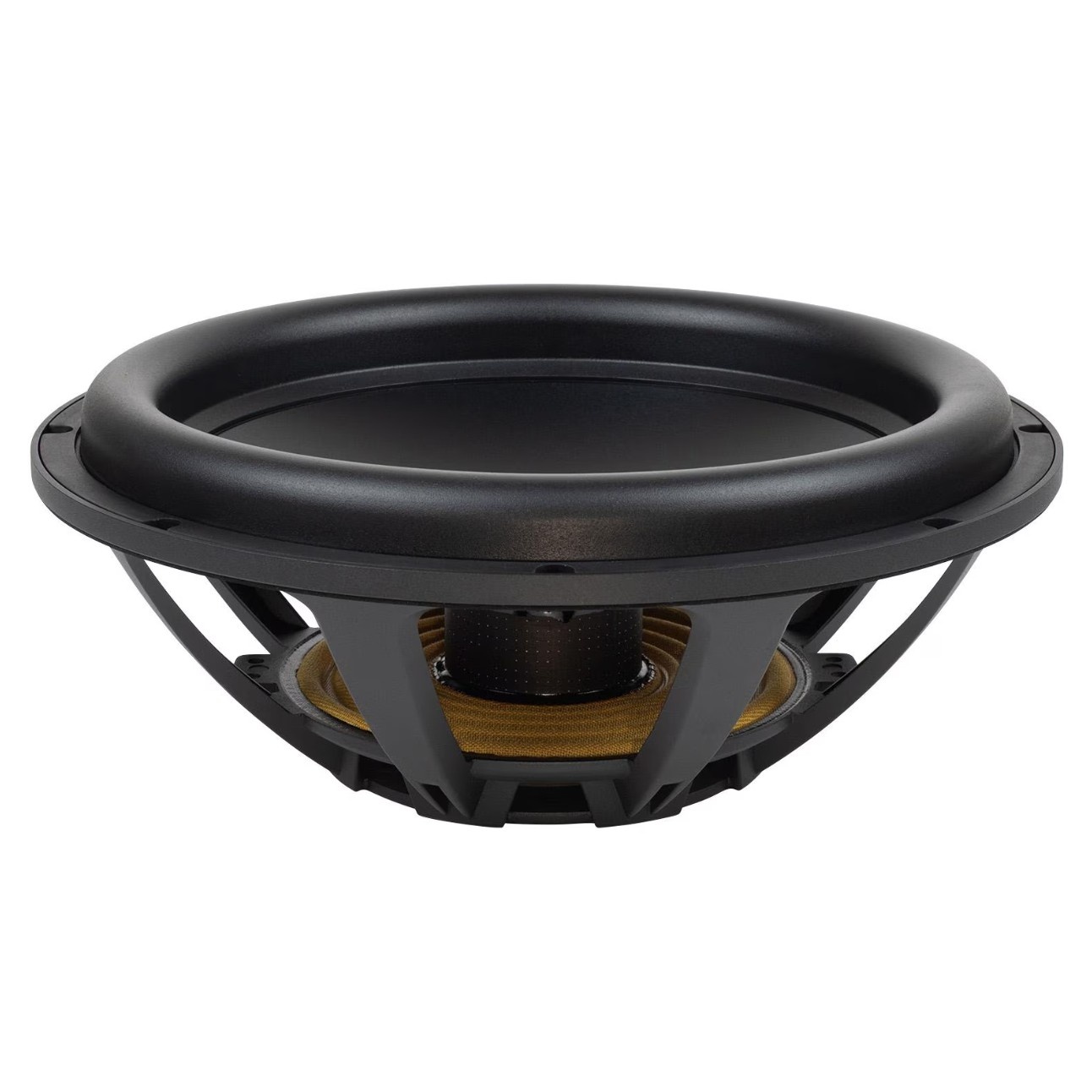

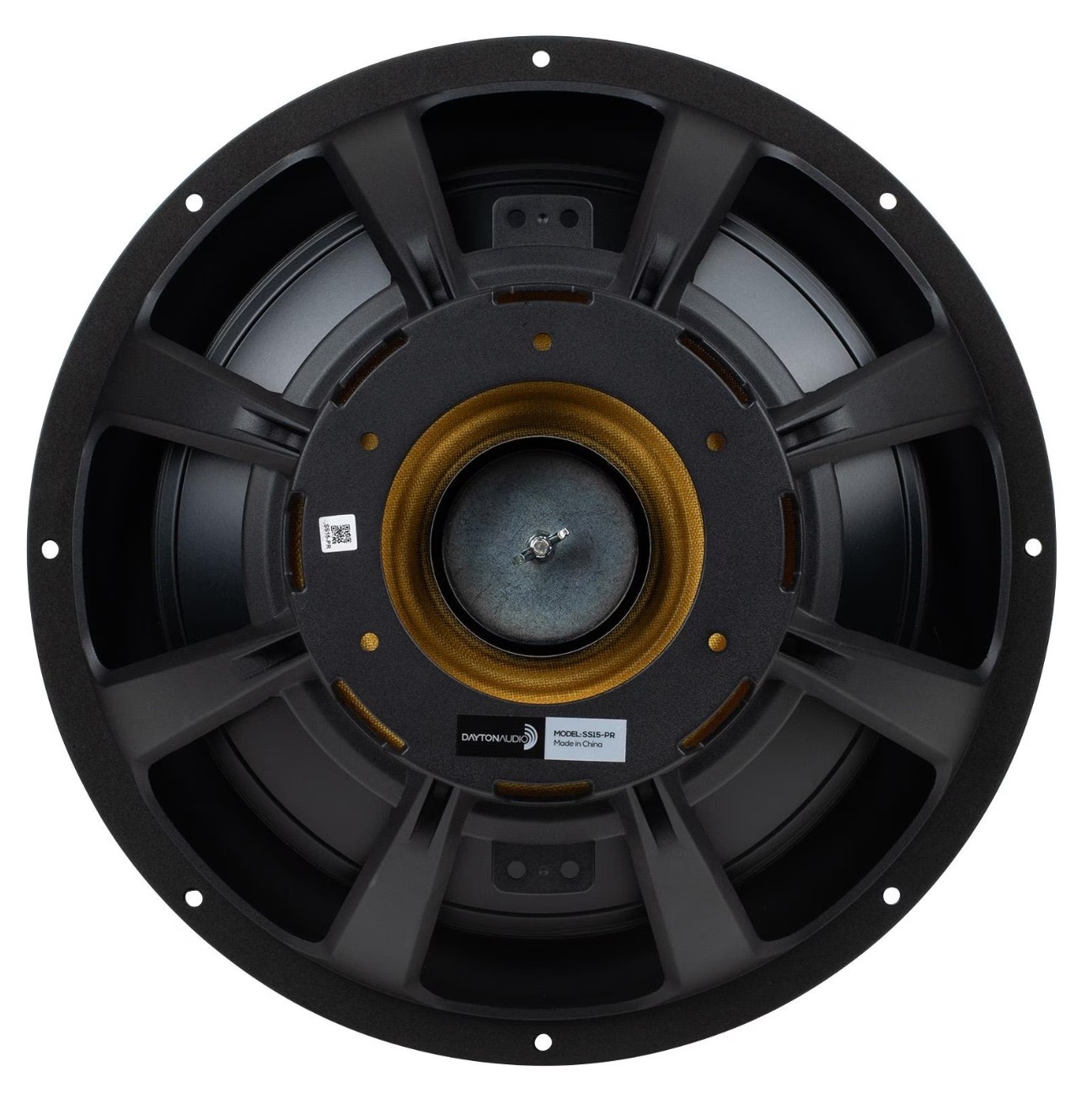

      SS15-PR Signature Series 15" Passivradiator

      Dayton Audio SS15-PR Signature Series 15" Passivradiator

      €179,95

      8 erwartet auf 19-12-2025

      Zum Warenkorb hinzufügen

      Dayton Audio SS15-PR Signature Series 15" Passivradiator

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Dayton Audio
      Zeige alle Neue Produkte
      Passive | 15"
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      148,72 €179,95 € Nicht auf Lager8 erwartet auf 19-12-2025
      • -5% Bestelle 4 für nur 170,95 € je Stück
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Bald wieder auf Lager
      • Fünf Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator
      SS15-PR Signature Series 15" Passivradiator

      Vor-und Nachteile

      Laut unserer Spezialisten
      • Includes five removable 116 g discs for customizable system resonance

      Produktbeschreibung Dayton Audio Signature SS15-PR Passivradiator

      The SS15-PR is a 15" Signature Series passive radiator engineered to pair with the SS15-22 subwoofer and other large-format drivers. With its adjustable mass system, robust suspension, and rigid aluminum cone, it enables precise low-frequency tuning for high-output enclosures without the compromises of ported designs.



      Highlights of the SS15-PR Signature Series Passive Radiator

      • SMS™ (Sandwich Mass System) reduces angular torque and improves linearity
      • Threaded rod and lock nut system for quick and accurate tuning adjustments

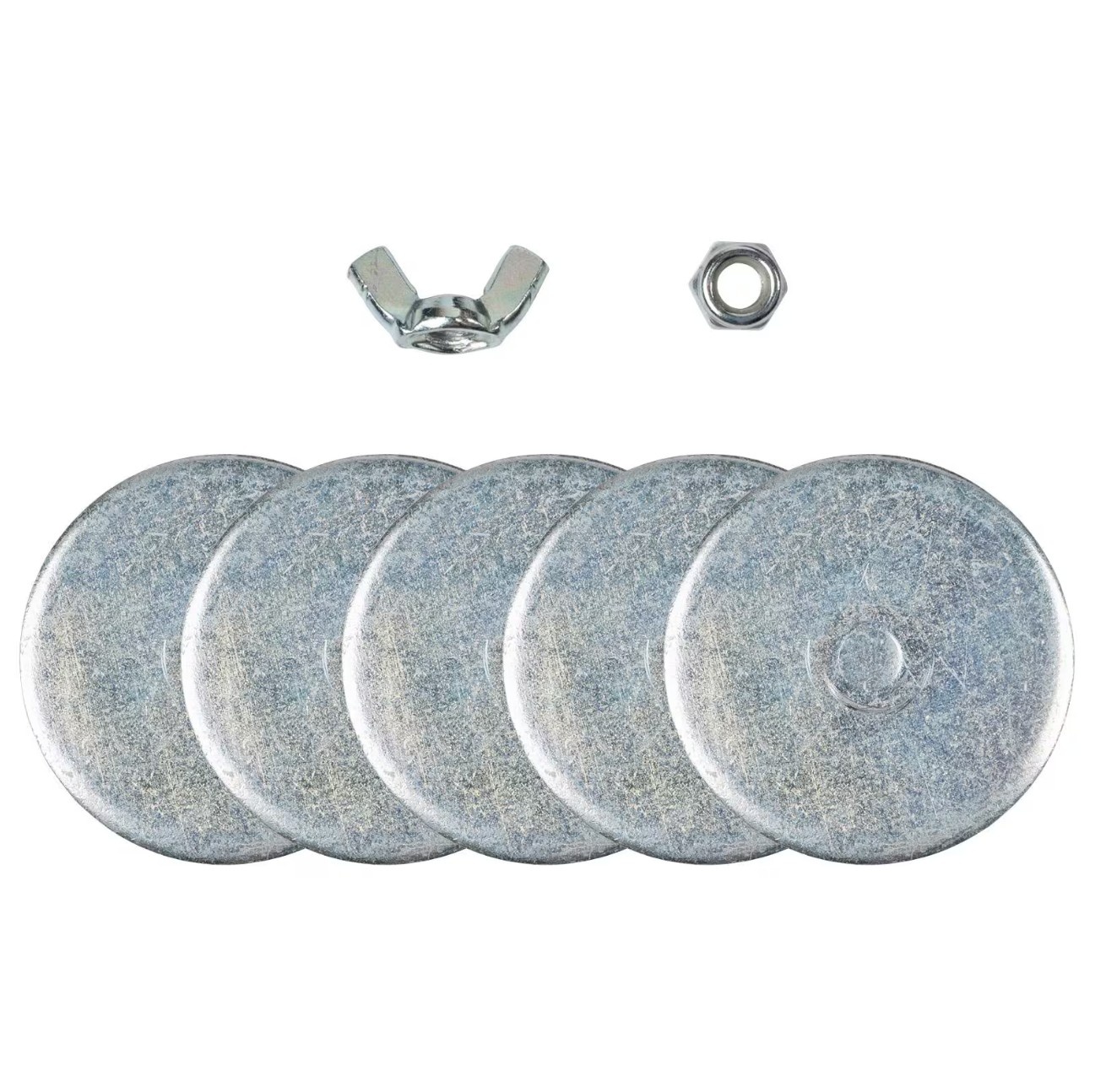

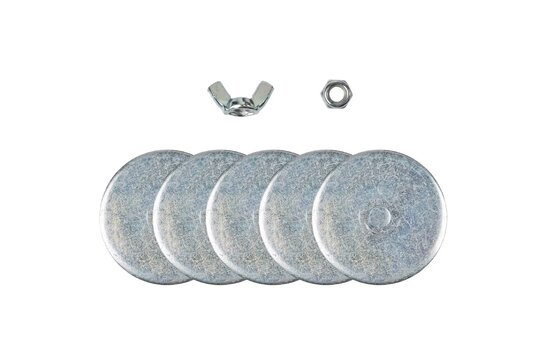

      • Includes five removable 116 g discs for customizable system resonance
      • Rigid cast aluminum frame and anodized cone for strength and Signature Series design consistency



      Product details SS15-PR Signature Series Passive Radiator





      The SS15-PR extends bass response for 15" subwoofer systems by providing flexible and controlled tuning without requiring a large or noisy port. Its anodized aluminum cone and cast aluminum frame ensure mechanical strength and visual alignment with the active Signature Series subwoofers. A compliant suspension supports long, linear excursion, delivering accuracy even under high-output conditions.



      The SS15-PR utilizes SMS™ (Sandwich Mass System) technology to minimize angular torque and maintain linear travel. Its threaded rod and lock nut assembly make frequency tuning simple and precise. With the included five 116 g weighted discs, users can adjust the system’s tuning to achieve the desired low-frequency extension in sealed or hybrid passive radiator enclosures.



      Designed as a companion to the SS15-22 and other high-power subwoofers, the SS15-PR provides extended bass capability while maintaining the premium performance and aesthetics of the Signature Series lineup.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      SS15-PR
      EAN
      0848791011177
      Tieftöner-Serie
      Dayton Audio Signature series
      Tieftönertyp
      Passive Radiator
      Nenndurchmesser
      15"
      Resonanzfrequenz (Fs)
      (0 Disks 22.4) ( 1 Disks 19.0) (2 Disks 16.8) (3 Disks 15.2) (4 Disks 14.0) (5 Disks 13.0) Hz.
      Nachgiebigkeit der Aufhängung (Cms)
      0.169 mm/N
      Membranfläche (Sd)
      804.3 cm²
      Verschiebevolumen (Vd)
      2814.9 cm³
      Äquivalentvolumen (Vas)
      155.3 Liters
      Driver's Mechanical Losses (Rms)
      6.250 kg/s
      Cone / Diaphragm Material
      Aluminium
      Außendurchmesser
      389 mm
      Gesamttiefe
      154 mm
      Ausschnittdurchmesser
      353 mm
      Bolt Circle Diameter
      371 mm
      # Befestigungsbohrungen
      8
      Durchmesser Befestigungslochs
      6.5 mm
