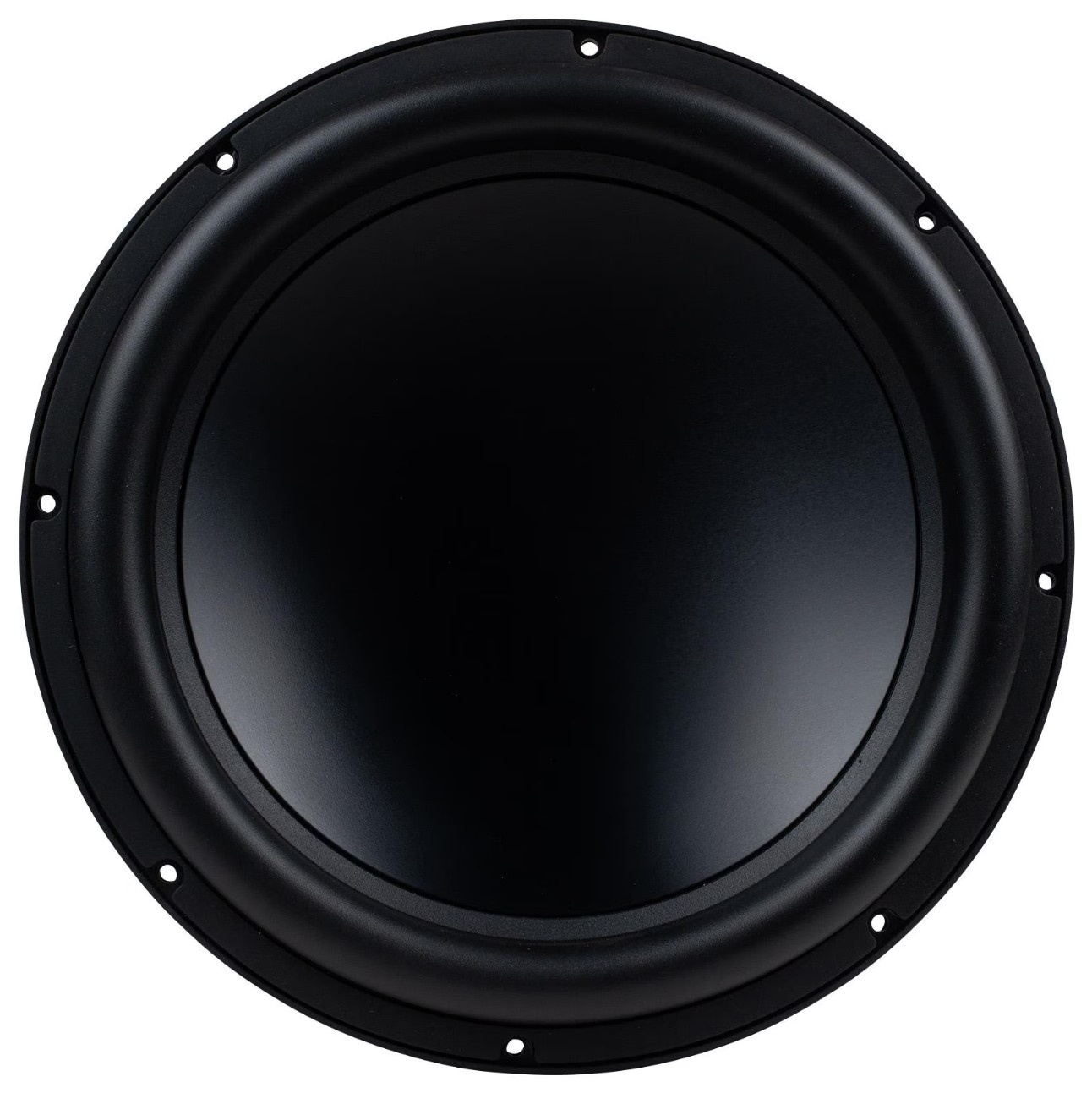

      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil

      Dayton Audio SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil

      €439,95

      10 erwartet auf 19-12-2025

      Zum Warenkorb hinzufügen

      Dayton Audio SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Dayton Audio
      Zeige alle Neue Produkte
      15" | 2+2 Ω
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      363,60 €439,95 € Nicht auf Lager10 erwartet auf 19-12-2025
      • -5% Bestelle 4 für nur 417,95 € je Stück
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Bald wieder auf Lager
      • Fünf Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil
      SS15-22 Signature Series 15" DVC Tieftöner 2 ohms Per Coil

      Produktbeschreibung Dayton Audio Signature SS15-22 DVC Tieftöner

      The SS15-22 is a 15" Signature Series subwoofer designed for extreme low-frequency output and uncompromising power handling. With dual 2-ohm voice coils, massive excursion capability, and advanced motor engineering, it’s built to deliver earth-shaking bass for home theater, professional audio, and high-performance car audio systems.



      Highlights of the SS15-22 Signature Series Subwoofer

      • Rigid one-piece aluminum cone with durable rubber surround for controlled bass response
      • Massive 3" 4-layer CCAW voice coil with 1100W RMS power handling
      • Extra-long 22 mm Xmax and huge Sd for extreme displacement and deep extension
      • Triple magnet motor with shorting paths for reduced distortion and improved linearity



      Product details SS15-22 Signature Series Subwoofer





      The SS15-22 represents the largest and most powerful subwoofer in the Signature Series. Its design prioritizes both output and accuracy, making it capable of delivering chest-thumping bass with authority while maintaining clean, low-distortion performance. The dual 2-ohm voice coils offer wiring flexibility for multi-amp and high-power setups, ensuring seamless integration in demanding systems.

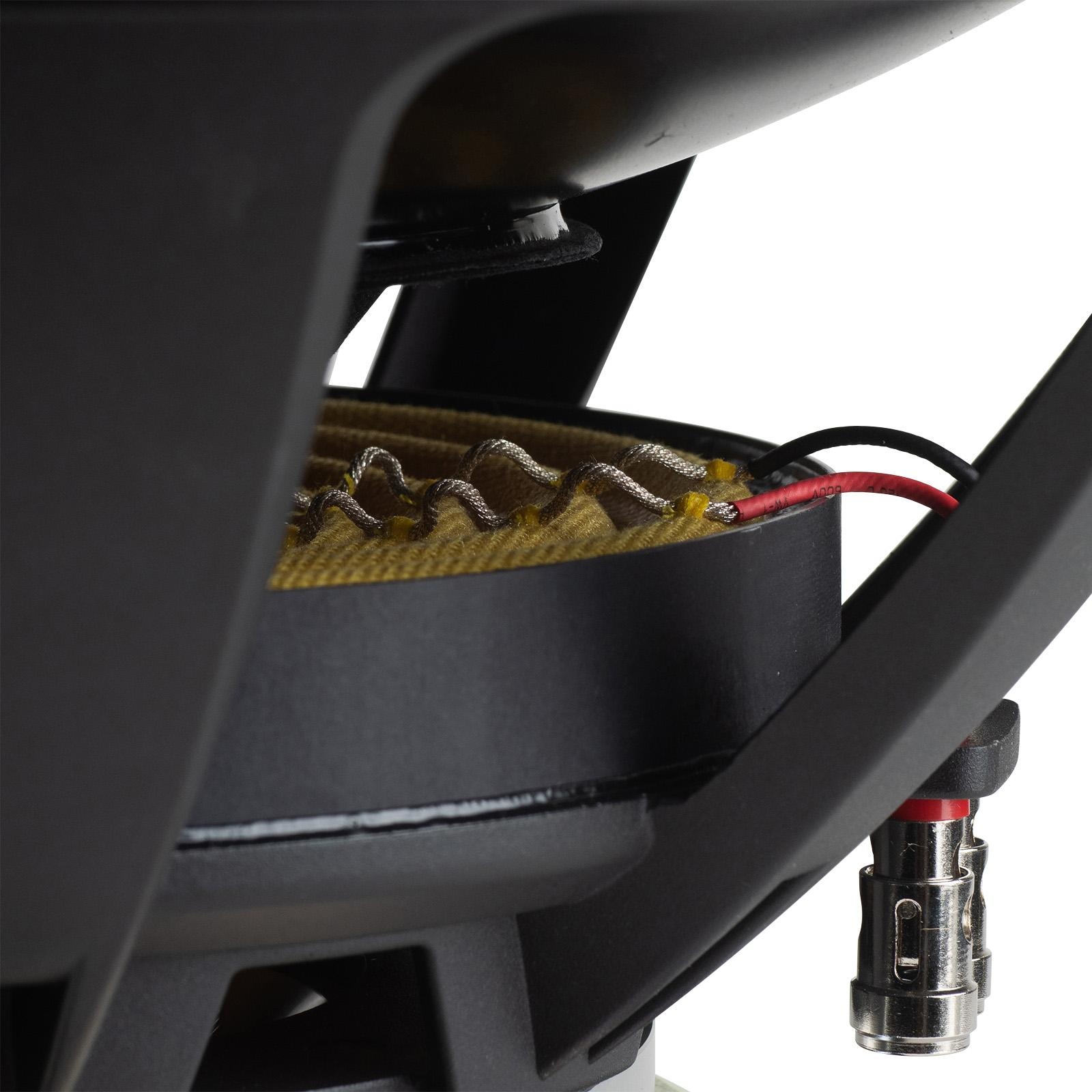

      The subwoofer features a rigid aluminum cone with a compliant rubber surround to withstand the stresses of long excursion. Its 3" 4-layer copper-clad aluminum wire (CCAW) voice coil, wound onto a high-temperature former, allows for sustained operation at up to 1100 watts RMS. Extensive venting supports effective cooling, minimizing thermal compression under high-output use.

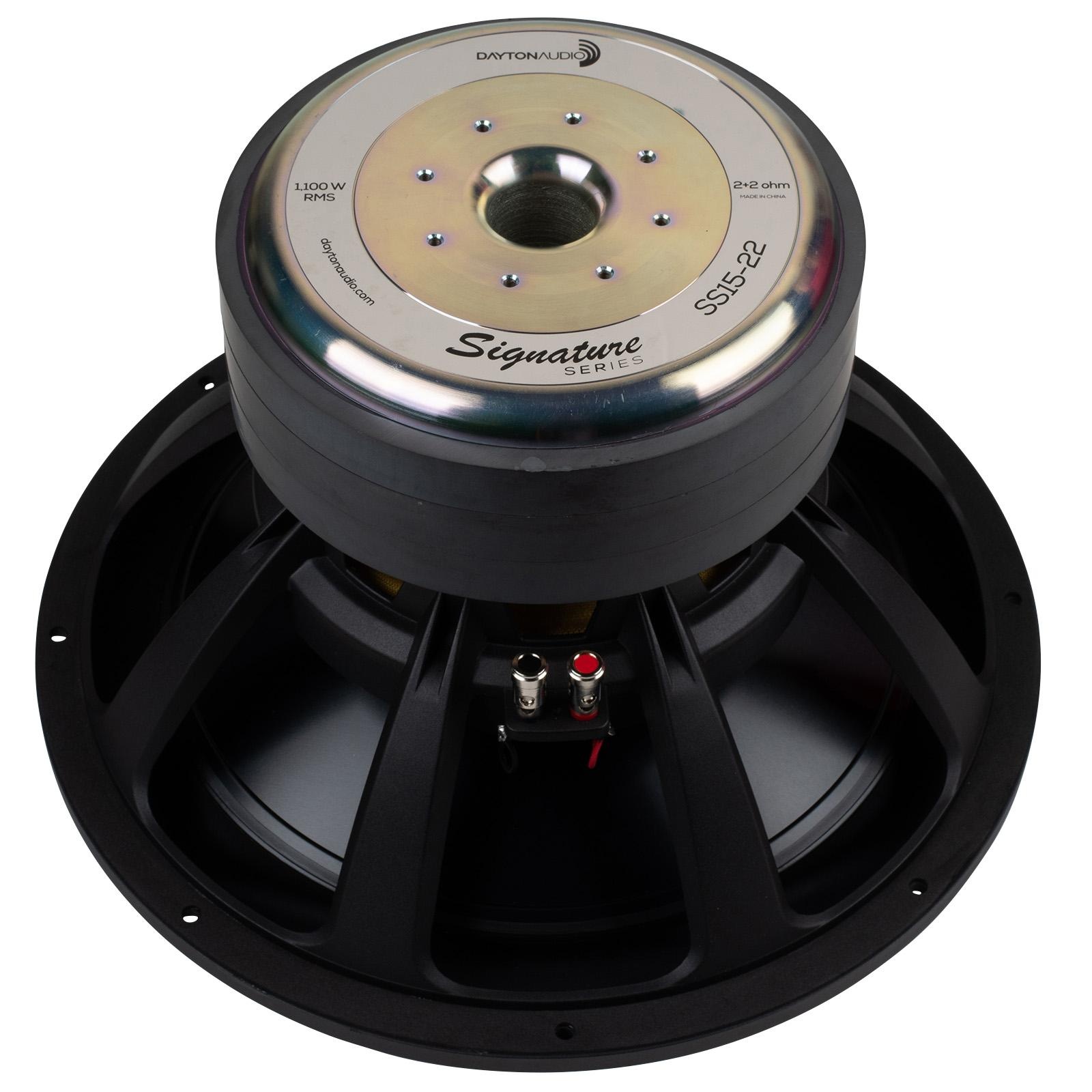

      At its core, the SS15-22 employs a powerful triple-magnet motor structure with shorting paths to lower inductance and distortion. A massive 22 mm Xmax and expansive piston area (Sd) enable an extraordinary displacement, producing ultra-deep bass extension with precision. With a usable frequency range from 20–400 Hz and optimized Thiele/Small parameters, it performs equally well in sealed or vented enclosures.



      With its sheer output capability and refined motor control, the SS15-22 is designed for audiophiles, home theater enthusiasts, and professionals seeking reference-level low-end performance in a 15" driver.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      SS15-22
      EAN
      0848791011160
      Tieftöner-Serie
      Dayton Audio Signature series
      Tieftönertyp
      Subwoofer
      Nenndurchmesser
      15"
      Belastbarkeit (QMW)
      1100 Watts
      Belastbarkeit (max)
      2,200 watts
      Impedanz (Z)
      2 + 2 ohms
      Empfindlichkeit (SPL bei 1m / 2,83V)
      90.6 dB
      Frequenzgang
      20-400 Hz
      Schwingspulendurchmesser
      77 mm
      Gleichstromwiderstand (Re)
      5 ohms
      Schwingspuleninduktion (Le)
      1.9 mH
      Resonanzfrequenz (Fs)
      27 Hz
      Mechanische Güte (Qms)
      3.27
      Elektrische Güte (Qes)
      0.44
      Gesamtgüte (Qts)
      0.38
      Bewegliche Masse (Mms)
      317g
      Nachgiebigkeit der Aufhängung (Cms)
      0.11 mm/N
      Membranfläche (Sd)
      800 cm²
      Verschiebevolumen (Vd)
      1758 cm³
      Kraftfaktor (BL)
      24.9 Tm
      Äquivalentvolumen (Vas)
      98 liters
      Maximale Auslenkung (Xmax)
      22 mm
      Cone / Diaphragm Material
      Aluminum
      Sicke-Material
      Rubber
      Schwingspulendrahtmaterial
      CCAW
      Schwingspulenformmaterial
      Aluminum
      Dual Voice Coil
      Korb- / Rahmenmaterial
      Cast Aluminum
      Magnetmaterial
      Ferrite
      Außendurchmesser
      389 mm
      Gesamttiefe
      233 mm
      Ausschnittdurchmesser
      353 mm
      Bolt Circle Diameter
      371 mm
      # Befestigungsbohrungen
      8
