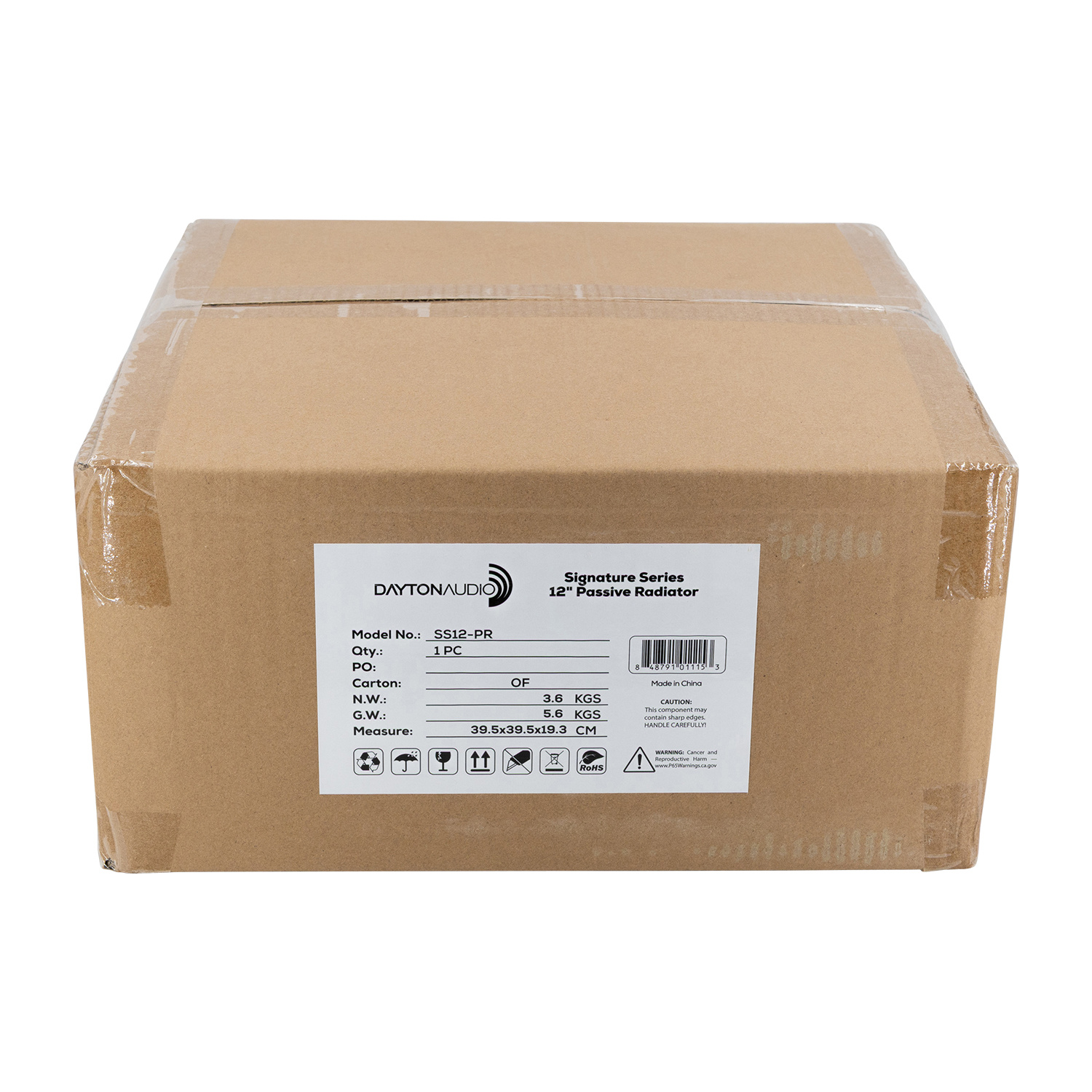

      SS12-PR Signature Series 12" Passivradiator

      Dayton Audio SS12-PR Signature Series 12" Passivradiator

      €139,95

      8 erwartet auf 19-12-2025

      Zum Warenkorb hinzufügen

      Dayton Audio SS12-PR Signature Series 12" Passivradiator

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Dayton Audio
      Zeige alle Neue Produkte
      Passive | 12"
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      115,66 €139,95 € Nicht auf Lager8 erwartet auf 19-12-2025
      • -5% Bestelle 4 für nur 132,95 € je Stück
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Wir versenden nach
      • Bald wieder auf Lager
      • Fünf Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator
      SS12-PR Signature Series 12" Passivradiator

      Vor-und Nachteile

      Laut unserer Spezialisten
      • Includes five removable 116 g discs for customizable resonance tuning

      Produktbeschreibung Dayton Audio Signature SS12-PR Passivradiator

      The SS12-PR is a 12" Signature Series passive radiator designed to pair with the SS12-22 subwoofer and similar high-performance drivers. With an adjustable mass system, robust mechanical design, and premium aluminum construction, it enables precise low-frequency tuning without the drawbacks of traditional ports.



      Highlights of the SS12-PR Signature Series Passive Radiator

      • SMS™ (Sandwich Mass System) reduces angular torque for improved linearity
      • Threaded rod and lock nut allow simple, precise tuning adjustments

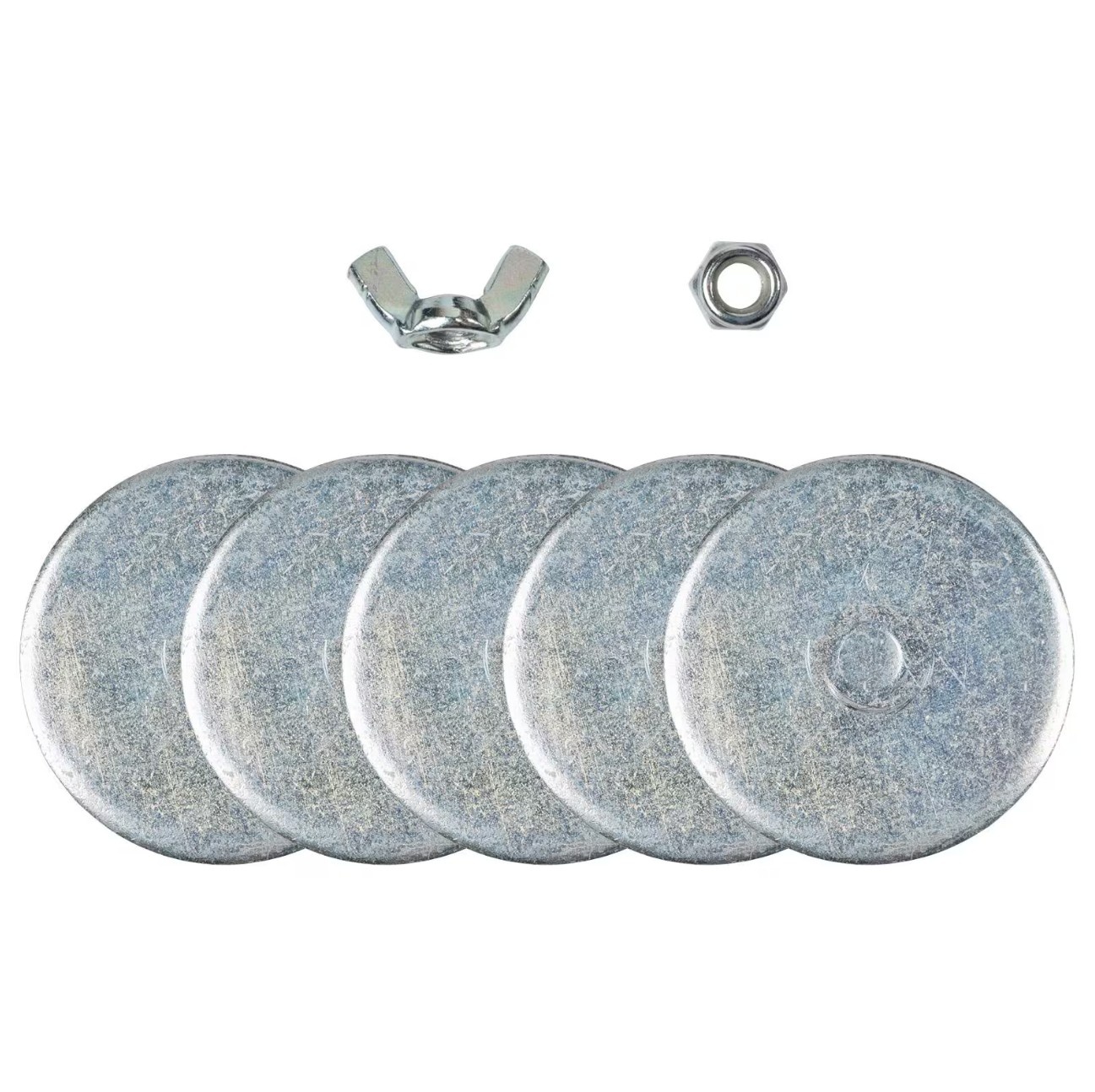

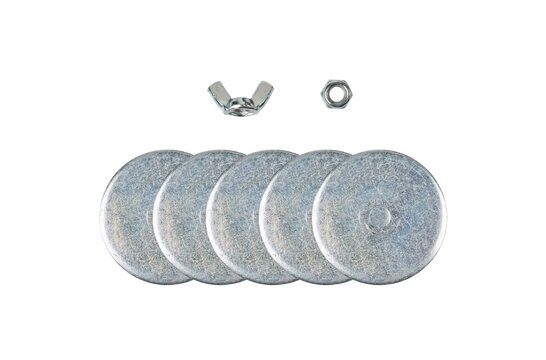

      • Includes five removable 116 g discs for customizable resonance tuning
      • Rigid cast aluminum frame and anodized cone provide durability and aesthetic match to Signature Series subs



      Product details SS12-PR Signature Series Passive Radiator

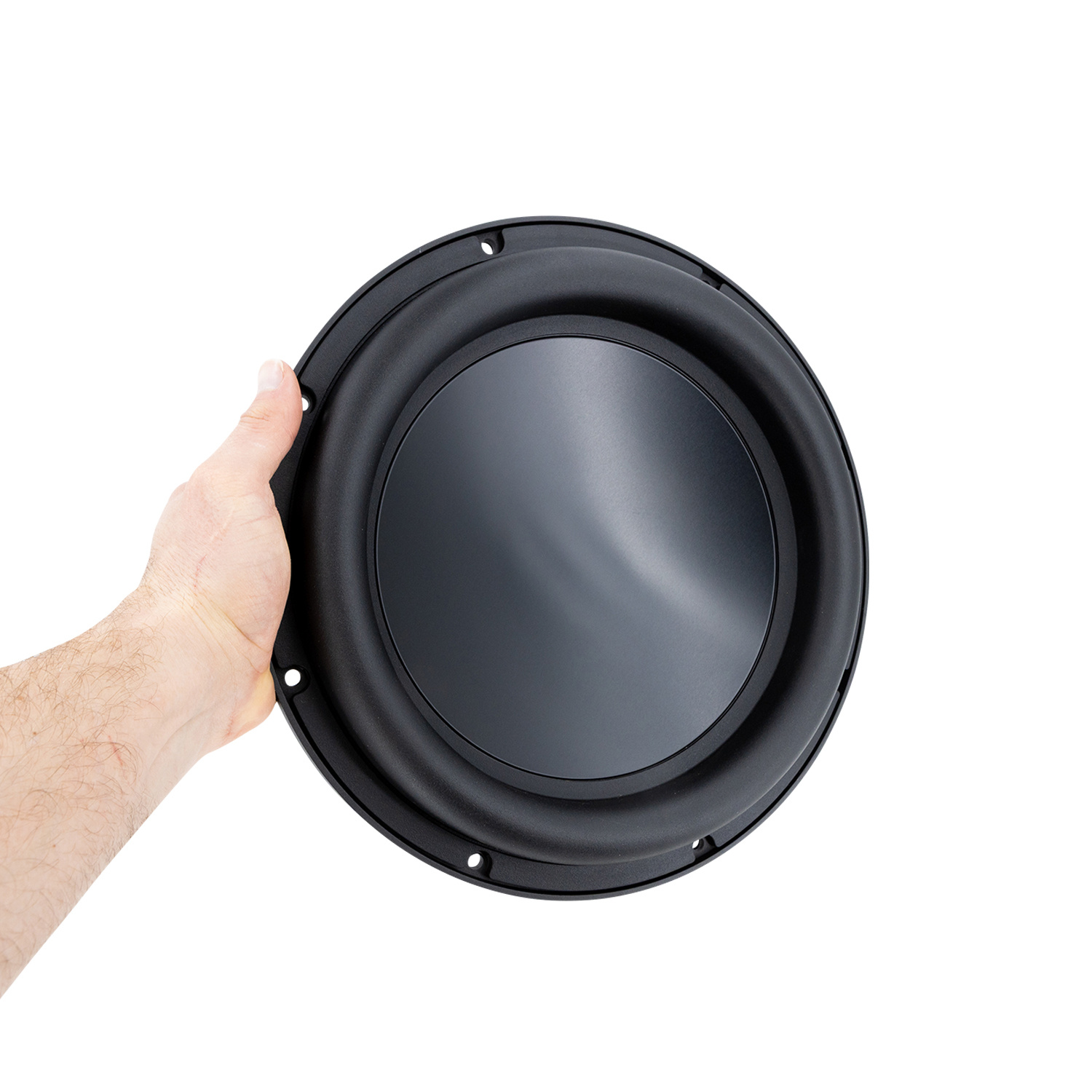

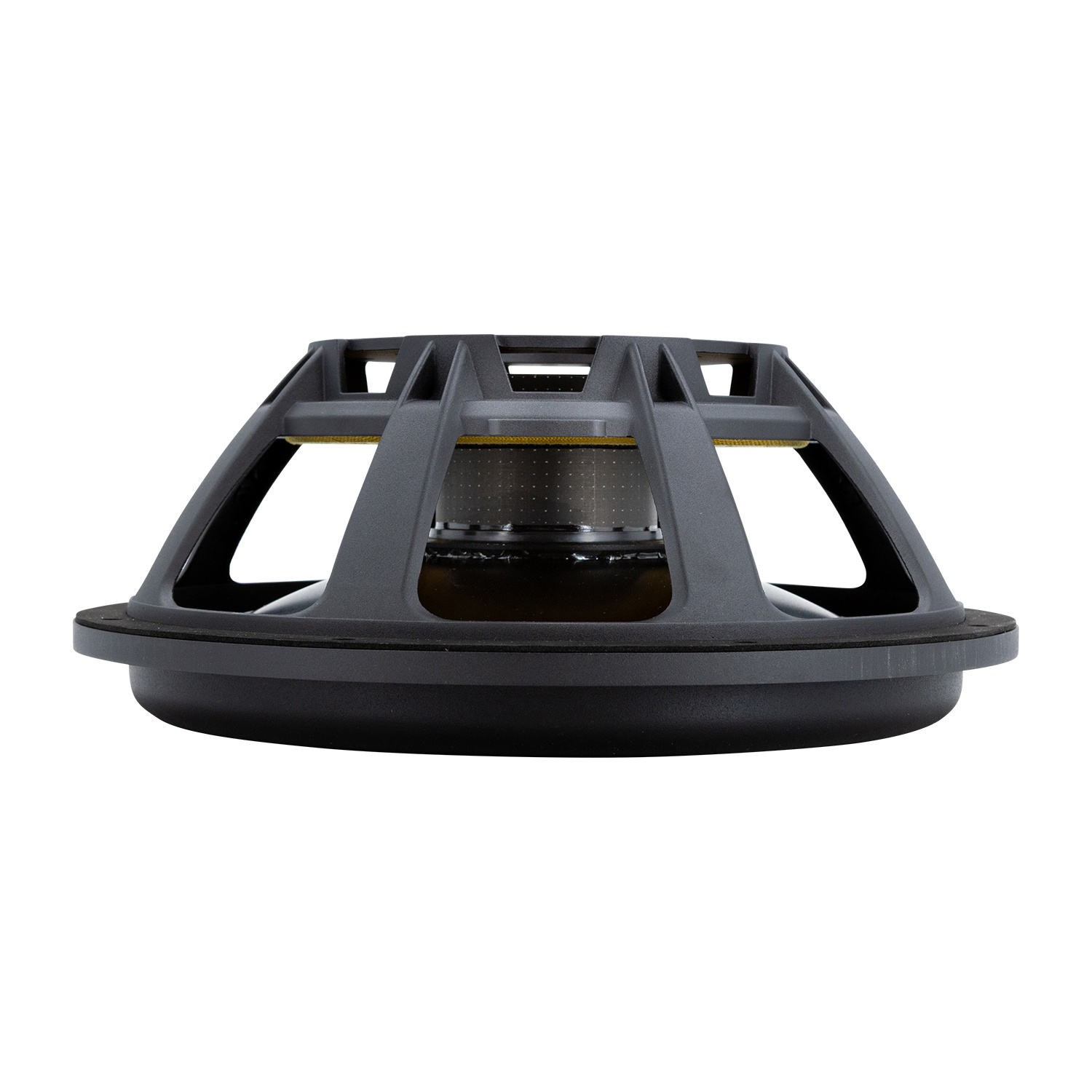

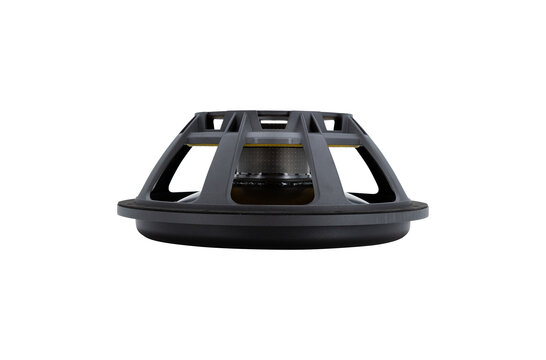

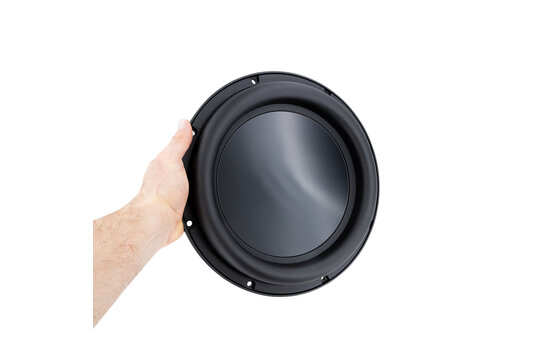

      The SS12-PR brings tuning flexibility and low-frequency extension to 12" subwoofer systems. Its rigid anodized aluminum cone and cast aluminum frame ensure mechanical stability and strength, while the compliant suspension delivers controlled, linear travel during high excursion. Designed to visually and mechanically match the SS12-22 subwoofer, it integrates seamlessly into advanced enclosure builds.



      At the core of its performance is the SMS™ (Sandwich Mass System), engineered to minimize angular torque and improve excursion linearity. A threaded rod and lock nut assembly make tuning adjustments straightforward, and the inclusion of five 116 g weighted discs enables users to precisely tailor the system’s tuning frequency. This allows enclosure designers to extend bass response without requiring large or noisy vented ports.



      As part of the Signature Series, the SS12-PR is an essential component for premium sealed or hybrid passive radiator enclosures, delivering extended and accurate bass while maintaining the design consistency of the active driver lineup.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      SS12-PR
      EAN
      0848791011153
      Tieftöner-Serie
      Dayton Audio Signature series
      Tieftönertyp
      Passive Radiator
      Nenndurchmesser
      12"
      Resonanzfrequenz (Fs)
      (0 Disks 25.6) (1 Disks 20.2) (2 Disks 17.3) (3 Disks 15.3) (4 Disks 13.9) (5 Disks 12.8) Hz.
      Nachgiebigkeit der Aufhängung (Cms)
      0.199 mm/N
      Membranfläche (Sd)
      522.8 cm²
      Verschiebevolumen (Vd)
      1568.4 cm³
      Äquivalentvolumen (Vas)
      77.3 Liters
      Driver's Mechanical Losses (Rms)
      4.470 kg/s
      Korb- / Rahmenmaterial
      Aluminium
      Außendurchmesser
      320 mm
      Gesamttiefe
      126 mm
      Ausschnittdurchmesser
      285 mm
      Bolt Circle Diameter
      302 mm
      # Befestigungsbohrungen
      8
      Durchmesser Befestigungslochs
      6.4 mm
