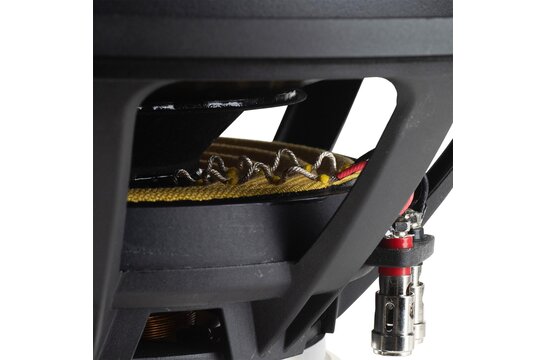

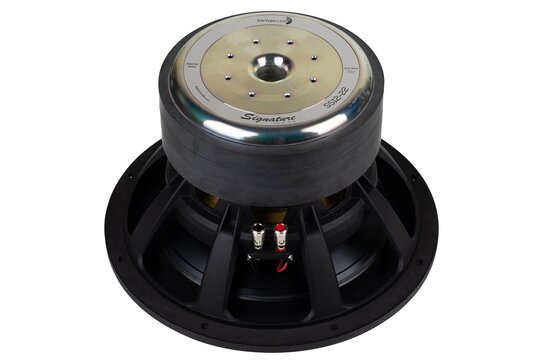

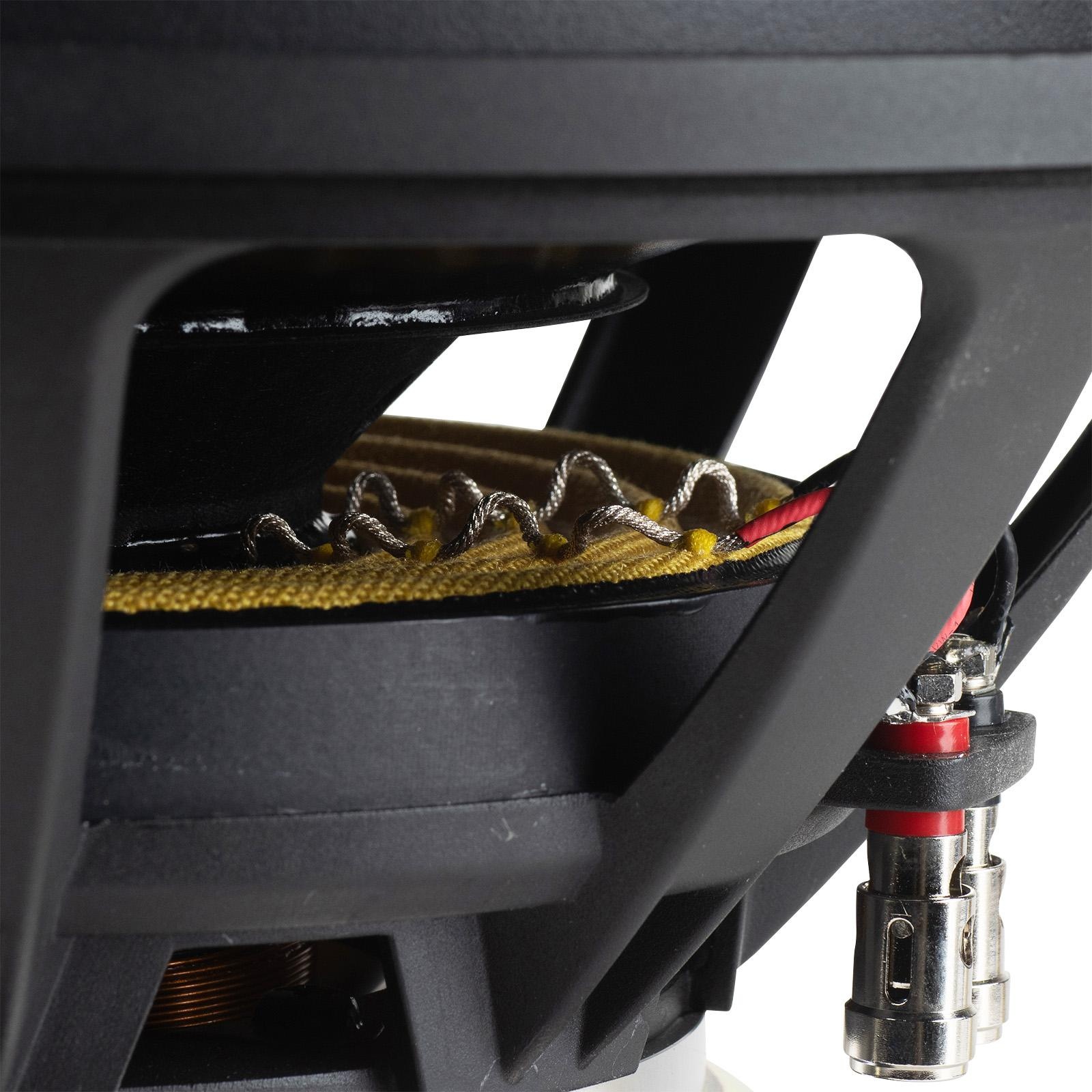

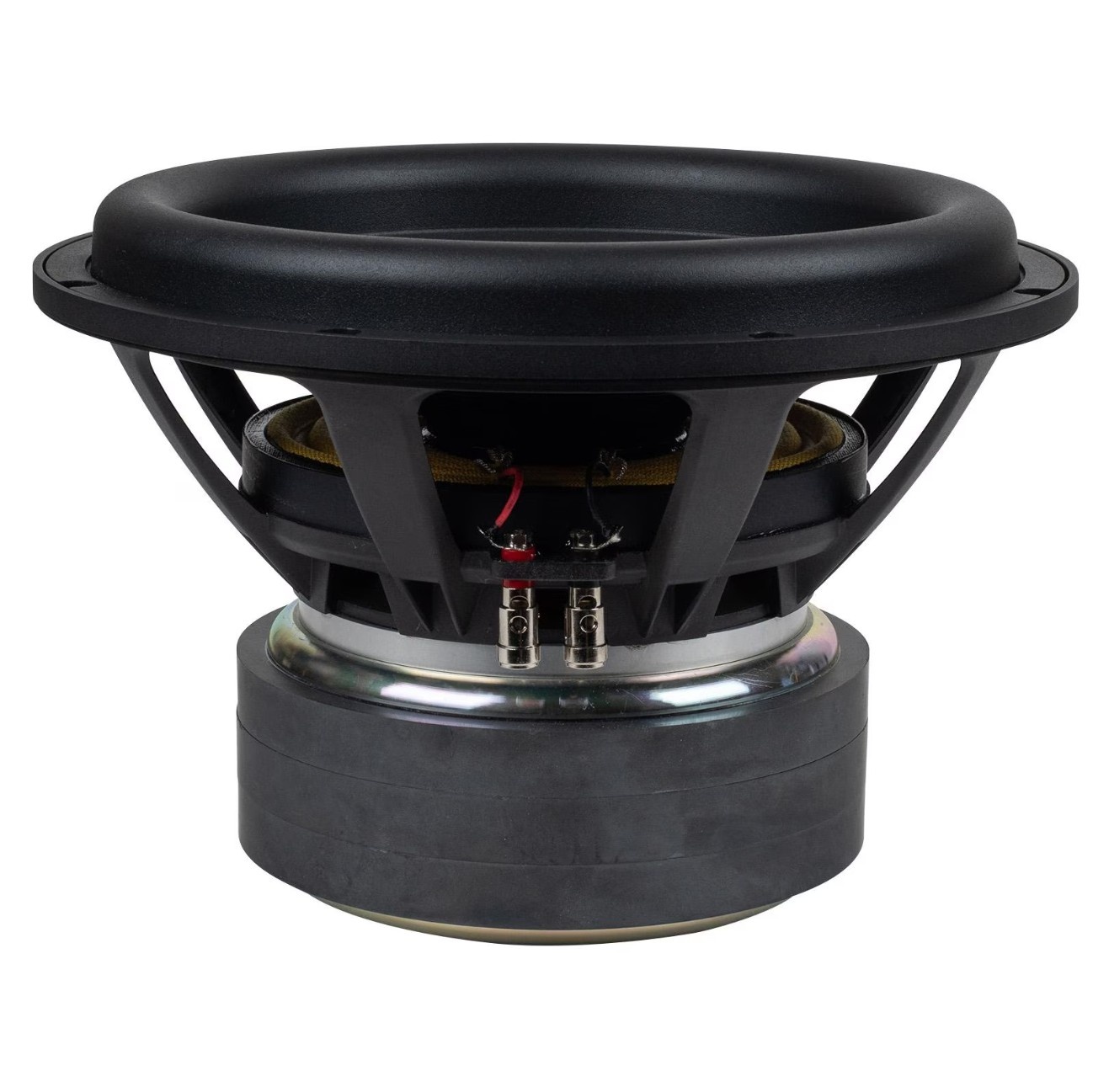

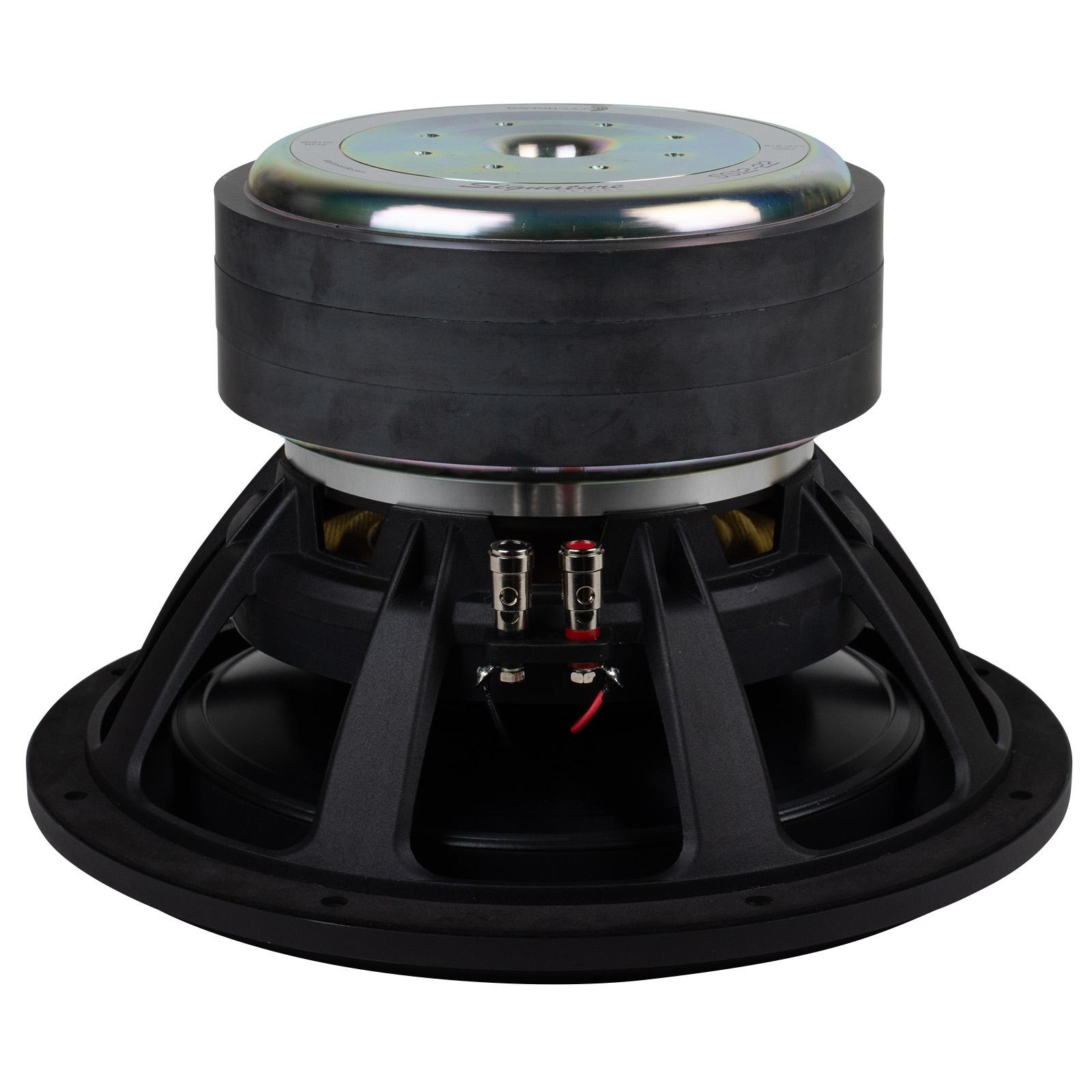

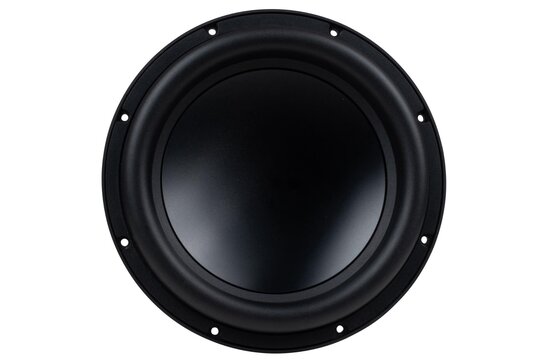

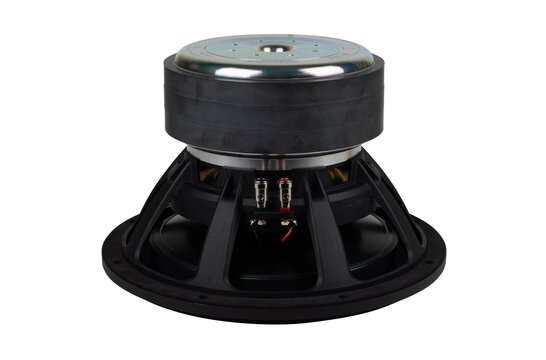

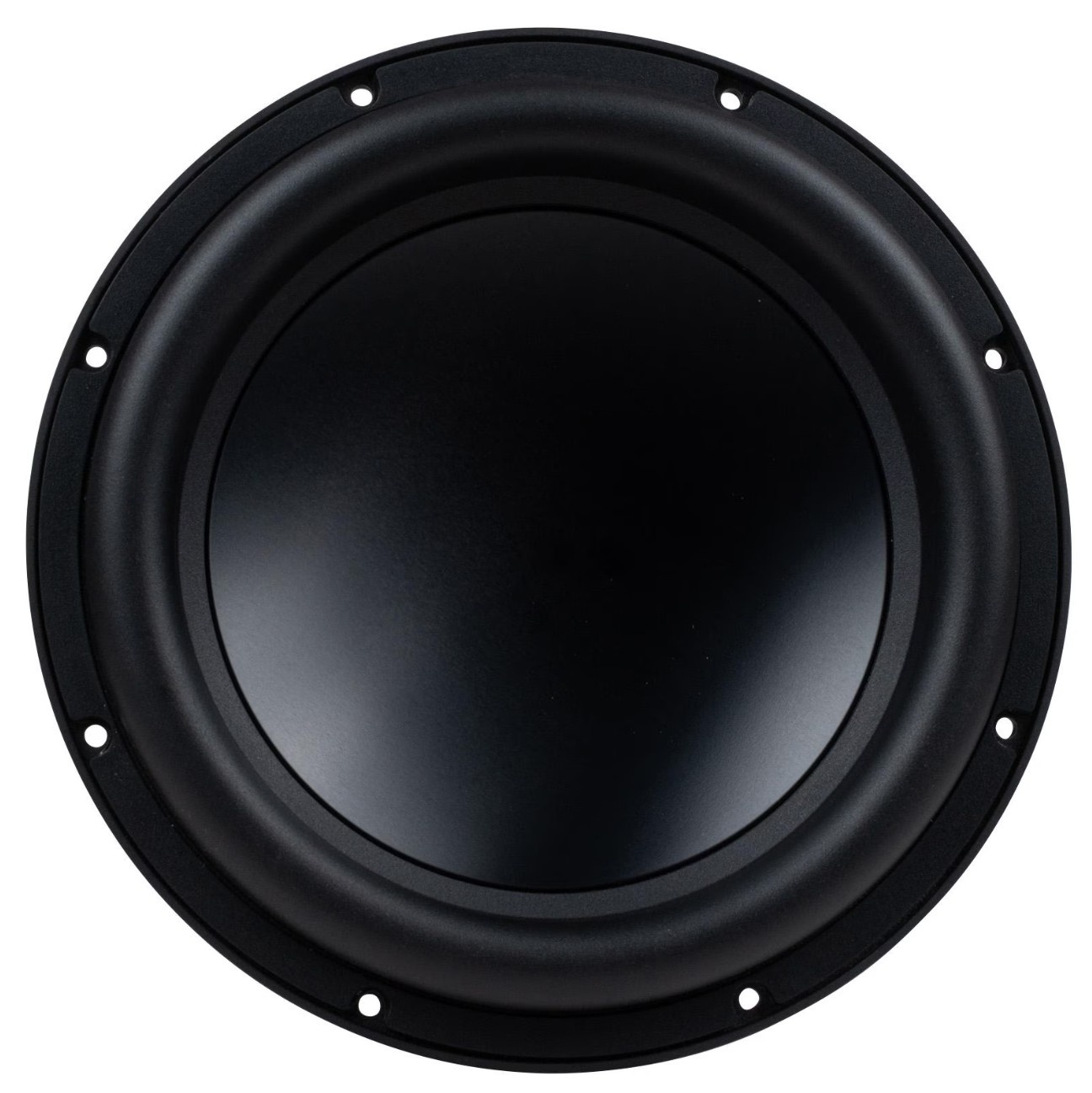

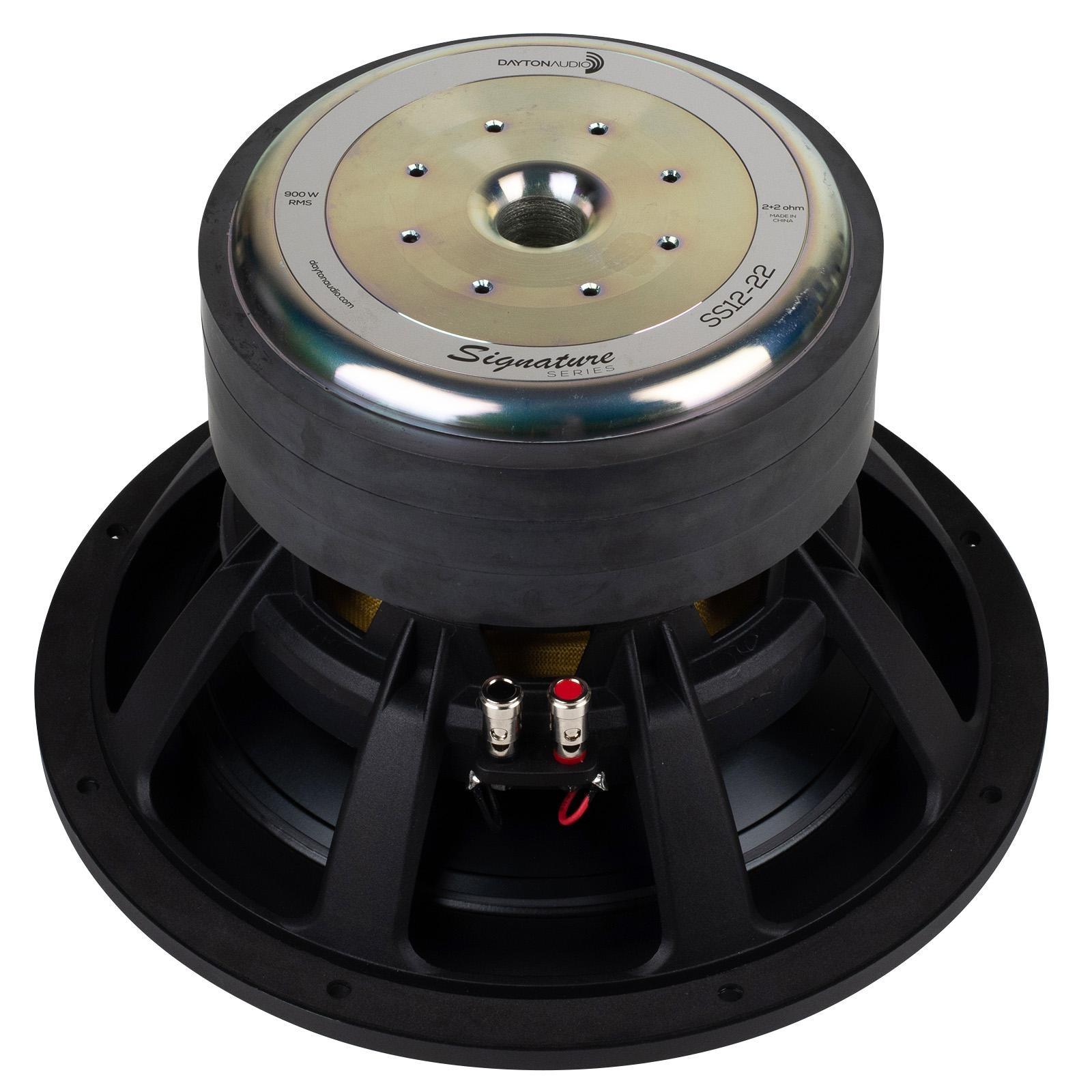

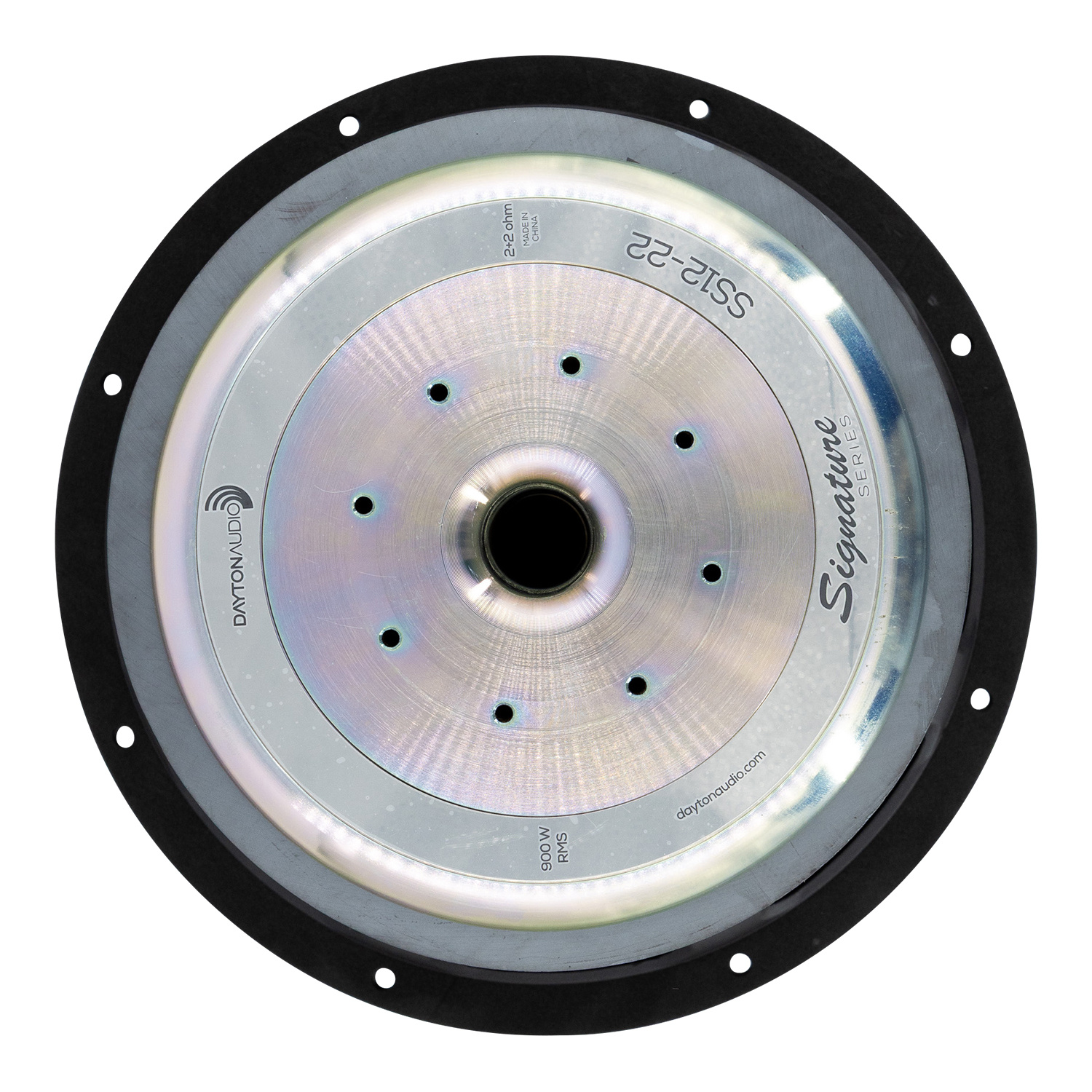

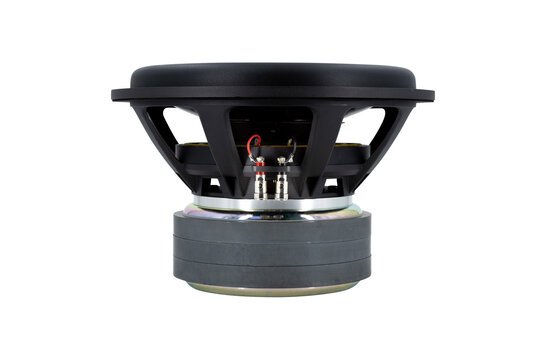

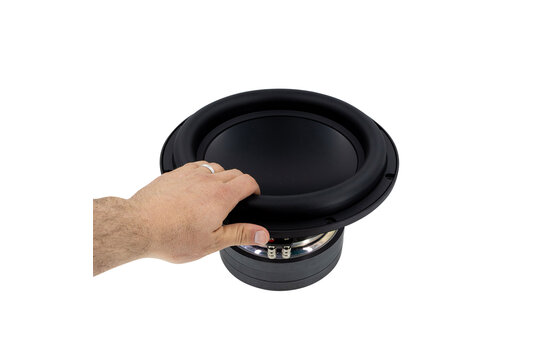

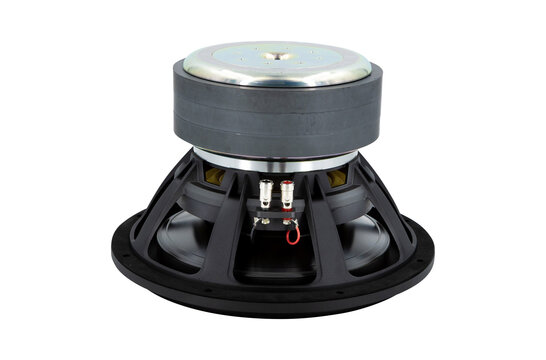

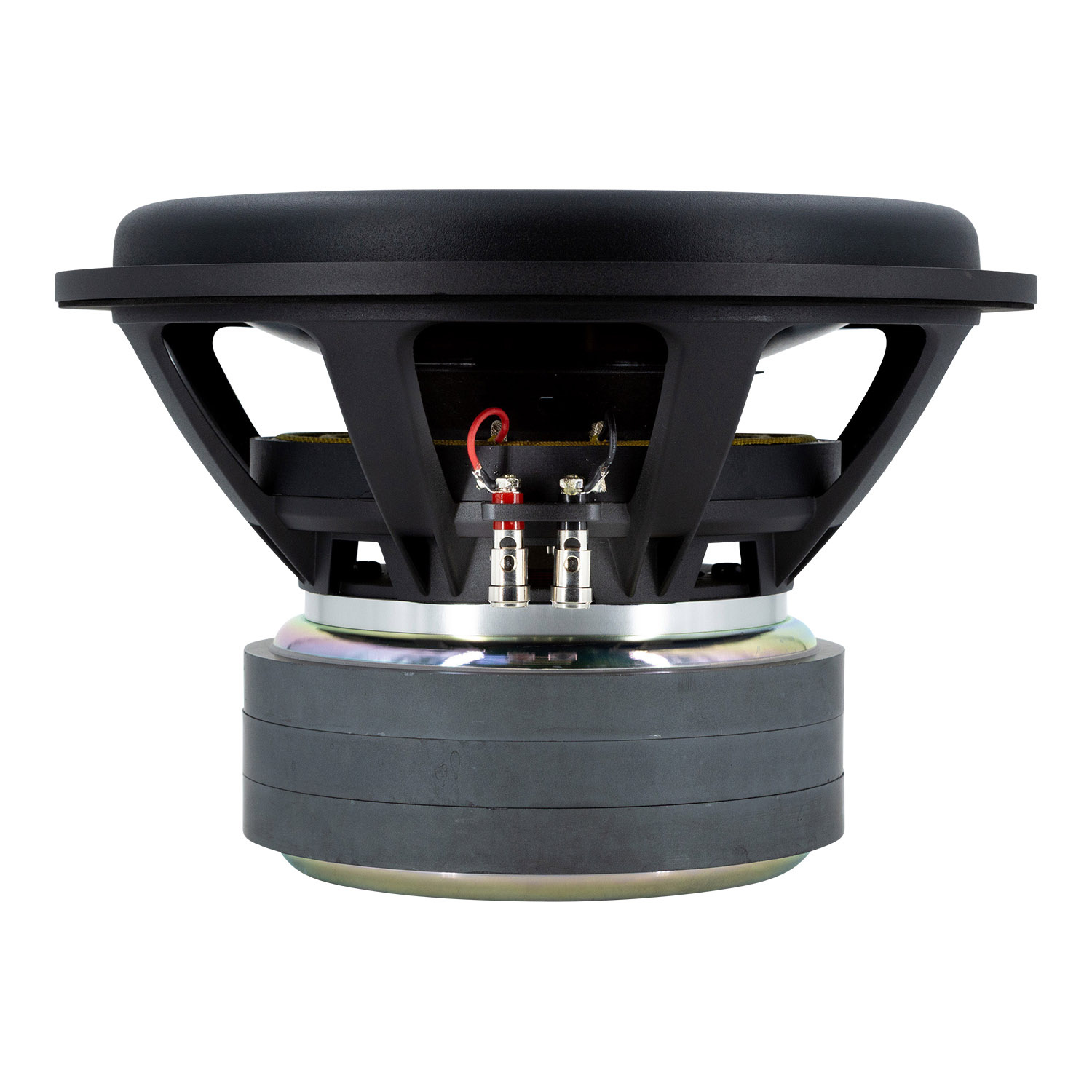

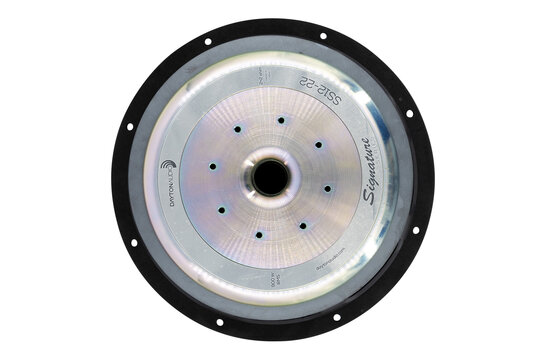

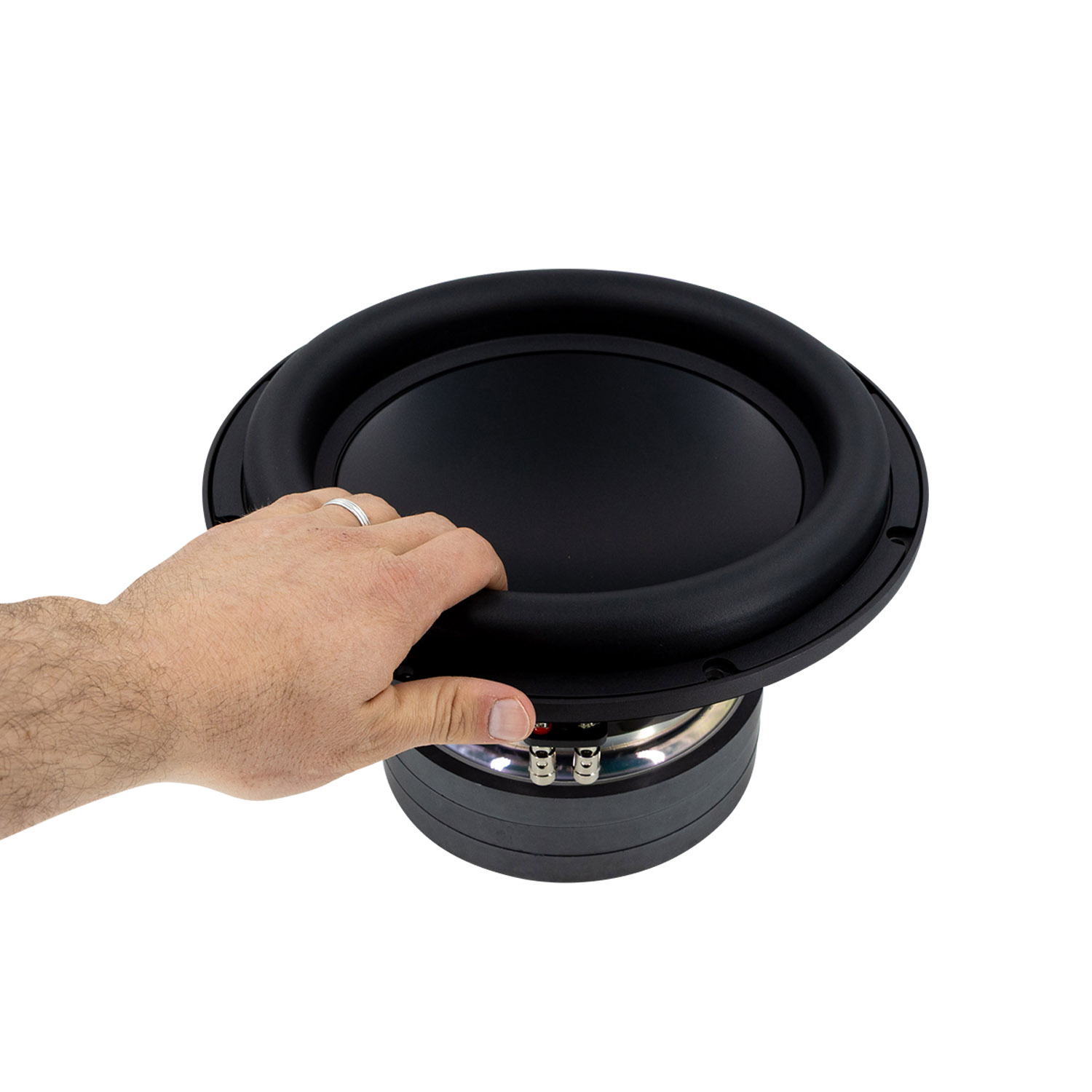

Name: Dayton Audio SS12-22 Signature Series 12" DVC Tieftöner 2 ohms Per Coil
Brand: Dayton Audio
SKU: SS12-22
Price: 349.95 EUR
Availability: BackOrder

12" | 2+2 Ω

SS12-22 Signature Series 12" DVC Tieftöner 2 ohms Per Coil

289,21 €349,95 € Nicht auf Lager10 erwartet auf 19-12-2025

Backorder

Kostenloser Versand (DE & A)
Bald wieder auf Lager
Fünf Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Dayton Audio Signature SS12-22 DVC Tieftöner

The SS12-22 is a 12" Signature Series subwoofer featuring dual 2-ohm voice coils, purpose-built for powerful low-frequency extension and extreme output. With premium materials and engineering, it offers high excursion, deep bass response, and thermal resilience—ideal for home theater, car audio, or custom subwoofer builds.

Highlights of the SS12-22 Signature Series Subwoofer

Rigid one-piece aluminum cone with rubber surround for tight and accurate bass
Massive 900W RMS power handling via a 3" 4-layer CCAW voice coil
23 mm Xmax and 24.3 Tm BL factor for deep excursion and powerful motor control
Triple shorting paths and extensive venting reduce distortion and manage heat

Product details SS12-22 Signature Series Subwoofer

The SS12-22 is the flagship 12" subwoofer in the Signature Series, engineered to deliver deep and controlled bass for demanding audio environments. With dual 2-ohm voice coils and 900W RMS power handling, it is designed to excel in both high-output and audiophile-grade setups.

Its sleek one-piece aluminum cone ensures structural rigidity under stress, while the rubber surround offers reliable excursion damping. A 3" 4-layer copper-clad aluminum wire (CCAW) voice coil is wound onto a high-temperature former, allowing the SS12-22 to handle extended high-power playback without thermal compression.

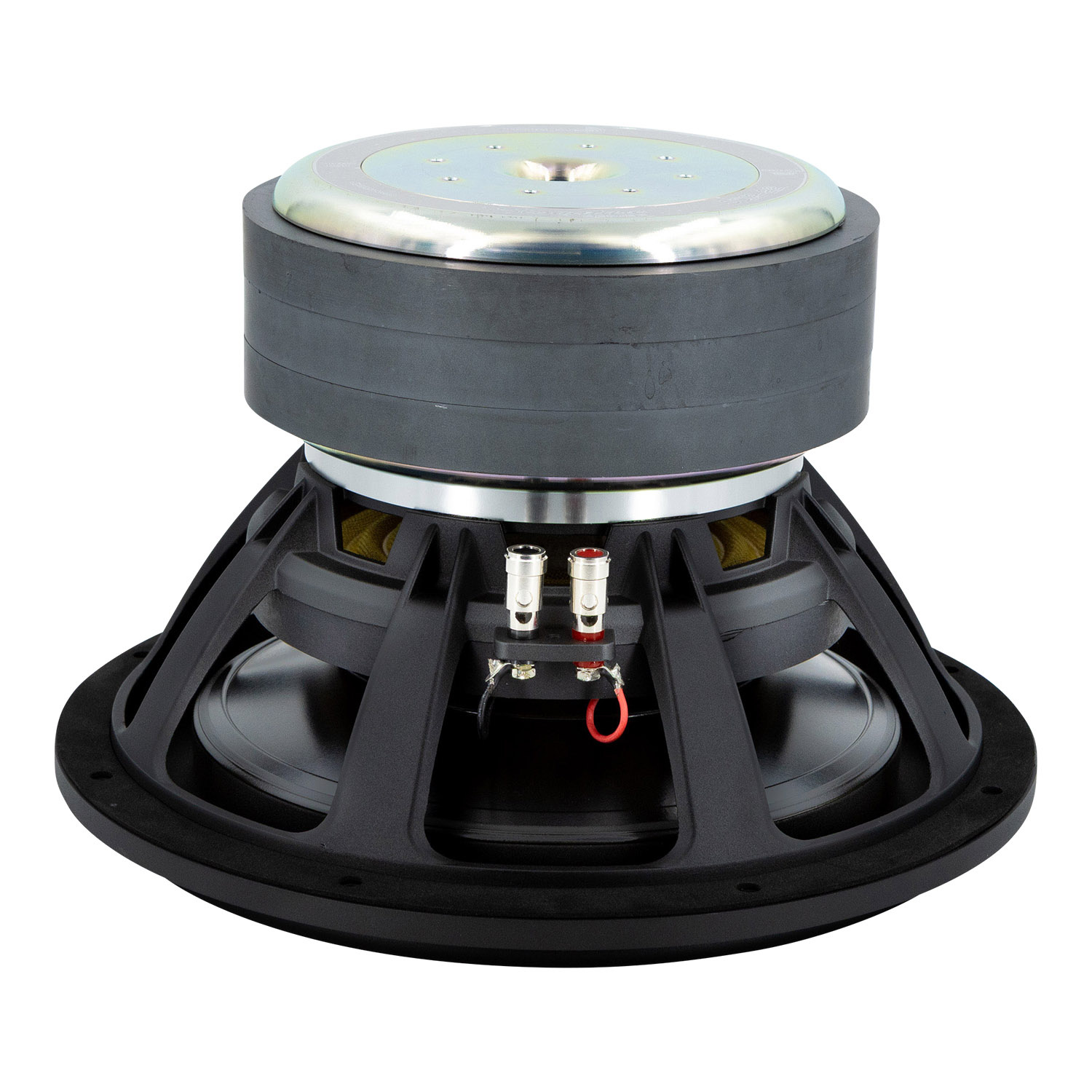

At its core, the motor assembly features a triple magnet structure and triple shorting paths, delivering a high BL factor of 24.3 Tm. The large 23 mm Xmax and massive Sd of 528 cm² allow for a peak displacement (Vd) of 1194 cm³, enabling the subwoofer to move significant air volume with authority and control. Parameters like a low Fs of 27 Hz and Qts of 0.35 make it ideal for sealed or vented enclosures where low-end extension and accuracy are required.

With a sensitivity of 88.1 dB (2.83V/1m) and a usable frequency range from 20–500 Hz, the SS12-22 provides commanding performance in dedicated bass channels, full-range systems, or multi-subwoofer configurations. It's the go-to choice for those who require deep, articulate bass in a 12" format.
