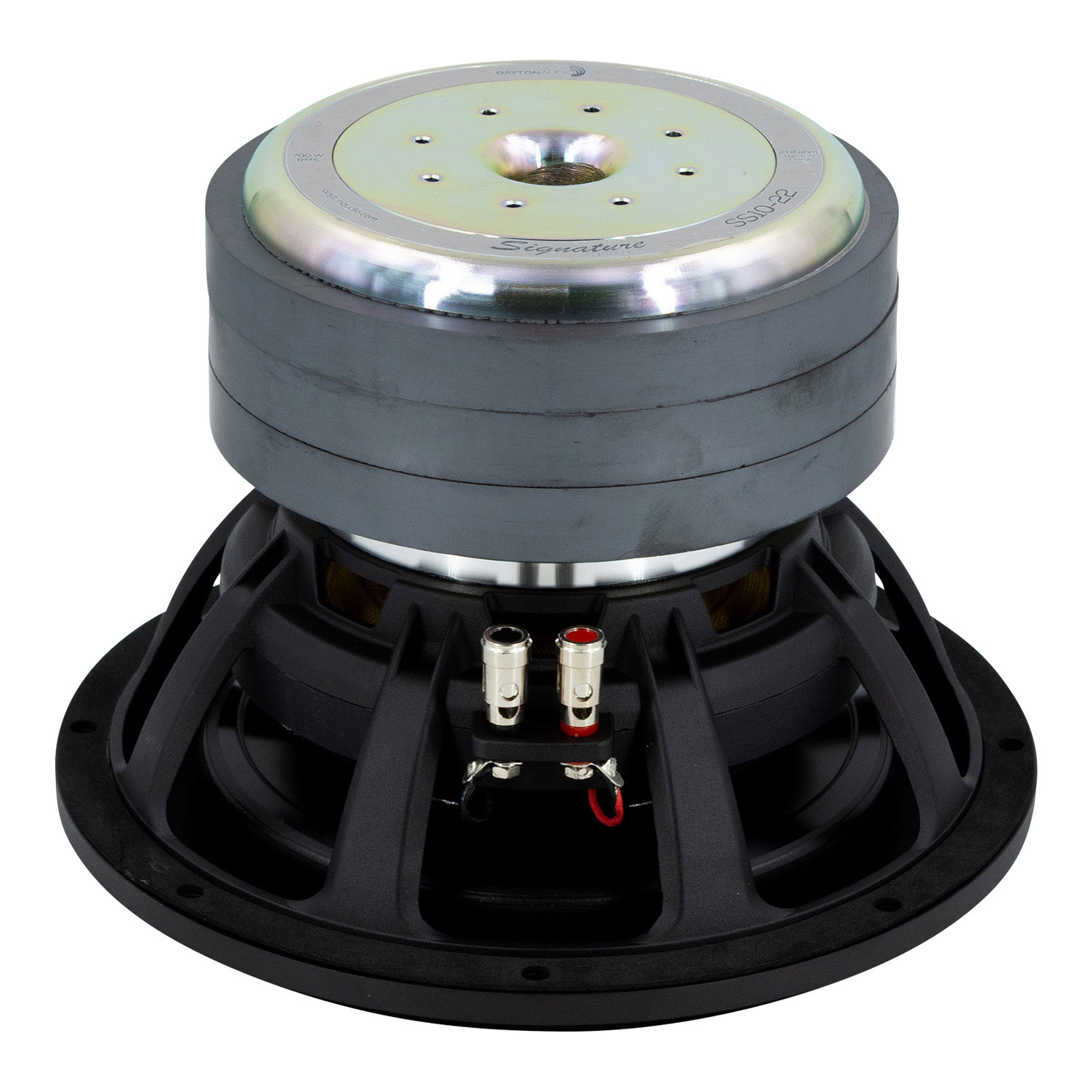

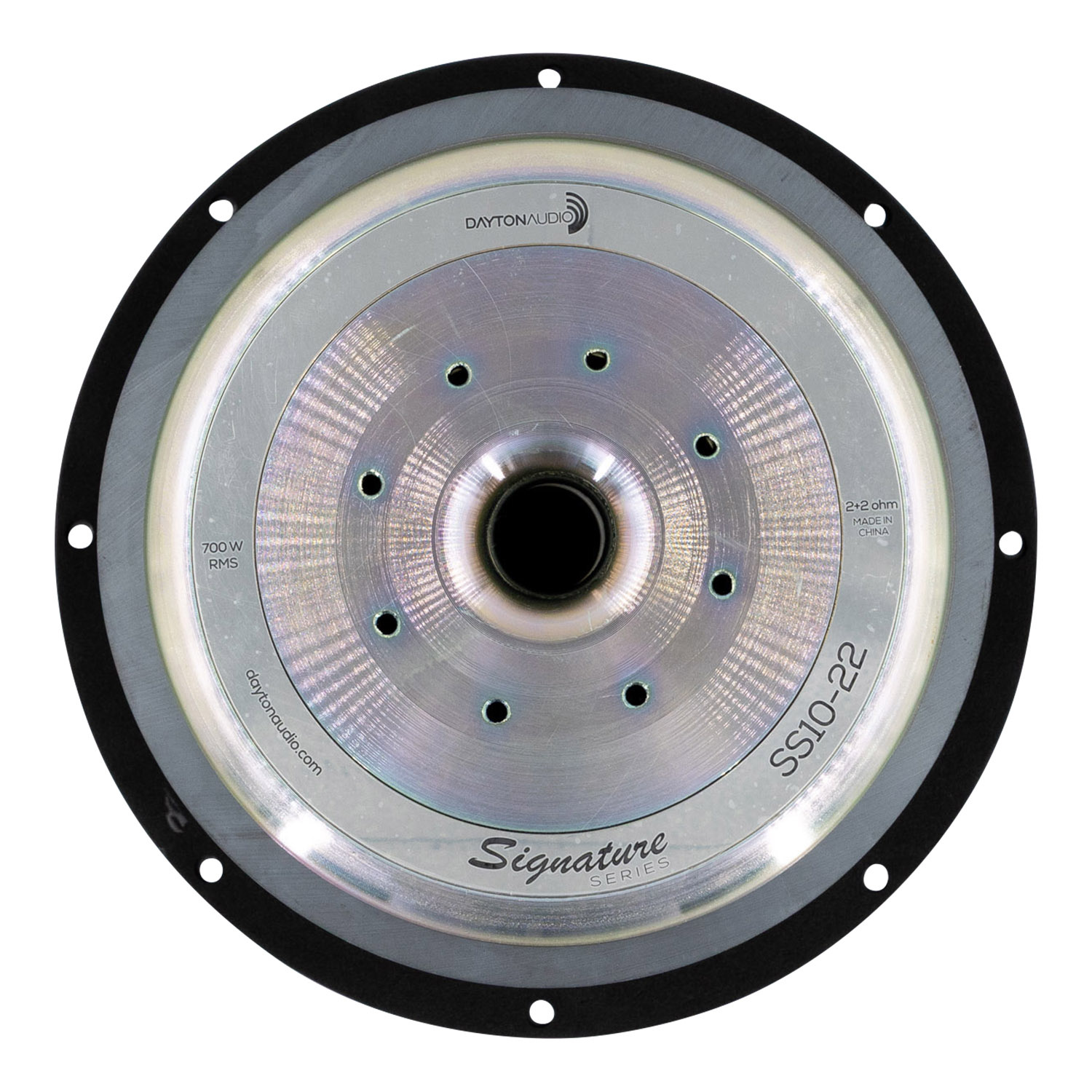

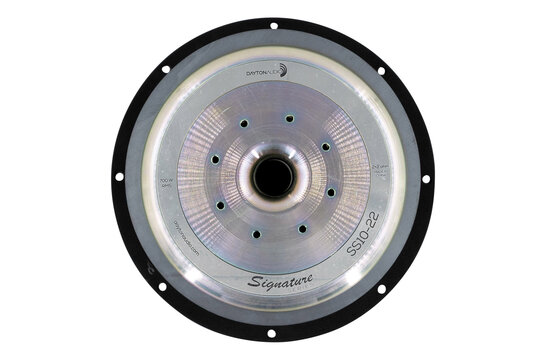

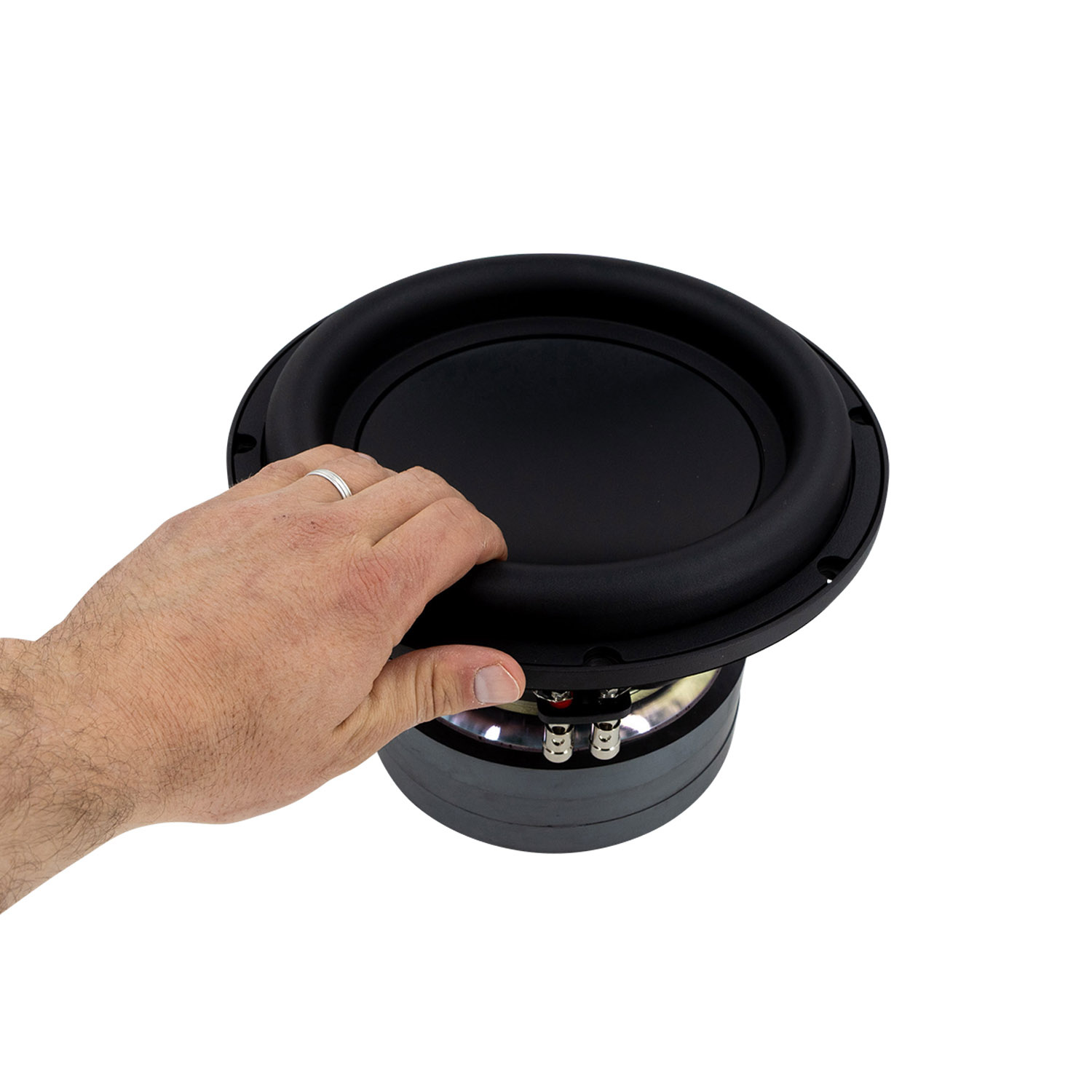

Name: Dayton Audio SS10-22 Signature Series 10" DVC Tieftöner 2 ohms Per Coil
Brand: Dayton Audio
SKU: SS10-22
Price: 279.95 EUR
Availability: BackOrder

10" | 2+2 Ω

SS10-22 Signature Series 10" DVC Tieftöner 2 ohms Per Coil

231,36 €279,95 € Nicht auf Lager6 erwartet auf 19-12-2025

Backorder

Kostenloser Versand (DE & A)
Bald wieder auf Lager
Fünf Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Dayton Audio Signature SS10-22 DVC Tieftöner

The SS10-22 is a 10" high-performance Signature Series subwoofer designed for exceptional low-frequency output in compact or medium-sized enclosures. With dual 2-ohm voice coils and advanced motor technology, it delivers tight, deep bass with minimal distortion—perfect for serious audio systems in home or mobile setups.

Highlights of the Dayton Audio SS10-22 Signature Series Subwoofer

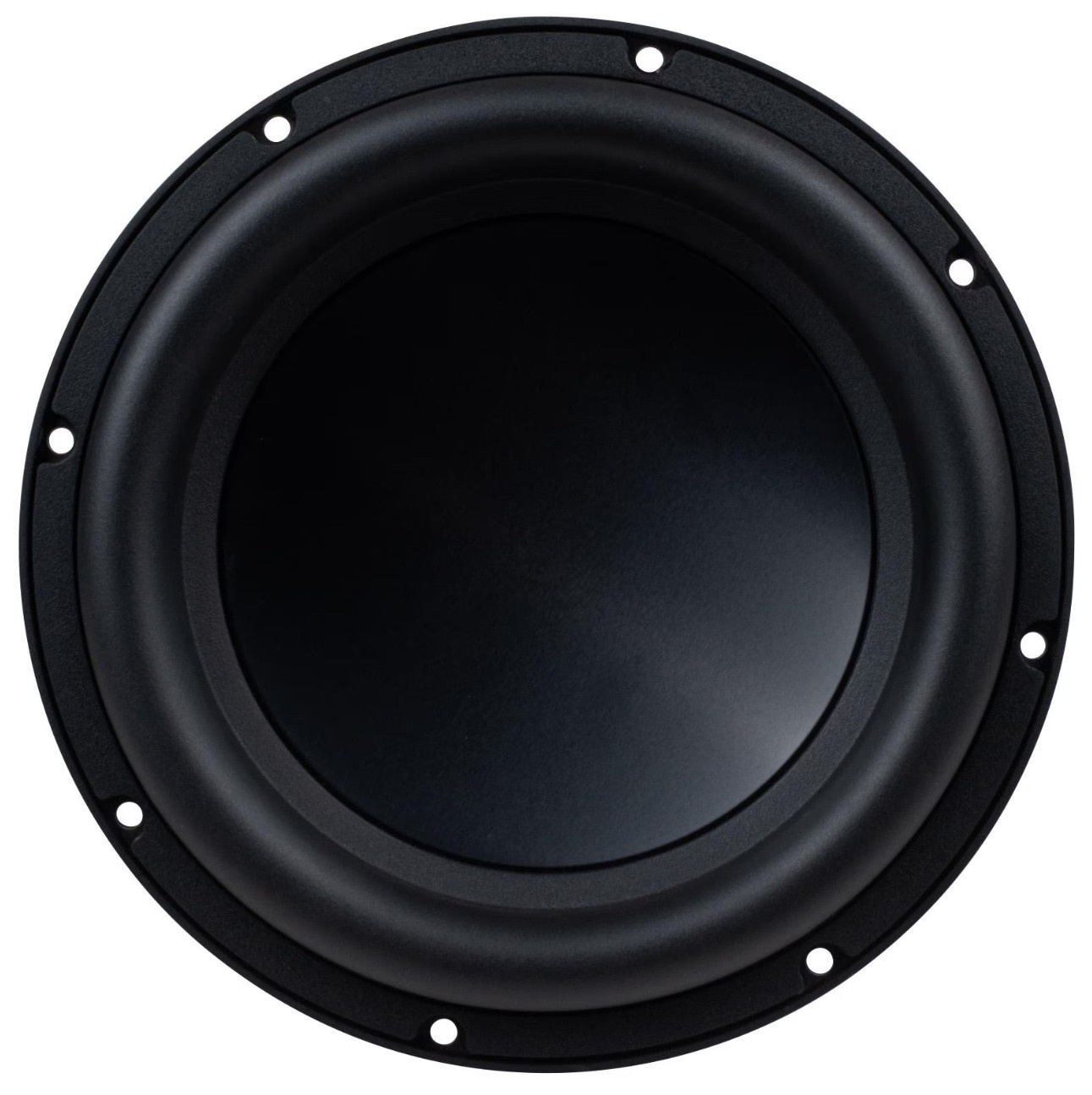

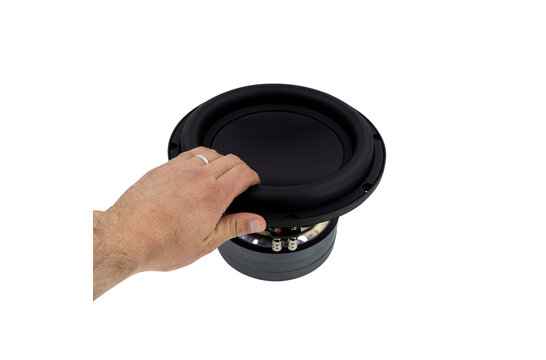

Robust one-piece aluminum cone with rubber surround for superior rigidity and damping
Massive 700W RMS power handling through a 2.5" 4-layer CCAW voice coil
21 mm Xmax and triple magnet structure ensure deep, distortion-free bass
Dual 2-ohm voice coils and extensive venting for flexible wiring and thermal efficiency

Product details SS10-22 Signature Series Subwoofer

The SS10-22 is engineered for enthusiasts demanding high-output bass in a compact 10" format. With dual 2-ohm voice coils, this subwoofer provides wiring flexibility for both mono and stereo amplifier configurations. Its stiff, one-piece aluminum cone and rubber surround deliver controlled, low-distortion bass even under heavy load.

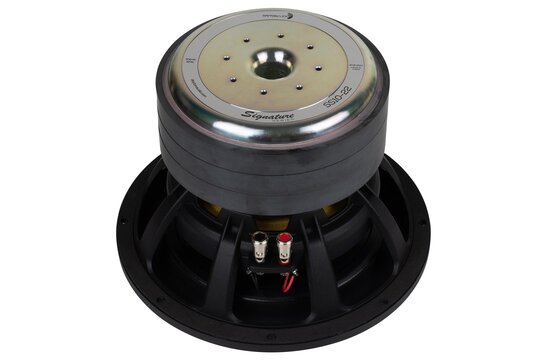

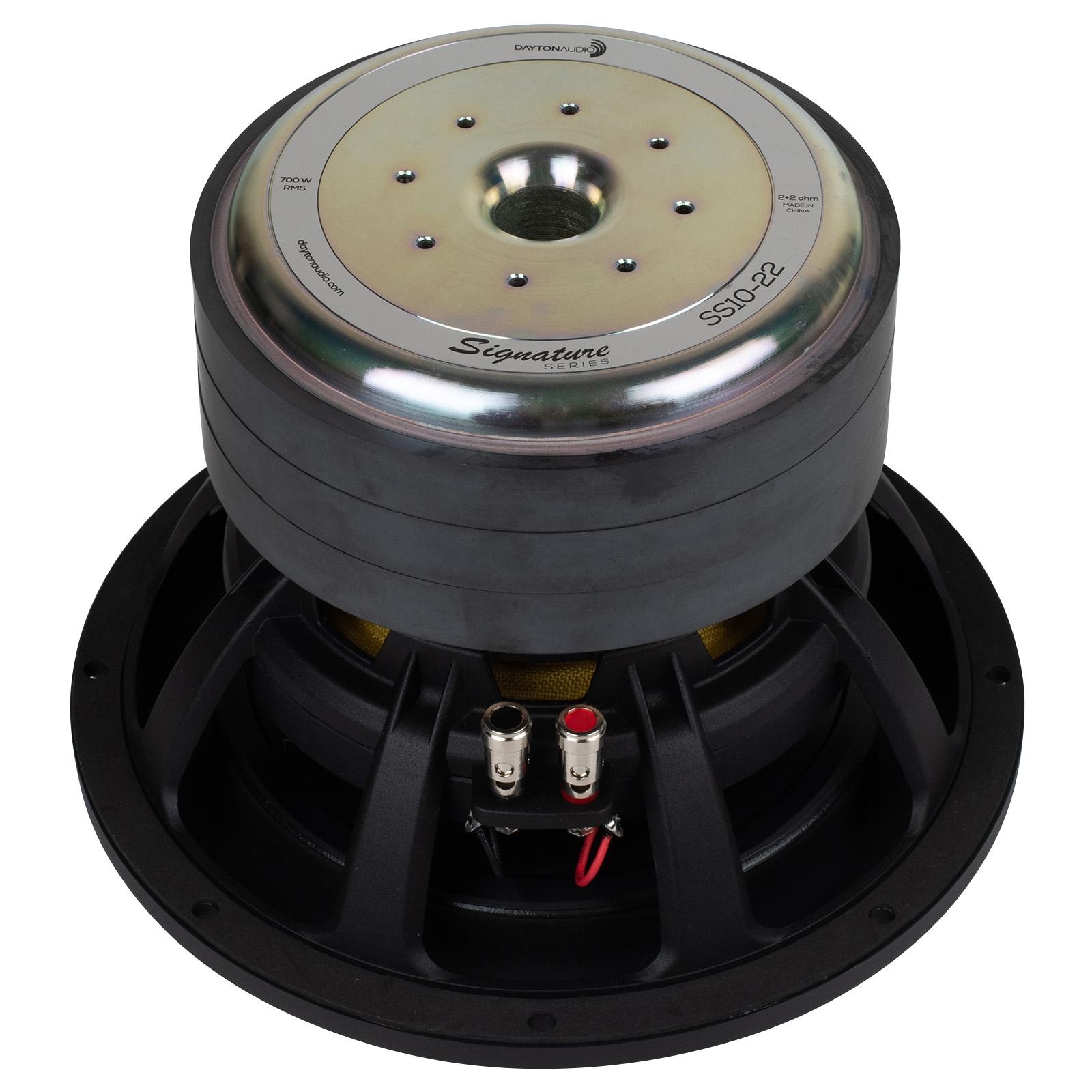

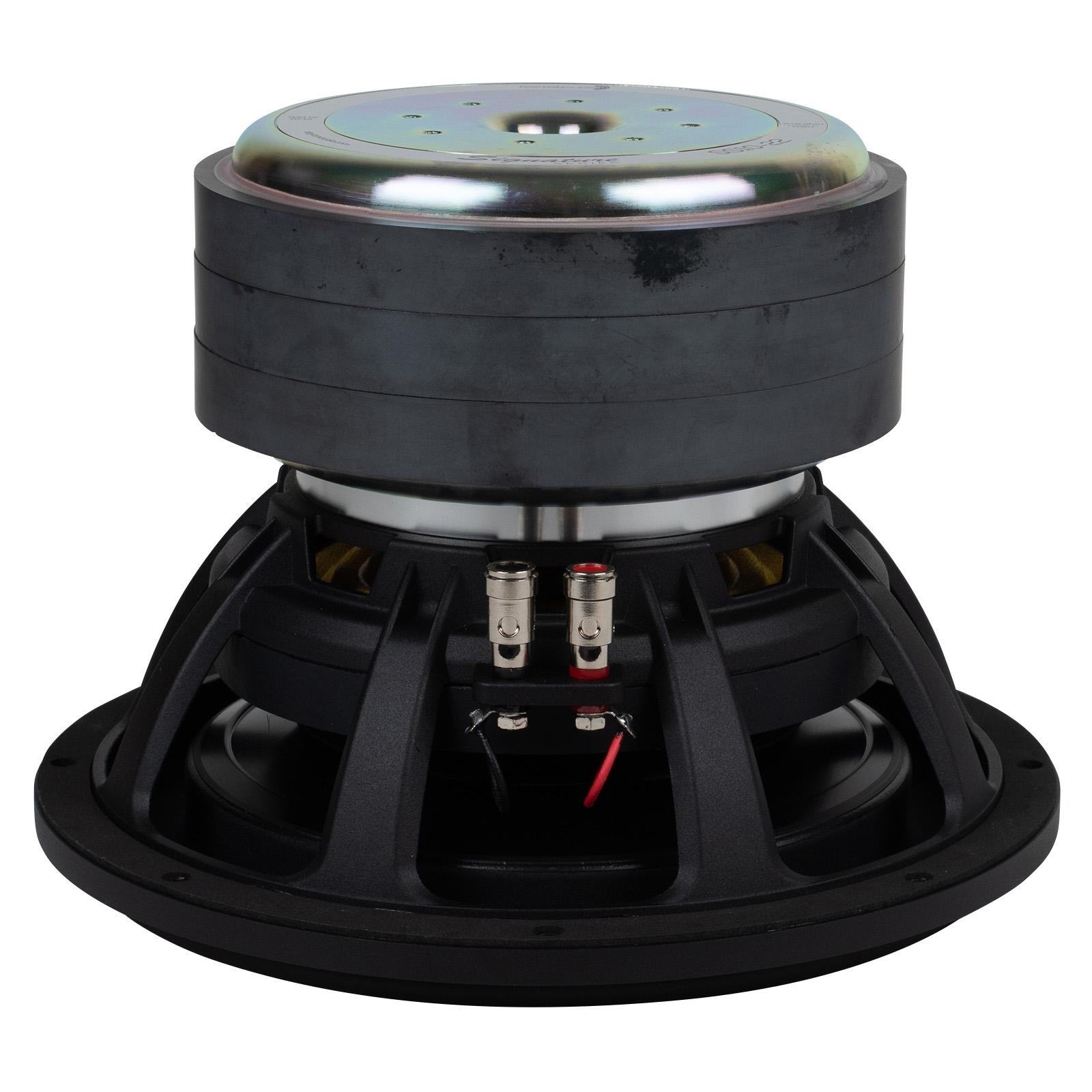

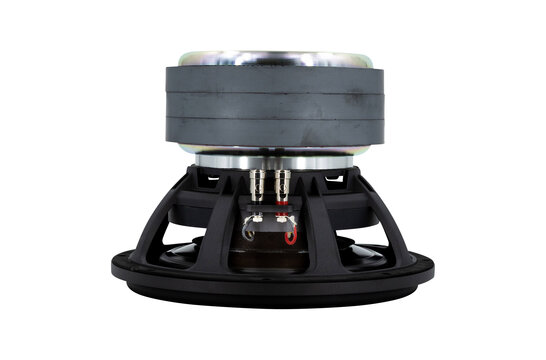

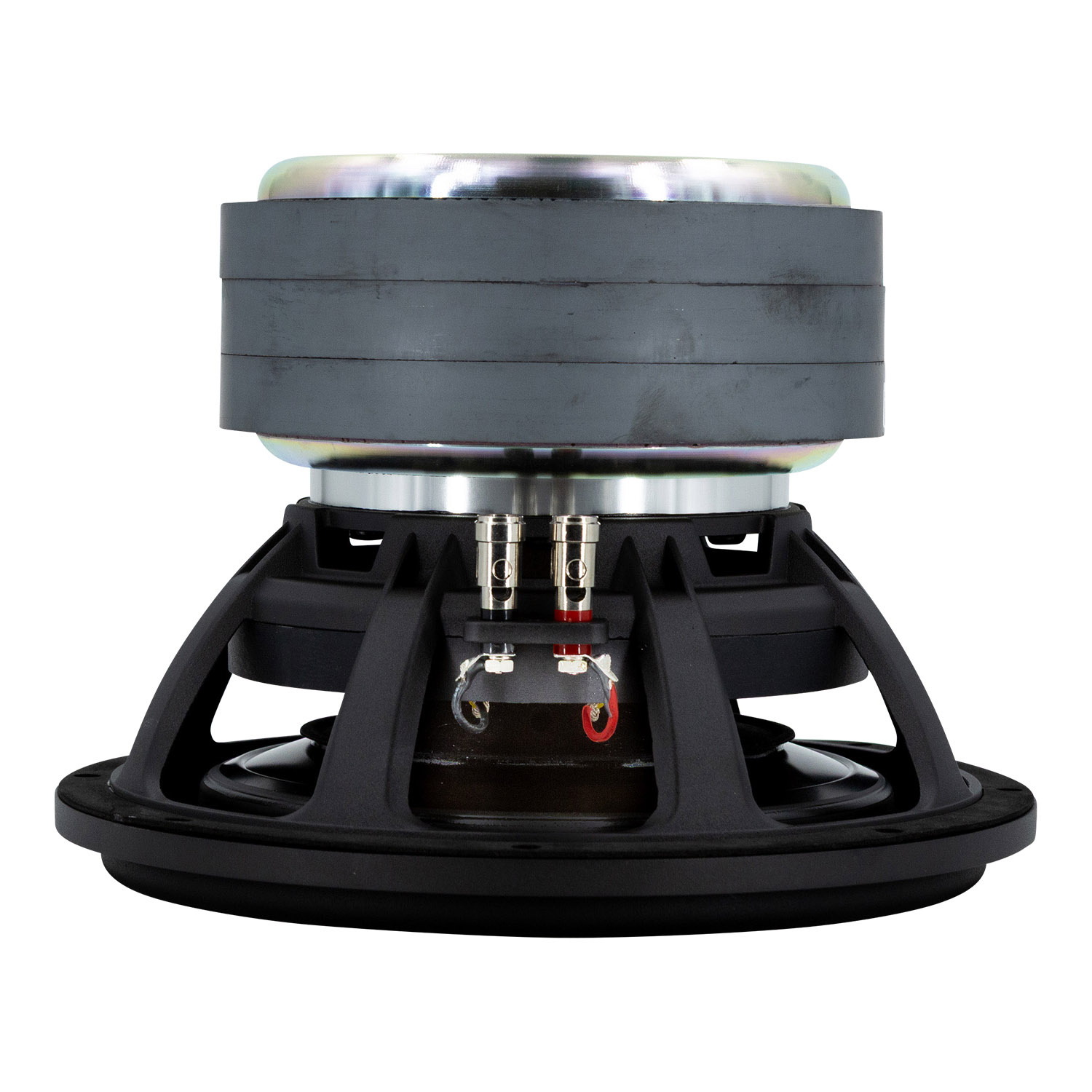

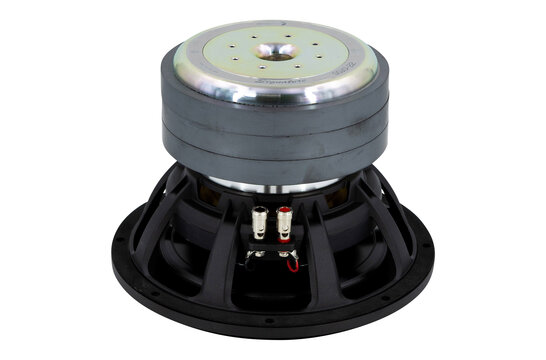

At the heart of the SS10-22 is a powerful triple-stacked magnet motor driving a long-stroke 2.5" 4-layer CCAW voice coil. The result is a massive 700 watts RMS power handling capability and an impressive Xmax of 21 mm, allowing it to displace up to 627 cm³ of air (Vd). The subwoofer’s parameters (Qts: 0.40, Fs: 34 Hz, Vas: 20.6L) support sealed or vented enclosure designs optimized for accurate low-end extension.

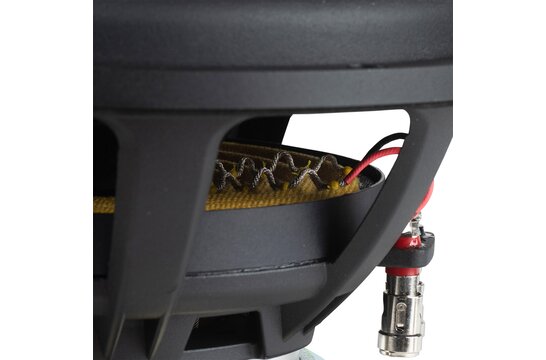

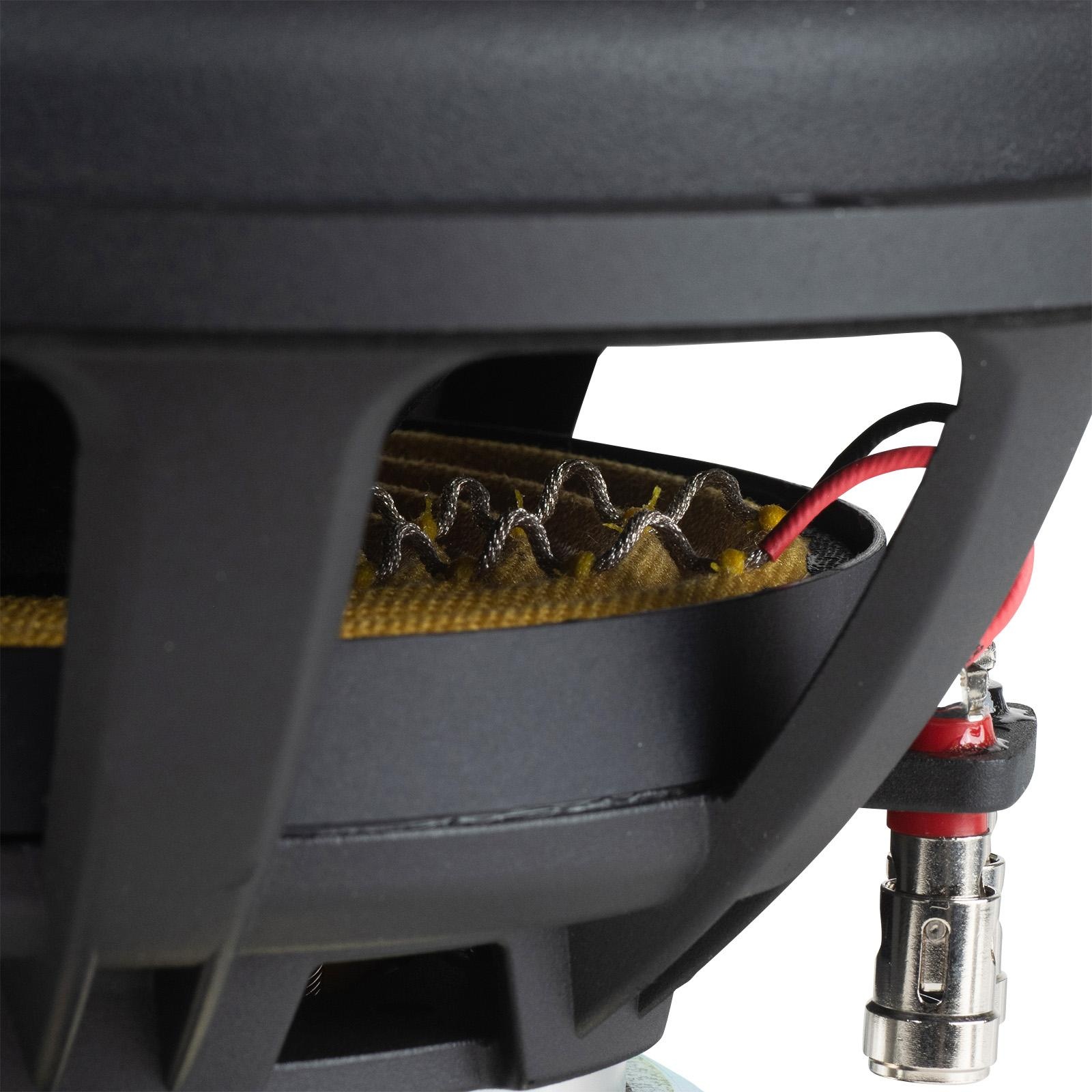

Additional highlights include triple shorting rings to reduce inductance (Le: 1.6 mH) and minimize distortion, dual spiders for mechanical stability, and extensive venting to keep the motor and voice coil cool. With a sensitivity of 87.1 dB (2.83V/1m) and a usable frequency response from 20 to 500 Hz, the SS10-22 is ideal for bass-heavy music, home theater LFE channels, or custom car audio builds that demand deep, articulate low-end.
