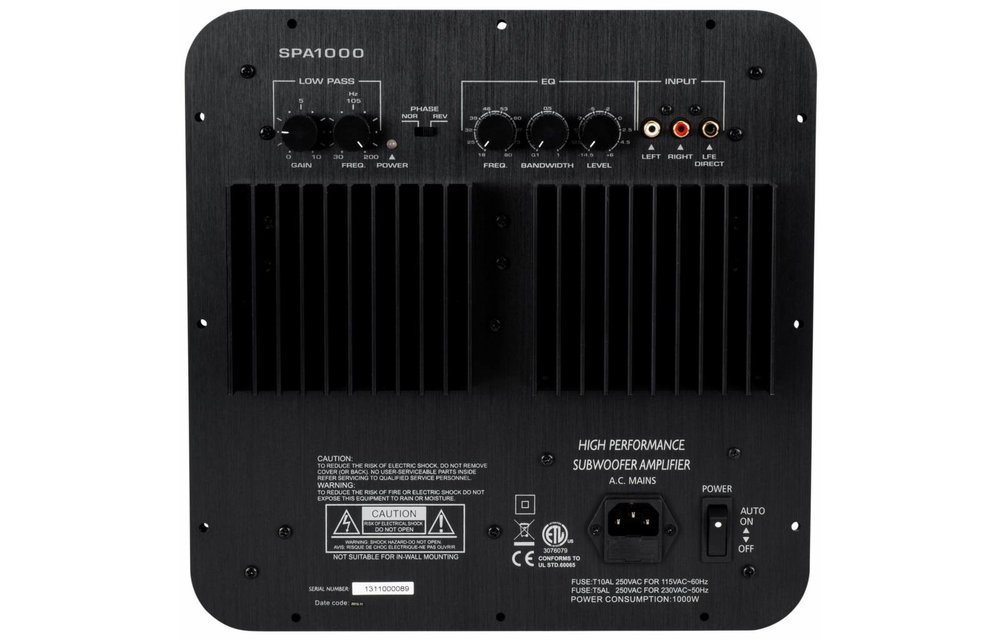

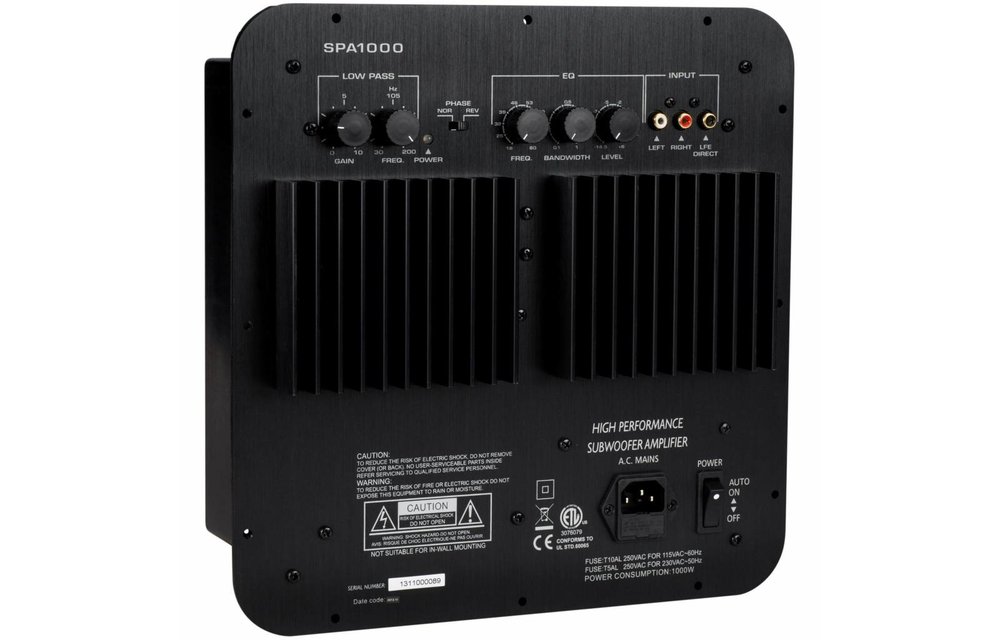

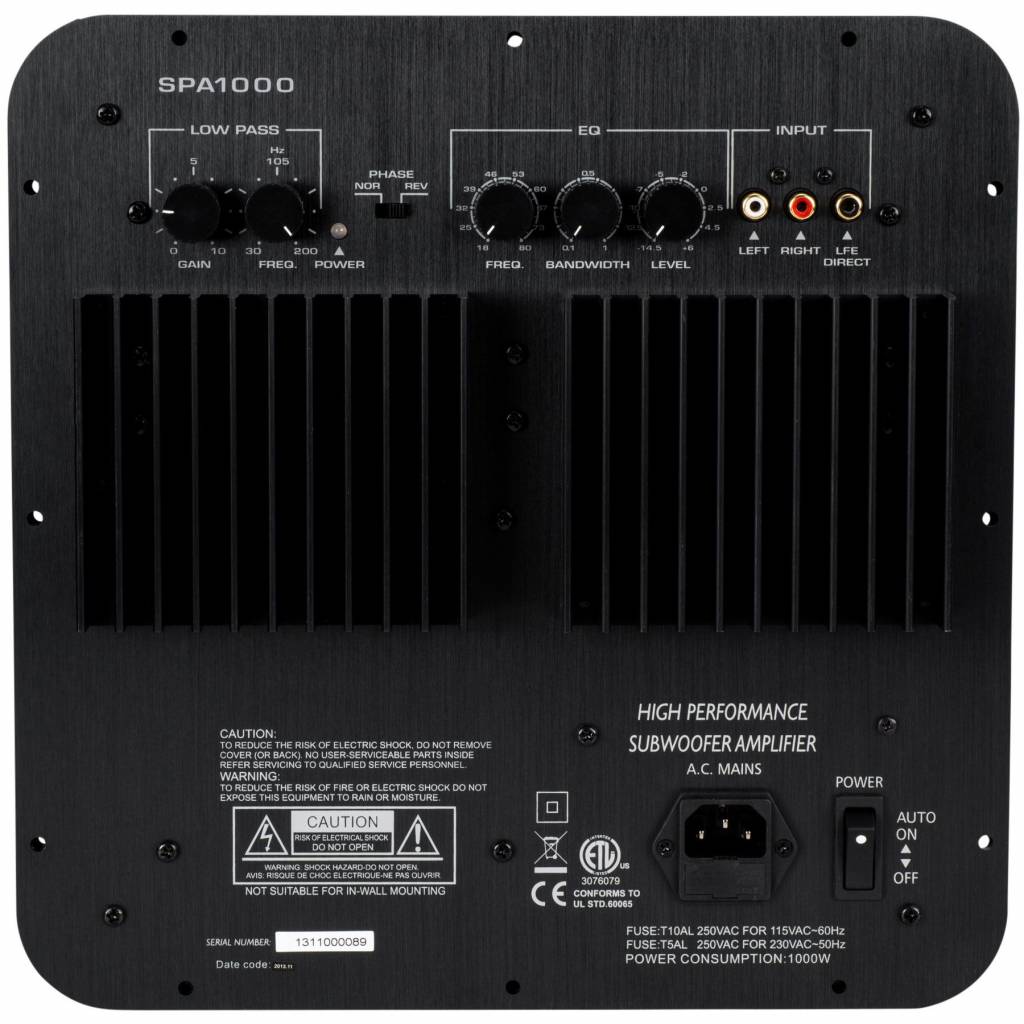

Dayton Audio SPA1000 1000W Subwoofer Plate Amplifier

€ 396,65€ 479,95 3 Auf Lager: Lieferzeit 1-3 Werktage
The Dayton Audio SPA1000 subwoofer amplifier provides nearly a kilowatt of clean, reliable audio power—just what you need to get big sound out of large, low-efficiency subwoofer speaker systems.... Mehr anzeigen
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Dayton Audio SPA1000 subwoofer amplifier provides nearly a kilowatt of clean, reliable audio power—just what you need to get big sound out of large, low-efficiency subwoofer speaker systems.



Highlights

  • High power Class-AB output stage for clean, controlled output
  • Patented tracking downconverter power supply for high efficiency

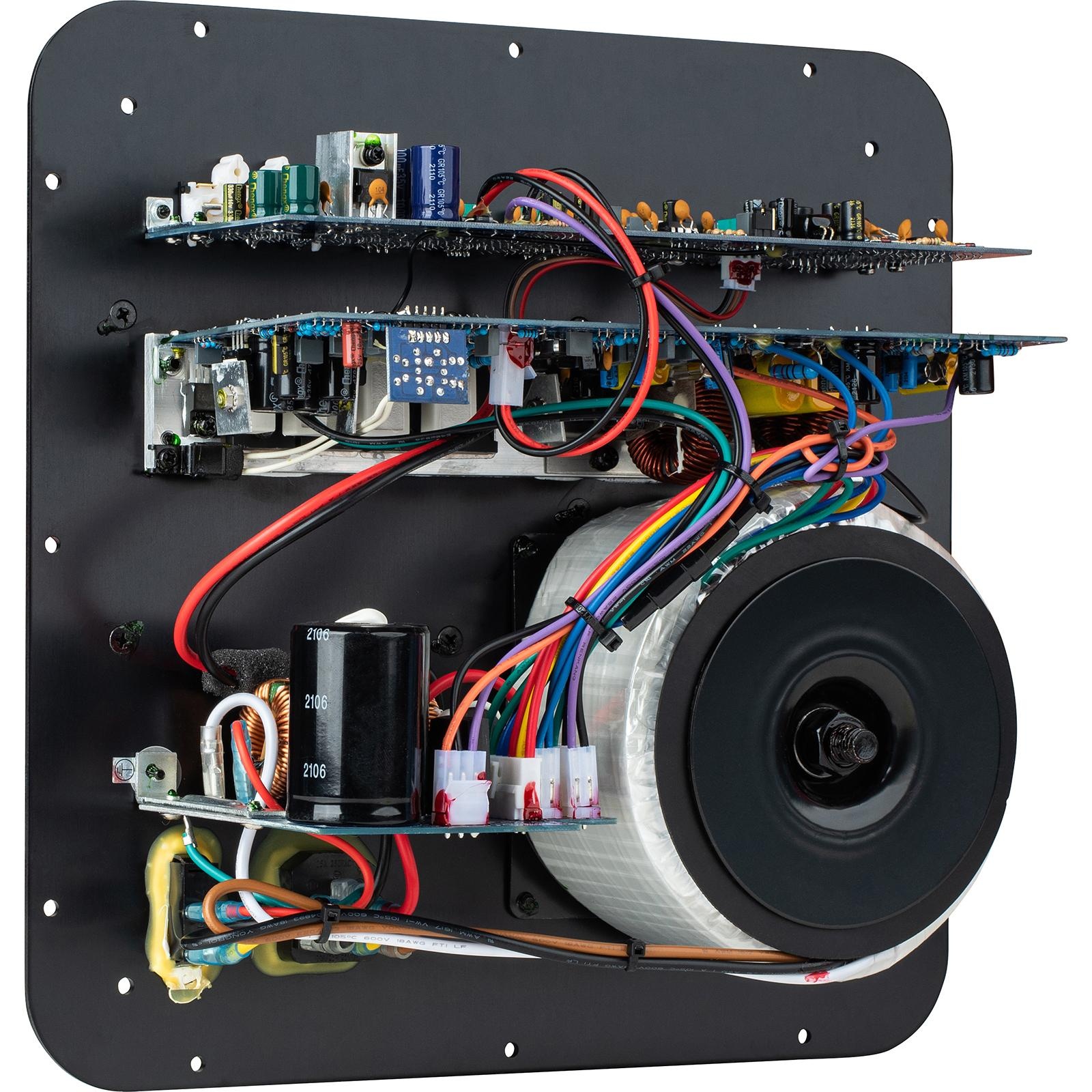

  • Toroidal power supply transformer
  • Low frequency parametric EQ allows you to boost or cut for custom-tailored sound
  • Advanced soft clip circuitry improves headroom and protects woofers
  • OTC™ (Optimized Thermal Circuit) protects your plate amplifier from potential heat damage
  • Hercules heat sinks dissipate and control heat for extreme reliability



Product details

Dayton Audio SPA1000 1000W Subwoofer Plate Amplifier



The Dayton Audio SPA1000 is one of the most technologically advanced subwoofer amplifiers on the market today! The Dayton Audio SPA1000 subwoofer amplifier is based on a state-of-the-art Class-G circuit topology that combines the proven high power, high fidelity characteristics of a Class-AB amplifier with a patented tracking down converter power supply to achieve an operating efficiency up to 86%. You get the efficiency of a Class-D amplifier without compromising audio quality and reliability. The Class-AB output stage provides the clean and low-distortion sound that audiophiles demand, without any of the instability problems that plague other high-efficiency amplifier designs.



This American-designed and engineered amplifier uses patented circuitry that continuously tracks the input signal to modulate or control the voltage available to the output stage. This "tracking" capability delivers the exact amount of power based on demand instead of constantly keeping it in reserve, so the output stage only draws the amount of power that is required at any given time. Less energy is wasted as heat, and more power is available for the subwoofer driver. With its enhanced thermal management, the SPA1000 is an upgrade over previous models—making it a nearly bulletproof amplifier choice for today's demanding HT audio and music playback applications.

Eigenschaften

Artikelnummer:
SPA1000
Rated power output

1 x 950 watts at 4 ohms
1 x 497 watts at 8 ohms

Bridged rated power output (RMS)
-
Minimum load
4 ohms
Signal-to-noise ratio (SNR)
98 dB
Distortion
0.92 % THD (at rated power)
Distortion bridged
-
Amplifier classification
Class G
Circuit topology
-
Efficiency
86 %
Frequency response
-
Input impedance
12k ohms
Input sensitivity
-
Auto turn-on sensitivity
-
DSP
-
DAC
-
Maximum sampling rate
-
Speaker output channels
1
Analog in/out
1/ -
S/PDIF in/out
-/-
AES/EBU in/out
-/-
Coaxial in/out
-/-
RCA in/out
2/ -
XLR in/out
-/-
Jack in/out
-/-
USB connection
-
Network connection
-
Bluetooth
-
Subwoofer pre-out
-
Auto on/off
check
Remote control
-
App control
-
Equalizer (EQ) adjustment
check
Equalizer (EQ) profiles
-
Phase control
check (0° or 180°)
Crossover frequency adjustment
check
Presets
-
Control software
-
Windows/Mac compatible
-/-

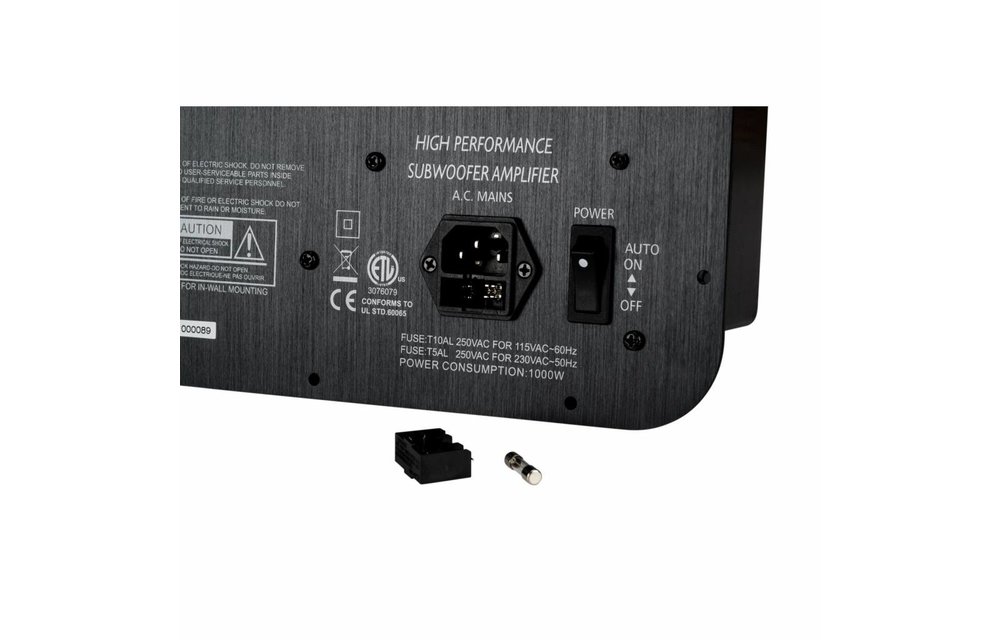

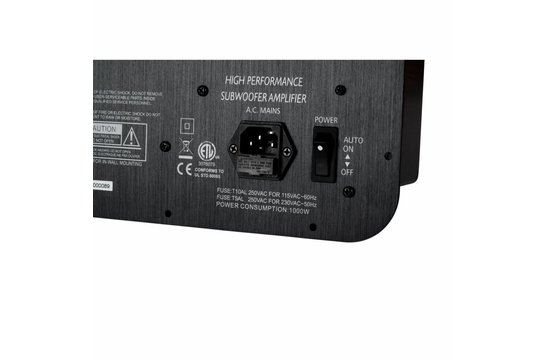

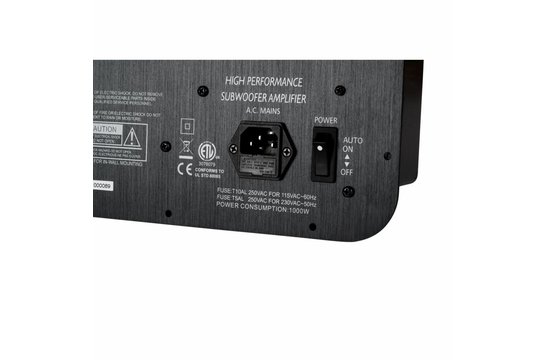

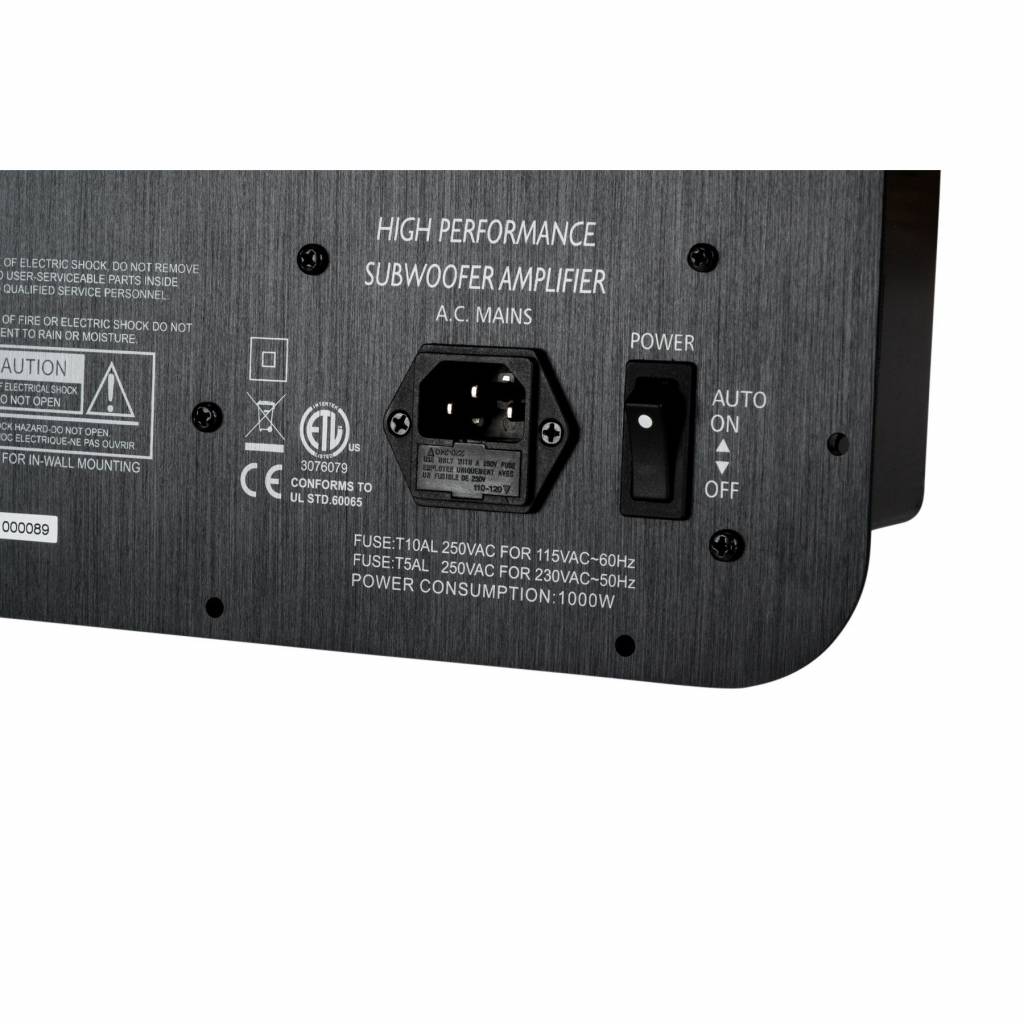

Power requirements
115 / 230 VAC
Power inlet connector
IEC C14
Standby power consumption
18.4 watts
Current limit
-
Under/over voltage protection
-
Dimensions (H x W x D)
303 x 303 x 133 mm
Cutout dimensions
254 x 254 mm

Bewertungen

5 from 5Based on 2 reviews
Produkt bewerten
5 van 5
Zeer krachtige bas. De beste subwoofer versterker ik ooit heb gekocht. Gebruikt met een 38cm "Audio system " 800W subwoofer in een volledige gesloten kist. Draait heel hard zonder moeite.
Fantastich, film ervaring en muziek geluid.
Durch Dennis O. on 7 August 2019
5 van 5
Good product
Durch Csaba H. on 16 Januar 2019
