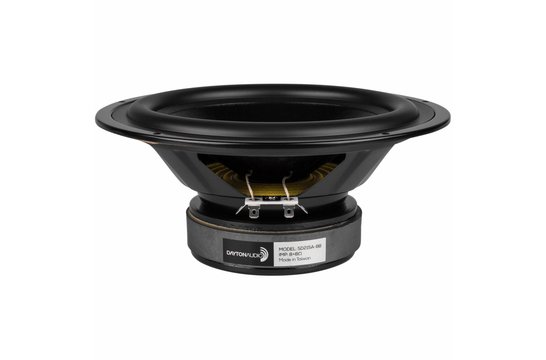

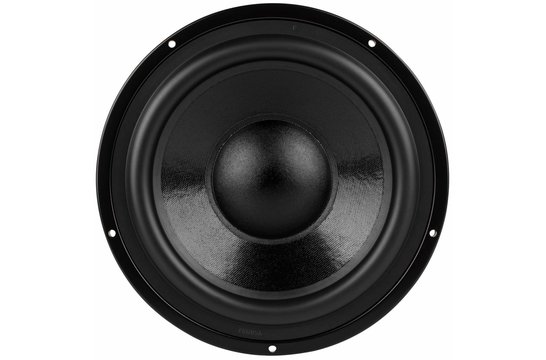

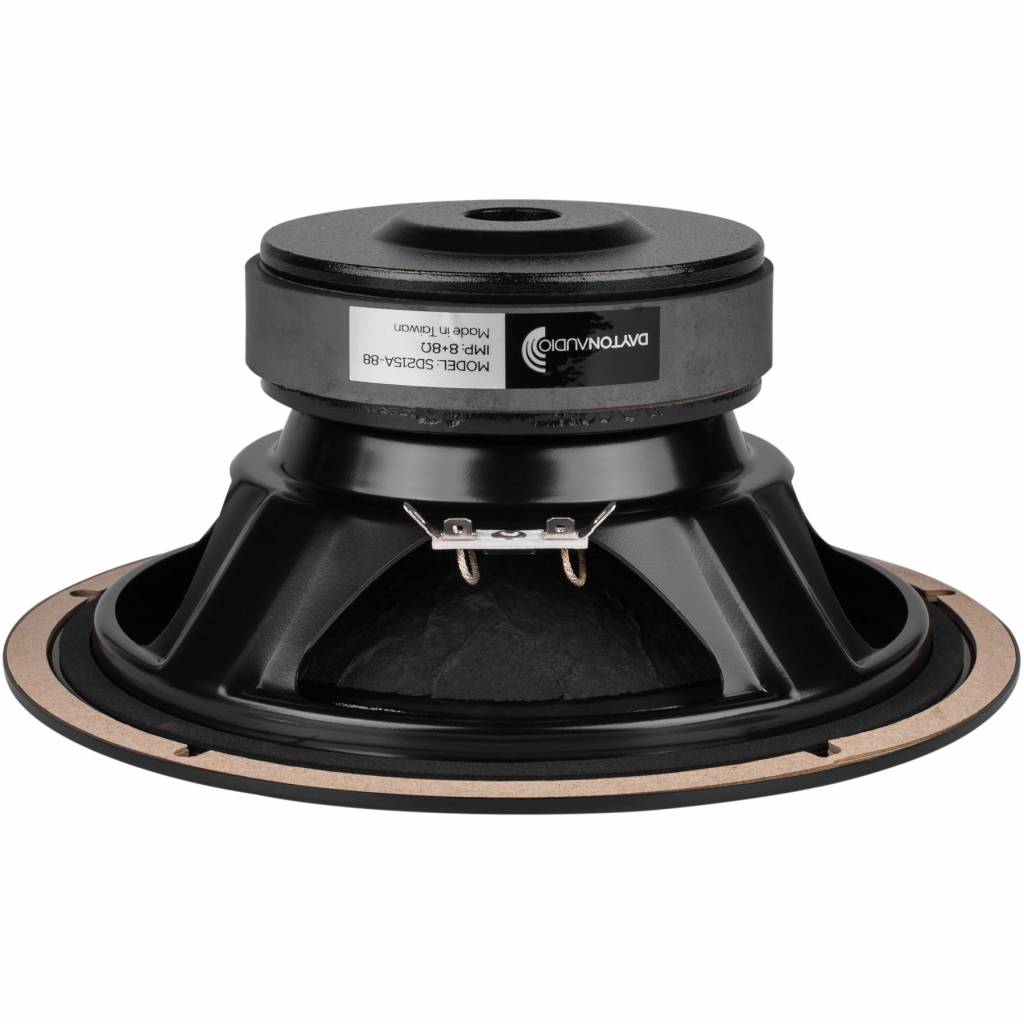

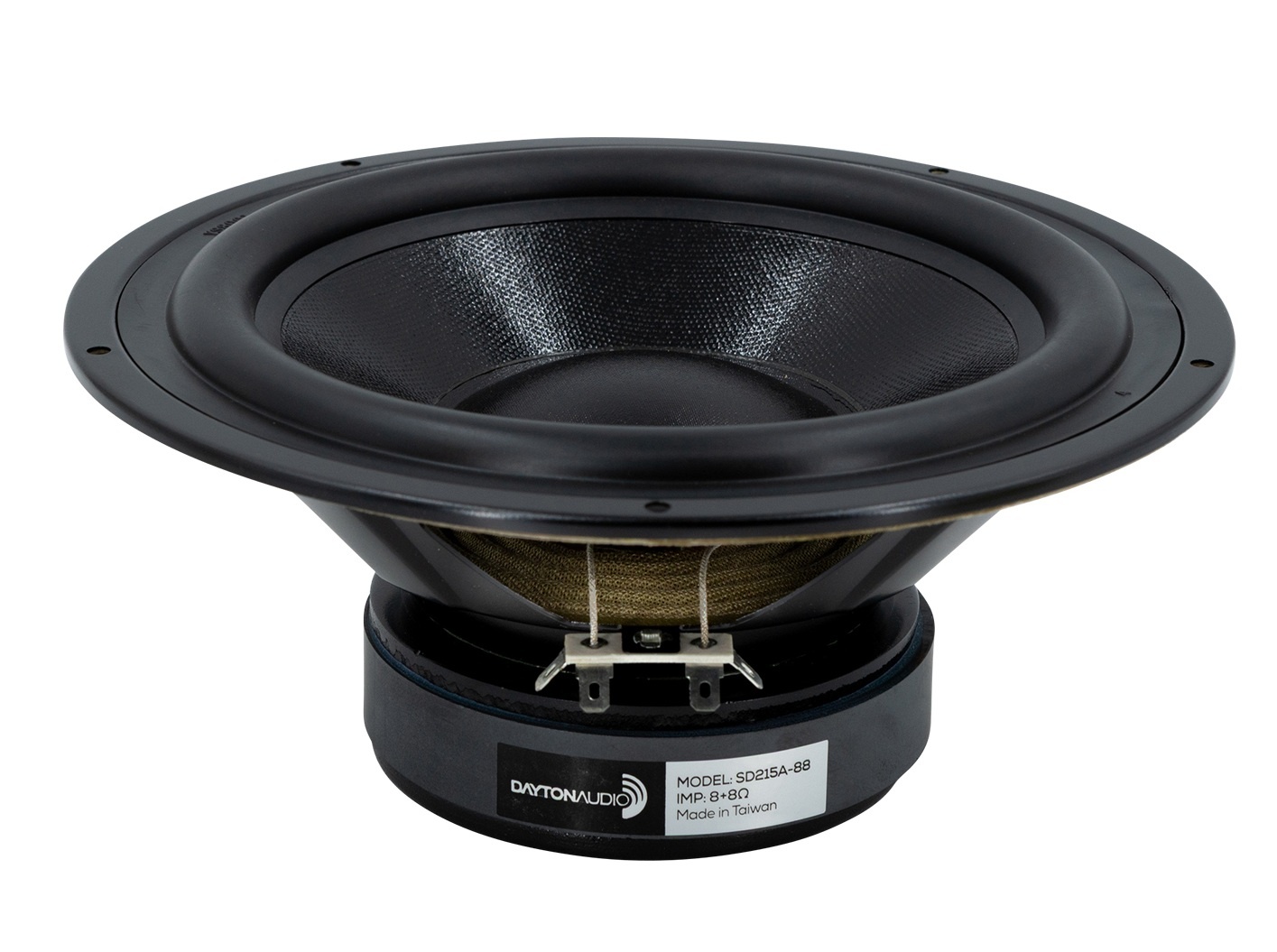

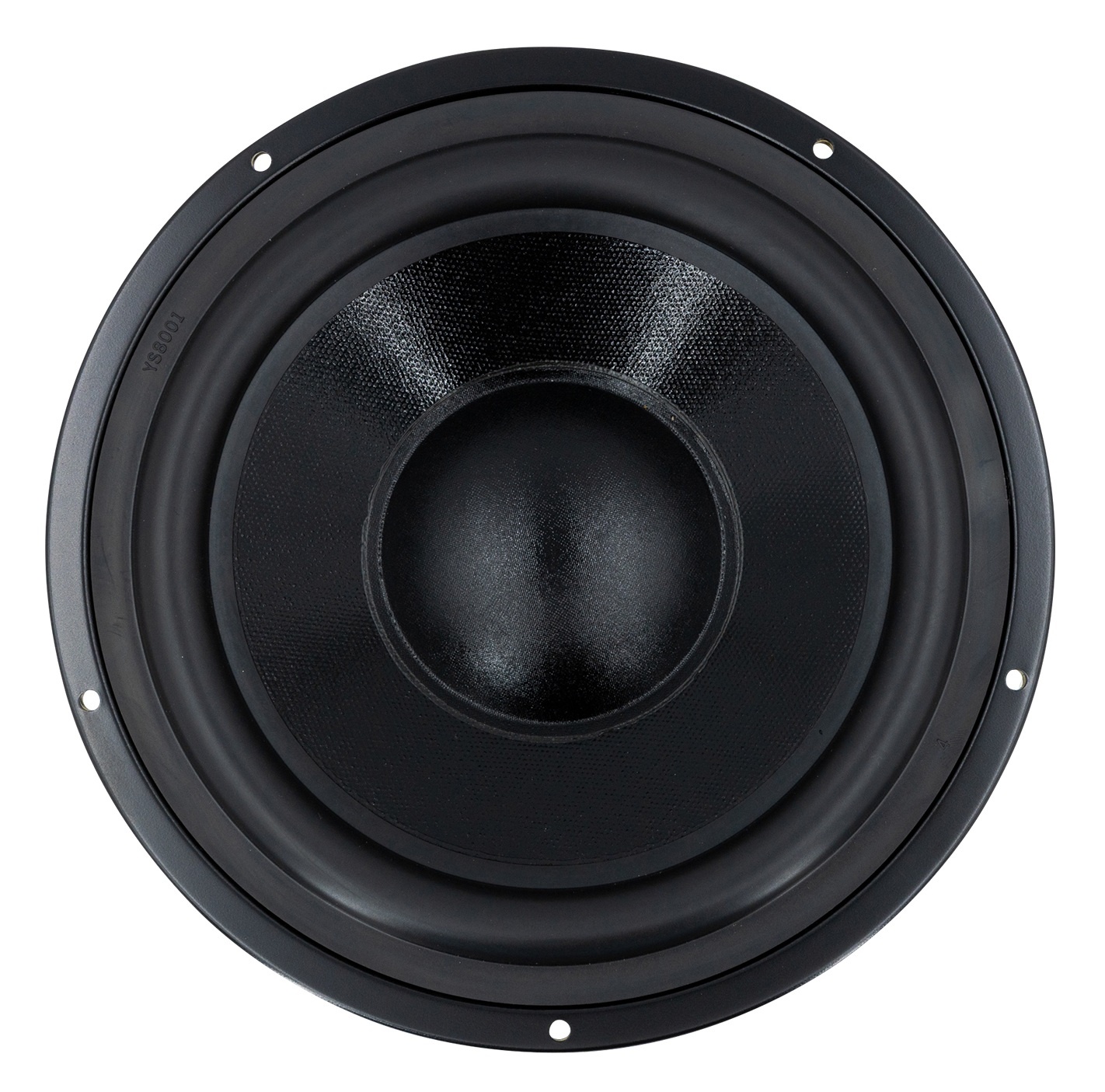

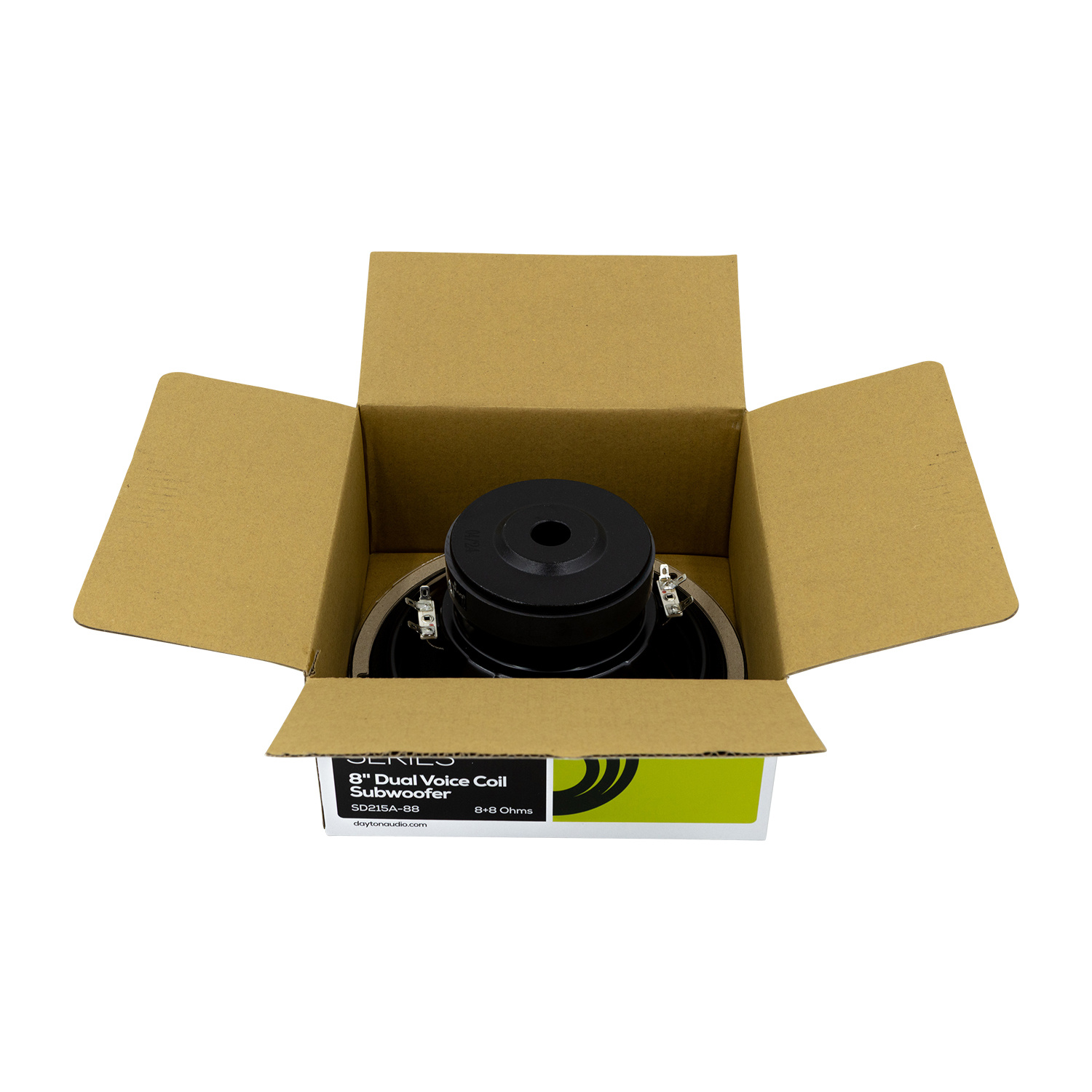

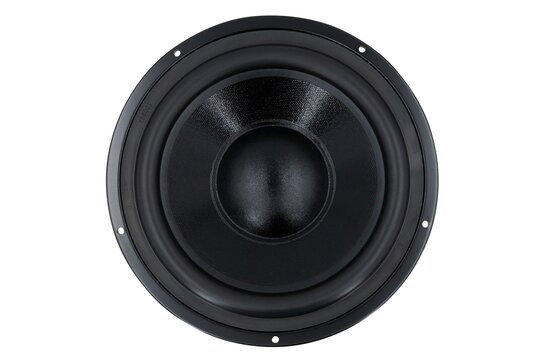

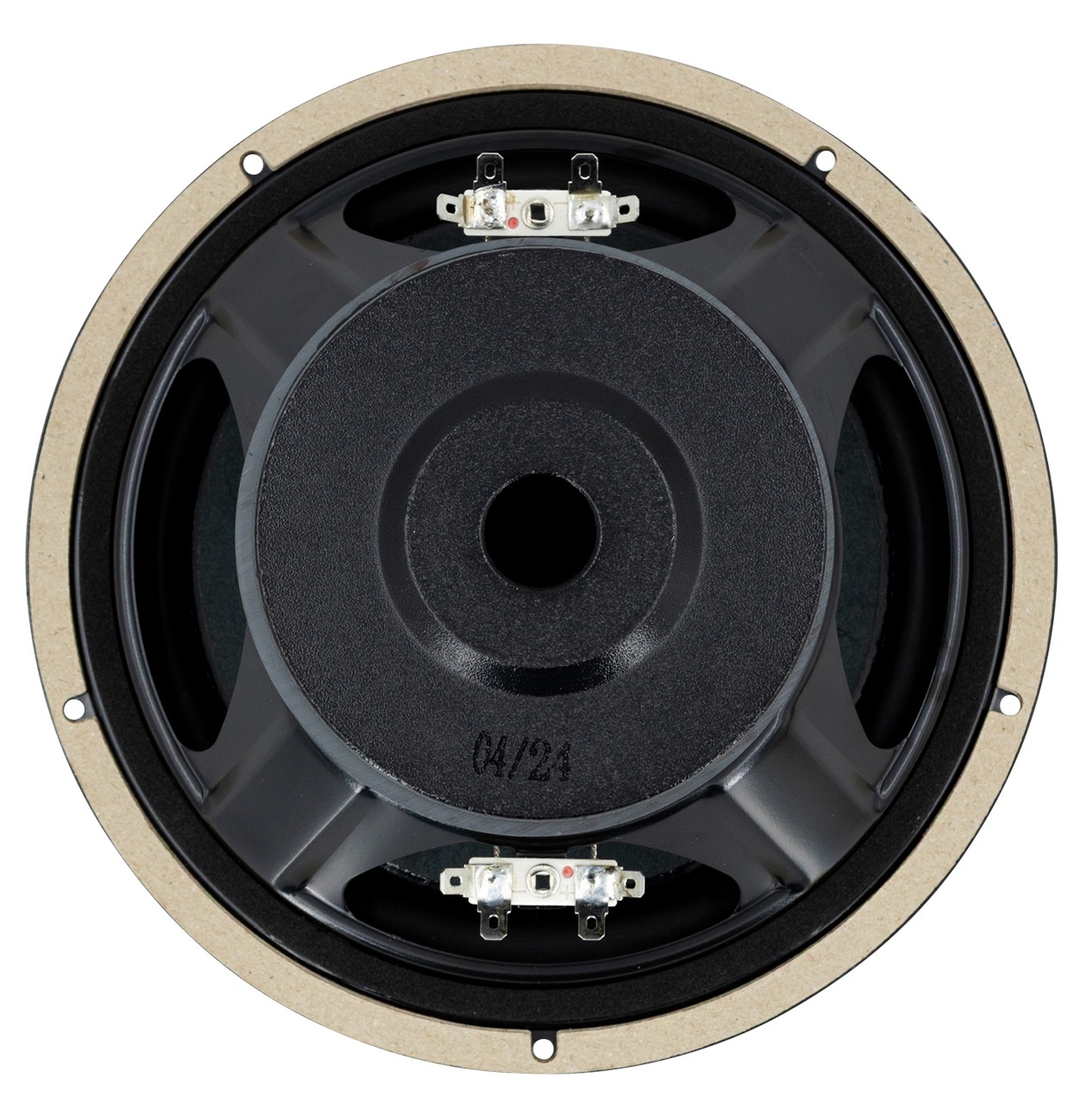

Dayton Audio SD215A-88 8" DVC Subwoofer

€ 41,28€ 49,95 Nicht auf Lager: Lieferzeit beträgt 3 bis 6 Wochen
The Dayton Audio SD215A-88 8" subwoofer speaker is one of the best bang-for-the-buck low frequency drivers available today.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €47,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Dayton Audio SD215A-88 8" subwoofer speaker is one of the best bang-for-the-buck low frequency drivers available today.



Highlights

  • Works equally well in sealed or vented enclosures
  • Attractive gasket-less design
  • Long-life rubber surround for years of reliable service
  • Excellent bottom octave performance



Product details

Dayton Audio SD215A-88 8" DVC Subwoofer

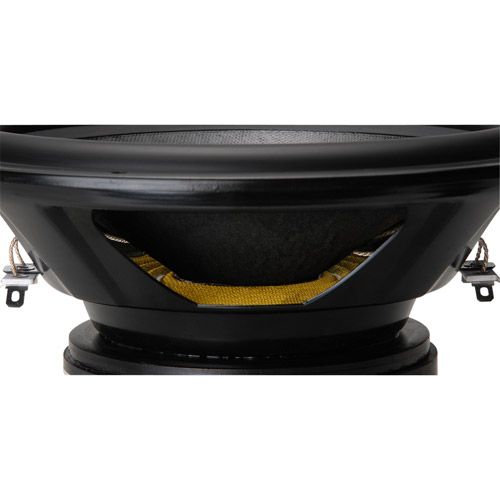

The Dayton Audio SD215A-88 8" subwoofer speaker is one of the best bang-for-the-buck low frequency drivers available today. Dayton Audio DVC Series woofers were designed to offer the maximum performance-per-dollar. The speakers feature poly coated paper cones, wide rubber surrounds, large dual 8 ohm voice coils, vented pole pieces, and bumped back plates. Their healthy Xmax, long-throw construction, and dual voice coils make them perfect for any economical yet high-performing subwoofer speaker system.

Eigenschaften

Artikelnummer:
SD215A-88
Woofer Series
DVC Series
Woofer Type
Subwoofer
Nominal Diameter
8"
Power Handling (RMS)
80 watts
Power Handling (max)
160 watts
Impedance
8+8 ohms
Sensitivity
85.9 dB @ 1W/1m
Frequency Response
31 - 2,500 Hz
Voice Coil Diameter
38.5 mm
DC Resistance (Re)
3.20 ohms
Voice Coil Inductance (Le)
1.16 mH
Resonant Frequency (Fs)
31.0 Hz
Mechanical Q (Qms)
3.10
Electromagnetic Q (Qes)
0.45
Total Q (Qts)
0.39
Diaphragm Mass Inc. Airload (Mms)
42.40 g
Mechanical Compliance of Suspension (Cms)
0.62 mm/N
Surface Area of Cone (Sd)
208.7 cm²
Volume of Displacement (Vd)
125.2 cm³
BL Product (BL)
7.70 Tm
Compliance Equivalent Volume (Vas)
38.2 liters
Maximum Linear Excursion (Xmax)
6.0 mm
Cone / Diaphragm Material
Coated Paper
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Dual Voice Coil
Yes
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
216 mm
Overall Depth
95 mm
Baffle Cutout Diameter
180 mm
# Mounting Holes
5
Sealed Volume
0.33 ft.³
Sealed F3
68 Hz
Vented Volume
0.95 ft.³
Vented F3
38 Hz
