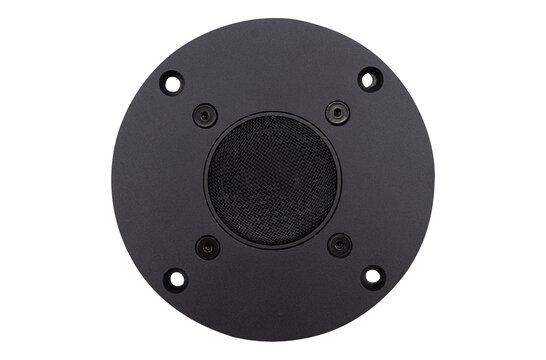

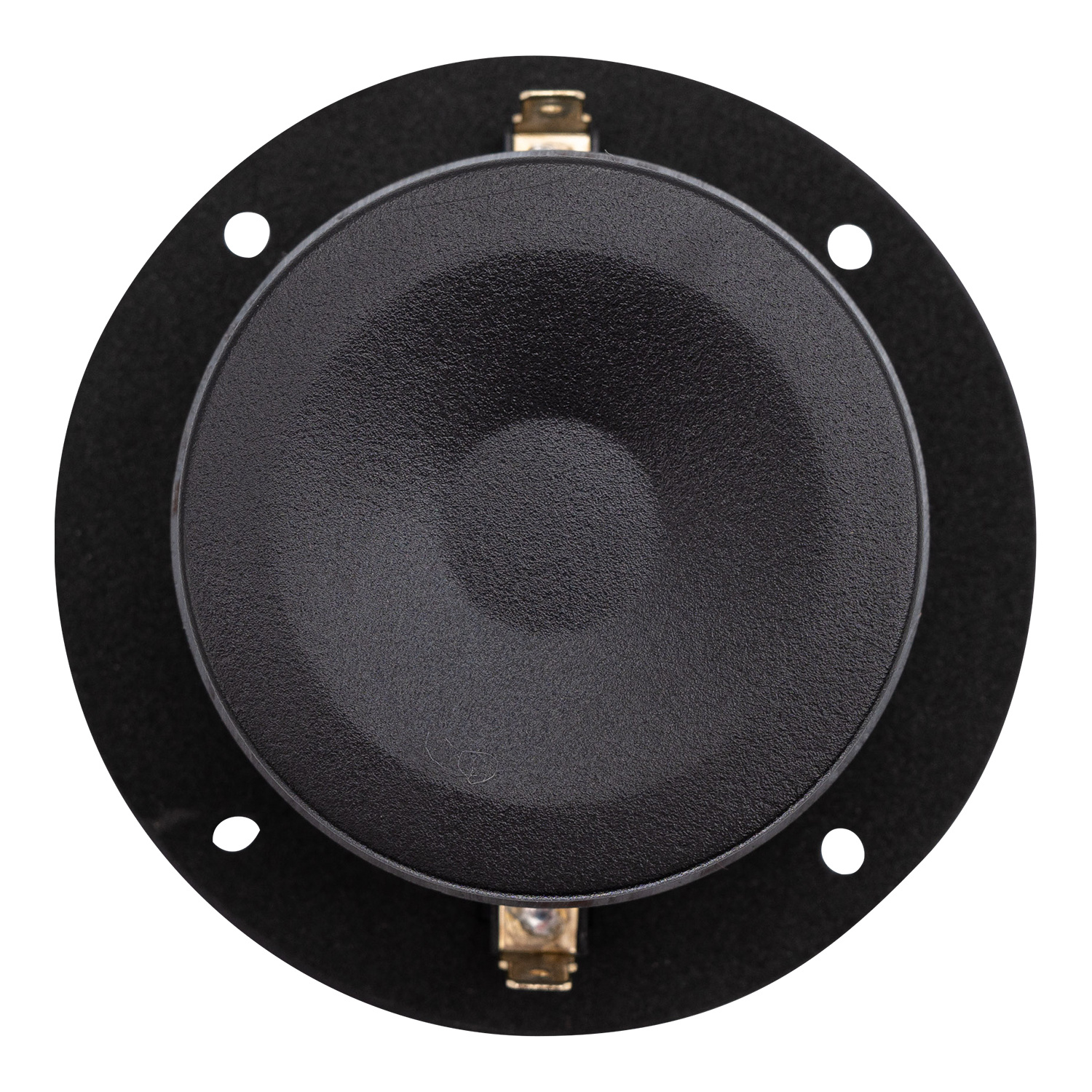

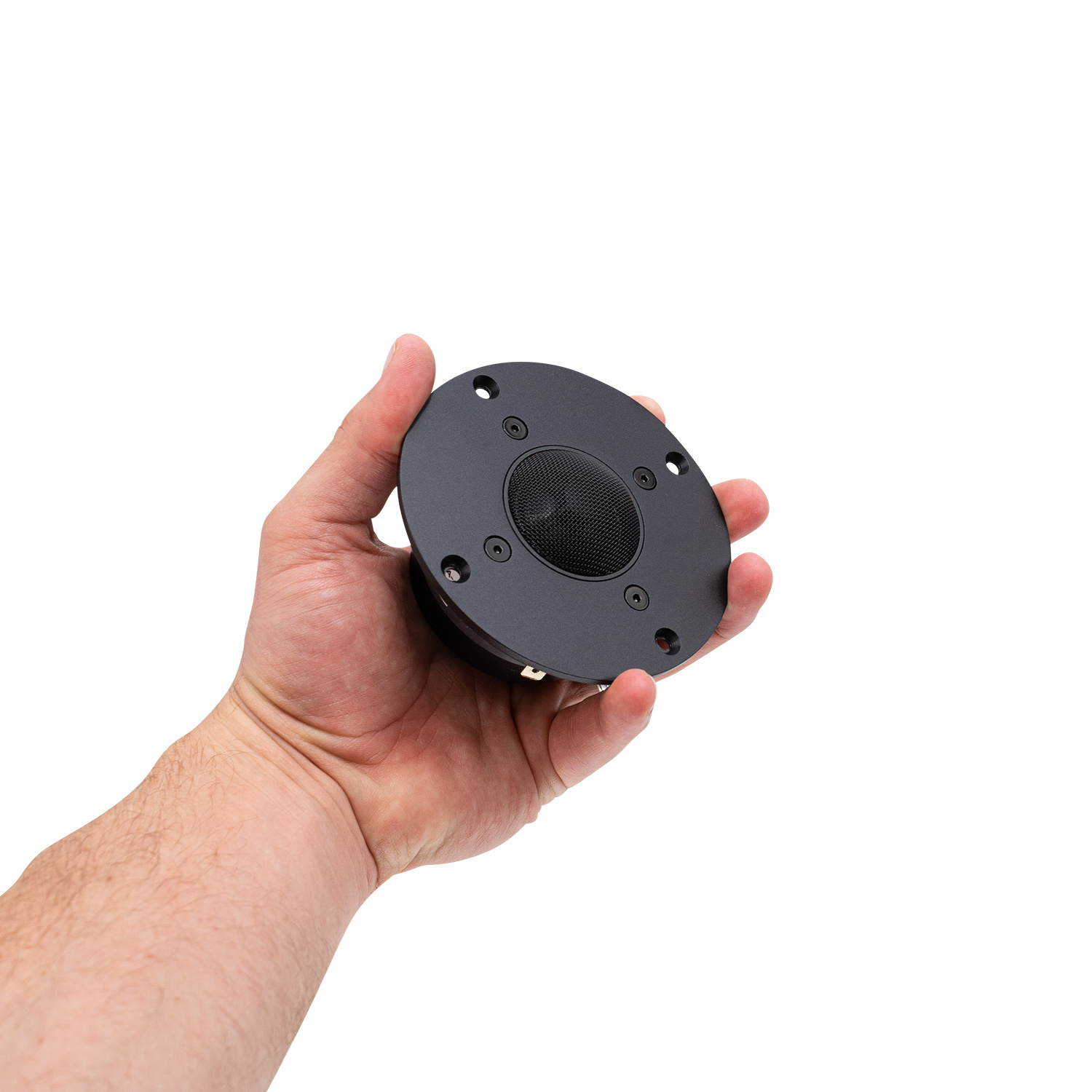

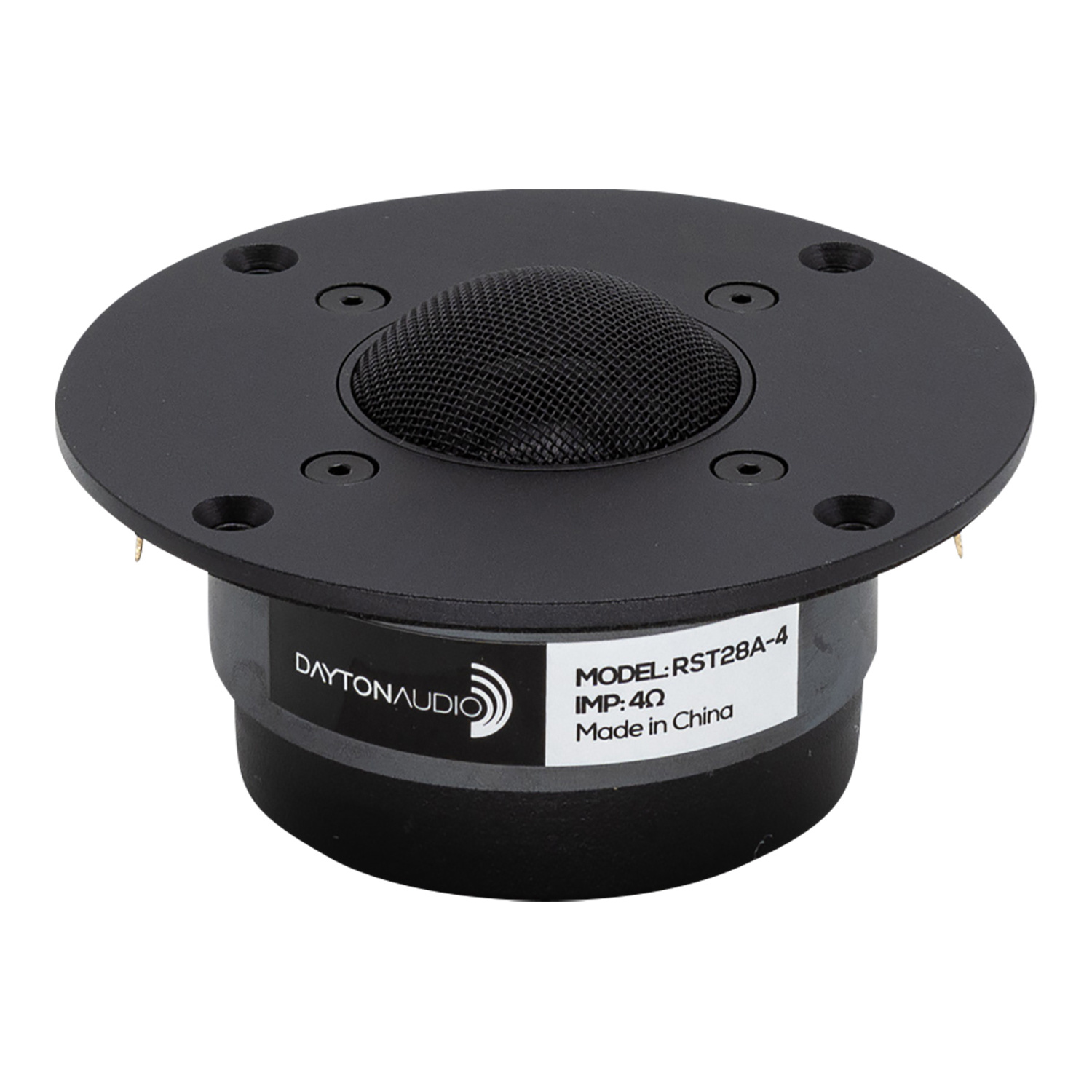

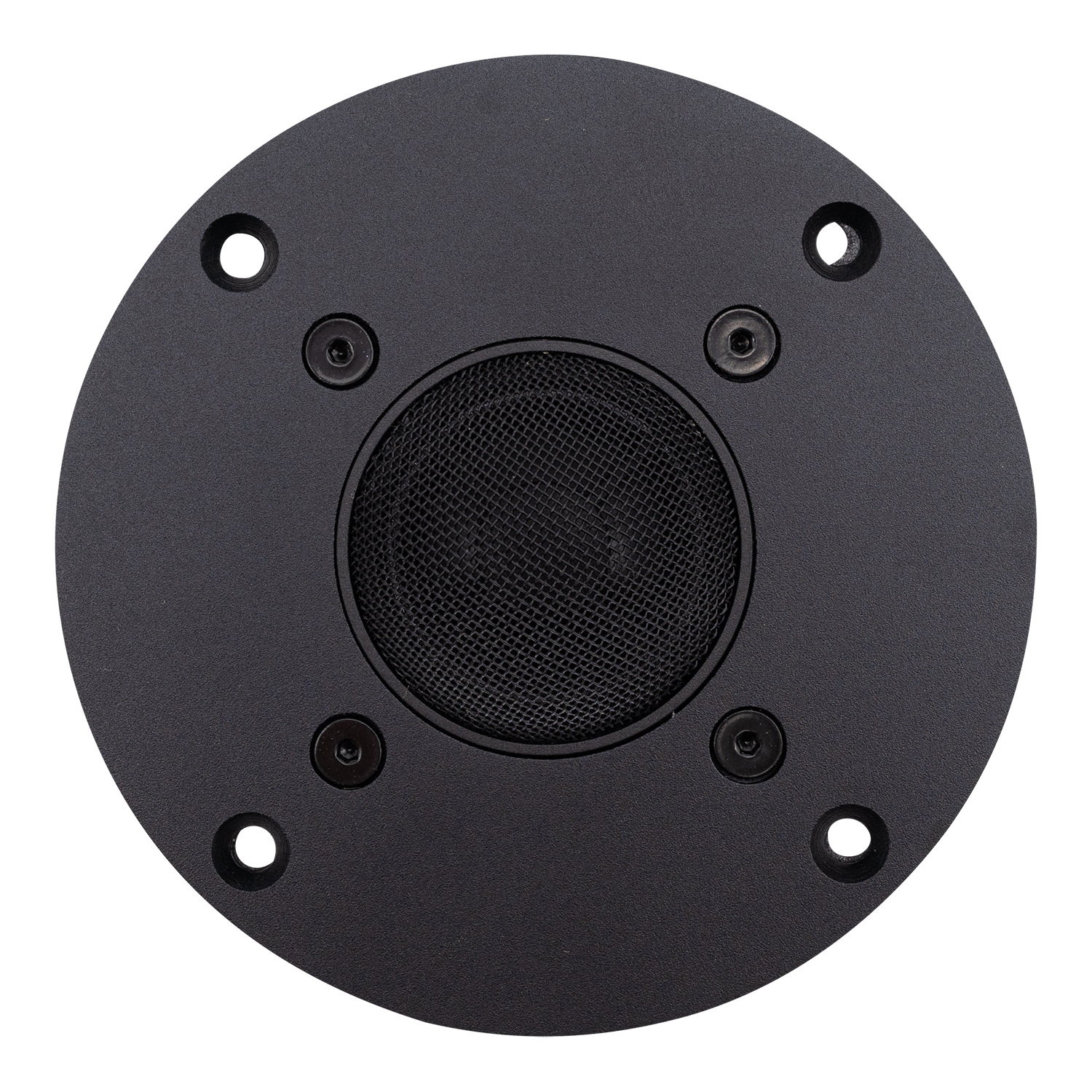

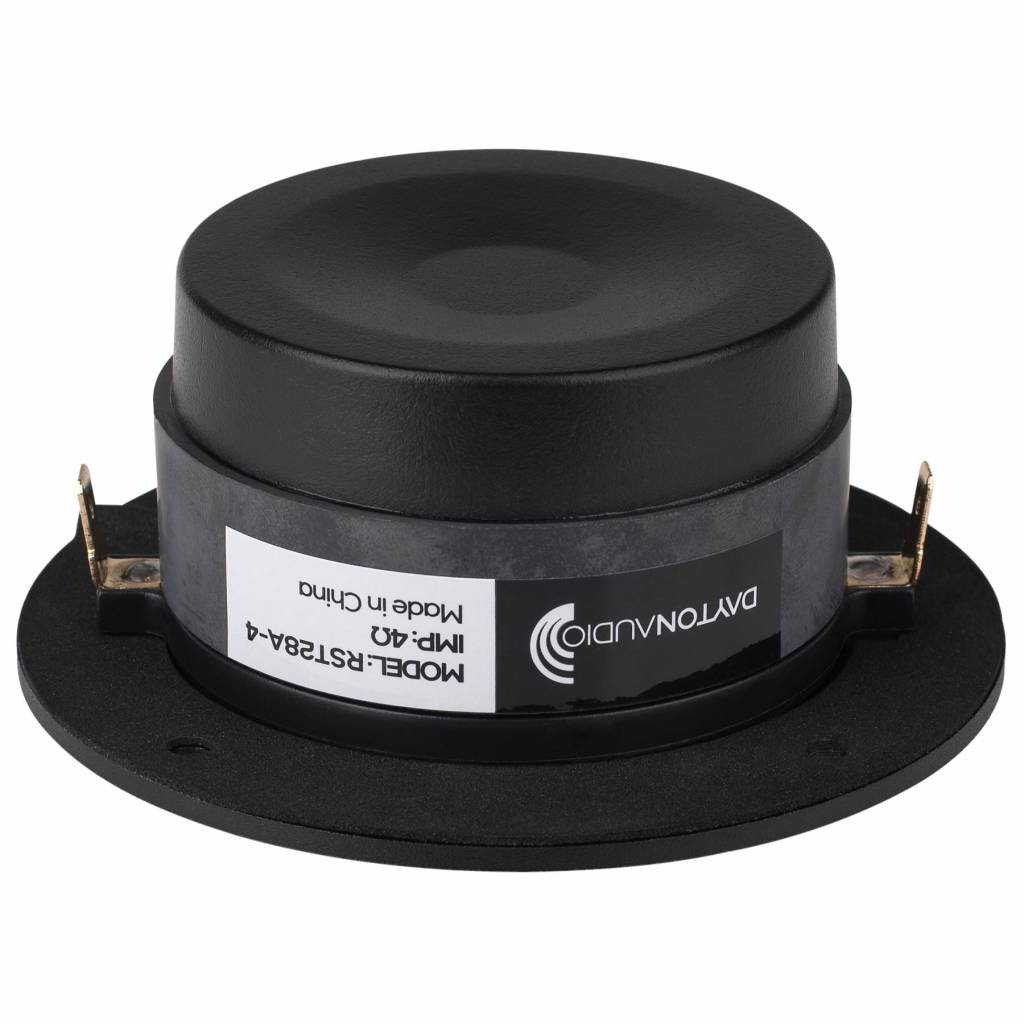

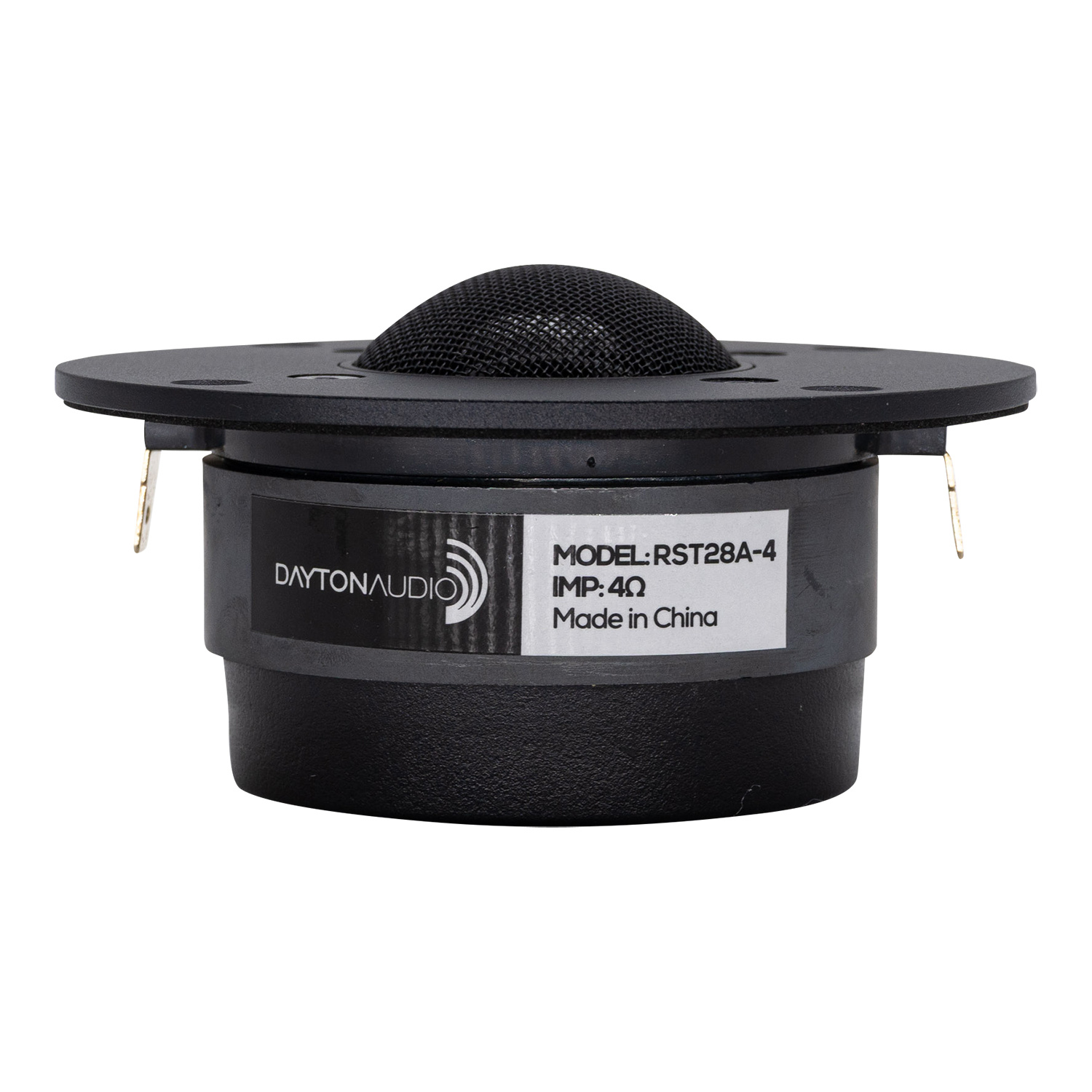

Dayton Audio RST28A-4 1-1/8" Reference Series Aluminum Dome Tweeter 4 Ohm

Marke: Dayton Audio

Alle anzeigen Audio-Komponenten

Vergleichen

1⅛" | 4 Ω

RST28A-4 1-1/8" Reference Series Aluminum Dome Tweeter 4 Ohm

€ 34,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche

Backorder

The Dayton Audio RST28A-4 1-1/8" aluminum dome Reference Series tweeter has remarkable clarity, low free air resonance, exceptional efficiency, and smooth frequency response, a combination seldom found in the industry at any price. This upgrade over the o... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

Highlights

1-1/8" aluminum diaphragm offers remarkable clarity without the typical harshness of metal domes
Exceptional efficiency at 92.5 ±3 dB from 1.5 kHz to 19 kHz and a smooth frequency response
Well-designed phase bridge to balance the response in the upper octave
Tuned rear chamber and high-quality Ferrofluid for excellent low-end response
Low-distortion motor system achieves a rare level of transparency
Matches the performance of even the most expensive audiophile high-frequency transducers

Product details

Dayton Audio RST28A-4 1-1/8" Reference Series Aluminum Dome Tweeter 4 Ohm

The Dayton Audio RST28A-4 aluminum dome Reference Series tweeter offers exceptional efficiency from 1,500 Hz to 20,000 Hz with smooth and well controlled frequency response. This tweeter's unique black anodized 1-1/8" aluminum diaphragm and state-of-the-art motor system not only match the look and features of Dayton Audio's Reference Series woofers and midranges, but also the clean, detailed, and uncolored sound you have come to expect. A specialized damped rear chamber, well-designed phase bridge, rigid mesh grill, and several distortion-reducing paths in the motor are just a few of the features that allow these tweeters to outperform some the most expensive audiophile high-frequency transducers.

Eigenschaften

Artikelnummer:: RST28A-4
Tweeter Type: Metal Dome
Tweeter Series: Reference Series
Cone / Dome Diameter: 1-1/8"
Power Handling (RMS): 80 Watts
Impedance: 4 ohms
Sensitivity: 92.5 dB 2.83V/1m
Frequency Response: 1,500 to 20,000 Hz
Resonant Frequency (Fs): 775 Hz
DC Resistance (Re): 3 ohms
Voice Coil Inductance (Le): 0.03 mH
Mechanical Q (Qms): 2.15
Electromagnetic Q (Qes): 1.65
Total Q (Qts): 0.93
Overall Outside Diameter: 4.125"
Cutout Diameter: 2.875"
Depth: 1.75"

Data sheet
