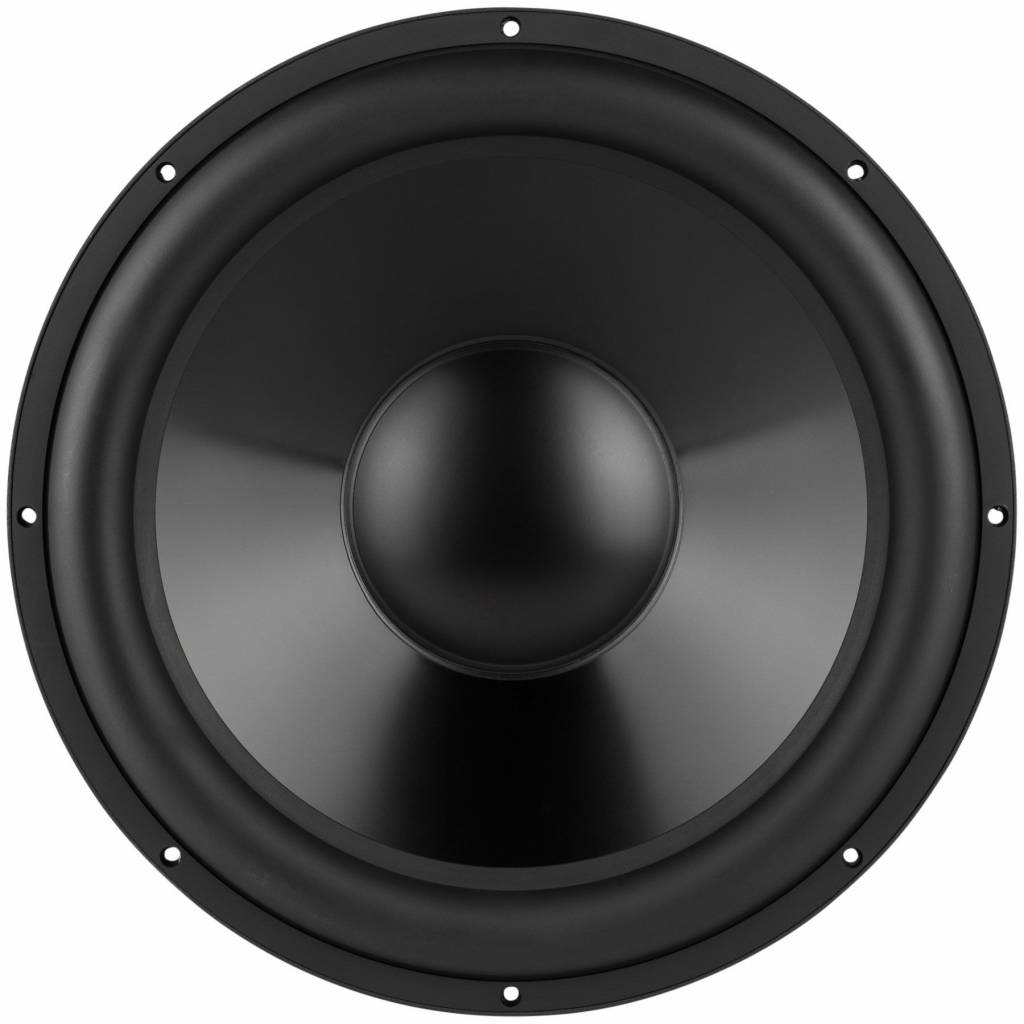

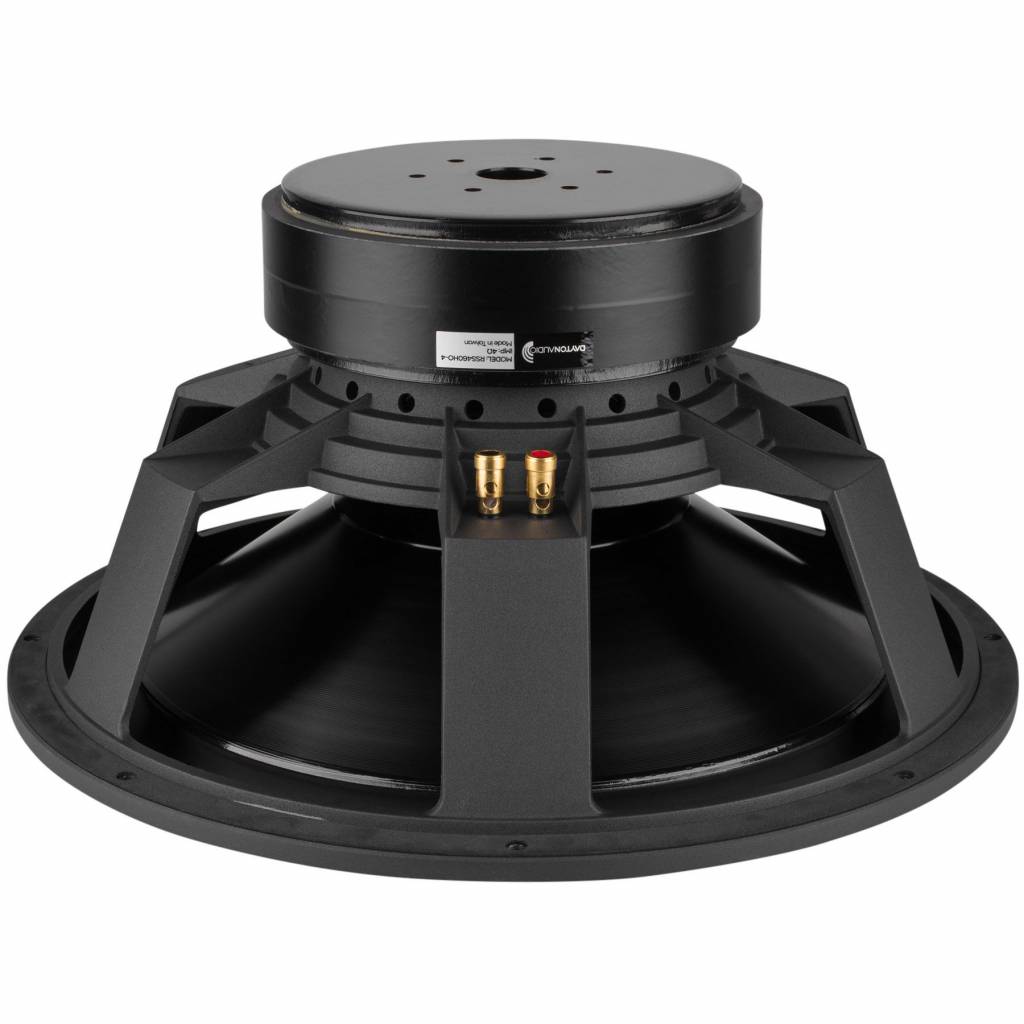

Dayton Audio RSS460HO-4 18" Reference HO Subwoofer 4 ohm

€ 429,95 6 Auf Lager: Lieferzeit 1-3 Werktage
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €408,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.



Highlights

  • Extensively vented motor eliminates compression and allows quiet excursion
  • Extra-thick black anodized aluminum cone for maximum rigidity
  • Triple shorting ring motor for ultra-low distortion
  • 4-layer coil for high power handling
  • Optimized parameters for relatively small enclosures
  • Highest quality materials throughout for long-lasting performance



Product details

Dayton Audio RSS460HO-4 18" Reference HO Subwoofer 4 ohm



The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.



Eigenschaften

Artikelnummer:
RSS460HO-4
Woofer Series
Reference Series
Woofer Type
Subwoofer
Nominal Diameter
18"
Power Handling (RMS)
900 watts
Power Handling (max)
1800 watts
Impedance
4 ohms
Sensitivity
93 dB @ 2.83V/1m
Frequency Response
20 - 500 Hz
Voice Coil Diameter
76.2 mm
DC Resistance (Re)
3.2 ohms
Voice Coil Inductance (Le)
2.24 mH @ 1 kHz
Resonant Frequency (Fs)
18.8 Hz
Mechanical Q (Qms)
4.05
Electromagnetic Q (Qes)
0.35
Total Q (Qts)
0.32
Diaphragm Mass Inc. Airload (Mms)
499g
Mechanical Compliance of Suspension (Cms)
0.14 mm/N
Surface Area of Cone (Sd)
1,164.0 cm²
Volume of Displacement (Vd)
1,484.1 cm³
BL Product (BL)
23.4 Tm
Compliance Equivalent Volume (Vas)
272 liters
Maximum Linear Excursion (Xmax)
12.75 mm
Cone / Diaphragm Material
Black Anodized Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
461.5 mm
Overall Depth
227 mm
Baffle Cutout Diameter
424 mm
# Mounting Holes
8
Sealed Volume
3.04 ft.³
Sealed F3
40 Hz
Vented Volume
7.5 ft.³
Vented F3
23 Hz
